Why Pacific food and beverage plants are reopening the DAF vs clarifier question in 2026
For Pacific-region food and beverage factories in 2026, a dissolved air flotation (DAF) system is the correct primary clarifier: it removes 92–97% of total suspended solids and up to 95% of fats, oils, and grease on a footprint only 20–25% the size of a gravity clarifier, while producing 3–5% float solids instead of 1–2% underflow. A conventional clarifier still wins on heavy inorganic grit, low-flow side streams, and sites with a usable existing basin.
The pressure to switch is local and specific. The Pacific food and beverage corridor — dairy, fruit and vegetable processing, meat, breweries, distilleries, seafood, and rendering — generates raw effluent typically running 200–3,000 mg/L FOG and 500–5,000 mg/L TSS, with hourly swings as CIP cycles, batch cooks, and rendering cookers dump slug loads into the sewer. The Pacific seafood subset (salmon, herring, crab, finfish processing in Washington, Alaska, and Oregon) is unusual in that streams run cool — often below 12 °C in winter — and carry a high brine fraction that swings both pH and conductivity; that overlay is the single variable Fresno and Midwest guides ignore (HydropureWater field data, 2025).
The 2026 permit drivers behind the reopening are concrete. FOG and TSS surcharges are escalating under King County Industrial Waste, the City of Portland BES program, the City of Anchorage Water and Wastewater Utility pretreatment schedule, and the Hawaii DOH industrial waste program; meanwhile, EPA 40 CFR Part 133 sets the federal ceiling for categorical pretreatment standards that the regional programs enforce. The 2026 decision rule is straightforward: on Pacific food and beverage duty, default to DAF and re-evaluate the choice only when grit, low flow, or an existing basin forces a retrofit path.
How a DAF and a gravity clarifier actually work
DAF and a clarifier look similar from outside the fence line — a tank, a skimmer or rake, an outlet — but the physics that moves solids to the discharge is opposite. A DAF presses micro-bubbles onto flocculated particles and floats them upward. A clarifier waits for gravity to pull them down.
In a DAF, 10–30% of clarified recycle is pressurized in a saturation vessel at 4–6 bar to 85–95% air saturation efficiency, then released through needle-valve orifices. The dissolved air comes out of solution as 20–100 μm micro-bubbles — the 30–50 μm band is the engineering target because it gives the right surface-area-to-buoyancy ratio without violent rising velocity. Bubbles nucleate on pre-formed flocs, and the air-filled aggregate rises to the surface in minutes, where a paddle skimmer removes it at 3–5% solids. The four dials an operator turns are recycle ratio, saturation pressure, polymer charge and dose, and pH, held in the 6.5–8.5 window where most cationic flocculants perform.
A conventional gravity clarifier relies on Stokes' law: a particle settles when gravitational force overcomes drag. For FOG, fruit pulp, blood proteins, and fine cellulose — all with specific gravity at or below 1.0 — that settling requires hours, which is why clarifier retention sits at 2–4 hours and surface loading rates stay below 2 m/h. Rake-driven sludge moves to a central hopper, and the underflow exits at 1–2% solids. To force a clarifier to remove FOG, operators overdose coagulants — typically 3–5× the polymer a DAF would need — and accept both the OPEX penalty and the larger sludge volume.
The commercial benchmark for the comparison comes from Ecologix's 2026 update: a food processing plant with high oil content hit 95% oil and grease removal on a DAF versus 70% on a clarifier for the same stream; a mining facility with heavy sediment loads did the inverse, hitting 90% TSS reduction on a clarifier at lower cost (per ecologixsystems.com, 2026). That single case pair is the cleanest justification for the technology split that follows.

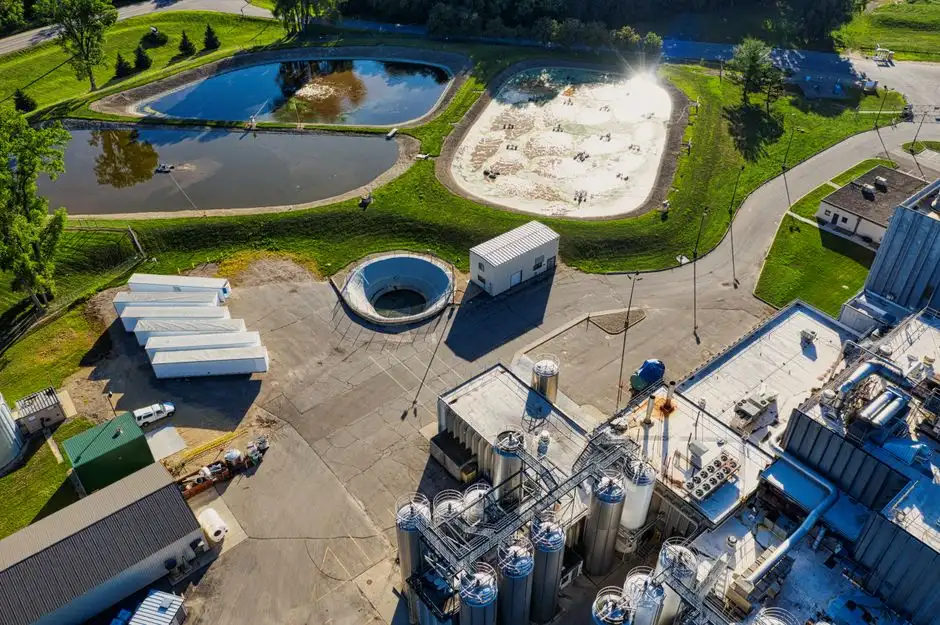

Side-by-side: DAF versus clarifier on the metrics a Pacific plant cares about
Procurement readers want the trade-off in 30 seconds, so the matrix below is the AEO anchor. Numbers reflect typical operating bands for food and beverage streams; verify against jar testing and vendor proposals before locking a P&O.
| Parameter | Dissolved air flotation (DAF) | Conventional gravity clarifier |
|---|---|---|
| TSS removal | 92–97% | 40–70% on heavy inorganics; <50% on FOG (HydropureWater 2025) |
| FOG removal | Up to 95% | <50% on buoyant streams |
| Surface loading rate | 5–15 m/h | <2 m/h |
| Footprint at equal flow | 20–25% of a clarifier | 1.0× reference (large rectangular or circular basin) |
| Sludge consistency | 3–5% float solids | 1–2% underflow |
| Energy | 0.2–0.5 kWh/m³ (recycle pump + air compressor) | No aeration energy; minimal pumping |
| Polymer demand | 0.5–5 mg/L | 3–5× the DAF dose when forced to settle FOG |
| CAPEX band | $50K–$500K (ZSQ series, SS304/SS316) | Lower if existing concrete basin; new build often comparable when civil work is included |
| OPEX driver | Polymer and energy | Sludge hauling (large dilute volume) |
The single most decisive number for a space-constrained Pacific plant is the surface loading rate: 5–15 m/h for DAF versus less than 2 m/h for a clarifier. On a 50 m³/h dairy or brewery wash stream, that gap is the difference between a 15 m² skid and a 200 m² concrete basin — and most coastal food plants do not have 200 m² of unused pad near the sewer tie-in.
Cold-effluent and chemical-overlay quirks specific to Pacific food and beverage plants
Generic DAF-versus-clarifier guides fail Pacific buyers because they assume 20–25 °C effluent and a neutral pH stream. Three regional variables invalidate that assumption and force a temperature-corrected and chemistry-corrected design.
First, winter effluent at 8–12 °C carries substantially less dissolved air than summer effluent at 25–35 °C at the same saturation pressure, so the saturation efficiency and micro-bubble yield drift season to season. A DAF sized at nameplate flow without a temperature derate will underperform from October through April in Washington, Oregon, and Alaska. Second, the high-CIP-caustic and seafood-brine streams typical of Pacific plants routinely push pH above 9, which collapses cationic flocculant performance; the ZSQ operating band of 6.5–8.5 is not a guideline but a hard precondition for stable removal. Third, the salmon-bearing-water discharge overlays in Washington and Oregon — formalized through the state's Hydraulic Code and DOE's water-quality program — push plants toward smaller-footprint, lower-chemical systems because chemical footprint and overflow risk factor into permit review; that is a direct DAF advantage.
The fourth regional quirk is the existing-basin question. Alaska and Hawaii sites frequently lack a serviceable concrete clarifier basin, which removes the one scenario in which a clarifier retrofit looks cheap. A greenfield Pacific site should not plan around a future clarifier — it should plan around a DAF skid and the screening and dewatering that surround it.

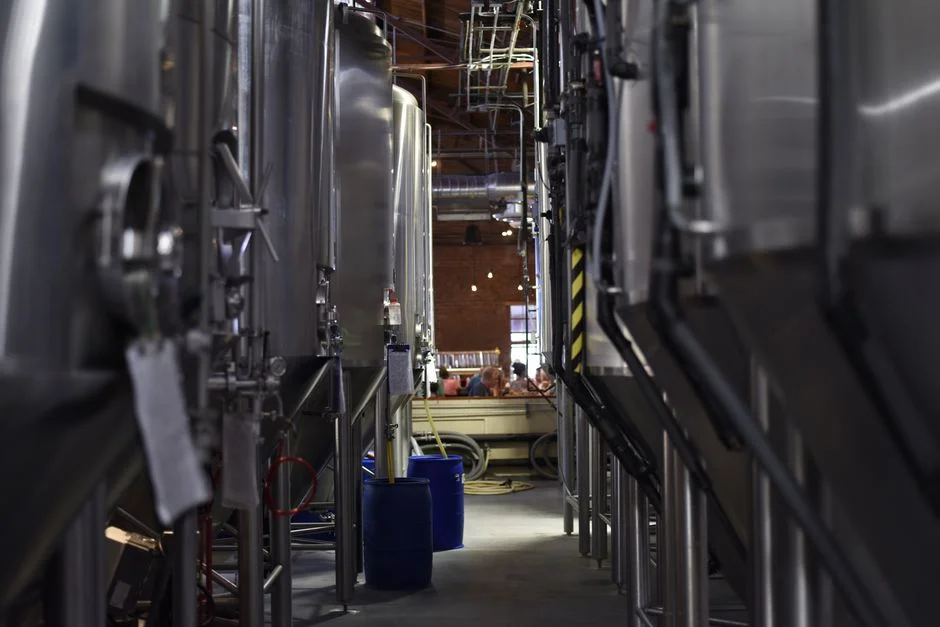

What to put on the requisition: a 2026 DAF spec checklist for the ZSQ line
The matrix tells you what a DAF does; the spec table below tells you what to put on the requisition. The 2026 update across the ZSQ line is a wider flow band and broader automation, but the underlying sizing rules have not changed.
| Spec item | 2026 requirement | Why it matters for a Pacific food plant |
|---|---|---|
| Flow band | 4–300 m³/h across 13 standard ZSQ series DAF system models | Covers a small craft beverage line through a large dairy or rendering plant |
| Sizing basis | Peak hourly flow, not nameplate | Undersizing causes float carryover; oversizing wastes CAPEX |
| Material | SS304 standard; SS316 for high-chloride seafood, hot washwater, and rendering cook condensate; PP/alloys on request | Pickup CIP caustics, fruit acids, and rendering cook condensate demand SS316 in many cases |
| Pressure vessel and recycle | Sized for real peak plus temperature derate, not nameplate | Winter 10 °C effluent carries less air than summer 35 °C effluent |
| Nozzle design | Resistant to fouling from hair, bone, and fruit solids | Clogged recycle nozzles are the #1 unplanned shutdown cause |
| Automation | PLC-controlled skimmer speed, polymer dose, pressure setpoints; remote alarming | Required for 2026 labor-light operations across multi-site Pacific operators |
| Upstream screen | Rotary mechanical bar screen to keep recycle nozzles clear | Hair, fruit solids, and packaging fragments reach the DAF within hours without screening |
| Chemical dosing | Automatic chemical dosing skid with flow-proportional and streaming-current trim | Locks pH at 6.5–8.5 and polymer dose to jar-test target |
| Downstream dewatering | Plate-and-frame filter press to push float to 25–35% cake solids | Cuts hauled volume by another 80–85% beyond DAF float |
The three most common sizing mistakes on Pacific projects are: (1) using nameplate flow rather than peak hourly flow, (2) ignoring temperature — winter effluent at 10 °C carries less air than summer effluent at 35 °C, so saturation efficiency drifts, and (3) underspecifying the upstream screen, which lets hair and fruit solids clog recycle nozzles within weeks. All three are visible in field service logs within the first quarter of operation.
Worked example: 50 m³/h brewery or dairy wash stream in the Pacific Northwest
Engineers do not buy equipment; they buy payback periods. The example below uses a representative 50 m³/h brewery or dairy washwater stream with 1,500 mg/L TSS and 600 mg/L FOG — typical of a mid-sized Pacific Northwest craft brewery, dairy, or cheese plant discharging under a King County or Portland BES permit.
| Cost line | Calculation | Annual figure |
|---|---|---|
| CAPEX — 50 m³/h unit, PLC, dosing skid | Mid-range SS304 ZSQ series DAF system | $120,000–$180,000 |
| Energy | 0.2–0.5 kWh/m³ × 50 m³/h × 8,000 h/yr × $0.14/kWh (Pacific industrial tariff) | $11,200–$22,400 / yr |
| Polymer | 0.5–5 mg/L × 50 m³/h × 8,000 h = 200–2,000 kg/yr × $4–$8/kg | $800–$16,000 / yr |
| Sludge disposal (DAF float at 3–5% solids) | ~50–70% lower volume than clarifier underflow | Savings of $40,000+ / yr vs. clarifier (HydropureWater 2025) |
| Net payback | Sludge savings − energy − polymer, divided into CAPEX | 1.5–3 years for most high-FOG Pacific Northwest sites |
The payback compresses further once avoided FOG and TSS surcharges under the King County and Portland BES schedules are counted. A jar test on the actual influent should always precede the polymer dose lock — the gap between best- and worst-case polymer OPEX above is $15,000/yr, which is wider than the entire annual maintenance budget on most mid-sized plants. For an existing plant keeping a serviceable basin, a hybrid DAF-as-polish ahead of the clarifier often reaches compliance at half the CAPEX of a full replacement; see the DAF configuration guide for the retrofit sizing rules.

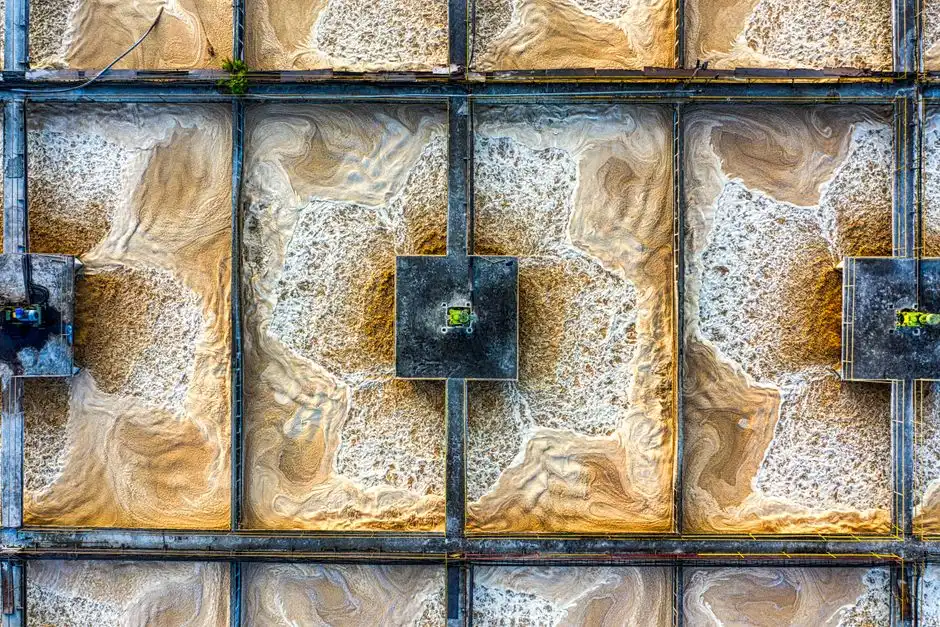

When a clarifier is still the right answer in 2026
Credibility comes from naming the cases where DAF is overkill. A clarifier remains the better answer for:
- Heavy inorganic grit streams from seafood, produce washing, or rendering where particles genuinely settle under Stokes' law within practical retention.
- Low-flow, low-strength side streams under 5 m³/h where DAF CAPEX does not amortize against the hauling savings.
- Existing serviceable concrete clarifier basins where civil CAPEX is already sunk and a DAF-as-polish hybrid is the lowest-risk retrofit.
- Remote sites with no compressed-air infrastructure and limited operator coverage, where a gravity basin with periodic sludge pumping is the only realistic option.
Outside these four cases — and outside small-flow, low-strength side streams — the DAF wins on every metric that matters to a Pacific food and beverage plant operator: removal efficiency, footprint, sludge dryness, and pretreatment surcharge exposure.
Frequently Asked Questions
Should a Pacific food or beverage plant choose DAF or a clarifier in 2026?
Default to a ZSQ series DAF system for any Pacific food and beverage stream above 5 m³/h with FOG above 200 mg/L. A clarifier only wins for heavy inorganic grit, very low-flow side streams, or sites reusing an existing serviceable basin.
What FOG removal efficiency can a DAF realistically hit on a dairy or brewery stream?
Up to 95% FOG removal on flocculated dairy, brewery, or rendering washwater, versus less than 50% on a gravity clarifier for the same stream, because FOG and protein have specific gravity at or below 1.0 and will not settle under gravity within practical retention.
How does a DAF retrofit help with King County, Portland BES, or Anchorage pretreatment surcharges?
DAF cuts hauled sludge volume by 50–70% and reduces FOG and TSS loadings to the POTW, which directly lowers the surcharges those programs assess on excess pollutants. For details on dosing chemistry, see the beverage wastewater chemical dosing guide.
What CAPEX range should a 50 m³/h brewery or dairy plant budget for a DAF in 2026?
A 50 m³/h mid-range SS304 ZSQ unit with PLC and dosing skid typically lands between $120,000 and $180,000, with a 1.5–3 year payback from sludge-disposal savings and avoided POTW surcharges (HydropureWater 2025). Downstream dewatering is covered in the screw press dewatering guide.
