DAF or Clarifier for Plastics & Rubber Wastewater in Seminole, US: 2026 Factory Guide

Why the DAF-vs-Clarifier Question Is Specific to Plastics and Rubber Lines

For a Seminole County plastics or rubber plant, the DAF-versus-clarifier decision is driven by the specific contaminant profile of extrusion cooling water, rubber coagulation bath overflow, mold-release/parts-washer FOG, and latex or compounding wash water — not by generic "industrial wastewater" parameters. These streams carry free and emulsified oils, low-density plasticizer and stabilizer oils, polymer fines, and surfactant-stabilized latex droplets that behave very differently in a flotation cell than in a gravity settler. A typical extrusion cooling-water overflow runs warm (often 35–50 °C) and slightly acidic, and a rubber coagulation bath is commonly pH 2–4 with high surfactant loading — both of which push the design toward dissolved air flotation rather than plain settling.

Federal effluent limits for these operations sit in two specific categorical standards: 40 CFR Part 414 governs rubber manufacturing, with BPT/BAT limits on TSS, oil and grease, zinc, and lead depending on subcategory (per EPA 40 CFR Part 414), and 40 CFR Part 433 governs plastics molding and forming, including resin-bonded filters (per EPA 40 CFR Part 433). A Seminole plant that discharges to a POTW is also bound by the receiving utility's FDEP-approved industrial pretreatment program, which typically enforces FOG limits in the 50–100 mg/L range at the sewer manhole. The free and emulsified oil and low-density polymer-fine load in these streams — not the raw TSS number — is what determines whether a DAF or a clarifier is the right primary separator.

For background on how primary physical separation still belongs upstream of any biological or membrane polishing — even in modern reuse trains — the IWC 25-20 paper "Rethinking MBR Plant Layouts" makes the point directly: membrane tanks are not simply replacing clarifiers, and a well-conditioned primary separator remains the front line of defense for any downstream MBR (per IWC 25-20, Joncquez, Alfa Laval).

How a DAF and a Clarifier Actually Separate Solids in a Plastics/Rubber Stream

A DAF unit saturates a pressurized side stream (typically 5–8 bar) with air, then releases that stream through needle valves into the flotation cell, generating a cloud of 30–50 µm micro-bubbles that attach to conditioned floc and lift it to the surface in 3–5 minutes of hydraulic residence (per SigmaDAF equipment specifications). That mechanism is exactly what a plastics or rubber feed needs: buoyant FOG, emulsified latex droplets, and low-density plasticizer oils all benefit from bubble attachment, because they are already near-neutral buoyancy and will not settle reliably in a clarifier. A properly designed ZSQ series dissolved air flotation system handles the float layer with a paddle skimmer and discharges the clarified underflow from the bottom of the cell.

A HydropureWater high-efficiency lamella clarifier does the opposite job: it relies on gravity settling of heavier suspended solids, with inclined plates that raise the effective surface loading to 20–40 m/h and compress the footprint versus a conventional basin. The mechanism works well on mineral TSS and plastic pellet wash water with no oil, but it struggles with anything near-neutral buoyancy — emulsified oil and latex tend to escape over the effluent weir rather than settle to the underflow.

Both units require coagulation and flocculation upstream. The standard 2026 workflow is a chemical dosing skid feeding a serpentine floc tube or mechanical mix tank, where pH is adjusted (often to 6.5–7.5 with caustic or lime), a coagulant such as PAC or ferric chloride is added, and a high-molecular-weight anionic flocculant builds the floc before it enters the separator. On rubber coagulation bath streams at pH 2–4 with high surfactant loading, this pH adjustment and coagulant dose is non-negotiable — without it, neither a DAF nor a clarifier will perform to spec, and the operator will blame the equipment for what is actually a chemistry problem.

DAF vs Clarifier for Plastics and Rubber: Parameter-by-Parameter

For a properly conditioned plastics or rubber feed, the removal ranges below describe what a well-designed unit can deliver in 2026. DAF units typically achieve 85–98% FOG removal and 70–92% TSS removal on these streams (per SigmaDAF performance data); a lamella clarifier on the same feed delivers roughly 50–80% TSS removal but only 30–60% FOG removal, because most of the floatable oil escapes over the weir (HydropureWater field data, 2026). The clarifier wins on hydraulic throughput per unit area, but loses decisively on the contaminant that drives compliance risk for a Seminole discharger.

Two practical numbers drive the head-to-head. A Compact DAF skid handles flows up to 66 GPM (≈15 m³/h) on a single pre-assembled skid; larger flows go modular (per SigmaDAF Compact DAF architecture). A lamella clarifier of the same hydraulic capacity is typically taller and heavier, often requiring a civil pour and a longer equalization buffer — the clarifier's longer residence time (1–2 h versus 15–30 min for a DAF) directly sets the size of the upstream buffer tank you must budget for.

When a DAF Is the Right Choice in 2026

For a Seminole plastics or rubber plant in 2026, a DAF is the correct primary separator in four specific cases, and any of them is enough on its own to justify the choice. First, if the combined influent FOG is above roughly 50 mg/L — typical of mold-release wash water, parts-washer overflow, or rubber coagulation bath carry-over — a DAF is the only single unit that will reliably float that oil. Second, if the site is a tight retrofit inside an existing plant, a skid-mounted ZSQ series dissolved air flotation system can be set on a pad, piped, and started in a day, with no large civil pour. Third, if the FDEP pretreatment permit or the local POTW ordinance sets a tight FOG limit at the sewer manhole, a DAF is the proven workhorse — the lamella alternative cannot hit those numbers consistently on this kind of feed. Fourth, if a future biological or MBR polishing step is in the 5-year plan, the DAF acts as the primary that protects the membranes, exactly the point made in the IWC 25-20 paper on MBR plant layouts: membrane tanks are not simply replacing clarifiers, and a floc-and-float front end is what keeps MBR flux stable.

When a Lamella Clarifier Is the Better Pick

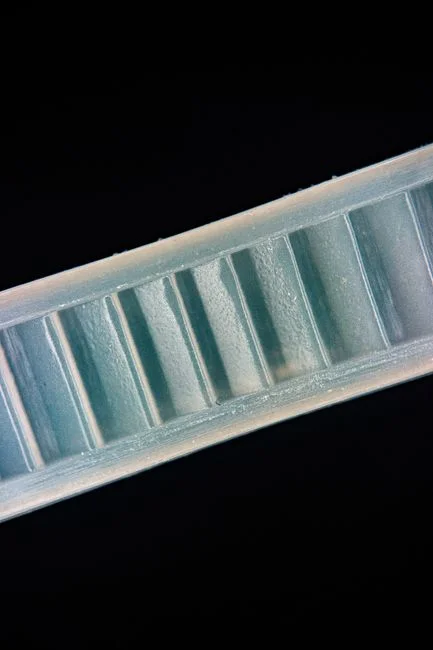

There are equally legitimate cases in 2026 where a lamella clarifier is the better answer, and a credible recommendation has to acknowledge them. A HydropureWater high-efficiency lamella clarifier is the right pick when the waste stream is low-FOG, mostly mineral TSS — for example, plastic pellet wash water with no oils, or a rubber compounding area where dust capture and dilution water are the main load. Inclined plates at 20–40 m/h of surface loading will polish this cheaply, and the operator avoids the compressor, saturator, and bubble-generation system that a DAF carries. A lamella is also a strong thickener ahead of a plate and frame filter press for high-solids rubber compounding wash water where the goal is volume reduction, not floatable removal. On a budget-constrained new line where FOG is well below 30 mg/L and the receiving sewer has a generous oil limit, the clarifier can be the right capex call — provided the engineer has confirmed the chemistry upstream. Finally, the lamella is the right secondary polish downstream of a DAF or after biological treatment to catch carry-over solids, which is how serious 2026 designs are typically configured.

2026 Cost-of-Ownership Snapshot for a Seminole Plant

The 2026 capex ordering for a Seminole plant is reasonably predictable. A lamella clarifier is typically the cheaper stainless or FRP tank per m³ of flow, because it has no saturator, no recycle pump, and no air-compression system. A skid-mounted DAF is comparable or slightly higher once you include the chemical conditioning skid, air compressor, recycle pump, and PLC controls. The OPEX picture, however, inverts the ranking for many FOG-loaded feeds.

Two line items usually tip the 2026 economics. First, sludge hauling: a DAF float at 3–6% dry solids dewaters on a filter press to 18–25% cake, which is a fraction of the haul volume compared to a clarifier underflow pumped out at 1–2% (HydropureWater field data, 2026). Second, compliance risk: a single FOG exceedance under an FDEP or POTW permit typically costs more in surcharges, sampling labor, and corrective-action hours than the entire annual OPEX difference between the two units. For a Seminole plant with a typical 30–60% polymer-and-coagulant share of DAF OPEX, optimizing dose on a PLC-controlled chemical dosing skid is the single highest-leverage OPEX move available in 2026 — see the PAC vs alternative coagulant selection guide for the dose-economics side of that decision.

Recommended Process Train and How to Specify It in 2026

For a typical Seminole plastics extrusion or rubber coagulation line in 2026, the defensible process train is: rotary bar screen → flow equalization (≥6–8 hours) → pH and temperature adjustment → chemical dosing skid (coagulant + flocculant, PLC-controlled) → DAF → optional lamella clarifier as polish → biological or membrane treatment if water reuse is targeted → plate and frame filter press on the DAF float. Start with a rotary mechanical bar screen to protect downstream equipment from polymer stringers and pellet carry-over, then equalize long enough to absorb the sharp slug loads a plastics extrusion line generates — a 15-minute DAF cannot absorb a 10× hydraulic slug on its own.

On the specification side, hold the DAF to 304 stainless steel as a baseline and require 316SS or polypropylene for plasticizer- and acid-rich rubber streams (per SigmaDAF material options). Specify a 30–50 µm bubble size and a PLC-controlled chemical dosing system to keep the air-to-solids ratio steady through shift-to-shift influent swings. For broader context on DAF sizing, removal rates, and cost-of-ownership benchmarks, the 2026 DAF engineering guide with removal rates and costs is the closest reference, and the 2026 MBR vs alternatives engineering comparison covers the downstream polishing step that often follows the DAF in a reuse train.

Frequently Asked Questions

Is a DAF or a clarifier better for plastics extrusion cooling water in Seminole?

For plastics extrusion cooling water in a Seminole plant, a DAF is the correct primary separator when the stream carries mold-release oils, plasticizer carry-over, or polymer fines that approach neutral buoyancy. A lamella clarifier only becomes attractive when the cooling-water overflow is essentially mineral TSS with no oil, in which case inclined plates at 20–40 m/h will polish it cheaply without the saturator and compressor that a DAF requires (per SigmaDAF equipment specifications).

What federal effluent limits apply to a rubber plant in Florida discharging to a POTW?

A rubber manufacturing plant in Florida is covered by 40 CFR Part 414, with BPT/BAT effluent limits that vary by subcategory but consistently regulate TSS, oil and grease, zinc, and lead (per EPA 40 CFR Part 414). On top of the federal categorical standard, the plant must satisfy the FDEP-approved industrial pretreatment program of the receiving POTW, which typically enforces FOG limits in the 50–100 mg/L range at the sewer manhole.

How is a Compact DAF skid sized for a small plastics line?

A Compact DAF skid is sized for flows up to 66 GPM (≈15 m³/h) on a single pre-assembled unit, with chemical conditioning equipment, sensors, a control panel, and the DAF cell integrated on one skid (per SigmaDAF Compact DAF architecture). Flows above 66 GPM are handled as modular two-skid systems, which keeps the install a one-day pad-and-pipe job instead of a civil-works project.

Can a lamella clarifier replace a DAF for FOG removal on a rubber coagulation bath?

No, not as a single primary unit. Rubber coagulation bath overflow at pH 2–4 with high surfactant loading produces emulsified oil and latex that is near-neutral buoyancy, and a lamella clarifier typically achieves only 30–60% FOG removal on that feed (HydropureWater field data, 2026). A DAF is the correct primary; a lamella is the right secondary polish downstream of the DAF, not a replacement for it.
