Why Transportation Equipment Wastewater in Huntsville Is a DAF vs Clarifier Question in 2026
NAICS 336 transportation equipment manufacturing — motor vehicles, aerospace product and parts, heavy-truck, and railroad rolling stock — generates a wastewater matrix that almost always carries free oil, emulsified oil, and metalworking fluid at concentrations that defeat a plain settling basin. Huntsville's industrial base is anchored by the Redstone Arsenal and Boeing, Lockheed Martin, Polaris, and Yulista supply chains, with stamping, machining, and assembly shops routinely discharging TSS in the 200–1,500 mg/L range and FOG in the 200–1,500 mg/L range (HydropureWater field data, 2026). Coolants (TRIM VPF, CIMSTAR, Tap Magic), phosphate-based cleaners, drawing compounds, and stamping oils drive the FOG load; shot-blast grit and machining swarf drive the TSS load.
The compliance hook is local and unforgiving. The City of Huntsville Industrial Pretreatment Program sets categorical discharge limits for any industrial user discharging to the sanitary sewer, and Alabama DEM Chapter 335-6 establishes the state's industrial pretreatment narrative criteria. A FOG excursion is one of the fastest ways to trigger a Notice of Violation in the Huntsville service area, so the primary clarifier has to remove oil on the first pass rather than rely on a downstream biological or membrane polish step to clean it up.
The decision rule is binary at the chemistry level: if FOG is present at meaningful concentration, an industrial DAF system for transportation equipment wastewater wins because micro-bubbles attach to oil droplets and lift them; if FOG is negligible and TSS is high, a lamella clarifier wins because plate settlers handle grit and swarf cheaply. SigmaDAF documentation confirms that DAF technology should be paired with coagulation and flocculation to grow floc the micro-bubbles can attach to, which is why a properly designed DAF cell outperforms gravity separation on oily streams (SigmaDAF/Clearwater Industries, 2026).
DAF vs Lamella Clarifier: Head-to-Head on the Numbers That Matter
Side-by-side parameter table for a 2026 capital request memo, using OEM-published benchmarks for both technologies on the same influent class (TSS 500–2,000 mg/L, FOG 200–1,500 mg/L):
| Parameter | Dissolved Air Flotation (DAF) | Lamella / Gravity Clarifier |
|---|---|---|
| TSS removal at 2,000 mg/L loading | 92–98% (DAF Corp FC Maximizer, 2026) | 50–80% on the same oily matrix |
| FOG removal with chemical conditioning | 80–95% | 40–60% |
| Surface loading rate | 5–25 m/h depending on model | 20–40 m/h (HydropureWater catalog benchmark) |
| Footprint per m³/h of treated flow | 0.05–0.15 m² | 0.20–0.50 m² for lamella; larger for conventional rectangular |
| Micro-bubble size | 20–50 microns (S4, S5) | N/A — settling only |
| Chemical consumption (coagulant + flocculant) | Baseline reference | Up to 30% lower with lamella recirculation (HydropureWater catalog) |
| Sludge consistency out of unit | 2–4% solids (S5) | 1–3% solids |
| Standard material of construction | 304SS, optional 316SS or polypropylene (S4) | Concrete basin with 304/316 internals; polypropylene plates common |
| Flow range of standard product line | 48–11,000 GPM (S5) | Wide, but custom-built for >500 GPM |
| CAPEX profile | Lower at 48–450 GPM (skid DAF) and 6–70 ft circular (S5); higher at very large flows | Lower material cost at very large flows, but civil works drive installed cost up |
| OPEX drivers | Polymer dose, saturator air, skimmer power, sludge hauling | Lower chemical use, larger basin cleaning cost |
| Best-fit influent | FOG >100 mg/L and/or TSS <2,500 mg/L | FOG <50 mg/L and TSS >2,500 mg/L |
The breakpoint is sharp. FOG above 100 mg/L almost always tips the decision to DAF, because the micro-bubble contact mechanism physically attaches to oil droplets and floats them in seconds — a lamella plate cannot do that. A lamella clarifier for high-TSS low-FOG industrial wastewater becomes the right answer when the stream is essentially mineral — grit, swarf, sandblast dust — with no oil sheen to interfere with plate settling.
Material of construction matters in Huntsville. Aerospace Tier-1 shops use chloride-rich cleaning chemistries that pit 304SS, so specifying 316SS or polypropylene wetted parts is a routine line item (SigmaDAF, 2026).

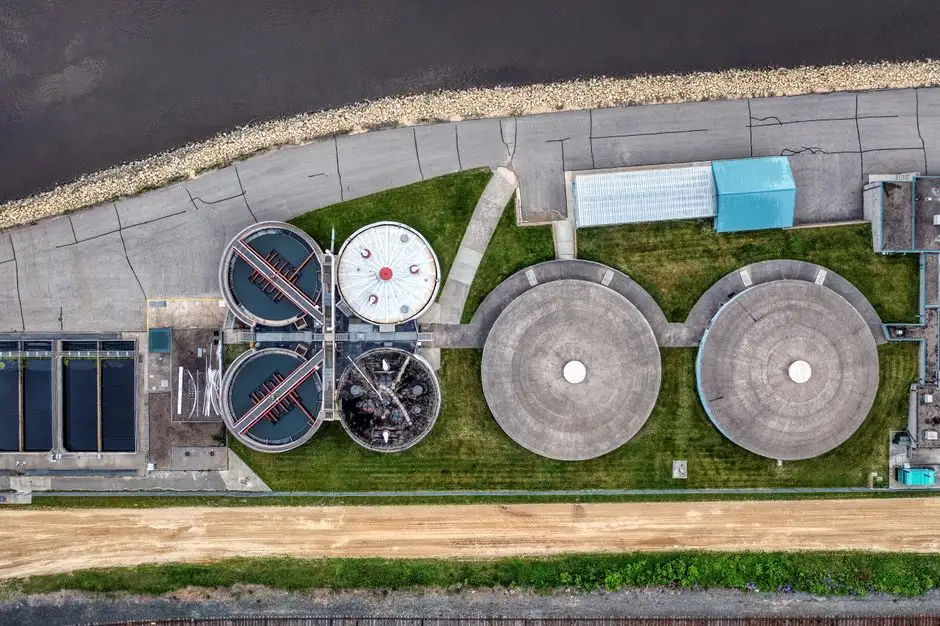

How a DAF System Treats Transportation Equipment Wastewater Step by Step

Step 1 — Equalization and pH adjustment. Flow from stamping, machining, and parts-wash stations is batchy, so an equalization basin with mechanical mixing dampens hydraulic and load surges. pH is conditioned to the optimum band for the chosen coagulant; metal coagulants (alum, PAC, ferric chloride) typically operate at pH 6.5–7.5 per the Engelhardt review of coagulation and flocculation fundamentals (Engelhardt, Hach, 2014). Bad pH control here is the single most common reason DAF effluent carries visible floc.
Step 2 — Coagulant and flocculant dosing. A PLC-controlled coagulant and flocculant dosing skid feeds polymer into a serpentine floc mix tube or chemical mix tank, growing a dense floc that the micro-bubbles can attach to. SigmaDAF specifies that efficient chemical conditioning increases solids size and improves bubble contact — without it, removal rates drop by 20–30 percentage points (SigmaDAF, 2026).
Step 3 — Saturator and micro-bubble generation. Pressurized air is dissolved in a side-stream saturator at 60–80 psi and released through nozzles. DAF Corp's Micro Bubble Generator produces consistent 20–40 micron bubbles with no coarse air, 24/7; SigmaDAF's range is 30–50 microns. Small bubbles have high surface-area-to-volume ratios, which is what makes the flotation mechanism work on emulsified oil (DAF Corp, 2026; SigmaDAF, 2026).
Step 4 — Contact and float zone. Flocculated solids and oil droplets enter the DAF cell, attach to micro-bubbles, and rise to the surface in roughly 3–5 minutes. A paddle skimmer scrapes the float layer into a sludge trough; heavier settleable solids drop to a bottom auger and are removed separately.
Step 5 — Clarified effluent and sludge handling. Subnatant is the treated stream that meets Alabama DEM Chapter 335-6 and the City of Huntsville Industrial Pretreatment Program envelope. Float sludge at 2–4% solids is pumped directly to a filter press for DAF float sludge dewatering for cake solids of 25–35%, which cuts hauling cost and protects landfill capacity (DAF Corp, 2026).
Optional polish: plants targeting closed-loop reuse of rinse water often route DAF subnatant to an MBR or activated sludge system to strip dissolved BOD and reduce surfactant fouling on downstream RO.
When a Lamella or Gravity Clarifier Beats DAF in a Huntsville Plant
The honest counter-recommendation: a lamella clarifier is the right primary when the stream is high-TSS, low-FOG, and the plant already owns the basin footprint. A rail-car sandblasting facility that washes off sodium bicarbonate and garnet, or a heavy-truck chassis wash line where detergent has already lifted the oil, can run FOG below 50 mg/L and TSS above 2,500 mg/L. In that envelope, inclined plate settlers do more work per dollar than a DAF cell.
Lamella plates multiply the effective settling area inside a small footprint, with surface loading of 20–40 m/h versus roughly 1–2 m/h for a conventional rectangular clarifier (HydropureWater catalog, 2026). The geometry also recirculates settled solids back through the floc blanket, which improves flocculation and cuts coagulant demand by up to 30%.
Even in clarifier-dominant plants, a small DAF polish step is often added upstream of the plates to strip trace oil. Oil fouling on lamella plates is the most common cause of unplanned cleaning shutdowns in metalworking shops, and a 25–50 GAF compact DAF on a slipstream prevents it (SigmaDAF, 2026).

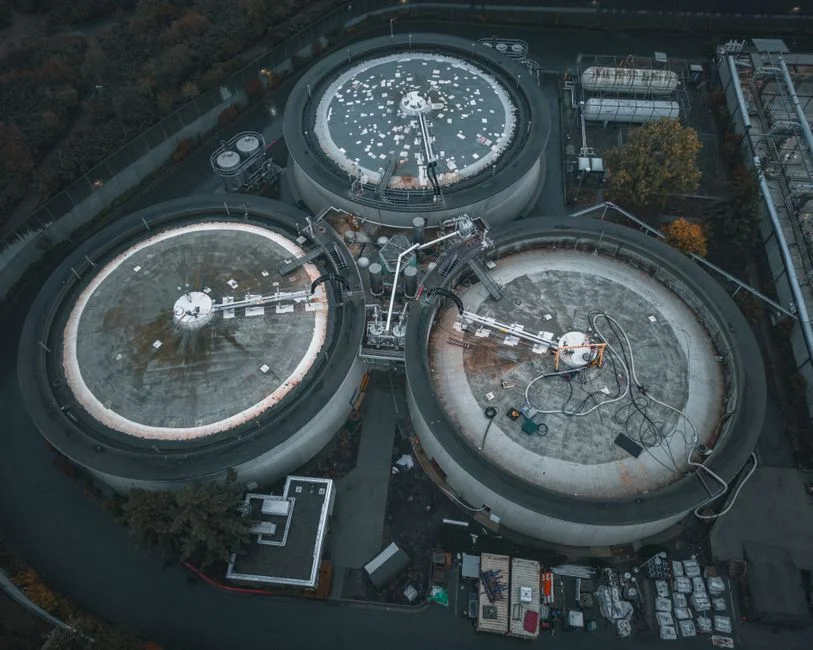

2026 Selection Framework for Huntsville Transportation Equipment Plants

Step 1 — Characterize the influent. Pull representative composite samples over one full production week. Measure TSS, FOG, pH, flow (GPM, with peak and minimum), and temperature. A stamping cell with TRIM coolant and a shot-blast cabinet on the same header will produce a blended sample that misrepresents both streams if sampled at the wrong time.
Step 2 — Check the compliance envelope. Confirm the design effluent against Alabama DEM Chapter 335-6 and the City of Huntsville Industrial Pretreatment Program. FOG limits are typically 100 mg/L daily max; TSS limits are commonly 250 mg/L daily max for categorical industrial users — verify against the current city ordinance before committing CAPEX.
Step 3 — Apply the breakpoint rule. FOG above 100 mg/L → DAF. FOG below 50 mg/L and TSS above 2,500 mg/L → lamella clarifier. Everything in between → DAF with chemical conditioning tuned for the actual FOG/TSS ratio.
Step 4 — Size for peak flow with 25% turn-down. Most Huntsville plants run two shifts with a maintenance skeleton on weekends, so a skid-mounted industrial DAF system in the 48–450 GPM range covers the majority of Tier-2 and Tier-3 aerospace and stamping shops (DAF Corp, 2026). Above 1,000 GPM, factory-fabricated circular units in 6–70 ft diameters become the most cost-effective engineered option.
Step 5 — Confirm material compatibility. 304SS handles most coolants and stamping oils. 316SS or polypropylene is the right call for chloride-rich aerospace cleaners, peroxide-passivated rinses, and any stream that has been pH-corrected with ferric chloride at high TDS (SigmaDAF, 2026). Document the basis of design in a written memo to satisfy EHS audit requirements.
CAPEX, OPEX, and 2026 Cost Reality for Huntsville Buyers
Skid-mounted compact DAFs in the 48–450 GPM range carry materially lower installed CAPEX than custom concrete clarifier basins of equivalent capacity, primarily because civil works, anchor bolts, and field piping are eliminated (DAF Corp, 2026). Above 1,000 GPM, factory-fabricated circular DAFs in 6–70 ft diameters are the most cost-effective engineered option and ship pre-wired and pre-piped.
OPEX for DAF is driven by polymer dose, saturator compressed air, skimmer power, and sludge hauling. DAF float sludge at 2–4% solids feeds a plate-and-frame press efficiently, which keeps the dewatering train compact and reduces cake-haul tonnage (DAF Corp, 2026). Clarifier OPEX is lower on chemistry but is offset by larger footprint, basin cleaning, and the cost of any DAF polish step added upstream.
For CAPEX-constrained Tier-2 and Tier-3 suppliers around Redstone Arsenal in 2026, skid DAFs under 450 GPM are usually the lowest-risk primary clarifier choice for both greenfield and retrofit installations. The procurement memo should cite the 92–98% TSS benchmark, the 2–4% sludge benchmark, and the local compliance envelope in the same paragraph as the capital line — that is the format the EHS director and the plant manager both want to see.
Frequently Asked Questions
What influent FOG and TSS levels push a Huntsville transportation equipment plant toward DAF over a clarifier?
FOG above 100 mg/L or TSS below 2,500 mg/L on a stream that also carries emulsified oil from coolant, drawing compound, or stamping oil is the decision trigger. Below FOG 50 mg/L and above TSS 2,500 mg/L, a lamella clarifier is more cost-effective (HydropureWater field data, 2026).
How much TSS and FOG removal can a properly sized DAF system deliver on coolant and stamping oil waste?
Expect 92–98% TSS removal at 2,000 mg/L loading and 80–95% FOG removal with chemical conditioning, producing float sludge at 2–4% solids. DAF Corp's FC Maximizer publishes these numbers as standard, with effluent TSS often below 50 mg/L (DAF Corp, 2026).
Which Alabama and City of Huntsville discharge limits govern an oily wastewater DAF installation in 2026?
Alabama DEM Chapter 335-6 sets the state's industrial pretreatment narrative criteria, and the City of Huntsville Industrial Pretreatment Program sets local numeric limits — typically FOG 100 mg/L daily max and TSS 250 mg/L daily max for categorical industrial users discharging to the sanitary sewer. Always confirm against the current city ordinance before final design.
What micro-bubble size range should be specified for coolant and aerospace cleaning chemistries?
Specify 20–50 micron micro-bubbles from a dedicated saturator or micro-bubble generator, and pair the unit with a serpentine floc mix tube or chemical mix tank for proper floc growth. 304SS is the standard material; specify 316SS or polypropylene for chloride-rich aerospace cleaners (SigmaDAF, 2026).
What is the lowest-risk primary clarifier choice for a Huntsville Tier-2 or Tier-3 aerospace supplier under 450 GPM in 2026?
A skid-mounted DAF in the 48–450 GPM range is the lowest installed-CAPEX option and removes both TSS and FOG in a single unit, qualifying the effluent for the City of Huntsville Industrial Pretreatment Program envelope with margin. A small upstream lamella clarifier is unnecessary on these flows unless the stream is already oil-free (DAF Corp, 2026).
