Primary Clarifier Design Criteria: 2026 Engineering Specs & Sizing Guide

What Do Primary Clarifier Design Criteria Require?

Primary clarifier design criteria center on surface overflow rate (SOR) of 32–48 m³/m²·day at average flow and 80–120 m³/m²·day at peak hourly flow, with hydraulic detention time (HDT) of 1.5–2.5 hours. Sidewater depth enables those rates. Well-designed units remove 50–65% of TSS and 25–35% of BOD, holding primary sludge at 3–5% solids under a 1–3 ft blanket.

An alternative formulation from Randall, Barnard & Stensel ties allowable SOR to sidewater depth (SWD). At average flow, SOR ≤ 2.184 × SWD² (m³/m²·day). At peak hourly flow, SOR ≤ 4.368 × SWD². Both limits apply for SWD between 1.83 and 3.05 m. Performance is measured against TSS, BOD, and phosphorus removal, and against primary sludge condition — septicity, concentration, and volume. All four metrics feed directly into downstream biological and solids-handling unit sizing. For the underlying tank mechanics, see this primary clarifier working mechanics reference.

Surface Overflow Rate and Hydraulic Detention Time: The Metcalf & Eddy Reference

Average-flow SOR of 32–48 m³/m²·day is the starting point for any Basis-of-Design calculation. Peak hourly SOR of 80–120 m³/m²·day typically governs the sizing decision, because storms and diurnal industrial discharges push the tank into the higher band (Voutchkov 2017, citing Metcalf & Eddy). HDT of 1.5–2.5 hours is the companion check. Shorter residence produces TSS carryover that overfeeds the aeration basin. Longer residence lets the sludge blanket go septic, raising effluent BOD and generating hydrogen sulfide in the scum box.

Circular and rectangular tanks achieve equivalent SOR values. Circular geometries dominate secondary clarification for mechanical-sludge-removal reasons, but primary units are commonly built in either configuration depending on footprint, influent distribution, and existing headworks layout (per Fehr-Graham). Feed-well sizing is a related hydraulic control: diameter 15–25% of tank diameter, extending 30–75% of SWD, dissipates inlet jet energy and prevents short-circuiting (Voutchkov 2017). Most plants we size for municipal-strength industrial feed run near the lower end of the average SOR band unless wet-weather peaking is severe.

Sidewater Depth, Sludge Blanket, and Sludge Concentration

SWD for primary settling tanks is typically 1.83–3.05 m (6–10 ft) per the Randall, Barnard & Stensel range cited in Voutchkov (2017), with modern installations trending toward 3.5–4.0 m to gain wet-weather margin. Operators should maintain a sludge blanket of 1–3 ft and avoid "carrying" a blanket. Septicity degrades effluent quality and downstream BOD removal, and releases odors and sulfide that corrode the scum trough and downstream piping (Voutchkov 2017; Fehr-Graham). The optimum primary sludge concentration is 3–5%. Pumping more dilute sludge to digesters or to a filter press sized for primary sludge is one of the most common downstream-solids-handling cost drivers, because thinner feed drives higher polymer dose and longer cycle times.

For facilities exposed to prolonged wet-weather events, Fehr-Graham recommends designing SWD to at least 4.3–5 m to prevent sludge blanket washout. That value is not in the Randall formula but is supported by full-scale wet-weather operating data. Tank depth interacts with the SWD-based SOR formula. At 4.5 m SWD, the Randall peak SOR ceiling becomes 4.368 × 4.5² = 88 m³/m²·day. That remains below the 120 m³/m²·day upper band of Metcalf & Eddy, which is why the deeper tank is the conservative choice in storm-prone service areas.

Expected Removal Efficiencies: TSS, BOD, Nitrogen, and Phosphorus

Conventional primary clarification removes 50–65% of TSS and 25–35% of BOD, plus 5–10% of influent nitrogen and phosphorus under typical municipal loading (Voutchkov 2017). These numbers set the mass balance for every downstream unit. Secondary aeration tank volume, return-activated-sludge pump capacity, and solids-handling train sizing all flow from the primary effluent load. A frequently missed consequence — well documented in Voutchkov's BNR discussion — is that omitting primary clarification forces a 50–70% increase in secondary sludge production. That increase in turn requires larger aeration basins to maintain the same food-to-microorganism ratio.

On the other side, chemical addition (coagulant plus micro-sand ballast plus inclined tubes/lamellas) can raise particulate-P removal to 90% (Voutchkov 2017; Fehr-Graham). Driving total-P below approximately 2 mg/L in the primary effluent can starve the downstream activated-sludge biomass of the phosphorus it needs for cell synthesis, degrading BNR performance. Coordinate the chemical dose with the downstream nutrient-removal targets, not against the settling tank's standalone P-removal number. When teams ask how to design a primary clarifiers package for BNR plants, that phosphorus floor is the first permit check we run.

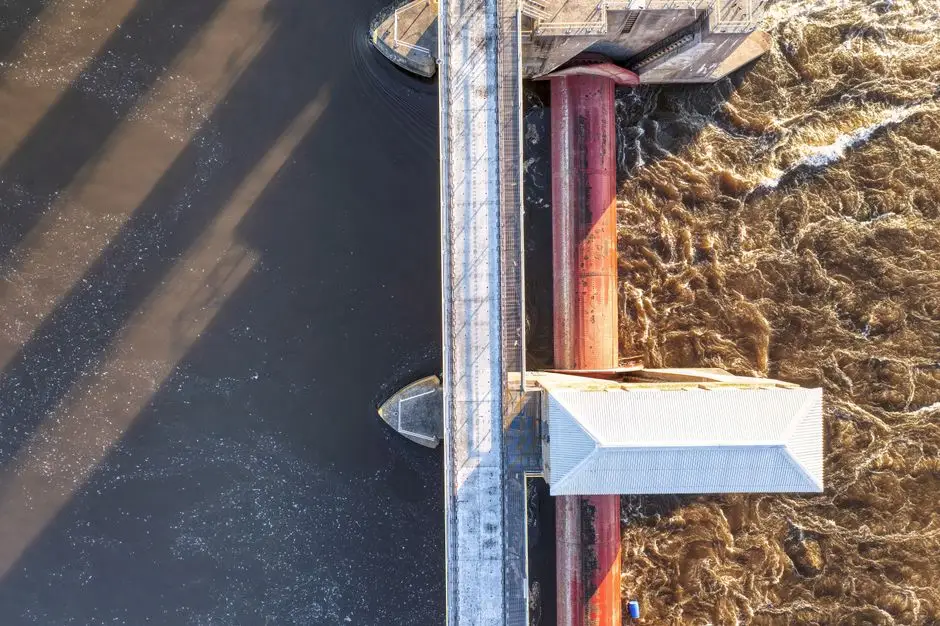

Influent Variability and Upstream Dependencies That Change the Design Basis

A settling tank cannot be sized in isolation — three upstream unit operations shift the design basis meaningfully. First, grit removal: excess grit carryover from poorly operated grit chambers can increase primary sludge solids by 10–30% and overload the sludge collection mechanism (Voutchkov 2017, citing industry data). Second, I&I control: implementing an effective infiltration and inflow reduction program typically cuts plant influent by 5–25%, which improves clarifier performance and is itself a capacity lever rather than a capital cost. Third, flow equalization: pre-aeration in an equalization basin improves settling performance. Voutchkov (2017) cites Hubbard et al. (2001) showing the Lake Buena Vista, Florida 20 MGD nutrient-removal plant lifting activated-sludge and secondary-clarifier capacity from 9.3 MGD (35,000 m³/day) to 11.5 MGD (44,000 m³/day) by adding off-line equalization basins.

A rotary mechanical bar screen for headworks screening upstream protects downstream sludge collection equipment from ragging and is standard for B2B plants with significant fibrous load. Each of these dependencies changes the SOR/HDT band that will actually work in service, so they belong in the basis-of-design report alongside the clarifier itself.

How Do You Select a Clarifier System for Industrial Wastewater?

Clarifier system selection for industrial wastewater starts with the peak-to-average flow ratio, the TSS/BOD split, and whether oil, grease, or colloidal solids dominate the load. Gravity primary settling is the cheapest BOD and TSS removal step in a wastewater plant, and the design details are routinely overlooked (Fehr-Graham). For municipal-strength industrial feed at the lower Metcalf & Eddy peak SOR band, a conventional rectangular or circular unit sized to 32–48 m³/m²·day average SOR delivers 50–65% TSS and 25–35% BOD removal at minimum capex.

Use this short checklist before locking tank geometry:

• Confirm average and peak hourly flows with winter and wet-weather factors.
• Set target TSS/BOD removal and any particulate-P credit needed for the permit.
• Fix available SWD from grading or existing tankage, then check SOR against both Metcalf & Eddy and Randall formulas.
• Size sludge withdrawal for 3–5% solids and a 1–3 ft blanket.
• Re-check downstream dewatering capacity if CEPT or ballast will raise sludge mass.
• Verify headworks grit and screening will not overload the sludge collectors.
• Document the peak wet-weather ratio; above about 2× average, evaluate CEPT or a deeper SWD.

Engineers comparing hardware envelopes often start from a primary clarifier selection brief, then overlay site-specific peaking and BNR constraints.

How Do Primary, Secondary, Lamella, and DAF Design Criteria Differ?

Primary, secondary, lamella, and DAF units obey different controlling rates even when they share a plant flowsheet. Primary settling is sized mainly on SOR and HDT as listed above. Secondary clarification is usually limited by solids loading rate and sludge settleability rather than by the primary Metcalf & Eddy SOR band. Lamella packs multiply effective settling area, so footprint shrinks while sludge mass and hydraulic short-circuiting risk rise if inlet distribution is poor. A lamella clarifier for footprint-constrained primary treatment is the typical hardware envelope when site area is the constraint.

Where floatable oils or low-density solids dominate, a Dissolved Air Flotation (DAF) System is often a better primary solids separator than gravity settling alone. Chemically enhanced primary treatment (CEPT) adds coagulant and micro-sand ballast plus inclined tubes (lamellas), and serves as a wet-weather alternative to expanding biological capacity (Fehr-Graham; Voutchkov 2017). The same high-solids separation facility can flex between primary-clarifier duty in wet weather and effluent-polishing-clarifier duty in dry weather (Voutchkov 2017).

CEPT is the right call where hydraulic peaks would otherwise wash out the sludge blanket, typically when peak wet-weather flow exceeds 2× average. It also fits where partial particulate-P removal is a permit driver and biological P removal alone is insufficient. Note that CEPT increases primary sludge mass significantly because of the coagulant and ballast. The downstream filter press sized for primary sludge must reflect the higher cake volume.

Selection Framework: Matching Design Criteria to Site Conditions

Default to the Metcalf & Eddy 32–48 m³/m²·day SOR and 1.5–2.5 hr HDT for municipal-strength industrial wastewater. Switch to the Randall SWD-based formula when SWD is fixed by site grading or by an existing tank geometry, because the formula ties SOR directly to the depth you actually have. Add CEPT when peak wet-weather flow exceeds roughly 2× average, or when the downstream process is a BNR train and particulate-P credits are required to meet the permit. Increase SWD toward 4.3–5 m where prolonged wet weather is expected, to protect the sludge blanket from washout (Fehr-Graham).

Coordinate the final choice with downstream solids handling. Lamella and ballasted systems produce more sludge mass, so the sludge dewatering design criteria for the dewatering unit must be rechecked. If operating problems emerge after start-up, this primary clarifier troubleshooting reference covers the seven most common data-backed fixes. The decision tree compresses to four inputs: feedwater variability, downstream BNR sensitivity to phosphorus, peak wet-weather ratio, and site SWD constraint.

Who This Is For / Next Step

Plant engineers, EPC process leads, and procurement managers use these criteria when sizing or retrofitting gravity primary settling ahead of biological treatment. Teams chasing floatables-heavy or very fine colloidal loads should look at DAF or CEPT first rather than deeper gravity tanks alone. When your flows, SWD constraint, and permit targets are ready, request a primary settling sizing review with the peak-hour and average-day basis so the SOR/HDT band can be checked against your site geometry.

Frequently Asked Questions

What surface overflow rate should primary settling be designed to?

Use 32–48 m³/m²·day at average flow and 80–120 m³/m²·day at peak hourly flow per Metcalf & Eddy, as compiled in Voutchkov (2017). For a fixed SWD between 1.83 and 3.05 m, the Randall, Barnard & Stensel formula gives SOR ≤ 2.184 × SWD² at average flow and ≤ 4.368 × SWD² at peak flow. Deeper tanks in storm-prone areas often run below the Metcalf & Eddy peak ceiling for blanket protection.

What is the typical hydraulic detention time for primary settling?

HDT of 1.5–2.5 hours per Metcalf & Eddy is the standard companion check to SOR. Shorter times raise TSS carryover into the aeration basin. Longer times risk sludge septicity, higher effluent BOD, and hydrogen sulfide in the scum box (Voutchkov 2017). Most industrial plants we commission stay near mid-band unless temperature or peaking forces a different compromise.

How much TSS and BOD does primary clarification remove?

A well-designed conventional unit removes 50–65% of influent TSS and 25–35% of influent BOD, plus 5–10% of influent nitrogen and phosphorus (Voutchkov 2017; Fehr-Graham). Chemically enhanced primary treatment can raise particulate-P removal to 90%. Those percentages set secondary aeration volume and solids-handling capacity, so they belong in the mass balance before equipment quotes are compared.

Is a circular or rectangular primary settling tank better?

Both are viable for primary duty and achieve the same SOR band. Circular geometries dominate secondary clarification because of sludge-removal mechanics, but primary units are commonly built in either configuration depending on footprint, influent distribution, and existing headworks layout (Fehr-Graham). Choose the shape that fits the site and the sludge-collection hardware you can maintain.

When is chemically enhanced primary treatment justified?

CEPT is justified when peak wet-weather flow would otherwise wash out the sludge blanket. That typically means peak flow above 2× average, or where partial phosphorus removal is a permit driver and biological P removal alone is insufficient (Fehr-Graham; Voutchkov 2017). The trade-off is higher sludge mass and the need to coordinate chemical dose with downstream BNR nutrient requirements so biomass is not phosphorus-starved.
