What cooling blowdown a Chiang Mai data center actually produces
A 100 MW data center in Chiang Mai can draw up to 2 million liters of water per day, of which roughly 830 m³/day exits the cooling loop as blowdown when the system runs at 4 cycles of concentration (CoC) (per IDE-Tech 2026). That blowdown carries dissolved solids concentrated by evaporation: total dissolved solids (TDS) typically falls between 5,000 and 15,000 mg/L, conductivity between 8,000 and 25,000 µS/cm, chemical oxygen demand (COD) between 100 and 500 mg/L, and total suspended solids (TSS) between 50 and 200 mg/L (per Veolia 2026 data, cited in HydroPure 2026). Chiang Mai's tropical wet-bulb climate — 28–30 °C average and above 32 °C in the March–April hot season — accelerates evaporation losses, which means operators must purge more frequently to hold scaling ions below corrosion thresholds.
Cooling chemistry additives complicate the effluent. Phosphonates, molybdate-based corrosion inhibitors, bromine biocides, and isothiazolones all enter the blowdown stream, raising COD and contributing residual chlorine that can pass through reverse osmosis (RO) membranes unless a biological polishing stage is placed upstream (per Genesis Water Technologies 2026). The cycles-of-concentration math is also commonly miscalculated. At 4 CoC, the blowdown ratio is 1/(4−1) = 25% of makeup; at 6 CoC it drops to 1/(6−1) = 20% of makeup. The reduction between those two operating points is 5 percentage points, a 20% relative improvement in blowdown volume, not a 50% improvement (per Genesis Water Technologies 2026). Designing past 6 CoC without advanced treatment invites calcium carbonate, silica, and calcium sulfate scaling that forces emergency dumps and wipes out the savings.
Thailand's regulatory baseline: PCD, Royal Irrigation Department, and MEA
The legal floor for any Chiang Mai site is set by the Pollution Control Department (PCD) industrial effluent standards, the Royal Irrigation Department's basin rules, and the Metropolitan Electricity Authority (MEA) / Provincial Electricity Authority (PEA) industrial water tariff. PCD Notification on Industrial Effluent Standards (B.E. 2560) requires surface-water discharge to meet BOD ≤20 mg/L, COD ≤120 mg/L, TSS ≤50 mg/L, TDS ≤3,000 mg/L, pH 5.5–9.0, and temperature ≤40 °C. The Royal Irrigation Department further restricts dry-season discharges into the Ping River basin between February and April, when assimilative capacity is at its lowest, and may impose zero-discharge windows during declared low-flow periods. Industrial water from MEA typically costs THB 18–25/m³, which sets the marginal value of every cubic meter recovered. Data centers above 5 MW IT load generally require an Initial Environmental Examination (IEE) or full Environmental Impact Assessment (EIA) under Thailand's Enhancement and Conservation of National Environmental Quality Act, including a site water balance.
Compared with U.S. EPA 40 CFR Part 423, which limits steam-electric blowdown to TSS <30 mg/L and COD <50 mg/L, Thailand's 120 mg/L COD ceiling is more permissive on organics — but the 3,000 mg/L TDS ceiling forces RO on any hyperscale site that wants to discharge rather than truck brine. The practical implication: a process train sized only for biological treatment and clarification will satisfy Thai organics limits but fail the TDS line, so RO belongs in the default design for sites above 10 MW.
| Parameter | Thailand PCD (B.E. 2560) | U.S. EPA 40 CFR 423 | Implication for Chiang Mai design |
|---|---|---|---|
| BOD / COD | BOD ≤20 / COD ≤120 mg/L | COD <50 mg/L | Biological polishing sufficient for organics |
| TSS | ≤50 mg/L | <30 mg/L | Filtration + clarification baseline |
| TDS | ≤3,000 mg/L | No federal TDS cap | RO required for hyperscale discharge |
| pH | 5.5–9.0 | 6.0–9.0 | Neutralization standard |
| Temperature | ≤40 °C | Site-specific | Cooling pond or holding tank often needed |
Process train selection: from side-stream filtration to full ZLD
Four design levels cover the realistic range of Chiang Mai sites, from a 5 MW colocation hall on municipal sewer to a 100 MW hyperscale build targeting net-positive water. Each level trades CAPEX and operator complexity against discharge volume and freshwater draw.
Level 1 — Side-stream filtration only. A multi-media filter paired with a self-cleaning strainer extends CoC from 3–4 to 5–6 by removing suspended solids that force premature blowdown. Suitable for colocation sites with municipal sewer discharge rights and no PCD zero-discharge obligation. Level 2 — DAF + RO recovery. A DAF pretreatment for cooling tower blowdown strips emulsified oils, residual flocculants, and a portion of the COD before single-pass brackish RO at 70–75% recovery. Permeate TDS <500 mg/L is suitable for cooling tower makeup. Level 3 — MBR + RO polishing. An integrated MBR system for blowdown polishing reduces COD to <50 mg/L and TSS to <5 mg/L before RO, which lets recovery push to 80–85% with quarterly clean-in-place (CIP) cycles rather than monthly. Level 4 — RO + brine concentrator + crystallization (ZLD). For hyperscale sites operating under PCD zero-discharge permits or chasing water-positive certification; recovery 95%+, with the thermal section consuming 15–25 kWh/m³ (per Veolia 2026 cost models). The 2026 default for Thai hyperscale builds is a hybrid (MBR → RO → evaporator), because the MBR protects the RO and the evaporator handles the 15–20% brine reject that would otherwise go to the Ping.
| Design level | Core unit operations | Water recovery | Effluent TDS | Typical site fit |
|---|---|---|---|---|
| L1 — Side-stream filtration | Multi-media filter + strainer | 0% (no recovery, lower blowdown) | 8,000–25,000 µS/cm (unchanged) | ≤10 MW colocation, municipal sewer |
| L2 — DAF + RO | DAF → BWRO | 70–75% | <500 mg/L permeate | 10–30 MW, PCD surface discharge |
| L3 — MBR + RO | MBR → BWRO 2-stage | 80–85% | <300 mg/L permeate | 30–100 MW, partial reuse |
| L4 — Full ZLD | MBR → RO → brine concentrator → crystallizer | 95%+ | Solid salt cake | Hyperscale, water-positive targets |
Equipment sizing for Chiang Mai's climate and load profile
Design flow for cooling tower blowdown runs roughly 1.2–1.5 m³/h per MW IT at 4 CoC, so a 10 MW site sits at 12–15 m³/h and a 50 MW hyperscale hall at 60–75 m³/h. A 10–20 m³/h DAF unit occupies less than 25 m² of plan footprint; integrating coagulation and flocculation into the same skid cuts polymer consumption by up to 30% compared with separate lamella clarifiers (per Genesis Water Technologies 2026). RO skids are sized for 70–80% single-pass recovery with an energy-recovery device on the concentrate stream; sites above 20 MW should run a 2-stage array to keep the second-stage feed below scaling indices, while sites ≤20 MW can use a single-stage array with antiscalant dosing.
Place a multi-media filter ahead of RO membranes to drop SDI15 below 3, and route permeate through an industrial RO unit for cooling tower makeup reuse sized to deliver permeate at TDS <500 mg/L and turbidity <0.1 NTU — the threshold that meets SEMI F63-0921 for direct microchannel reuse. If the cooling loop is conventional (not microchannel), blending 30–50% fresh MEA makeup with permeate is acceptable and reduces overall CAPEX. Because Chiang Mai's ambient design temperature runs 10–15% above temperate spec sheets, oversize heat exchangers, pump heads, and RO high-pressure pump motors by the same margin to hold rated flow during March–April peak wet-bulb.

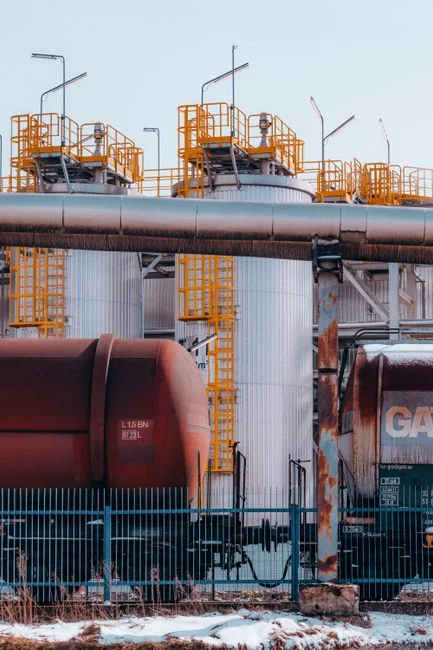

Operating-cost comparison: RO, MBR, and thermal ZLD in 2026
Procurement leads defending a 2026 budget need three cost lenses: unit CAPEX, OPEX per cubic meter treated, and 5-year total cost of ownership (TCO). The numbers below are 2026 Veolia/Saltworks benchmarks, converted where useful to THB at approximately THB 35/USD.
An RO-only system lands at CAPEX $300K–$800K and OPEX $0.50–$1.20/m³, with energy consumption of 2–4 kWh/m³ (per Veolia 2026 cost models, cited in HydroPure 2026). Adding an MBR upstream adds $500K–$1.5M to CAPEX, but it reduces CIP chemical cost by $0.10–$0.30/m³ and extends RO membrane life from 3–5 years to 5–7 years because the feed is cleaner. Evaporation and crystallization are the heavyweight option: CAPEX $1.2M–$3M, OPEX $2.00–$4.00/m³, and energy 15–25 kWh/m³ on the thermal section. Full ZLD only pencils out where freshwater cost exceeds $3/m³ or a PCD zero-discharge permit leaves no alternative. In Thailand, MEA industrial tariffs of THB 18–25/m³ ($0.51–$0.71/m³) sit below the $3/m³ ZLD threshold, but avoided Ping River discharge permit fees and brine-hauling cost narrow the gap. A 10 MW site treating 300,000 m³/year sees a 5-year TCO of approximately THB 25–40M for RO-only and THB 60–100M for full ZLD. The 5-year TCO worked example from HydroPure (2026) — 40% makeup reduction yielding $2.1M saved against $1.8M OPEX for a net $300K positive on a 10 MW U.S. site — translates to roughly THB 10.5M saved against THB 63M OPEX in Chiang Mai once MEA's higher marginal tariff is factored in.
| System | CAPEX (USD) | OPEX (USD/m³) | Energy (kWh/m³) | 5-yr TCO, 10 MW site (THB) | Justification trigger |
|---|---|---|---|---|---|
| RO only | $300K–$800K | $0.50–$1.20 | 2–4 | ฿25–40M | Municipal sewer available; no reuse mandate |
| MBR + RO | $800K–$2.3M | $0.80–$1.50 | 3–5 | ฿40–70M | COD >300 mg/L, hyperscale, partial reuse |
| MBR + RO + evaporator/crystallizer (ZLD) | $2.0M–$5.3M | $2.00–$4.00 | 15–25 (thermal) | ฿60–100M | PCD zero-discharge permit; water-positive target |
Decision framework: matching treatment intensity to site realities
Four binary questions put a 10 MW edge build or a 100 MW hyperscale on the right design level in under a minute. (1) Is freshwater cost above $2/m³, or is the site on a PCD zero-discharge permit? If yes, plan Level 4 ZLD; if no, Levels 2 or 3 are sufficient. (2) Is the site hyperscale (above 50 MW) on a tight plot? Yes points to Level 3 (MBR + RO) because an MBR footprint is roughly 60% smaller than conventional activated sludge for the same loading. (3) Does the operator have in-house membrane cleaning capability? If not, hold to Level 1–2 and contract operations and maintenance to a specialist — running a Level 3 RO without trained CIP staff leads to irreversible fouling within 12 months. (4) Is the receiving water body the Ping River main stem or a tributary? Main-stem sites have more assimilative capacity and can accept ≤500 m³/day of treated discharge; tributary sites should target Level 3 reuse and aim for zero liquid discharge to surface water.
Compliance monitoring and audit trail
The PCD self-monitoring report expects online instrumentation on both influent and effluent: pH, conductivity, flow, and turbidity at minimum, with data logged to SCADA at one-minute resolution. Quarterly third-party lab analysis is required for COD, BOD, TSS, TDS, heavy metals, and residual chlorine or biocide — the PCD auditor will request the chain-of-custody forms on site. Sludge from DAF and MBR stages should be dewatered with a plate-and-frame filter press for pretreatment sludge to below 60% moisture before pickup by a licensed industrial waste hauler; an automatic chemical dosing system keeps coagulant and polymer feed within the operating envelope that satisfies the PCD's chemical usage disclosure. Records must be retained for at least five years per the Thai Factory Act, and the same archive should be aligned with Uptime Institute Tier III/IV documentation expectations for colocation tenants who need to demonstrate continuity of utilities operations.
Frequently asked questions
What TDS level triggers RO for a Chiang Mai data center discharging to the Ping River?
PCD surface-water standards cap TDS at 3,000 mg/L, but cooling tower blowdown at 4 CoC already runs 5,000–15,000 mg/L. Any hyperscale site discharging more than 100 m³/day needs RO to land below 3,000 mg/L; below that threshold, clarification alone may suffice for tributary sites with PCD case-by-case permits.
Is a full ZLD system economically justified in Chiang Mai, or is MBR + RO enough?
For sites up to 30 MW with municipal sewer access, MBR + RO at 80–85% recovery returns 5-year TCO in the THB 40–70M range and avoids the THB 60–100M ZLD capital outlay. ZLD only pencils out when a PCD zero-discharge permit is in hand or freshwater cost exceeds $3/m³ — a threshold MEA tariffs do not currently meet in Chiang Mai.
How does the Chiang Mai wet-bulb climate change the process train versus a temperate design?
Wet-bulb temperatures of 28–30 °C average and above 32 °C in March–April drive higher evaporation losses, which raises blowdown volume at any given CoC. Oversize heat exchangers and high-pressure pumps by 10–15% above temperate spec sheets, and design the cooling tower for CoC 5–6 rather than 6–7 to keep calcium carbonate and silica indices in safe range without exotic antiscalant programs.
How does the Chiang Mai design compare with Kuala Lumpur or Prague?
The MBR + RO hybrid used here is the same process backbone recommended in the Kuala Lumpur data center blowdown guide and the Prague data center blowdown guide, but the regulatory wrapper changes: PCD's 3,000 mg/L TDS cap and Royal Irrigation Department's dry-season restrictions are tighter than Czech or Malaysian baselines, so RO belongs in the default train rather than being a Level 3 upgrade. For hyperscale sites in the Gulf corridor facing mandatory zero discharge, the Dammam data center blowdown ZLD design covers the same Level 4 escalation.
