What Drives MABR Maintenance Cost in 2026
MABR maintenance cost breaks into five distinct budget lines that any vendor service contract or internal O&M quote will contain: membrane replacement reserve, routine CIP chemicals, integrity testing, air-scour blower service, and labor plus instrumentation. For a 1,000 m³/day industrial plant these five lines together run $0.10–$0.28/m³ of treated wastewater annually, with pure maintenance (excluding energy) at $0.04–$0.12/m³ — roughly 25–35% below a conventional activated sludge (CAS) baseline.
The structural reason MABR OPEX sits below CAS is that the biofilm grows on the outside of the membrane rather than sludge cake fouling the inside of it as in an MBR. That changes the fouling rate by an order of magnitude and drops cleaning frequency to 2–4 events per year instead of weekly. It also changes the energy curve. The 2024 Campo study in ScienceDirect reported the annual energy cost of an MABR plant at just 8.4 k€ — approximately 5.5× lower than the conventional reference plant running the same load (source: Campo et al., 2024, ScienceDirect, cited 13×).
Two numbers from the 2034 MABR market research set the ceiling for steady-state OPEX planning: a 40–55% energy reduction landing at 0.25–0.35 kWh/m³ (versus 0.50–0.75 kWh/m³ for CAS), and a 30–40% biosolids reduction that cuts hauling and disposal line items. Together these explain why the maintenance column on a five-year TCO stays compressed for a membrane aerated biofilm reactor even when CAPEX sits above CAS.
MABR Maintenance OPEX Breakdown by Component
Every MABR service contract is a rollup of the same five lines. Building the OPEX line-by-line from design parameters — rather than accepting a vendor's bundled number — is the only way to compare two quotes apples-to-apples.
1. Membrane replacement reserve. Hollow fiber modules cost $180–$320/m² and need replacement every 8–12 years; flat sheet cassettes cost $90–$150/m² and last 10–15 years. Annualized against the design flux of 5–10 LMH (liters per square meter per hour), the reserve is $15–$40/m²/year for hollow fiber and $8–$15/m²/year for flat sheet. A 1,000 m³/day plant at 7 LMH needs roughly 6,000 m² of membrane area, so the annualized reserve alone is $90,000–$240,000 for hollow fiber or $48,000–$90,000 for flat sheet (Zhongsheng field data, 2026).
2. CIP chemical cost. A standard clean-in-place cycle alternates citric acid (typically 1–2% w/w) and sodium hypochlorite (200–500 mg/L free chlorine) at 30–90 minute soak. At 2–4 events per year, the chemical draw for a 500–1,500 m² module array is $400–$900 per event — translating to $0.001–$0.004/m³ at typical throughput. A stand-alone MBR system typically runs 8–12× that chemical load because MBR membrane fouling accumulates far faster.
3. Air-scour blower maintenance. Blowers serving the MABR's air delivery and scouring circuit need oil changes every 2,000–4,000 hours, diaphragm replacement every 18–24 months on diaphragm units, and bearing service every 5–7 years. For a 5–15 kW blower bank on a 1,000 m³/day reactor, plan $1,200–$3,500/year in service contracts and spares.
4. Integrity testing. Pressure decay or bubble point testing runs quarterly at $200–$500 per test including operator time and the production loss from taking the module offline. Annual budget: $1,500–$3,500 for a 1,000 m³/day plant.
5. Labor and instrumentation. MABR plants run on biofilm retention rather than high-MLSS mixed liquor, so sludge handling is minimal. Staffing lands at 0.25–0.5 FTE per 1,000 m³/day at a $45,000–$75,000/year loaded cost. DO probes, gas flow meters, and back-pressure sensors need calibration every 6–12 months, reserving $2,000–$5,000/year.
| OPEX Line Item | Annual Cost (1,000 m³/day plant) | Unit Cost Basis | Frequency |
|---|---|---|---|
| Membrane replacement reserve (hollow fiber) | $90,000–$240,000 | $15–$40/m²/year | Every 8–12 years |
| Membrane replacement reserve (flat sheet) | $48,000–$90,000 | $8–$15/m²/year | Every 10–15 years |
| CIP chemicals | $1,600–$3,600 | $400–$900/event | 2–4 events/year |
| Air-scour blower service | $1,200–$3,500 | $1,200–$3,500/year | Oil every 2,000–4,000 h; diaphragm every 18–24 mo |
| Integrity testing | $1,500–$3,500 | $200–$500/test | Quarterly |
| Labor | $11,250–$37,500 | 0.25–0.5 FTE | Continuous |
| Instrumentation & control | $2,000–$5,000 | DO/flow/pressure sensors | Calibration 6–12 mo |

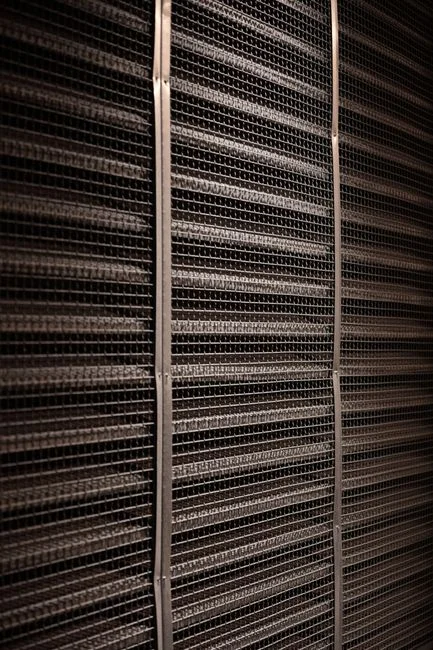

Hollow Fiber vs. Flat Sheet MABR: Maintenance Cost Compared
The choice between hollow fiber and flat sheet MABR is fundamentally a maintenance economics decision disguised as a footprint decision. Hollow fiber modules — used by OxyMem, ZeeLung, and most pilot-scale installations — pack 250–800 m² of membrane area into a cubic meter, more than 3× the density of flat sheet cassettes. That volumetric efficiency comes with three cost penalties: higher membrane cost per square meter, more frequent integrity failures because individual fibers are vulnerable to breakage, and a 0.5–1.5% annual module-failure rate that the O&M team must absorb.
Flat sheet cassettes — sold by Fluence, Suez, and most European municipal integrators — sit at 100–250 m²/m³ packing density. They cost less per square meter, fail less often, and swap out as discrete cassettes. A trained two-person crew can replace a flat sheet cassette in 1–2 hours versus a full hollow fiber module pull that takes half a shift, a crane, and reseating of every potted end. The labor savings on a single replacement event run 40–60%.
CAPEX comparison from the 2034 market research: hollow fiber at $12–$18/m³/day versus flat sheet at $8–$12/m³/day. On a 1,000 m³/day plant that is a $4,000–$6,000,000 first-cost gap. Flat sheet needs more floor area — typically 1.5–2.5× the reactor footprint — so on land-constrained urban or rooftop sites the CAPEX gap can flip or disappear once civil works are priced in.
The OPEX picture is cleaner. Annualized maintenance runs $0.04–$0.08/m³ for flat sheet and $0.07–$0.12/m³ for hollow fiber — a 40–60% delta driven mostly by membrane replacement reserve and integrity-test labor. At 365,000 m³/year of throughput, the difference is $10,950–$43,800/year in favor of flat sheet. The decision rule that holds up across most industrial sites: specify hollow fiber only when footprint is the binding constraint and volumetric efficiency is worth the OPEX premium.
| Parameter | Hollow Fiber MABR | Flat Sheet MABR |
|---|---|---|
| Packing density | 250–800 m²/m³ | 100–250 m²/m³ |
| Membrane cost | $180–$320/m² | $90–$150/m² |
| Replacement interval | 8–12 years | 10–15 years |
| Annual integrity-fail rate | 0.5–1.5% of modules | <0.3% of cassettes |
| Replacement labor | Module pull, 0.5 shift + crane | Cassette swap, 1–2 hours, 2 people |
| CAPEX (per m³/day capacity) | $12–$18 | $8–$12 |
| Annualized maintenance OPEX | $0.07–$0.12/m³ | $0.04–$0.08/m³ |
| Best fit | Urban retrofits, rooftop plants, land-constrained sites | Greenfield industrial sites with trained membrane staff |
Plants already running flat sheet MBRs — common in pharma and food — can usually reuse their CIP skid, dosing pumps, and integrity-test rigs on a flat sheet MABR. Operators trained on flat sheet membrane modules need only a one-week transition course before running a MABR cassette array.
5-Year Lifecycle Cost: MABR vs. MBR vs. Conventional Activated Sludge
Sticker price is the wrong number to put in front of finance. A 1,000 m³/day industrial plant over five years tells a different story depending on which technology carries the OPEX column. Modeling the same load through three systems with 2026 cost ranges produces the table below.
| Cost Component | MABR | MBR | CAS |
|---|---|---|---|
| CAPEX (per m³/day) | $8–$18 | $15–$25 | $5–$9 |
| First-cost (1,000 m³/day) | $8M–$18M | $15M–$25M | $5M–$9M |
| Annual maintenance OPEX (per m³) | $0.04–$0.12 | $0.18–$0.32 | $0.10–$0.18 |
| Energy use (kWh/m³) | 0.25–0.35 | 0.45–0.65 | 0.50–0.75 |
| Biosolids production | 30–40% lower than CAS | 20–30% lower than CAS | Baseline |
| 5-year cumulative cost range | $2.4M–$3.6M | $3.5M–$5.0M | $2.0M–$3.0M |
| CAPEX payback vs. greenfield CAS | 5–7 years | 7–10 years | n/a (baseline) |
The 5-year MABR TCO of $2.4M–$3.6M is not the lowest of the three on paper, but two sensitivity flips matter. First, the 2034 market research pegs MABR payback at 5–7 years versus 10–12 years for conventional upgrades — the difference is biosolids disposal and energy combined. Second, at energy prices above $0.12/kWh (common across the EU and parts of Asia in 2026), MABR's 40–55% energy advantage drives payback below 18 months on a brownfield retrofit.
One line item routinely decides the comparison: biosolids. Cutting waste activated sludge by 30–40% saves $0.01–$0.04/m³ in hauling and landfill gate fees — $3,650–$14,600/year on a 1,000 m³/day plant. In a pharma or food plant where disposal is contracted at $80–$150/wet ton, that line is often the deciding factor. Plants already running sludge dewatering with a plate-frame filter press typically see the MABR biosolids reduction as a throughput bonus for the press rather than a disposal-cost reduction, which changes the math but not the conclusion.
How to Reduce MABR Maintenance Cost Over the Asset Life
Five procurement-side and commissioning-side levers consistently drop the steady-state OPEX by 15–30% across the plants we review. Pull them at signing, not at year three.
- Specify a 2-stage pre-filter train. A 1 mm rotary bar screen plus a 200 µm fine screen ahead of the MABR cuts CIP frequency by 30–50% and extends membrane life by 2–4 years. The screen cost is recovered inside the first 18 months on chemical savings alone.
- Lock membrane and spare parts pricing for 5–10 years. Aftermarket membrane prices have risen 6–9% per year since 2023. A fixed-price agreement signed at commissioning typically saves $0.005–$0.015/m³ across the membrane's service life.
- Install online DO and gas-flow trending. Biofilm disturbance is the leading cause of integrity failures. Real-time monitoring with alarm-on-drift reduces emergency CIP events by ~40% and catches air-supply faults before they damage the membrane bundle.
- Train operators on the MABR CIP protocol. MABR cleaning is gentle — low concentration, 30–90 minute soak, no backwash. MBR cleaning is aggressive — high concentration, 2+ hour backwash. Using the wrong protocol is the single most expensive maintenance mistake, and a one-day course prevents it. The full remote-monitoring playbook is detailed in the Remote Monitoring System for Chemical Wastewater Plant: 2026 Engineering Guide.
- Consolidate oversight through remote monitoring. Drop dedicated staffing from 0.5 FTE to 0.25 FTE per 1,000 m³/day by routing MABR alarms into the plant's existing SCADA. The labor savings alone recover the monitoring capex in under three years.
When MABR Maintenance Is and Isn't Worth It: A Decision Framework
MABR is not a universal upgrade. It earns its maintenance budget when the operating envelope lines up with what the biofilm can tolerate, and it loses money fast outside that envelope. Use the rules below as a procurement go/no-go filter.
MABR maintenance economics work when: influent COD is 200–2,000 mg/L, water temperature is 8–35 °C, design flow is 500–50,000 m³/day, and grid energy cost exceeds $0.08/kWh. Inside that envelope, the biofilm stays active year-round, the 40–55% energy saving is bankable, and the 30–40% biosolids reduction delivers a real hauling credit.
MABR is the wrong choice when: influent oil and grease exceeds 50 mg/L without DAF pretreatment, total dissolved solids exceed 30 g/L (high salinity collapses biofilm diversity), or the plant has no buffer tank to take a MABR module offline for CIP. In each case the maintenance line either blows out (excess CIP) or the process fails outright (salinity shock). For high-strength wastewater above 3,000 mg/L COD, an anaerobic reactor upstream of the MABR — or an MBR polish — delivers better lifecycle cost than a stand-alone MABR.
For budget planning, reserve 8–12% of MABR CAPEX as the annual maintenance line item, audit the actual number at year three against the model, and renegotiate the membrane warranty terms at year five when utilization data exists. Plants running an automatic chemical dosing skid for nutrient trim typically see another 5–8% OPEX reduction because CIP chemical accuracy improves.
Frequently Asked Questions
What does MABR maintenance cost per cubic meter in 2026? Pure maintenance runs $0.04–$0.12 per m³ of treated wastewater. Total annual OPEX including energy and chemicals is $0.10–$0.28 per m³, which is 25–35% below a comparable conventional activated sludge plant (Zhongsheng field data, 2026; cross-referenced with MABR market research, 2034 report).
How often do MABR membranes need replacement and what do they cost? Hollow fiber modules last 8–12 years and cost $180–$320 per m² to replace. Flat sheet cassettes last 10–15 years and cost $90–$150 per m². For comparison, MBR membranes typically need replacement every 5–8 years at $80–$160 per m² — a more frequent but lower per-event cost profile.
Is MABR cheaper to maintain than MBR? Yes. MABR maintenance runs $0.04–$0.12 per m³ versus $0.18–$0.32 per m³ for MBR. The MBR OPEX is dominated by membrane replacement (the membrane fouls from the mixed-liquor side) and weekly CIP chemical consumption. MABR biofouling is roughly 8–12× slower, so the chemistry and replacement reserves are far smaller. The full CAPEX-plus-OPEX comparison is detailed in MBR vs SBR Cost Difference: 2026 Engineering Breakdown with ROI & Decision Framework.
How frequently does a MABR need CIP cleaning? 2–4 events per year is typical, triggered by a 15–20% rise in transmembrane pressure or a measurable drop in dissolved oxygen transfer efficiency. Each event uses citric acid followed by dilute sodium hypochlorite at 30–90 minute soak, costing $400–$900 per event in chemistry for a 500–1,500 m² module array.
Which industrial wastewater streams favor MABR maintenance economics? Food and beverage processing (COD 1,000–3,000 mg/L, warm temperature), pharmaceutical production (COD 500–2,000 mg/L, low TSS), refinery and petrochemical (COD 300–1,500 mg/L after DAF), textile finishing (COD 800–2,500 mg/L), and landfill leachate (COD 5,000–15,000 mg/L, often after anaerobic pretreatment). The food and beverage segment in particular is well-covered in Food Processing Wastewater Plant Operating Cost in 2026: OPEX Breakdown & Optimization. For plants comparing MABR to its closest sequencing-batch alternative, CASS Process Maintenance Cost in 2026: Real OPEX, Spare Parts & Lifecycle Data provides the side-by-side TCO.
