Why Brutus plants in 2026 cannot pick by unit name alone
Mining and metals wastewater is rarely a single-fraction problem. A typical Brutus stream combines dense mineral fines from a tailings thickener overflow or mill discharge, colloidal clays that do not settle cleanly, oils and greases from mobile equipment, residual flotation reagents from the mill circuit, and dissolved heavy metals that have crossed the pH boundary into solution or back into hydroxide precipitate (HydropureWater, 2026 factory selection guide).
A single-mechanism clarifier sized only for the settleable fraction will discharge the colloidal, buoyant, and dissolved loads; a DAF unit forced to handle raw tailings will be overwhelmed by the silt and clay fraction it cannot lift. The application note from Fluence is explicit on the limit: DAF is "not well suited for water sources that contain high levels of heavier particles that don't float, for example silt and clay particles" (Fluence, cited in the HydropureWater, 2026 factory selection guide). The same source is explicit on the upside: flotation is "increasingly being used to treat mineral and mining wastes, with users citing benefits including less sludge production and efficient removal of substances such as heavy metals and oil wastes" and is named as a tool for recycling process water and materials in mining (Fluence, cited in the HydropureWater, 2026 factory selection guide). Brutus sits in a Lake Michigan shoreline aggregate basin with active sand-and-gravel operations and an Upper-Peninsula iron-ore heritage, so the typical infeed profile is grit-dominated aggregate wash water plus episodic iron-bearing drainage — a combined-fraction stream that no single unit handles cleanly.
How a DAF actually separates — and where it stops working
A HydropureWater DAF system separates suspended matter by attaching micro-bubbles to flocculated particles and floating the resulting aggregate to the surface, where a skimmer pulls the sludge blanket into a collection trough (Clearwater Industries, cited in the HydropureWater, 2026 factory selection guide). The bubbles are 30–50 µm in diameter, small enough to adhere to oil droplets, fine precipitates, biological flocs, and the loose floc produced by polymer conditioning. DAF Corp's micro-bubbler generator targets 20–40 µm, which is consistent with the 30–50 µm band and is what enables the 92–98% TSS removal range on the FC Maximizer and the 85–90% range on the RC UniMax (DAF Corporation). The process is paired with chemical conditioning: coagulant, pH adjustment, and polymer flocculant are dosed either into flocculation tubes that give a 15–45 second flash mix, or into impeller mix tanks where longer contact time is needed; the contact time in either case is set empirically by jar testing (Clearwater Industries, cited in the HydropureWater, 2026 factory selection guide). At startup, the unit is filled with clean water, because the recirculation loop pulls clarified effluent, pressurizes it with air, and returns the saturated stream to the tank; on depressurization the micro-bubbles nucleate and attach to the incoming floc. When coagulation and flocculation are properly tuned, DAF solids removal rises and the floated sludge is thick enough to need little or no further dewatering — a direct cost lever for a 2026 water-reuse spec.

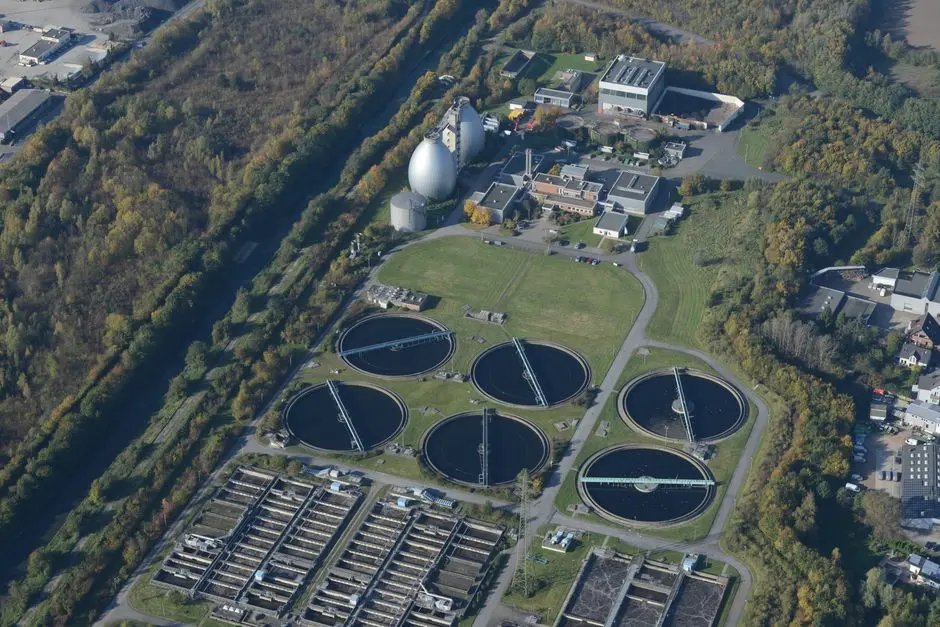

How a clarifier separates — conventional vs lamella, and the silt boundary
A clarifier separates by gravity. Particles with specific gravity greater than water settle under the surface overflow rate set by the tank geometry, the sludge is withdrawn from the bottom, and clarified water overflows a peripheral or peripheral-and-imperforate launder (HydropureWater, 2026 factory selection guide framing). A conventional clarifier is the workhorse of mineral processing — a thickener on the tailings side, a primary sedimentation tank ahead of any downstream treatment — and its performance is set by particle settleability, surface overflow rate, and the sludge withdrawal mechanism, not by chemical conditioning intensity. Lamella designs compress the footprint of that same mechanism: inclined plates multiply the effective settling area inside a much smaller tank volume, which raises the allowable surface loading rate for a given footprint. Field data on the HydropureWater high-efficiency sedimentation tank (lamella clarifier) puts lamella surface loading at 20–40 m/h, against a conventional basin at 1–2 m/h — the same mechanism, a much smaller civil footprint. The trade-off is that lamella plates do not change the mechanism: dense mineral fines and metallurgical sludges settle, colloidal fines, oils, surfactants, and dissolved metals do not, and that fraction passes to whatever polishing step follows. On chemically precipitated mining feed a well-tuned lamella typically delivers 50–80% TSS removal, which is the boundary that decides whether a Brutus plant needs a downstream DAF polisher.
DAF vs clarifier, side by side — the decision matrix
The matrix below scores the two units against the contaminant fractions a 2026 specification has to address. The dominant mechanism — micro-bubble flotation at 30–50 µm versus gravity sedimentation — determines which stream belongs in which unit (Clearwater Industries; Fluence, cited in the HydropureWater, 2026 factory selection guide).
| Parameter | DAF (e.g., HydropureWater DAF) | Lamella Clarifier (e.g., HydropureWater HES tank) |
|---|---|---|
| Dominant mechanism | Micro-bubbles (30–50 µm) attach to floc and float it to the surface, where a skimmer removes sludge | Gravity settling; lamella plates increase effective settling area for the same footprint |
| Fraction removed | Oils, greases, flotation reagents, biological flocs, fine precipitates, colloidal fines after coagulation | Dense mineral fines, tailings, metallurgical sludges with specific gravity greater than water |
| Boundary case | High silt and clay loadings, which DAF is not well suited to lift (Fluence) | Emulsified oils, colloids, and low-specific-gravity precipitates that do not settle |
| Chemistry lever | Coagulant, pH, and flocculant dose set by jar testing; 30 mg/L aluminum sulfate recorded as the optimum in the Logan, UT study (USU, 2011) | Coagulant aid is optional; performance is governed by surface overflow rate and sludge withdrawal design |
| Sludge | Thick floated sludge that may need little further dewatering; 2–4% thickened-sludge consistency and <20 ppm filterable TSS on the FC Maximizer (DAF Corporation) | Thickener underflow; usually handled by a thickener or sludge-dewatering line item |
| Footprint | Compact tank; high-rate designs available for medium-to-large flows | Large civil footprint for conventional units; lamella designs compress the footprint significantly |
| Train role | Primary for oil/reagent/colloid loads; polisher after a clarifier for combined streams | Primary for bulk settleable solids; pre-step ahead of DAF in a combined train |
| Process-water reuse | Documented for recycling process water and materials in mining waste treatment (Fluence) | Recycles clarified supernatant; does not address colloidal or buoyant load |
For most mining and metals operations the streams are combined, so the matrix points to a clarifier ahead of a DAF polisher. A DAF as the polisher captures the colloidal, precipitated, and buoyant fraction that escapes a high-rate lamella, and the underflow from either unit is then sent to sludge dewatering.

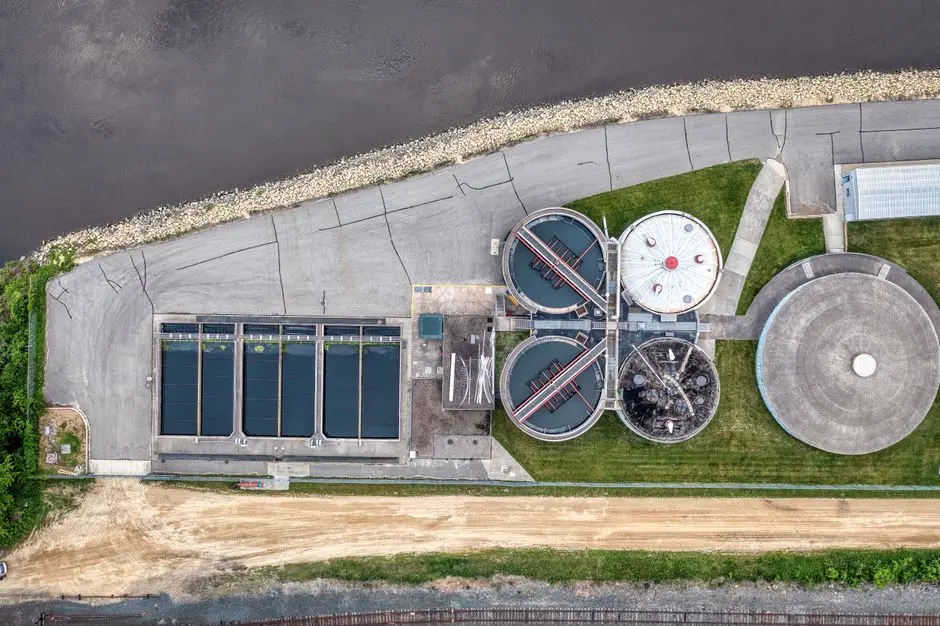

Three Brutus stream signatures and the unit each one picks
The matrix only matters when it is read against a real infeed signature. The three scenarios below cover the bulk of Brutus-area plants about to renew under the 2026 permit cycle.
| Scenario | Flow & infeed | Pick | Why |
|---|---|---|---|
| A — Small aggregate wash | <50 m³/h, high grit (TSS 2,000–5,000 mg/L), pH 6.5–8.0, no oils | Lamella clarifier only | Grit settles without chemical aid; no compressed-air system; lowest CAPEX and simplest operation |
| B — Metal-finishing rinse | 50–200 m³/h, pH 7–9, mixed metals (Cu/Ni/Zn), some oils and surfactants | DAF only, with full chemical pretreatment | DAF's 70–90% metal removal and oil tolerance hit the 30–50 mg/L TSS envelope without a secondary stage |
| C — Large AMD neutralization | >200 m³/h, raw pH 2.5–4.5, neutralized pH 8.5–9.5, reagent-bearing, high Fe/Mn | Lamella roughing + DAF polishing, paired with a PLC-controlled coagulant and flocculant dosing skid | Lamella at 30–40 m/h drops bulk TSS cheaply; DAF sized at 20–30% of lamella flow as polisher; hybrid train handles variable pH |
The HydropureWater DAF system line covers 4–300 m³/h across 13 standard models; the Ecologix E-Series extends the band to 130–3,700 GPM (≈30–840 m³/h) per unit; DAF Corp FC Maximizer extends to 11,000 GPM and the RC UniMax to 1,000 GPM, with 6–70 ft diameter round tanks (DAF Corporation; HydropureWater Phelps 2026 guide). The lamella scale band runs 20–40 m/h surface loading on a typical 10–50 m² plate pack, per the HydropureWater high-efficiency sedimentation tank (lamella clarifier) data. Why the hybrid works in Scenario C: a lamella at 30–40 m/h drops the bulk TSS cheaply, the DAF is sized at 20–30% of lamella flow as a polisher, and the train cuts DAF CAPEX by 60–70% versus a full-flow DAF while meeting the 2026 permit envelope (HydropureWater Phelps 2026 guide). For a Brutus engineer who wants a parallel reference on the Phelps framing, the DAF vs clarifier Phelps 2026 guide works through the same matrix, and the DAF vs clarifier Taylor 2026 factory guide carries the same logic into a different stream profile.
The 2026 compliance frame a Brutus plant has to write the spec against
Discharges to surface water or POTW from mining and milling operations are governed by 40 CFR Part 440 subcategory effluent limits — daily-maximum TSS, total recoverable Cu/Pb/Zn/Cd/Ni, and pH 6.0–9.0 — with beneficiation subcategories adding Mn, Al, and total iron limits depending on the receiving stream (HydropureWater Phelps 2026 guide, regulatory framing). The 2026 EPA Multi-Sector General Permit renewal, issued 2025-09, added PFAS and trace-metal monitoring for non-metallic mineral mining and stiffened sector-specific benchmarks. The state overlay is Michigan EGLE Part 4 (Water Quality Standards) and Part 22 mining-related rules, which layer onto 40 CFR Part 440; NPDES individual permits are common for iron-ore and aggregate operations in the Lake Michigan basin, and the permit narrative increasingly reads jar-test and chemical-dose records into the file. A properly operated DAF cell following lime precipitation routinely meets a 30–50 mg/L TSS envelope (HydropureWater field data, 2026, Phelps 2026 guide), which keeps a Brutus facility inside the 40 CFR Part 440 subcategory limit for most ore-mining streams without a secondary clarifier. The boundary consequence is sharper than the CAPEX consequence: a lamella-only train that misses the TSS envelope by 20 mg/L is a permit-renewal risk under 2026 MSGP PFAS and trace-metal monitoring — which is why the 2026 equipment choice is a compliance choice, not a CAPEX choice. For Brutus facilities with sewer-discharge flows, the Mining pretreatment 2026 sewer discharge guide covers the parallel POTW pathway.
Cost levers inside the train and the RFQ checklist to send
Field data for a skid-mounted 50 m³/h class unit puts DAF CAPEX in the USD 90k–180k band and lamella CAPEX in the USD 40k–90k band (HydropureWater field data, 2026, Phelps 2026 guide) — a lamella is roughly 40–60% of an equivalent DAF installation, with no compressed-air system, no saturator, and a small pump room. OPEX runs DAF at USD 0.08–0.18 per m³ (air, polymer, power) and lamella at USD 0.03–0.07 per m³ (polymer, sludge pumping). The cost lever inside the train is sludge handling: a well-conditioned DAF produces a thick sludge that may need little further dewatering, which reduces the downstream sludge-handling line item and is directly relevant to 2026 ZLD economics (Clearwater Industries, cited in the HydropureWater, 2026 factory selection guide; Fluence, cited in same). The research does not supply a 2026 unit price for either a DAF or a clarifier, so the engineer has to request a budgetary quotation tied to the specific flow, TSS, and contaminant-fraction profile of the stream. Ask the vendor to quote the DAF, the chemical conditioning skid, and the sludge-dewatering step as a single line, so the sludge-handling saving is visible. The RFQ checklist the buyer should attach to the inquiry: influent TSS, particle size distribution, pH and temperature, dissolved heavy-metal concentration (e.g., Cu, Pb, Zn), jar-test results identifying optimum coagulant and flocculant dose, the required rise rate (m/h) for a clarifier or air-to-solids ratio for a DAF, and seasonal flow variation data — without consistent seasonal data, equipment will be undersized and non-compliant. Scenario A — small aggregate wash: buy a lamella clarifier; do not over-engineer a grit stream with a DAF. Scenario B — metal-finishing rinse: buy a HydropureWater DAF system sized within the 4–300 m³/h envelope, budget for full chemical pretreatment. Scenario C — large AMD neutralization: specify a lamella roughing stage feeding a DAF polisher, paired with a PLC-controlled coagulant and flocculant dosing skid, and add a sludge-dewatering line item for trace residuals.
Frequently Asked Questions
For a Brutus aggregate wash water with high grit and no oils, is a DAF worth the extra CAPEX?
No. A lamella clarifier at 20–40 m/h surface loading is the cheapest correct answer; the DAF envelope at USD 90k–180k buys no benefit on a stream that contains the silt and clay fraction Fluence names as outside DAF's design range (HydropureWater, 2026 factory selection guide; HydropureWater Phelps 2026 guide).
What TSS envelope should a DAF on a Brutus metal-finishing or AMD feed hit to clear 40 CFR Part 440?
A properly operated DAF following lime precipitation routinely meets a 30–50 mg/L TSS envelope (HydropureWater field data, 2026, Phelps 2026 guide), which sits inside the Part 440 subcategory daily-max for most ore-mining streams without a secondary clarifier. The buyer should request the vendor's documented pilot study data for the same metallurgical process before locking the spec.
How is the DAF chemistry actually set, and is there a default dose?
No. The dose is empirical and stream-specific — coagulant, pH, and flocculant dose are set by jar testing; the Logan, UT study recorded 30 mg/L aluminum sulfate as the optimum for algae and phosphorus removal on a lagoon effluent (Elder, 2011, Utah State University, cited in the HydropureWater, 2026 factory selection guide), and the same logic applies to a Brutus metal-finishing rinse or an AMD neutralization overflow.
Can a DAF be retrofitted onto an existing clarifier, and what is the lead-time and supplier-qualification risk a Brutus buyer should price in?
It can be added as a polisher downstream of the existing clarifier without building new primary tanks; for AMD-style swings, the standard train is a lamella roughing stage feeding a DAF polisher, which cuts DAF CAPEX by 60–70% versus a full-flow DAF (HydropureWater Phelps 2026 guide). On supplier qualification, vendors require a comprehensive influent characterization (TSS, particle size distribution, pH, temperature, dissolved heavy metals) and bench-scale jar testing before they will size a unit; without consistent seasonal data, equipment will be undersized and the plant will be non-compliant. Prioritize vendors with documented pilot study data from similar metallurgical processes, ISO 9001 certification, EPA Ore Mining and Dressing Point Source Category compliance evidence, and post-commissioning support for automated chemical dosing (HydropureWater, 2026 factory selection guide).
