Why Oxidation Ditch Energy Efficiency Matters in 2026
Electricity is the single largest controllable cost in a 1–10 MGD oxidation ditch, and aeration is the dominant load on that bill. The US EPA Wastewater Technology Fact Sheet on Oxidation Ditches (EPA 832-F-00-013, document dated September 2000 and reissued in the EPA file system in October 2022) reports a documented 40% energy saving at the Tar River Wastewater Reclamation Facility in Louisburg, North Carolina compared with conventional activated sludge plants of comparable capacity (Ellington, 1999, as cited in the EPA factsheet).
That figure comes from a named, full-scale operating plant, not a model. More than 9,200 municipal oxidation ditch installations were operating in the United States as of WEF's 1998 count, so a per-plant kWh reduction compounds into grid-level impact. The oxygen transfer efficiency of surface aerators surveyed for that factsheet is 2.5–3.5 lb O₂/Hp·hr (Baker Process, 1999, cited in the EPA factsheet), and that band is the benchmark every engineer should quote when justifying any tuning, retrofit or replacement decision in 2026.
The Two Levers: DO Setpoint and Oxygen Transfer Efficiency
Energy performance of an oxidation ditch is governed by two controllable variables: hardware efficiency and the dissolved oxygen (DO) setpoint. The hardware lever is the oxygen transfer efficiency of the aeration device: surface units in the EPA survey—brush rotors, disc aerators and draft tube aerators—sit in the 2.5–3.5 lb O₂/Hp·hr band (EPA factsheet, citing Baker Process, 1999). Fine-bubble diffusers operate on a different characteristic curve, which is why retrofits change both the horsepower required and the way the basin mixes. A 2025 peer-reviewed analysis indexed via Europe PMC links DO distribution patterns in oxidation ditches directly to nitrogen removal efficiency, confirming that setpoint strategy—not just hardware—drives combined energy and effluent performance. Dual-DO control, in which different zones of the racetrack run at different setpoints, has been characterized at full scale in clean water and domestic wastewater in the Journal of Water and Environment Technology, Vol. 10 Issue 3, pp. 229–240 (2012), giving operators a published reference case rather than vendor claims. Solids retention time, defined as the average time biomass spends in the system, is the design handle that ties both levers together: EPA design values range from 4 to 48 or more days overall, with 12 to 24 days typical when nitrification is required (EPA factsheet).
EPA Design Parameters Your Plant Should Be Hitting
Plant assets must be evaluated against the published design envelope before committing to any tuning or retrofit spend. The EPA factsheet (citing Metcalf & Eddy, 1991) requires that screened wastewater circulate at 0.25 to 0.35 m/s (0.8 to 1.2 ft/s) to maintain mixed liquor in suspension; below that band, the operator is paying to mix rather than to transfer oxygen, and the rotors are still drawing full power. Mixed liquor suspended solids should sit between 1,500 and 5,000 mg/L with a return activated sludge recycle ratio of 75 to 150 percent (EPA factsheet, citing Metcalf & Eddy, 1991). Hydraulic retention time covers a wide 6 to 30 hour band for most municipal ditches (EPA factsheet), but the controlling design variable is actually the SRT needed for nitrification at the minimum mixed-liquor temperature, not HRT itself. Oxygen demand coefficients are the constants the engineer plugs into any kWh estimate: 1.1 to 1.5 kg O₂ per kg BOD removed and 4.57 kg O₂ per kg TKN oxidized (EPA factsheet, citing EPA, 1991 and Baker Process, 1999). The table below consolidates the parameters the engineer needs to verify before approving a scope of work.
| Parameter | EPA design range | Source (via EPA factsheet, 2022-10 file) |
|---|---|---|
| Circulation velocity | 0.25–0.35 m/s (0.8–1.2 ft/s) | Metcalf & Eddy, 1991 |
| MLSS | 1,500–5,000 mg/L | Metcalf & Eddy, 1991 |
| RAS recycle ratio | 75–150% | Metcalf & Eddy, 1991 |
| HRT (municipal ditches) | 6–30 hours | EPA factsheet |
| SRT (overall design range) | 4 to 48+ days | EPA factsheet |
| SRT (for nitrification) | 12–24 days | EPA factsheet |
| O₂ for BOD removal | 1.1–1.5 kg O₂/kg BOD removed | EPA, 1991; Baker Process, 1999 |
| O₂ for TKN oxidation | 4.57 kg O₂/kg TKN oxidized | EPA, 1991; Baker Process, 1999 |
| Oxygen transfer efficiency (surface aerators) | 2.5–3.5 lb O₂/Hp·hr | Baker Process, 1999 |
Calculating Aeration Energy From First Principles
Working through a first-principles kWh estimate allows the engineer to validate any vendor's "30% saving" claim against their own plant data, using the same coefficients EPA documents. Step one is to compute total oxygen demand from the influent BOD load and TKN load using the EPA coefficients: 1.1 to 1.5 kg O₂ per kg BOD removed, and 4.57 kg O₂ per kg TKN oxidized (EPA factsheet, citing EPA, 1991 and Baker Process, 1999). Step two is to divide that oxygen demand by the oxygen transfer efficiency of the installed aerator—2.5 to 3.5 lb O₂/Hp·hr for the surface-aerator class the EPA surveyed (EPA factsheet, citing Baker Process, 1999)—to get the theoretical aeration horsepower required. Step three is to apply the actual DO setpoint and field correction factors; the EPA factsheet notes that transfer efficiency falls as the saturation deficit changes, which is why moving a 0.5 mg/L setpoint up to 2 mg/L can raise required airflow or rotor speed disproportionately. Step four is to convert Hp·hr to kWh and apply the local tariff to get cost per m³ treated, which is the number that compares directly to the Tar River 40% saving benchmark (Ellington, 1999, cited in the EPA factsheet). Buyers must request the following from the vendor before signing: the field-oxygen-transfer efficiency at the plant's specific DO setpoint and mixed-liquor temperature, the blower or motor nameplate, and the control-loop response curve.

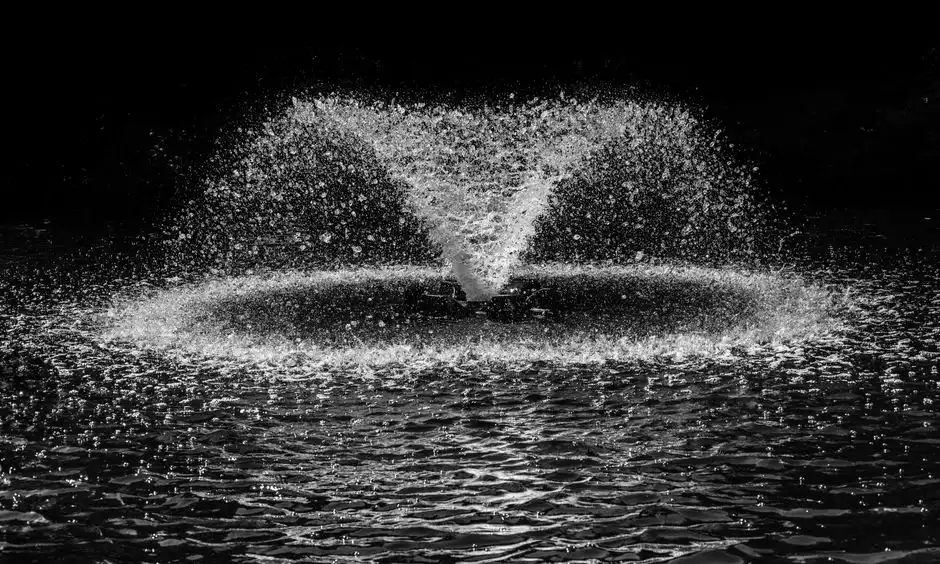

Aerator and Diffuser Options: When to Keep, Switch, or Convert
The retrofit decision framework reduces to three options once the EPA parameter table has been checked. Keep existing brush rotors or disc aerators if they are mechanically sound and the plant is already running a DO-control loop: the Tar River 40% saving (EPA factsheet, citing Ellington, 1999) was achieved through operational optimization on a comparable configuration. Switch to vertical-shaft disc aerators where land is constrained—disc units deliver higher oxygen transfer per footprint, which the EPA factsheet highlights for ditch design modifications. Convert to fine-bubble diffused air when the ditch can be modified toward plug-flow conditions; the EPA factsheet notes that as flow approaches plug flow, diffused air becomes necessary to provide enough mixing, and the system may no longer operate as a classical oxidation ditch. In every case, the chosen option should be cross-checked against the 1.1–1.5 kg O₂/kg BOD and 4.57 kg O₂/kg TKN coefficients (EPA factsheet, citing EPA, 1991 and Baker Process, 1999). Headworks screening on the influent side matters here too: a rotary mechanical bar screen for oxidation ditch headworks protects downstream rotors and diffusers from ragging, which directly protects the transfer-efficiency number this retrofit decision is built on. The comparison table below summarizes the three paths against the EPA benchmark.
| Option | When it fits | EPA-anchored justification |
|---|---|---|
| Keep brush rotors or disc aerators | Mechanically sound, DO loop in place | Tar River 40% saving (Ellington, 1999) achieved on a comparable surface-aerator configuration |
| Switch to vertical-shaft disc aerators | Land-constrained site | Higher oxygen transfer per footprint — one of the design levers cited in the EPA factsheet |
| Convert to fine-bubble diffused air | Ditch can be modified toward plug flow | EPA factsheet notes diffused air is required to maintain mixing as flow approaches plug flow, with the caveat that the system may no longer operate as a classical oxidation ditch |
Control Loop Tuning: Getting the 40% Without New Hardware
The lowest-capex path to a Tar River-class saving is almost always a control-loop change rather than a hardware change. Install or re-tune ammonia-based aeration control so the ditch runs at the minimum DO that still meets effluent ammonia targets; the Tar River result (Ellington, 1999, cited in the EPA factsheet) was achieved through operational optimization on a comparable configuration. Use the dual-DO approach characterized at full scale in the Journal of Water and Environment Technology, Vol. 10 Issue 3, pp. 229–240 (2012): higher setpoint in the nitrification zone, lower setpoint in the BOD-polishing zone, with the transition managed by the SCADA system. Validate the result against the EPA-cited performance envelope: BOD, TSS and ammonia-N removal above 90% (EPA, 1991 evaluation summarized in the EPA factsheet), and total nitrogen removal above 90% as reported for the Edgartown, MA Carrousel denitIR plant and the Casa Grande, AZ facility (EPA factsheet, citing Town of Edgartown, 1999 and City of Casa Grande, AZ, 1999). For plants where the existing basin is being replaced or supplemented by a packaged system, a compact A/O package plant for small flows can be evaluated against the same DO and SRT envelope, but the engineer should still verify the package unit's quoted transfer efficiency against the 2.5–3.5 lb O₂/Hp·hr benchmark. For plants weighing MBBR as a side-stream retrofit, the MBBR process guide lays out the biofilm-reactor trade-offs against the activated-sludge baseline this article assumes.
Frequently Asked Questions
What is a defensible payback calculation for an oxidation ditch aeration retrofit?
Build a first-principles kWh estimate from the EPA coefficients—1.1–1.5 kg O₂ per kg BOD removed and 4.57 kg O₂ per kg TKN oxidized (EPA factsheet, citing EPA, 1991 and Baker Process, 1999)—divided by the field oxygen transfer efficiency of the proposed device. Compare the result to the existing device's measured kWh at the same load, and benchmark the percentage improvement against the 40% Tar River saving (Ellington, 1999, cited in the EPA factsheet). Request the vendor's field-oxygen-transfer efficiency at the plant's specific DO setpoint and mixed-liquor temperature before signing; without that number, the payback cannot be defended.
How do I size a replacement aerator for a 1–10 MGD municipal ditch?
Start with the existing basin volume and the SRT actually being held, not the design value: the EPA factsheet requires 12–24 days for nitrification and MLSS between 1,500 and 5,000 mg/L (Metcalf & Eddy, 1991, cited in the EPA factsheet). Size the aerator so the calculated Hp from the EPA coefficients and the 2.5–3.5 lb O₂/Hp·hr transfer-efficiency band (Baker Process, 1999, cited in the EPA factsheet) covers both the average day and the design peak day, and confirm the unit can hold 0.25–0.35 m/s circulation velocity (EPA factsheet). Ask the vendor for a field-OTE test at the plant's mixed-liquor temperature;
Frequently Asked Questions
What oxygen transfer efficiency should I expect from an oxidation ditch aerator?
Standard oxygen transfer efficiency (SOTE) for horizontal surface aerators typically ranges from 1.5 to 2.2 kg O2/kWh under clean water conditions. In actual wastewater, the alpha factor—representing the ratio of oxygen transfer in process water versus clean water—usually falls between 0.6 and 0.85, resulting in an effective field oxygen transfer rate of 0.9 to 1.8 kg O2/kWh depending on basin depth and mixing intensity.
How much energy can a DO control loop realistically save on an existing oxidation ditch?
Implementing an automated dissolved oxygen (DO) control loop can reduce aeration energy consumption by 15% to 35% compared to manual or timer-based operations. By maintaining setpoints between 1.0 and 2.0 mg/L and utilizing variable frequency drives (VFDs) to adjust blower or aerator output, plants avoid the common inefficiencies of over-aeration during low-diurnal load periods.
When does it make sense to convert an oxidation ditch from surface aerators to fine-bubble diffusers?
Conversion to fine-bubble diffused aeration is economically justifiable when the system reaches an age requiring major mechanical refurbishment or when energy costs exceed $0.12/kWh, as fine-bubble systems can achieve a 25% to 40% improvement in oxygen transfer efficiency. This transition is most effective in ditches with depths greater than 3.5 meters, where the increased hydrostatic head optimizes bubble residence time and mass transfer rates.
What influent data do I need to size or retrofit an oxidation ditch aeration system?
Accurate sizing requires a minimum of 12 months of daily influent data, specifically focusing on peak hourly and maximum month biochemical oxygen demand (BOD) and total Kjeldahl nitrogen (TKN) loads. Engineers must also account for diurnal flow variations, minimum and maximum influent temperatures, and site-specific altitude, as oxygen transfer capacity decreases by approximately 3% for every 300 meters above sea level.
Is a packaged A/O plant a lower-energy alternative to a full oxidation ditch for small flows?
For flows under 0.5 million gallons per day (MGD), a packaged anaerobic/oxic (A/O) plant can be more energy-efficient due to reduced head loss and optimized hydraulic retention times. While oxidation ditches provide superior process stability for fluctuating loads, the high parasitic mixing energy required to maintain solids suspension in a large ditch often exceeds the power requirements of a compact, modular A/O system, provided the latter is equipped with high-efficiency diffused aeration.
