How Chemical Plants Near Mc Intosh Meet Pretreatment Limits (2026 Guide)

The Three-Layer Rule Stack Every Mc Intosh Chemical Plant Must Clear

Chemical plants discharging to the Mobile County sanitary sewer operate inside a three-layer federal and local rule stack, and the most stringent applicable layer controls on any given day. Layer 1 is the general and specific prohibition framework at 40 CFR 403.5(a) and 403.5(b), which forbids any discharge that causes pass-through (40 CFR 403.3(p)) or interference (40 CFR 403.3(k)) at the receiving publicly owned treatment works (POTW), with pass-through and interference both defined relative to the receiving plant's NPDES permit. Layer 2 is the categorical pretreatment standards codified in 40 CFR Parts 405–471, with 40 CFR Part 414 (organic chemicals, plastics, and synthetic fibers) and 40 CFR Part 415 (inorganic chemicals) the most likely subparts for a Mc Intosh chemical site, supplemented by Part 417 (soap and detergent manufacturing), Part 419 (petroleum refining) where the site shares assets with a refinery, and Part 433 (metal finishing) where metal-bearing process streams are sewered. Layer 3 is the site-specific local limit set, developed by the POTW's Control Authority under the EPA Local Limits Development Guidance (EPA Office of Wastewater Management, 2004) using the five-step MAHL (Maximum Allowable Headworks Loading) methodology: pollutants of concern, data collection, MAHL calculation, designation of local limits, and collection-system check.

Three statutory anchors carry the regulatory weight behind these layers. Clean Water Act §307(b), 33 U.S.C. §1317(b), authorizes EPA to establish categorical pretreatment standards for pollutants that pass through or interfere with POTW operations. Clean Water Act §402(b)(8), 33 U.S.C. §1342(b)(8), conditions state NPDES authorization on adequate POTW pretreatment authority. Clean Water Act §402(n) authorizes POTW pretreatment programs as the operational vehicle for enforcing those standards against industrial users. In the Mc Intosh / Mobile County corridor, those authorities are exercised through the industrial pretreatment program administered by the local POTW, and the local limit set is routinely more stringent than the federal categorical floor because the receiving plant's hydraulic and biological capacity is the binding constraint (per EPA Local Limits Development Guidance).

What 'Significant Industrial User' Means for a Chemical Plant on Mobile Bay

The Significant Industrial User (SIU) definition at 40 CFR 403.3(v) is the gate that turns a routine industrial user into a regulated entity with a defined monitoring and reporting bar. An IU is an SIU if any of three triggers fires: (1) the user is subject to categorical pretreatment standards under 40 CFR Parts 405–471; (2) the user discharges an average of 25,000 gpd or more of process wastewater; or (3) the user's process waste stream makes up 5% or more of the POTW's average dry-weather hydraulic or organic capacity (per EPA, 2026). For a Mc Intosh chemical plant, trigger (1) is almost always the binding test, because operations under 40 CFR Part 414, 415, 417, 419, or 433 make the site categorically regulated regardless of flow. That is the practical point engineers tend to miss: SIU status is automatic on promulgation of the applicable subpart, not contingent on the POTW issuing a control document.

SIU status brings a defined set of obligations. The site must submit a baseline monitoring report (BMR) at the point of categorical standard promulgation or at new-discharge startup, file 90-day compliance reports on the schedule set by the Control Authority, accept a written control mechanism from the POTW that lists numeric limits, monitoring cadence, and reporting form, and submit to routine POTW inspections and sampling under 40 CFR 403.12. Batch operations also carry a slug load control plan obligation under 40 CFR 403.8(f), which is the mechanism the Control Authority uses to enforce pass-through and interference prevention against hydraulic or pollutant surges (per EPA, 2026). EPA is explicit that 40 CFR Part 403 standards apply whether or not the POTW has an approved pretreatment program and whether or not a control mechanism has been issued, so a missing or stale permit is not a defense; the federal prohibitions still bind.

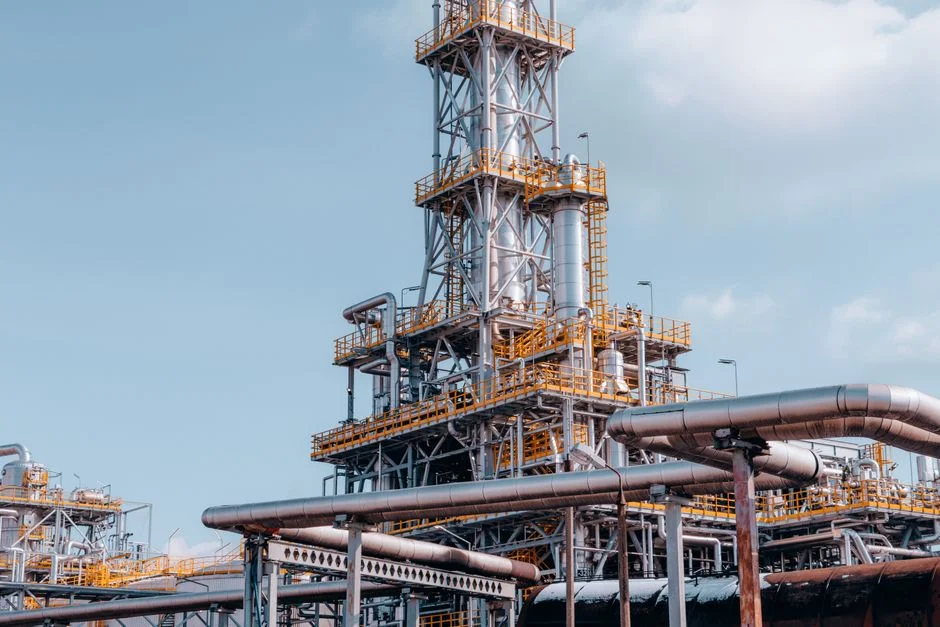

The Six-Stage Treatment Train That Clears the Stack

A defensible default train for a Mc Intosh-area chemical plant discharging to a POTW runs through six unit operations, each linked to a specific 40 CFR driver. The train is not a one-size-fits-all prescription, but it covers the parameter envelope that the categorical subparts (414, 415, 417, 419, 433) and the local limit set typically govern.

Stage 1 is equalization. A properly sized EQ basin dampens batch swings in pH, flow, temperature, and concentration before downstream unit operations see them, and is the cheapest insurance against a pass-through excursion. Hydraulic retention typically runs hours to days for batch operations and 4–8 hours for continuous processes, and the cost penalty for over-sizing is small compared with the cost of a single interference event (HydropureWater field data, 2026). The 40 CFR driver is 403.5(a) on pass-through and 403.8(f) on slug control.

Stage 2 is pH adjustment, normally a PLC-controlled dosing loop. Strong acid or caustic batches are trimmed to the local 6–9 pH window, which is the band most Alabama POTWs codify as a local limit. The driver is 40 CFR 403.5(b) specific prohibitions and the local pH limit. Dosing skid selection should be tied to the worst-case acid or caustic slug, not the average; a system that handles the design slug in under five minutes is the right safety margin.

Stage 3 is dissolved air flotation. A DAF system for chemical plant pretreatment strips emulsified oil, FOG, and colloidal TSS that EQ and pH adjustment cannot touch. Operating parameters typically run at an air-to-solids ratio of 0.02–0.06, hydraulic retention of 15–30 minutes, saturator recycle of 20–50% of forward flow, and a capacity band of 4–300 m³/h. The 40 CFR driver is pass-through on oils and TSS, paired with whatever local O&G and TSS limit the POTW has set.

Stage 4 is chemical precipitation followed by a lamella clarifier. This stage targets dissolved metals (Cd, Cr, Cu, Ni, Pb, Zn) and any residual TSS that escapes the DAF. Surface loading on a well-designed lamella runs 20–40 m/h, and the metal-removal chemistry is the classic hydroxide or sulfide precipitation train, with pH staging if the wastewater carries a mix of amphoteric metals. A lamella clarifier for metals precipitation in this duty typically cuts clarifier footprint by roughly 60% versus a conventional rectangular basin, which is often the difference between fitting the train on an existing chemical plant pad and triggering a capital expansion. The drivers are 40 CFR Part 433 (where metal-bearing streams are present), 40 CFR Part 415, and the local metals limits.

Stage 5 is biological polishing, typically an MBR or MBBR. A MBR for biological polishing of chemical wastewater using flat-sheet PVDF at 0.1 μm holds mixed-liquor suspended solids at 8,000–12,000 mg/L, produces <5 mg/L TSS and <1 NTU turbidity in the effluent, and delivers that performance in roughly 60% of the footprint an equivalent conventional activated-sludge basin would require (HydropureWater field data, 2026). MBBR is the more robust choice when influent swings are wide and the site wants to avoid the membrane-replacement exposure. The drivers are the categorical and local BOD, COD, and ammonia limits.

Stage 6 is multimedia or activated-carbon filtration, which catches TSS breakthrough and supports reuse-quality targets. A PVDF flat-sheet MBR module used as a polishing barrier rather than a free-standing biological stage is increasingly common in tight-footprint chemical plant retrofits, and it consolidates the biological and solids-separation functions into a single skid. The drivers are the local limit and any internal reuse specification for cooling-tower makeup, scrubber water, or boiler feed.

Parameter Map: Pollutant, Unit Operation, and 40 CFR Driver

The table below lets an engineer read across a single matrix and decide which stage to add or upgrade when a specific parameter is the binding constraint. Influent bands are engineering ranges seen in practice; the Mc Intosh POTW's local limits may be tighter and must be checked against the current control mechanism (per EPA Local Limits Development Guidance).

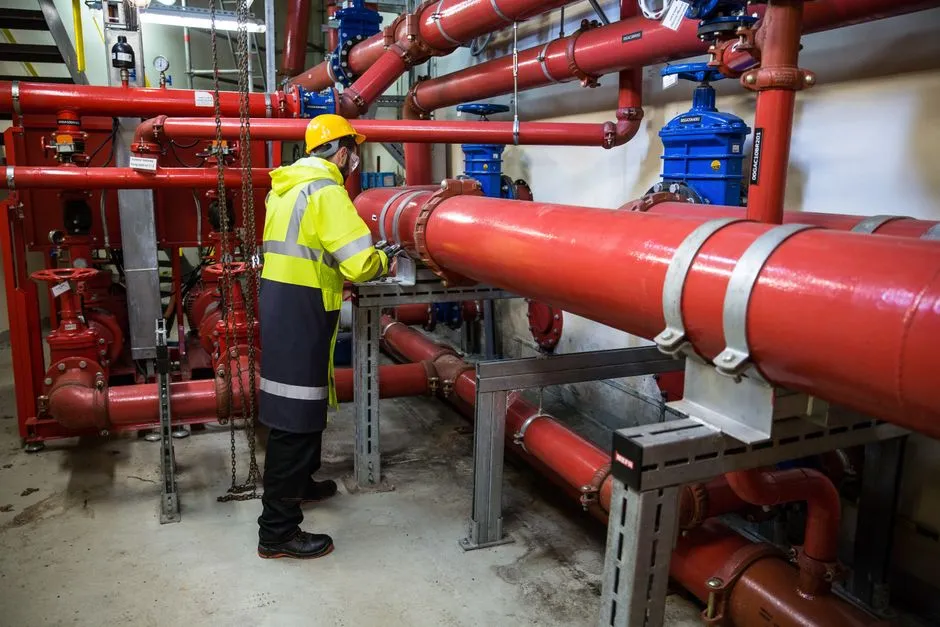

Picking the Right Train: Four Decision Axes

The right combination of unit operations is a function of four decision axes, walked through in order. Axis 1 is the controlling pollutant: oils and TSS point to a DAF; dissolved metals point to chemical precipitation plus a lamella; high COD or BOD point to biological polishing; pH swings point to equalization plus PLC-controlled dosing. Most Mc Intosh chemical plants hit two or three of these simultaneously, which is why the full six-stage train is the common case rather than the exception.

Axis 2 is SIU status. If the plant is an SIU under a categorical standard, the federal number in 40 CFR Part 414, 415, 417, 419, or 433 is the floor, and the local limit is typically the binding bar because the receiving POTW has to protect its own NPDES permit and biosolids program (per EPA Local Limits Development Guidance). If the plant is non-categorical, the design still has to prevent pass-through and interference under 40 CFR 403.5(a), which is qualitative but no less enforceable.

Axis 3 is the flow pattern. Batch operations with long cycle times or shared collection systems need equalization sized for hours to days of retention; continuous operations can usually get away with 4–8 hours. The cost penalty for over-sizing equalization is small compared with the cost of a single pass-through excursion, so most engineers size the long way. Axis 4 is water reuse: when reuse-quality water is a target, the MBR-plus-RO path becomes the stronger candidate; pure discharge-to-sewer operations can stay on conventional activated sludge or a simpler aerobic basin. Equalization and PLC-controlled dosing remain the lowest-cost insurance against compliance excursions, and under-sizing either is the most common root cause of failed events at chemical plants (HydropureWater field data, 2026). A worked MBR-vs-CAS basis-of-design is in the MBR vs CAS comparison for chemical wastewater reference, and SBR design parameters and cycle calculations covers the sequencing-batch alternative for batch operations.

The Documentation Chain That Turns Design Into Compliance

The treatment train is the engineering side; the documentation side is where most EPA and POTW enforcement actions actually land. A Mc Intosh chemical plant's pass-through and interference defense runs through five repeatable steps.

1. SIU classification plus control mechanism. Confirm the SIU status under 40 CFR 403.3(v) and obtain the POTW-issued control mechanism that lists the numeric limits, monitoring schedule, and reporting cadence the plant will be judged against.
2. Self-monitoring. Run 24-hour flow-weighted composite sampling on a defined cadence: monthly for O&G, TSS, sulfides, phenols, and ammonia; quarterly for metals, BTEX, and hexavalent chromium. Results are reported on a DMR or the local equivalent, and exceedances trigger accelerated monitoring.
3. Slug-load control plan under 40 CFR 403.8(f). The plan must be written, current, and trained out, covering loading racks, tank transitions, and batch discharges, and it must define what counts as a slug, what the plant will do to contain it, and how it will notify the POTW.
4. 24-hour accidental-discharge reporting. When a slug escapes, notify the POTW and the relevant authorities within the EPA-prescribed window and follow up with a written report describing the cause, corrective action, and revised prevention measures. Slug plans that exist on paper but were not followed are the most common root cause in consent decrees.
5. Auditable records. Keep the chain of custody for every composite sample, the calibration logs for the online analyzers, the operator training records for the DAF, EQ basin, and biotreater, and the restricted-chemical inventory from the SIU permit. The paper trail is what turns a "no pass-through" claim into a defensible one.

The national framework that sits behind all five steps is in the national chemical-plant pretreatment framework reference.

Frequently Asked Questions

What is the MAHL methodology and why does my local limit differ from the federal categorical number?

MAHL (Maximum Allowable Headworks Loading) is the EPA-published five-step process for setting site-specific local limits: identify pollutants of concern, collect and analyze data, calculate MAHLs for each pollutant, designate and implement limits, and address collection-system concerns (per EPA Local Limits Development Guidance). Local limits routinely run tighter than the federal categorical floor because the POTW has to protect its own NPDES permit and biosolids program, not just clear the categorical technology-based bar.

At what flow rate does my chemical plant become an SIU under 40 CFR 403.3(v)?

Under 40 CFR 403.3(v), an industrial user is an SIU if it (1) is subject to categorical pretreatment standards, (2) discharges an average of 25,000 gpd or more of process wastewater, or (3) contributes a process waste stream of 5% or more of the POTW's average dry-weather hydraulic or organic capacity (per EPA, 2026). For a Mc Intosh chemical plant under 40 CFR Part 414 or 415, trigger (1) applies regardless of flow.

What is the typical pH window a Mobile County POTW will require for sewer discharge?

Most Alabama POTWs codify a 6–9 pH window as a local limit under 40 CFR 403.5(b) specific prohibitions. A PLC-controlled dosing loop on the equalization basin outlet is the standard control, with an online pH probe and a sewer shutoff interlock to prevent excursions during batch releases.

How quickly do I have to report an accidental discharge or slug release to the POTW?

Any discharge that could cause interference at the POTW must be reported within 24 hours under 40 CFR 403.8(f), with a written follow-up describing the cause, the corrective action, and the revised prevention measures. Slug-control plans that exist on paper but were not followed at the moment of release are the most common root cause in enforcement actions.

What is the right DAF operating envelope for chemical plant wastewater?

For chemical plant pretreatment, a DAF typically runs an air-to-solids ratio of 0.02–0.06, hydraulic retention of 15–30 minutes, and saturator recycle of 20–50% of forward flow, with a capacity band of 4–300 m³/h. Oil-in-water online analyzer setpoints of 10–20 mg/L on the DAF outlet are the standard alarm band used to protect the local 50–100 mg/L O&G limit before the biological polishing step (HydropureWater field data, 2026).
