Why LED Epi-Wafer and Package Wastewater Break the Standard MBR vs CAS Rule of Thumb
LED epi-wafer fab wastewater carries 50–500 mg/L of fluoride as F⁻ from HF/HNO₃ etching, plus isopropyl alcohol, non-ionic surfactants from photoresist developer overflow, and trace Ga/In/Sn metals; OSAT package and backgrind lines run much weaker — 200–800 mg/L COD — but ship tetramethylammonium hydroxide (TMAH), EDTA chelating agents, ethylene glycol from dicing coolant, copper and tin from plating rinses, and short-chain organic acids (HydropureWater field data, 2026). Both streams land in the bioreactor with a C/N ratio below 4, which is the band where conventional activated sludge starts losing nitrification efficiency and bulking filaments dominate. That low C/N, combined with periodic F⁻ and surfactant shocks from batch wafer lots, is exactly the regime where a generic MBR-vs-CAS comparison written for municipal sewage misleads the engineer — because the deciding factor is no longer footprint or operator skill, it is shock-tolerance and SRT. A MBR membrane bioreactor system at SRT 30+ days can hold a stable nitrifier population across these swings; a CAS basin at SRT 8 days cannot.
The lifecycle greenhouse gas gap is smaller than vendors suggest. A plant-wide model comparison by Mannina et al. (S2) reports 0.85 kgCO₂eq/m³ for CAS versus 0.91 kgCO₂eq/m³ for MBR at benchmark conditions — a 7% delta that is sensitive to the rbCOD/TKN ratio. In other words, the GHG argument rarely decides the choice on its own; the technology that wins on footprint, reuse quality, and recalcitrant removal is the one that also tends to win on lifecycle cost for a fab.
MBR vs CAS at a Glance: Process Parameters Side by Side
For a P&ID or CAPEX memo, the head-to-head numbers below are the working set a fab engineer should paste directly. Values are drawn from commercial benchmarks (S5) and from the HydropureWater DF-series product line, cross-checked against the Mannina et al. plant-wide model (S2).
| Parameter | Conventional Activated Sludge (CAS) | Membrane Bioreactor (MBR) |
|---|---|---|
| MLSS | 2,000–4,000 mg/L | 8,000–15,000 mg/L |
| Sludge Retention Time (SRT) | 5–15 days | 20–60 days |
| Hydraulic Retention Time (HRT) | 6–12 h | 4–8 h |
| Effluent TSS | 10–30 mg/L | <5 mg/L, typically <1 mg/L with PVDF UF |
| Solid/liquid separation | Gravity secondary clarifier | PVDF UF membrane, 0.03–0.1 μm |
| Footprint | Baseline (100%) | 50–70% of CAS |
| Capital cost (CapEx) | Baseline | +20–50% |
| Energy use | Baseline | +30–50% per m³ treated |
| Membrane replacement | N/A | Every 7–12 years |
| Excess sludge production | Baseline | 20–30% lower (S2) |
The two rows that change the design most for a fab are MLSS and effluent TSS. Operating at 10,000 mg/L MLSS in a DF-series PVDF flat-sheet MBR module cuts the aeration basin volume by roughly 60% against an equivalent CAS line, and the <1 μm barrier is what makes downstream RO polishing technically and economically viable without an intermediate sand filter. CAS reaches the same end only by adding a tertiary filter and accepting 10–30 mg/L TSS swings during sludge bulking events (S5).
How Each System Handles the LED Epi-Wafer Water Matrix
Fluoride must be precipitated out before either system sees it. Calcium chloride dosing to pH 8–9 forms CaF₂; aluminum sulfate dosing forms AlF₃; either step reliably drops F⁻ from 200–500 mg/L down to the 20–50 mg/L range the biomass can tolerate, and a polishing stage to ≤15 mg/L protects downstream RO (Taiwan EPA effluent limit for F⁻ in fab discharge). Above ~50 mg/L F⁻ in the aeration basin, both MBR and CAS nitrification collapses — this is non-negotiable pretreatment, not a technology differentiator. What is a differentiator is what happens after precipitation: the residual matrix still contains IPA at 100–300 mg/L, non-ionic surfactant from edge-bead removal, and 50–200 mg/L NH₃-N from TMAH-bearing stripper waste. In CAS, IPA and surfactant shocks deflocculate the sludge and ride a foam layer over the clarifier weir, sending TSS and BOD straight into the effluent. In MBR the physical barrier stops that washout, but the same organics foul the membrane faster, so the equalization tank, antifoam dosing, and a DAF system upstream remain mandatory regardless of the biology choice (S5).
Nitrification kinetics are where the long-SRT MBR pulls ahead decisively. At 30+ days SRT, ammonia-oxidizing bacteria (AOB) and nitrite-oxidizing bacteria (NOB) populations are stable enough to convert 50–200 mg/L NH₃-N to nitrate at >95% efficiency even with the F⁻/surfactant background. CAS at 8–12 days SRT achieves the same removal only with a dedicated nitrification stage and careful DO control above 2 mg/L; cold-weather or low-load conditions still tip it into incomplete nitrification. On the GHG side, MBR emits 0.91 vs CAS 0.85 kgCO₂eq/m³ at benchmark (S2), but the gap is driven by the rbCOD/TKN ratio — a fab with low biodegradable carbon will see MBR's N₂O production rise, narrowing or reversing the small advantage.
How Each System Handles the LED Package / Backgrind Water Matrix
Package lines — dicing, backgrind tape residue, copper plating rinse, solder dross removal — produce a different problem set. Influent COD sits at 300–600 mg/L, fluoride is typically below 10 mg/L, but EDTA from photoresist stripping and Cu-Sn from plating rinses are the difficult species. EDTA chelates copper and nickel, holding them in solution; CAS at 8–10 days SRT cannot break the EDTA ring effectively, so chelated metals pass through the clarifier and upset downstream precipitation. MBR at 20–30 days SRT supports a slow-growing EDTA-degrading consortium — often dominated by Mesorhizobium and Comamonas strains — and observed EDTA removal in similar long-SRT systems runs 60–80% versus <30% for CAS (HydropureWater field data, 2026). The trade-off is that low-COD influent makes MBR less energy-efficient per kg COD removed, because membrane aeration demand is fixed while the organic load is small; a hybrid CAS polishing train with a UF skid is often more economic for the package side alone.
Sludge handling favors MBR in both directions. Mannina et al. (S2) report 20–30% lower observed yield for MBR versus CAS at the same SRT, which is meaningful for a fab already constrained on sludge storage and haul-off. A plate and frame filter press downstream of either clarifier handles the dewatering, but MBR sludge dewaters to a slightly higher cake solids (22–25% vs 18–22% for CAS) because the biomass is younger on average and more compactable.
Decision Matrix: When to Choose MBR vs CAS in a Fab
Translate the parameter table above into a selection rule that holds up in a design review with EHS, facilities, and finance in the room.
| Decision Driver | Choose MBR | Choose CAS |
|---|---|---|
| Footprint | Site <2,000 m² available, cleanroom-adjacent retrofit | Greenfield with adequate civil area |
| Discharge / Reuse Target | Effluent must feed RO for UPW reclaim (<1 μm barrier required) | Discharge-only to sewer or industrial park WWTP |
| Influent character | Recalcitrant organics (EDTA, TMAH, long-chain surfactants), low C/N <4 | Readily biodegradable, well-equalized, low F⁻ |
| Delivery model | Containerized / skid-mounted plant, fast schedule | Stick-built concrete basins, longer schedule acceptable |
| CAPEX vs OPEX | OPEX-tolerant, water reuse revenue > membrane OPEX premium | CAPEX-constrained, low energy cost |
The hybrid option is the realistic answer for most Taiwanese and Korean LED mega-fabs: run MBR on the high-strength, low-C/N epi-wafer line, CAS on the lower-strength package line, and converge both onto a common UF polishing skid feeding the reuse RO. This is the layout that lets each stream pay only for the biology it actually needs.
Pretreatment and Reuse Train: DAF, UF, RO Around the Bioreactor
The biology decision is downstream of pretreatment and upstream of reuse. A DAF system in front of either CAS or MBR strips FOG, surfactants, and floated solids — S5 explicitly recommends DAF before MBR for any oily or surfactant-bearing stream, and fab wastewater qualifies. After MBR, a industrial RO system can be fed directly because TSS is already <1 mg/L; after CAS, an intermediate UF stage at 0.03 μm is required to protect the RO from clarifier breakthrough during bulking events. Rinse-water reclaim rates of 60–80% are typical for MBR + RO trains of comparable capacity, versus 30–50% for CAS + RO trains (HydropureWater field data, 2026) — the membrane barrier's main value to a fab is not biology, it is protecting the RO that makes water reuse real.

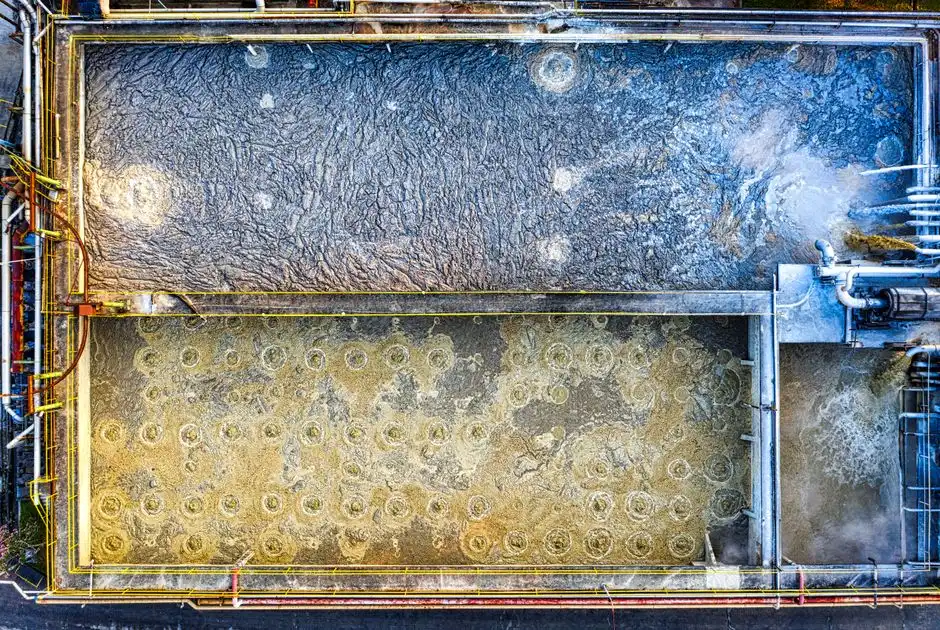

10-Year Cost and Compliance Outlook for LED Fab Wastewater
Over a 10-year horizon, MBR's 20–50% CapEx premium is offset by avoided secondary clarifier and tertiary filter CAPEX (S5), and OPEX is dominated by membrane replacement every 7–12 years and the persistent 30–50% energy premium. Payback in 5–8 years is realistic when water reuse revenue, land cost in Hsinchu or Hwa-Ya, and avoided sludge hauling are counted.
| Cost / Compliance Item | CAS | MBR |
|---|---|---|
| 10-yr CapEx (incl. clarifier / membrane modules) | Baseline | +20–50% |
| 10-yr OPEX (energy + membrane replacement) | Baseline | +30–50% energy, +membrane swap at yr 7–12 |
| Direct GHG (S2 model) | 0.85 kgCO₂eq/m³ | 0.91 kgCO₂eq/m³ |
| Rinse-water reclaim rate | 30–50% | 60–80% |
| Taiwan EPA COD ≤100 mg/L compliance | Comfortable margin | Comfortable margin |
| Taiwan EPA SS ≤30 mg/L | Comfortable margin | Easily met (typ. <5) |
| Taiwan EPA F⁻ ≤15 mg/L | Met with CaF₂ precipitation upstream | Same — biology does not handle F⁻ |
| Taiwan EPA NH₃-N ≤30 mg/L | Met if SRT > 10 days | Met comfortably at SRT 30+ days |
Discharge compliance is not the differentiator — both technologies meet Taiwan EPA COD ≤100, SS ≤30, F⁻ ≤15, and NH₃-N ≤30 mg/L when designed correctly. Reuse targets, footprint, and the recalcitrant-fraction of the influent are. Chemical dosing for pH correction and F⁻ precipitation is identical for both trains and benefits from a programmable chemical dosing skid to hold setpoints during batch wafer dumps.
Frequently Asked Questions
Is MBR worth the extra 20–50% CapEx for fab wastewater?
Yes, when rinse-water reuse of 60–80% is targeted or footprint is constrained. The premium pays back in 5–8 years once water reuse revenue and avoided clarifier CAPEX are included; if the fab is discharge-only with land available, CAS wins on OPEX (HydropureWater field data, 2026; S5).
Can MBR handle fluoride from HF/HNO₃ etching?
No, and neither can CAS. Both bioreactors crash above ~50 mg/L F⁻ in the aeration basin. Fluoride must be precipitated as CaF₂ or AlF₃ upstream to ≤15 mg/L before the biological stage, and a polishing step is required to meet the Taiwan EPA F⁻ ≤15 mg/L discharge limit.
What MLSS should I run for an LED epi-wafer MBR line?
8,000–12,000 mg/L is the working range for a PVDF flat-sheet MBR on epi-wafer wastewater; pushing past 15,000 mg/L accelerates membrane fouling faster than it improves nitrification. For an LED package line at 300–600 mg/L COD, the lower end of that range (8,000–10,000 mg/L) is more energy-efficient per kg COD removed.
Does MBR or CAS have lower N₂O emissions on fab wastewater?
The Mannina et al. plant-wide model (S2) reports 0.85 kgCO₂eq/m³ for CAS and 0.91 for MBR at benchmark — MBR slightly higher because the rbCOD/TKN ratio of fab wastewater is low. The gap is small enough that local carbon price rarely decides the choice; water reuse savings usually dominate.
What sits between MBR and RO in a fab reuse train?
Nothing else is required — MBR effluent at <1 mg/L TSS feeds directly to the RO high-pressure pump. After CAS, an intermediate UF polishing stage at 0.03 μm is needed to protect the RO from clarifier breakthrough. For a comparison against sequencing-batch options, see our MBR vs SBR comparison; for membrane care, see MBR membrane fouling control strategies.
