MBR vs Conventional Activated Sludge for Food & Beverage Wastewater in Park Hills (2026 Guide)

Why Park Hills food and beverage plants are rethinking CAS in 2026

Park Hills food and beverage (F&B) discharges are regulated under Missouri's Clean Water Commission Chapter 644 framework, with site-specific effluent limits established through operating permits issued under 10 CSR 20-7.015. For processors running bottling lines, dairies, or batch recipe operations, those permits increasingly push toward sub-10 mg/L TSS, low turbidity, and reuse eligibility — numbers a settling clarifier cannot reliably deliver on a diurnal F&B load. Raw wastewater in this region routinely runs BOD 800–3,000 mg/L and COD 1,500–6,000 mg/L, with sharp spikes from clean-in-place (CIP) recovery and sugar or starch batching that can double influent strength in under an hour (per the 2026 HydropureWater engineering comparison).

That shock profile is the core problem. A conventional activated sludge (CAS) clarifier separates biomass by gravity, and its capacity depends on sludge volume index (SVI) — a settling property that deteriorates exactly when bulking filaments thrive on sugary, high-F/M waste. Once SVI climbs, the clarifier becomes the single point of failure: solids carry over, the operator loses effluent quality, and the only recovery is wasting biomass the plant cannot afford to lose. Submerged PVDF membrane bioreactors (0.1–0.4 μm) hold TSS regardless of SVI because the barrier is a defined pore size, not a settling rate. MBR has matured from its late-1990s/early-2000s U.S. industrial adoption into a standard procurement option in 2026, with modular platforms that can be bid against CAS on a true EPC basis (per the 2026 IWS market overview, published 2025-11).

For a Park Hills F&B engineer sending a design package to EPC bidders by Q1 2027, the relevant question is not whether MBR works — the Fort Worth F&B MBR vs CAS guide documents that — but whether the local compliance trigger, footprint, and reuse economics justify the 20–35% OPEX premium over CAS at this site.

How MBR and CAS actually work — and why the difference matters for F&B

CAS is a two-stage process: an aeration tank where heterotrophic bacteria convert BOD into biomass and CO₂, followed by a secondary clarifier that separates mixed liquor from clarified effluent by gravity. Settled sludge splits into return activated sludge (RAS) and waste activated sludge (WAS). The clarifier is the engineered weak point — its separation depends on sludge settleability (SVI), not on a defined pore size, so any event that disturbs floc structure (slug load, low DO, cold wastewater, filament growth) collapses the system.

MBR replaces that clarifier with submerged MF/UF membranes, almost always PVDF, operating at a pore size of 0.1–0.4 μm. Mixed liquor is drawn through the membrane under vacuum on a permeate cycle; rejected biomass stays in the aeration basin. Because the membrane is a physical barrier with a defined cutoff, MBR decouples hydraulic retention time (HRT) from solids retention time (SRT) more aggressively than CAS, runs at food-to-microorganism (F/M) ratios of 0.05–0.15 d⁻¹, and tolerates shock loads that would wash out a clarifier (HydropureWater, 2026).

That decoupled operation is what F&B plants need. A sugar dump from a batching line or a CIP caustic surge spikes F/M within minutes. In CAS, the clarifier responds by bulking; in MBR, the membrane simply holds the line on TSS while the high-MLSS biomass digests the slug. The downstream consequence is operational: an MBR permeate at <5 mg/L TSS and turbidity <1 NTU is already at RO-feed quality (Silt Density Index typically <3), so it can be sent to cooling-tower makeup or process-rinse reuse without a tertiary filter train (per the 2026 engineering comparison).

Side-by-side operating parameters: MBR vs CAS for F&B duty

The table below consolidates the design envelope a Park Hills F&B engineer would quote into a basis-of-design memo. MBR ranges are drawn from the 2026 HydropureWater engineering comparison; the F&B-specific row is from the Kian Joo Canpack pilot (S5). All values are typical for municipal and light-industrial service; high-strength industrial streams push MBR toward the upper MLSS and SRT limits.

Two design takeaways from the F&B pilot row: flat-sheet (FS) membranes operated at 0.2 bar TMP without chemical cleaning during the test window, while hollow-fiber (HF) reached 0.3 bar and is recommended for more frequent CIP — a real maintenance difference for F&B streams carrying high fiber or FOG (S5). And the SDI of 1–2.38 sits well below the 3 threshold for RO feed, which is the bridge to any reuse claim in the operating permit. The DF series flat sheet membrane module spec sheet is the typical reference for the 0.4–0.6× footprint factor.

F&B-specific performance: shock loads, FOG, and reuse-grade effluent

The Kian Joo Canpack beverage pilot (S5) ran HF and FS membrane configurations side by side at 6,000 mg/L and 12,000 mg/L MLSS. Both delivered 80–95% COD and TSS rejection across the two MLSS setpoints, with HF at 0.3 bar TMP (within the recommended 2–3× chemical-cleaning interval) and FS at 0.2 bar TMP without chemical cleaning during the trial. Silt Density Index came in at 1–2.38, comfortably under the 3 ceiling that RO membranes require to operate without accelerated fouling.

For a Park Hills plant, three F&B-specific behaviors drive the design choice. First, sugar and starch batches spike F/M faster than the clarifier's settling biology can adapt, while the MBR membrane holds TSS independent of SVI. Second, FOG accumulation fouls HF membranes faster than FS — a documented finding in the S5 pilot where FS reached 97–99% pollutant reduction versus 84–95% for HF. Third, the reuse-grade effluent (SDI 1–2.38, turbidity <1 NTU) makes MBR the default pretreatment for cooling-tower makeup, boiler feed, or process-rinse loops feeding an RO polisher (per the 2026 HydropureWater engineering comparison).

The caveat is real: MBR's higher SRT and physical barrier improve removal of suspended-bound and larger-MW micropollutants, but polar low-MW species pass through both CAS and MBR at similar rates. Any reuse train feeding RO or distillation still needs polishing — the MBR does not eliminate that downstream step, it just protects it. For F&B processors weighing plant-wide reuse, the coffee processing wastewater treatment plant price guide walks through the CAPEX/OPEX overlay when MBR feeds RO.

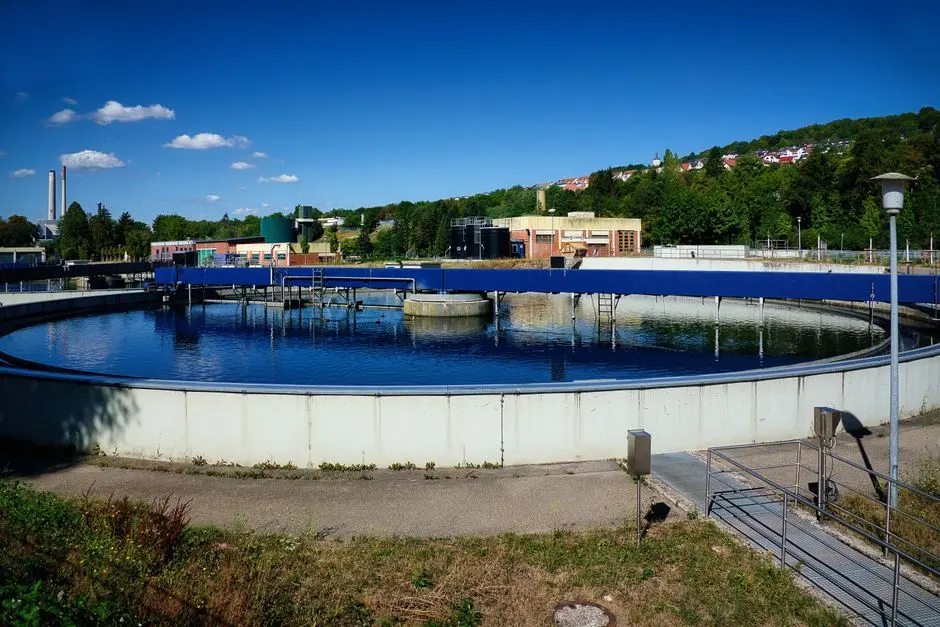

Footprint, retrofit potential, and Park Hills site realities

MBR footprint runs 40–60% smaller than an equivalent CAS train, and the DF series flat sheet module is rated at roughly 60% smaller footprint than conventional systems (HydropureWater, 2026). The saving comes from three places: a smaller aeration basin (high MLSS shrinks tankage by 2–4×), no secondary clarifier or RAS pumping station, and elimination of most tertiary filtration.

The retrofit path is the second commercial lever. An existing CAS aeration basin can be repurposed as the MBR aeration zone by adding submerged membrane cassettes and removing the clarifier, with RAS piping, scum removal, and mixed-liquor distribution redesigned. Modular MBR skid designs also enable phased capacity build-out — install two cassettes in year one, add two more when flow grows — which is rarely economic with CAS clarifier hydraulics, since the clarifier is sized for design flow on day one. For sites with no land pressure and no reuse obligation, CAS remains a defensible lower-CAPEX option; the footprint saving alone rarely justifies the OPEX delta on a greenfield with cheap land.

2026 CAPEX, OPEX, and payback for a Park Hills F&B project

Indicative 2026 turnkey CAPEX for skid-integrated, EPC-scope plants runs $80–$220 per m³/d for CAS and $180–$420 per m³/d for MBR. OPEX lands at $0.10–$0.22/m³ for CAS and $0.18–$0.42/m³ for MBR. The CAPEX range is wide because it tracks sharply with influent strength (high-COD industrial requires thicker tanks and larger blowers) and with stainless versus carbon steel material selection (HydropureWater, 2026).

The payback rule is conditional. CAS-to-MBR payback is 3–6 years when any of three conditions hold: (1) the project needs reuse water and the CAS baseline includes a tertiary filtration train; (2) land cost is high enough that the 40–60% footprint saving changes the site economics; or (3) the discharge consent requires <10 mg/L TSS and the CAS baseline needs cloth-media disc filters to meet it. If none of those apply, CAS remains the lower-cost compliant option. For an integrated procurement evaluation, an integrated MBR system bid should be compared against a CAS-plus-tertiary-filter baseline on the same EPC scope, not against a bare CAS tankage number.

Decision matrix: which technology fits which F&B plant

The matrix below is sized for a Park Hills F&B engineer walking into the next internal review with a vendor shortlist.

For breweries, dairies, and beverage bottling specifically, the S5 pilot data supports MBR as the default once an SDI <3 reuse obligation is in scope (per the Fort Worth F&B MBR vs CAS guide, which walks the same matrix for a Texas jurisdiction). The rule of thumb: if any of reuse, footprint, or sub-10 mg/L TSS applies, run the MBR economics; otherwise CAS still wins on cost-to-compliance.

Frequently Asked Questions

MBR vs CAS for food and beverage — which is cheaper in 2026?

2026 turnkey CAPEX runs $80–$220 per m³/d for CAS and $180–$420 per m³/d for MBR (EPC scope). OPEX lands at $0.10–$0.22/m³ for CAS and $0.18–$0.42/m³ for MBR. CAS is cheaper on raw tankage; MBR becomes competitive once a tertiary filtration train, land cost, or a sub-10 mg/L TSS consent is added to the CAS baseline (HydropureWater, 2026).

What effluent quality can an F&B MBR deliver?

80–95% COD and TSS rejection with TSS <5 mg/L, BOD <5 mg/L, turbidity <1 NTU, and Silt Density Index 1–2.38 — below the 3 ceiling for RO feed (S5 Kian Joo Canpack pilot). Flat-sheet configurations held 0.2 bar TMP without chemical cleaning during the trial window.

How long do MBR membranes last in F&B service?

5–8 years amortized replacement cycle under a CIP regime of every 1–4 weeks using NaOCl at 300–500 mg/L followed by a citric or oxalic acid wash. Operating at the upper end of the SRT range (40–60 days) generally extends the CIP interval from weekly to monthly, at the cost of higher MLSS viscosity (HydropureWater, 2026).

Can an existing CAS basin be converted to MBR?

Yes. Add submerged membrane cassettes to the existing aeration basin, remove the secondary clarifier, and redesign RAS and mixed-liquor distribution. The 40–60% footprint saving then applies, and the conversion is the lowest-friction path for a Park Hills plant that already has aeration tankage on site but a clarifier that cannot hold SVI under F&B shock loads.

Which MoDNR rule applies to a Park Hills F&B discharge?

10 CSR 20-7.015, under the Clean Water Commission Chapter 644 framework. Site-specific effluent limits (TSS, BOD, ammonia, FOG where applicable) are set in the operating permit issued by the Missouri Department of Natural Resources regional office. Engineers bidding a Q1 2027 EPC package should request the current permit draft before finalizing the design basis.
