UF vs DAF for Food & Beverage Process Water: 2026 RO Pretreatment Guide

The Colloidal Solids Problem in Food and Beverage RO Pretreatment

Colloidal solids are particles in the 0.001–1 µm range that do not settle under gravity and remain suspended, slipping past conventional screens, grit chambers, and primary clarifiers. In dairy, brewery, sauce, and meat-processing plants, these colloids ride alongside free and emulsified fats, oils, and grease (FOG), proteins, starches, and yeast residues, creating a mixed stream that defeats single-mechanism separators. Colloids are reverse osmosis's primary fouling agent: they deposit on the membrane surface as a gelatinous layer, cause irreversible flux decline, and shorten RO element life from 5–7 years to 12–18 months in untreated F&B service. The RO feed water requirement reflects this — the Silt Density Index (SDI) at the RO high-pressure pump suction must be below 3, and most thin-film composite membrane warranties require SDI < 2 to remain valid (per EPA Clean Water Act industrial compliance guidance). Reaching that number is the engineering purpose of the pretreatment train and the metric that drives the DAF-versus-UF decision.

How DAF Works on FOG and BOD Loads

A dissolved air flotation (DAF) unit separates solids by buoyancy. A sidestream recycle of clarified effluent — typically 15–50% of the influent flow — is pumped into a saturation vessel at 4–6 bar (58–87 psi), where Henry's Law forces a large mass of air into solution. When that recycle stream re-enters the main flotation tank through pressure-reducing nozzles, the dissolved air comes out of solution as 30–50 µm microbubbles that attach to chemically conditioned particles and carry them to the surface (per Hixson 2024 DAF design data). The chemical conditioning step is not optional: a coagulant plus polymer flocculant dose is required upstream of the tank to agglomerate emulsified oils, fine TSS, and colloidal material into a floatable mass, and the dosing is typically automated through a PLC-controlled coagulant and flocculant dosing system. As a primary step, DAF removes 50–80% TSS, 60–90% FOG, and 30–60% BOD on F&B streams — the right tool for free oils, floatable solids, and the BOD associated with those particulates. DAF falls short on the residual colloidal fraction and the dissolved organics that pass through the float layer, as chemically conditioned floc sheds sub-micron particles and soluble BOD that bubbles cannot carry. EPA-documented DAF operations have also demonstrated sludge thickening to 3.5% total solids, which gives DAF a secondary value as a sludge-conditioning step (per Hixson 2024 design data). For plants standardizing on this technology, the ZSQ series DAF system is a representative skid configuration covering 4–300 m³/h.

How UF Works on FOG and BOD Loads

Ultrafiltration separates solids by physical size exclusion at the membrane surface. Hollow-fiber UF modules with 0.03 µm PVDF membranes — absolute pore rating — physically retain colloids, emulsified oil droplets, bacteria, and high-molecular-weight organics regardless of specific gravity, charge, or surface chemistry. Because the rejection mechanism is sieving rather than buoyant attachment, UF does not require chemical conditioning of the feed to operate; colloids are removed because they are larger than the pore. Operating envelopes for F&B service typically run 2,000–40,000 L/h per train, with feed turbidity tolerance up to 300 NTU and automatic backwash plus air scour on a timed cycle. Cleaning-in-place (CIP) is periodic — typically quarterly on a well-designed F&B pretreatment train — using alkaline and acid detergents; the membrane step itself is chemical-free day to day. This OPEX contrast with DAF explains why UF belongs in any head-to-head comparison for RO pretreatment. For plants evaluating a skid-mounted package, the 0.03 µm PVDF ultrafiltration system covers the same F&B flow range that a mid-sized DAF would handle, in a fraction of the footprint.

Head-to-Head: DAF vs UF on the Parameters That Matter for RO Pretreatment

The table below compares the two technologies on the parameters that drive RO pretreatment decisions at a high-BOD FOG site. Numbers are drawn from vendor design data (Hixson 2024) and standard UF membrane specifications for F&B service.

DAF on its own delivers SDI 5–10, while UF delivers SDI <3, making the latter necessary for RO protection. DAF's chemical OPEX of $50,000–$150,000 per year for a mid-sized F&B plant erodes the lower CAPEX advantage over a 10-year lifecycle. The ZSQ series DAF system and the 0.03 µm PVDF ultrafiltration system are the two unit operations being compared; the next section explains when to use either or both.

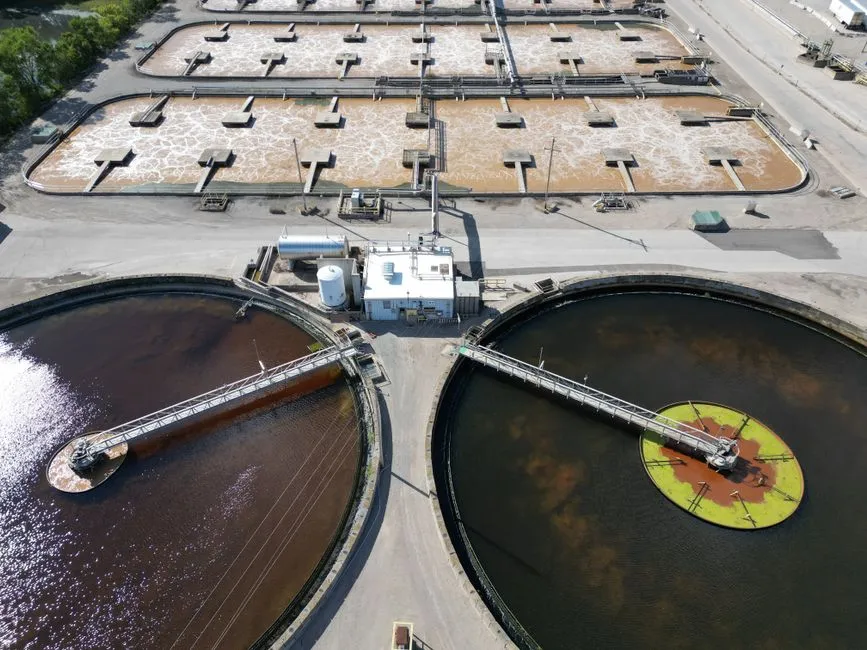

When DAF Alone Is Enough, When UF Alone Works, and When You Need Both

The right configuration depends on the downstream goal — sewer discharge under a POTW permit or water reuse through RO — and the FOG/colloid balance of the influent stream.

For plants seeking a closed-loop reuse system or high-recovery RO producing demineralized process water, the DAF → UF → RO train reliably hits SDI <2 at the RO suction. DAF protects UF by removing bulk FOG, and UF protects RO by removing colloids. Reversing the order is a common engineering mistake on F&B RO pretreatment projects that this framework is designed to prevent.

Cost and Operating Reality in 2026

Capital and operating economics for these three configurations follow directly from the comparison table. A skid-mounted DAF in stainless steel for a mid-sized F&B plant typically runs 30–50% below an equivalent-capacity UF skid on upfront equipment cost. That advantage is partially consumed by DAF's chemical OPEX, which Hixson 2024 design data places at $50,000–$150,000 per year for coagulant and flocculant. UF reverses the cost structure: higher CAPEX per m³/h, near-zero chemical OPEX, and energy as the dominant recurring line item. The combined DAF + UF train carries the highest CAPEX because the plant is buying both unit operations plus interconnecting piping. Lifecycle cost analysis shows the combined train winning on a 10-year horizon because it extends RO membrane life from 1–2 years in unprotected service to 4–6 years with a DAF → UF → RO train. For a detailed line-item OPEX breakdown on a 2026 F&B wastewater plant, see the 2026 food processing wastewater OPEX breakdown, and for the upstream DAF-versus-clarifier question, the F&B wastewater DAF vs clarifier comparison covers that decision. The downstream RO step being protected in the combined train is typically a HydropureWater industrial RO system.

Frequently Asked Questions

Which wins on colloidal solids removal — DAF or UF?

UF wins decisively on colloidal solids removal. A 0.03 µm absolute-rated UF membrane physically retains particles in the 0.001–1 µm colloidal range, producing effluent with SDI <3 and typically <2. DAF is a buoyancy separator, not a colloidal polisher; DAF effluent typically reads SDI 5–10 because chemically conditioned floc sheds sub-micron particles into the clarified stream.

Can I send high-FOG food plant wastewater directly to UF without DAF upstream?

No — not in continuous service. Free and emulsified oil coats PVDF UF membranes within hours, causing rapid flux decline and forcing uneconomic daily CIP cycles. DAF upstream of UF is the standard configuration at high-FOG sites.

What SDI does RO feed water actually require?

SDI <3 is the industry threshold for RO feed water, and most thin-film composite membrane warranties require SDI <2 to remain valid. UF ahead of RO routinely hits SDI <2; DAF alone does not, which is why the DAF → UF → RO train is the standard pretreatment configuration at high-BOD FOG sites targeting water reuse, as documented in the EPA Clean Water Act industrial compliance guide.

What is the typical annual chemical OPEX for a DAF system at a mid-sized food and beverage plant?
