Why Memphis Chemicals Plants Are Re-evaluating Primary Clarification in 2026
For Memphis chemicals plants in 2026, choose DAF when the wastewater carries emulsified oils, FOG, or low-density colloids — DAF systems remove ~95% of oils and greases versus ~70% for a clarifier on the same stream (per the 2026 industrial DAF vs. clarifier selection guide, S2). Choose a lamella or circular clarifier when the stream is dominated by heavy settleable TSS, slurries, or precipitated metals sludge, where gravity settling achieves ~90% solids reduction at lower OPEX. Most 40 CFR Part 414 facilities on the Mississippi corridor now run a hybrid DAF + lamella configuration to handle both fractions.
Memphis hosts a dense cluster of Organic Chemicals, Plastics, and Synthetic Fibers facilities regulated under 40 CFR Part 414 subparts C–G, with effluent limits on TSS, O&G, COD, and priority pollutants. The Memphis MSD Industrial Wastewater Pretreatment Program enforces local discharge limits on the Loosahatchie, Nonconnah, and Mississippi River receiving waters; surcharges and SNUR-style enforcement actions follow non-compliance. MLG&W's 2026 industrial power and water rates push OPEX-sensitive decisions, and on a 5- and 10-year total cost basis a higher-CAPEX DAF with lower polymer and air-saturation cost can beat a low-CAPEX clarifier — the same logic that drives the chemical plant pretreatment compliance guide for 2026 recommendations for Gulf Coast and river-corridor sites.
How a DAF System and a Clarifier Actually Separate Contaminants
A dissolved air flotation unit saturates recycled effluent with air at 60–80 psig, then releases it through a pressure-reduction valve into the flotation cell. The pressure drop nucleates 10–100 µm micro-bubbles that attach to oils, greases, latex residues, and low-density colloids, floating them to the surface where a mechanically driven skimmer removes the float (per the 2026 RTW DAF engineering reference, S4). Hydraulic retention time in the flotation zone is typically 15–30 minutes, with recycle ratios of 20–50% of forward flow driving the air-to-solids ratio that controls removal.

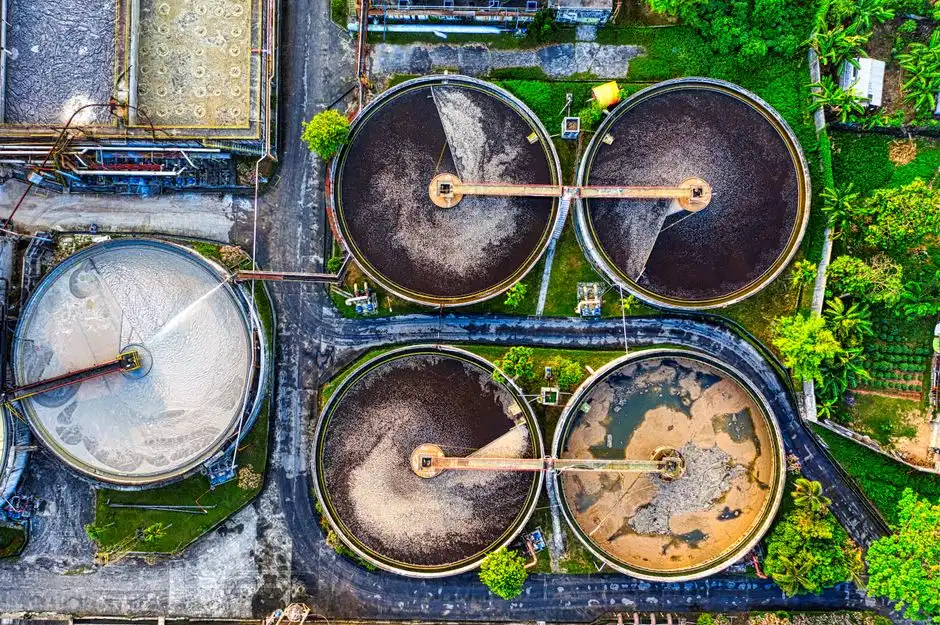

Clarifiers — circular, rectangular, or lamella/inclined-plate — rely on gravity settling. A circular clarifier runs at surface loading rates of 1–2 m/h; a lamella clarifier uses 60° inclined plates spaced at 50–80 mm to achieve effective surface loading rates of 20–40 m/h in roughly 3–5x less tank area, per the spec for the HydropureWater high-efficiency lamella clarifier. Lamella designs dominate greenfield chemicals plant upgrades in 2026 because the barge-and-rail corridor around President's Island and Rivergate leaves little laydown area.
"Modified DAF" is the EPA CWT costing term for a DAF preceded by a coagulation/flocculation conditioning cell with coagulant (alum, PAC, or ferric chloride at 10–150 mg/L) and flocculant (anionic PAM at 0.5–25 mg/L). The conditioning cell is what makes Modified DAF hit 40 CFR Part 414 effluent limits on emulsified FOG streams a standard circular clarifier would miss (per EPA 821-R-98-016, Section 2.8 and Tables 2-48 through 2-58, S1). A plain circular clarifier is rarely the right 2026 answer for a chemicals plant — but the lamella variant paired with a DAF is the configuration most procurement teams now specify. For a deeper look at the pressure-side mechanism in glycol and glycol-like streams, the DAF configuration guide for glycol-contaminated streams walks through the same air-saturation logic in more detail.
Head-to-Head: DAF vs Clarifier on the Metrics That Decide a Memphis CAPEX
DAF removes ~95% of FOG on emulsified streams versus ~70% for a clarifier; a lamella clarifier removes ~90% TSS on heavy-solids streams where a DAF float layer would carry too much water (S2, S4). On footprint, the HydropureWater ZSQ series DAF system covers 4–300 m³/h in 13 standard skid footprints, and a lamella clarifier achieves equivalent settling in 3–5x less tank area than a circular clarifier of the same hydraulic capacity. On sludge character, a DAF float typically runs 3–6% dry solids — directly dewaterable on a plate-and-frame press — while a clarifier underflow runs 1–3% DS and needs thickener conditioning first. DAF is also more tolerant of hydraulic surges because the recycle ratio buffers the air-to-solids contact time, whereas a clarifier's floc blanket can break under a 1.5–2x flow shock.
| Parameter | DAF (Modified) | Lamella Clarifier | Circular Clarifier |
|---|---|---|---|
| FOG / emulsified oil removal | ~95% | ~70% | ~70% |
| TSS removal (heavy settleable) | 60–80% | ~90% | ~85% |
| Surface loading rate (m/h) | 5–25 (as flotation zone) | 20–40 (effective) | 1–2 |
| Sludge DS % from primary | 3–6% | 1–3% | 1–3% |
| Polymer demand (mg/L) | 1–25 (anionic PAM) | 0.5–3 | 0.5–3 |
| Coagulant demand (mg/L) | 10–150 (PAC / FeCl₃) | 10–150 for metals streams | 10–150 for metals streams |
| Footprint relative to capacity | Compact skid | 3–5x smaller than circular | Baseline |
| Hydraulic surge tolerance | High (recycle buffered) | Moderate | Low–moderate |
| Key maintenance items | Air compressor, saturation tank, skimmer drives | Rake/torque, sludge pump, launder | Rake/torque, sludge pump, launder |
Polymer demand above 5 mg/L on a DAF is the signal that the upstream HydropureWater PLC-controlled chemical dosing skid needs jar-testing — running blind at 25 mg/L anionic PAM is the single most common cause of DAF OPEX overruns we see on 40 CFR Part 414 streams (HydropureWater field data, 2026). The pressure flotation engineering and performance explainer covers the air-saturation math behind why the recycle ratio — not polymer dose — is the primary knob for FOG removal.
2026 CAPEX and OPEX Ranges for Memphis Flows Above and Below 20 gpm
EPA's 1998 Detailed Costing Document for the Centralized Waste Treatment Industry (EPA 821-R-98-016) is still the only public, auditable source of total capital cost, O&M, land, and labor curves for DAF, Modified DAF, and clarification systems (S1). The O&M cost curves for DAF and Modified DAF are explicitly split at a 20 gpm flow breakpoint (Tables 2-55 through 2-58, S1) — designers should size Memphis systems against the curve that matches average daily flow, not peak flow. Land cost curves (Table 5-5, Region: South) put unimproved suburban land in Tennessee at a fraction of the Northeast baseline, which favors compact skid-mounted DAF and lamella packages on brownfield Memphis sites.
For mid-sized chemicals plants at 50–200 gpm (~285–1,140 m³/day), 2026 turnkey DAF systems typically fall in the high-hundreds-of-thousands USD CAPEX band, with clarifier CAPEX lower by 20–35% but OPEX competitive or higher on oily streams once polymer, sludge hauling, and rake maintenance are added (per EPA CWT cost curves indexed to 2026 dollars, S1). Power for the air-saturation pump, polymer makeup, and compressed-air draw drive DAF lifetime cost; coagulant, sludge hauling, and rake-torque maintenance drive clarifier lifetime cost. On a 5-year total, the hybrid Modified DAF + lamella configuration typically lands within 10–15% of a clarifier-only system on the same stream — and beats it whenever the FOG fraction is above ~50 mg/L influent.
| Flow band (avg) | DAF only CAPEX (turnkey, 2026 USD) | Lamella clarifier only CAPEX | Hybrid Modified DAF + lamella CAPEX | 5-yr OPEX driver (largest line item) |
|---|---|---|---|---|
| < 20 gpm (< 110 m³/day) | $180k–$420k | $120k–$260k | $260k–$560k | Polymer + compressed air (DAF) vs. sludge hauling (clarifier) |
| 20–100 gpm (110–545 m³/day) | $420k–$950k | $260k–$520k | $560k–$1.2M | Power for recycle pump + polymer |
| 100–200 gpm (545–1,090 m³/day) | $950k–$1.6M | $520k–$820k | $1.2M–$2.0M | Power + sludge dewatering |
| > 200 gpm (> 1,090 m³/day) | $1.6M+ (multi-unit) | $820k+ (larger tank) | $2.0M+ | Sludge hauling + polymer dominate |
Always pair the separator with a properly sized HydropureWater plate and frame filter press for sludge dewatering — running a 3–6% DS DAF float or a 1–3% DS clarifier underflow to a sludge lagoon instead of a press is the most common way Memphis plants double their 5-year hauling cost (HydropureWater field data, 2026). Index CAPEX to the EPA CWT cost curves using a chemical engineering plant cost index (CEPCI) updater rather than the 1998 dollar base; the curves are structurally valid but the absolute dollars need escalation.
Decision Framework: Which System Fits Your 40 CFR Part 414 Stream
Run these five questions in order — each one narrows the field between DAF, lamella clarifier, or hybrid.
- Does your stream carry >50 mg/L emulsified oils, FOG, or surfactants? Yes → Modified DAF first, with coagulation/flocculation conditioning. A clarifier alone will not reliably hit 40 CFR Part 414 O&G limits on emulsified feed.
- Is the dominant contaminant heavy settleable TSS, catalyst fines, or precipitated metals sludge? Yes → lamella clarifier first; its 20–40 m/h effective surface loading and 3–5x footprint advantage over a circular clarifier is decisive on space-constrained Memphis sites.
- Are you above or below 20 gpm average daily flow? Above 20 gpm favors DAF economics and stable operation per the EPA CWT O&M curve split (S1, Tables 2-55/2-56). Below 20 gpm can favor a packaged lamella clarifier with lower operator overhead — though Modified DAF at <20 gpm is still the right answer if the FOG fraction is high.
- Do you need to feed UF/RO downstream or polish biological effluent? DAF is the better membrane protector because it removes emulsified FOG that fouls thin-film composite membranes; a clarifier carry-over of emulsified oil will collapse RO flux within days.
- Is your site footprint constrained by the Memphis rail/barge corridor (President's Island, Rivergate, Frayser)? DAF and lamella clarifier both have 30–60% smaller footprints than circular clarifiers of equivalent capacity, and both ship as skidded packages that can be set on a single equipment pad.
If questions 1 and 2 both point to a different technology, the right answer is the hybrid — Modified DAF upstream for FOG, lamella clarifier downstream for the heavier floc and any precipitated metals. This is the "Modified DAF followed by clarification" configuration the EPA CWT tables cost out (S1, Section 2.8).
The 2026 Memphis Default: Hybrid DAF + Lamella Clarifier for 40 CFR Part 414 Plants
For 40 CFR Part 414 plants on the Memphis corridor in 2026, the default specification is a Modified DAF (coagulation + flocculation + flotation) upstream to handle FOG, latex residues, and emulsified organics typical of Organic Chemicals subparts, followed by a lamella clarifier for polishing the heavier floc and any precipitated metals — the same Modified-DAF-then-clarification train the EPA CWT tables describe (S1, Section 2.8). Pair it with a HydropureWater PLC-controlled chemical dosing skid sized for 10–30 mg/L coagulant and 1–5 mg/L flocculant, and a HydropureWater plate and frame filter press to dewater combined sludge to ≥35% DS cake for off-site disposal.
A 50–100 m³/h hybrid system fits on a single equipment pad with under 60 m² of total footprint — practical for brownfield Memphis sites with limited laydown and tight tie-ins to existing 40 CFR Part 414 monitoring points. For construction-phase or turnaround bridging, a mobile trailer-mounted DAF (per the WesTech mobile DAF spec at 47'-6" x 8'-6" or 51'-7" x 8'-6" and online within a day, S5) can carry the full FOG load while the permanent DAF is being installed.
| Component | 2026 default spec for 50–100 m³/h hybrid | Notes |
|---|---|---|
| Upstream screening | 1–2 mm perforated drum | Protects DAF nozzles from ragging |
| Equalization | 8–24 hr HRT, mechanical mixer | Buffers FOG spikes; sized per EPA CWT Table 2-37 (S1) |
| Coagulation / flocculation cell | 10–30 mg/L PAC or FeCl₃; 1–5 mg/L anionic PAM | Modifies DAF O&M curve selection (S1, Tables 2-56/2-58) |
| Modified DAF (ZSQ series) | 20–50% recycle, 60–80 psig saturation | Targets FOG and emulsified organics |
| Lamella clarifier | 20–40 m/h effective surface loading | Polishes floc and precipitated metals |
| Chemical dosing skid | PLC-controlled, flow-paced | Prevents polymer overdosing |
| Plate and frame filter press | Target ≥35% DS cake | Reduces hauling vs. lagoon |
Plug the component lines into your CFO's CAPEX/OPEX model as a single train — the hybrid is the only configuration that simultaneously hits 40 CFR Part 414 O&G limits, holds clarifier-equivalent TSS removal on the heavy fraction, and stays inside the EPA CWT cost-curve envelope on a 5-year basis (S1).
Frequently Asked Questions
Should a Memphis chemicals plant choose DAF or a clarifier as the primary in 2026?
Choose DAF for emulsified oils, FOG, and low-density colloids — DAF removes ~95% of FOG versus ~70% for a clarifier on the same stream (per the 2026 industrial DAF vs. clarifier selection guide, S2). Choose a lamella clarifier for heavy settleable TSS or precipitated metals sludge, where gravity settling removes ~90% TSS at lower OPEX. For mixed streams under 40 CFR Part 414 subparts C–G, the EPA CWT tables cost out a hybrid Modified DAF followed by clarification (S1, Section 2.8), which is the 2026 default for most Memphis corridor plants.
What is the 20 gpm flow breakpoint in the EPA CWT costing document, and why does it matter?
EPA 821-R-98-016 splits the O&M cost curves for DAF and Modified DAF at 20 gpm average daily flow (S1, Tables 2-55 through 2-58) because below 20 gpm the O&M curve slope changes — labor and fixed chemical makeup dominate, while above 20 gpm, power and polymer scale roughly linearly with flow. Designers should size Memphis systems against the >20 gpm or <20 gpm curve that matches average flow, and escalate 1998 dollars to 2026 using CEPCI before handing the number to a CFO.
How much floor space does a hybrid DAF + lamella clarifier need for a 50–100 m³/h plant?
A 50–100 m³/h hybrid train — equalization, coagulation, Modified DAF, lamella clarifier, and sludge press — fits on a single equipment pad under 60 m² of total footprint, per the lamella clarifier 3–5x footprint advantage over an equivalent circular clarifier. This is decisive on Memphis barge/rail-corridor sites where laydown area is constrained by adjacent track and dock easements.
What chemical doses should a 40 CFR Part 414 plant plan for in 2026?
Plan on 10–30 mg/L coagulant (PAC or ferric chloride) and 1–5 mg/L anionic PAM flocculant on the Modified DAF conditioning cell for typical Organic Chemicals streams; metals-bearing streams may need 50–150 mg/L coagulant for the lamella polishing step (HydropureWater field data, 2026). Always jar-test before locking the dose — running blind at 25 mg/L polymer is the most common cause of DAF OPEX overruns on 40 CFR Part 414 streams.
