Why Houston Refineries Are Re-asking the DAF vs Clarifier Question in 2026
For Houston petroleum refineries handling lubricating oils and greases wastewater in 2026, dissolved air flotation (DAF) is the stronger primary separator because it consistently removes 90–95% of free and emulsified FOG, while a gravity clarifier typically achieves only 60–70% on the same oily stream. DAF is therefore specified immediately downstream of the API separator, with a lamella clarifier reserved for heavy settleable solids or as a polishing step.
The typical 2026 oily-water train in a Houston refinery starts with sour and process drains plus desalter effluent routed through an API separator, then through a primary solids–oil separation unit, then biological polishing (most commonly an MBBR or MBR), and finally to an NPDES outfall into the Houston Ship Channel or an on-site cooling-tower/scrubber reuse loop. The unit in the middle is almost always a DAF in plants chasing consistent sub-15 mg/L oil and grease, or a lamella clarifier where settleable solids dominate and FOG is a secondary concern.
Two things have changed in the last 24 months. First, more Group II/III base oils and re-refined lube stocks are moving through Houston blending and finishing operations, and these feedstocks carry higher levels of emulsified oils and greases into wash water than the older solvent-refined streams did. Second, TCEQ enforcement on the Houston Ship Channel and 40 CFR Part 60 Subpart QQQ (refinery process vent and wastewater) along with Subpart IIII have tightened the practical target for oil and grease, TSS, and BTEX in refinery discharge. The API separator alone is not meeting that target at most plants anymore, which is why the procurement memo now reads "API rebuild plus DAF" instead of "API rebuild."
The practical question for a 2026 CAPEX project is not "DAF or clarifier" but "which one goes immediately after the API separator, at what hydraulic and solids-loading capacity, and with what downstream sludge dewatering to keep the OPEX defensible."
How DAF and Clarifiers Actually Treat Lubricating Oils and Greases
DAF is a physico-chemical separation in which saturated water is depressurized inside the flotation tank, releasing a cloud of microbubbles in the 10–100 µm size range. Those bubbles attach to oil droplets, grease globules, and fine suspended solids and lift them to the surface, where a rotating skimmer sweeps them off into a float hopper. Hydraulic residence time in the contact zone is short — typically 3–5 minutes — which is why DAF handles emulsified oil that gravity simply cannot settle in a reasonable tank size.
A clarifier is gravity sedimentation. A conventional rectangular or circular clarifier gives oil and slow-settling solids time to float or sink; a lamella clarifier uses inclined plates at 20–40 m/h surface loading to shorten the effective settling path and dramatically shrink the footprint for a given flow. The clarifier is excellent for heavier suspended solids, sand, grit, and sludge blanket work, but it is fundamentally limited by Stokes' Law when the target particles are small, near-neutral buoyancy oil droplets — which is exactly what emulsified lubricating oils and greases are.
This physics explains why the same high-oil refinery stream that drops 90–95% of FOG through a DAF only drops 60–70% through a clarifier, per published industrial case data (Ecologix, 2026). Emulsified lube oil droplets are 5–50 µm with densities close to water, so gravity settling is too slow for a practical clarifier footprint. Flotation cuts the effective rise path from meters to centimeters.
Both technologies have a hard ceiling. DAF will not remove truly dissolved refractory COD, phenols, or low-molecular-weight BTEX — those still need biological polishing or carbon adsorption. A clarifier will not catch emulsified FOG effectively and is sensitive to hydraulic and temperature swings in a refinery setting. Neither is a complete solution; the API separator plus DAF plus biological train is what consistently meets the discharge envelope. For a deeper look at lamella hydraulics, the tube settler clarifier engineering guide walks through the surface-loading math.

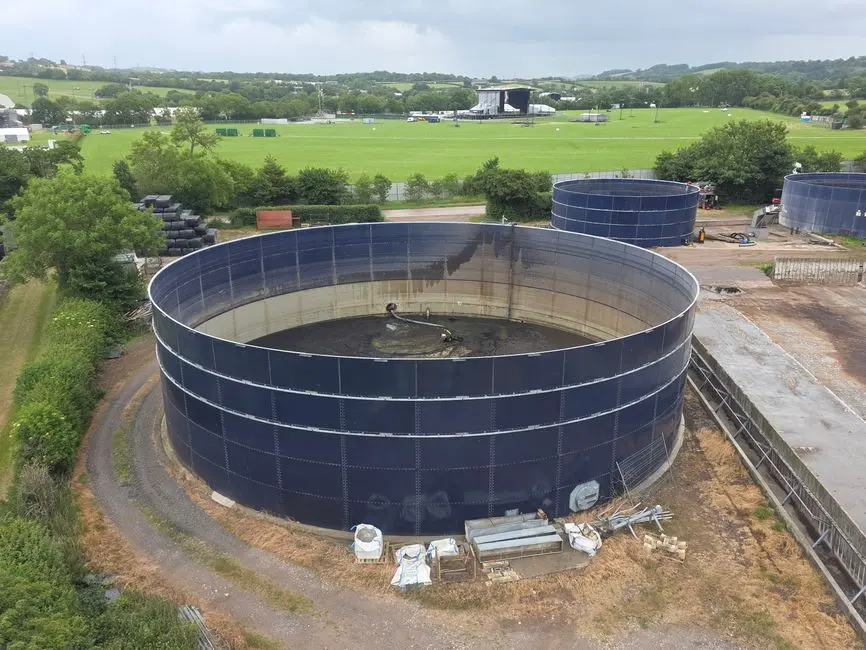

Side-by-Side: DAF vs Clarifier for Refinery Oily Wastewater
The matrix below compares the two technologies across the parameters a Houston refinery engineer defends in a CAPEX meeting. Numbers are drawn from published industrial case data and manufacturer specifications.
| Parameter | DAF (packaged, e.g. ZSQ series) | Lamella / Conventional Clarifier |
|---|---|---|
| Free & emulsified FOG removal | 90–95% on refinery streams (Ecologix, 2026) | 60–70% on the same high-oil stream (Ecologix, 2026) |
| TSS removal | 80–90% with polymer | 70–85% for settleable solids; poor on colloidal TSS |
| Footprint (per m³/h) | Compact; small concrete pad next to API separator | 2–3× larger for equivalent flow; needs deeper tankage |
| Order-of-magnitude CAPEX | Higher unit cost; capacity range 4–300 m³/h on the ZSQ series DAF for refinery FOG removal | Lower per m² but larger tankage; see the HydropureWater lamella clarifier for refinery settleables |
| OPEX (energy + chemicals) | Higher energy (saturator, recycle pump, compressor); moderate polymer use | Lowest energy; up to 30% lower chemical consumption than conventional clarifiers |
| Sludge dryness | Up to 2× dry solids vs conventional flotation; often 4–6% DS as float (ClearFox field data, 2026) | Bottom sludge typically 1–3% DS; larger volume to dewater |
| Typical placement in refinery train | Directly after API separator as primary FOG step | Storm-water sidestream, cooling-tower blowdown, or polish after DAF |
The takeaway for a 2026 CAPEX review is that DAF wins the operating performance row but loses the first-cost and energy row. The downstream sludge story usually flips that math; drier float sludge means a smaller plate-and-frame filter press, fewer disposal truckloads, and in many cases the elimination of a separate sludge thickener (ClearFox field data, 2026). For a refinery already paying $80–$150 per wet ton for oily sludge disposal, that delta pays back the DAF energy premium quickly.
Matching the Technology to the Refinery Stream
Lubricating oil and grease emulsions from blending, finishing, and equipment wash-down carry the highest emulsified FOG load on a typical refinery site, and that stream should always go to DAF first. The DAF effluent can then go to biological polishing or, in reuse applications, straight to an MBR polishing for refinery reuse train, with the DAF protecting the membranes from oil fouling.
Desalter effluent and free-oil-heavy slop oil streams behave the same way: the API separator pulls the bulk of the free oil, and the residual emulsified fraction needs a DAF. Cooling-tower blowdown, boiler blowdown, and clarified storm water are different — those streams are dominated by settleable solids, hardness, and suspended inert material rather than emulsified FOG, so a lamella clarifier is sufficient and considerably cheaper. Many plants run those sidestreams through a lamella in parallel to the main DAF, which keeps the lamella small and purpose-built.
For refineries with a reuse mandate in their 2026 water plan, the right sequence is API → DAF → MBR (or UF) → disinfection. DAF in front of the membrane is not optional in that train; it is what keeps the membrane from being irreversibly fouled by oil within the first quarter of operation. Replacing the DAF with a clarifier to save CAPEX almost always costs more in membrane replacement and cleaning chemicals inside 18 months.

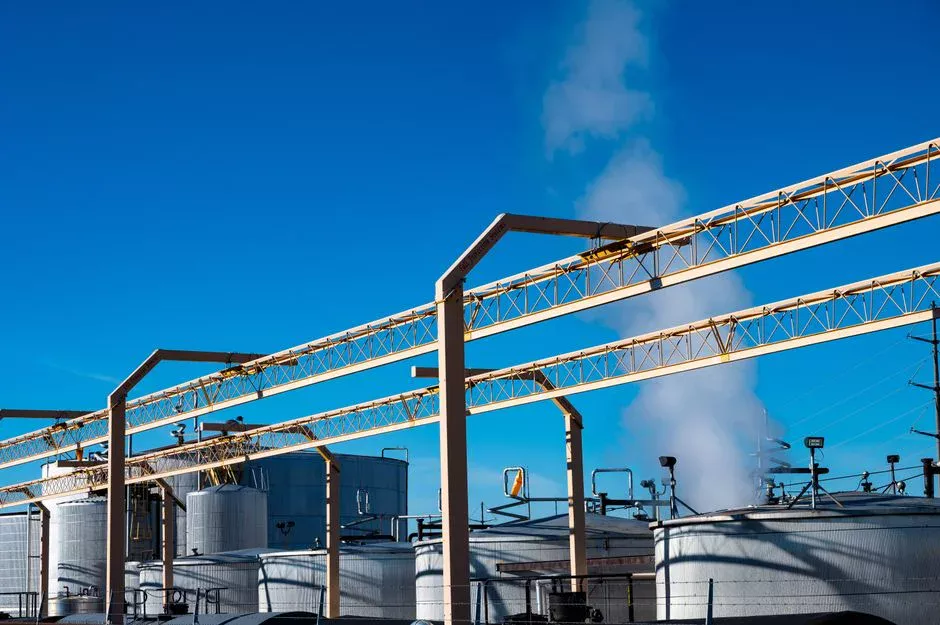

Compliance, Footprint, and 2026 Cost Reality in Houston
TCEQ enforcement under TPDES permits in the Houston Ship Channel watershed and the federal 40 CFR Part 60 Subpart QQQ/IIII effluent categories both push refineries toward consistent sub-15 mg/L oil and grease, tight TSS, and BTEX compliance at the outfall. A well-designed DAF after the API separator is the most reliable single unit operation to hit those numbers in one step; a clarifier in the same duty almost always needs a polish step behind it, which negates the first-cost savings.
Footprint matters on a constrained Houston site. A packaged DAF in the 50–150 m³/h range fits on a small concrete pad adjacent to the API separator, typically with 6–8 m headroom allowance for the saturator and skimmer assembly. An equivalent lamella clarifier needs a larger footprint for the same flow because the inclined plates need horizontal area, but it uses less operating energy and is simpler to instrument. CAPEX and OPEX do not move in the same direction for the two technologies, which is why the hybrid train is the answer for most 2026 projects.
| Cost / Footprint Parameter | DAF (ZSQ series) | Lamella Clarifier |
|---|---|---|
| Typical capacity range | 4–300 m³/h, packaged | Surface loading 20–40 m³/m²·h |
| Footprint per m³/h | Compact; vertical reactor | 2–3× larger; shallow basin |
| Energy intensity | Higher (saturator, recycle pump, air compressor) | Lowest; no air system |
| Sludge handling | Drier float sludge (up to 2× DS vs conventional) → smaller plate and frame filter press for DAF float sludge | Wetter bottom sludge; larger press, often a thickener upstream |
| Chemical system | Polymer + coagulant; sized to reactor; consider a packaged automatic chemical dosing system | Up to 30% lower chemical consumption vs conventional clarifier |
| 2026 CAPEX posture | Higher first cost; lower downstream sludge CAPEX | Lower first cost; higher downstream sludge CAPEX |
For refineries chasing the lowest discharge oil and grease or planning cooling-tower makeup reuse, the practical 2026 recommendation is a hybrid train: API separator → DAF → lamella polish → biological (MBBR or MBR) → disinfection. That sequence distributes the load across the right unit operation at each step instead of asking any one unit to do the wrong job.
Decision Framework: Choosing Between DAF and Clarifier for Your Refinery
If the dominant load is emulsified lubricating oils and greases — typical of lube-oil blending, finished-product wash water, and desalter effluent — specify a DAF immediately after the API separator. This is the most common 2026 configuration on the Houston Ship Channel and is the safest defense during a TCEQ inspection.
If the dominant load is heavy settleable solids with low FOG — typical of tank-farm storm water, once-through cooling bleed, and boiler blowdown — a lamella clarifier is sufficient, cheaper, and easier to operate. A DAF on that stream is overspecified and wastes energy.
If the site has both streams, or is designing a new oily-water treatment plant from a greenfield, run a DAF as the primary FOG step on the process wastewater, and a small lamella in parallel on the storm-water sidestream. The two units share the same API separator upstream and the same outfall downstream but are sized for different jobs.
If reuse is on the 2026 roadmap — cooling-tower makeup, scrubber makeup, or a Houston-area industrial reuse agreement — add an MBR or UF downstream of the DAF, never in place of it. The DAF protects the membranes and keeps the reuse loop online. A more detailed pricing view is in the DAF system cost and pricing guide for 2026.
Frequently Asked Questions
Should a Houston refinery choose DAF or a clarifier
Frequently Asked Questions
Should a petroleum refinery use DAF or a clarifier for lubricating oils and greases wastewater?
For lubricating oil and grease refining, a Dissolved Air Flotation (DAF) unit is generally superior to a standard gravity clarifier. Lubricating oils often have specific gravities close to 0.85–0.92, which are too close to the density of water for efficient gravity separation. DAF systems utilize micro-bubbles to attach to emulsified oil droplets and solids, forcing them to the surface for mechanical skimming, whereas clarifiers struggle with particles that do not settle rapidly.
How much oil and grease can a DAF remove compared to a clarifier in refinery applications?
A DAF unit can typically achieve 90% to 99% removal efficiency for free and emulsified oil and grease, provided proper chemical coagulation and flocculation are employed. In contrast, a standard gravity clarifier is limited by Stokes' Law and generally achieves only 50% to 70% removal for the same influent, often leaving high concentrations of sub-micron oil droplets that require secondary polishing.
Where does a DAF go in a refinery wastewater treatment train — before or after the API separator?
The DAF unit must be positioned after the API separator. The API separator is designed to remove bulk free oil (droplets larger than 150 microns) through gravity, protecting downstream equipment. The DAF serves as a secondary treatment step to remove smaller emulsified oil droplets, suspended solids, and dispersed hydrocarbons that pass through the API separator, typically reducing the oil and grease load before biological treatment or discharge.
Is a lamella clarifier good enough for refinery oily water, or do you need a DAF?
A lamella clarifier is typically insufficient for primary treatment of refinery oily water containing lubricating oils. While lamella plates increase the effective settling area, they do not address the buoyancy issues of light oils. You will likely need a DAF to achieve regulatory compliance for discharge, as a lamella clarifier alone cannot break emulsions or effectively float lighter-than-water hydrocarbons.
What is the 2026 cost difference between a DAF and a clarifier for a Houston refinery project?
In 2026 Houston market conditions, a DAF system typically carries a 30% to 50% higher capital expenditure (CAPEX) than a standard gravity clarifier of equivalent flow capacity due to the requirements for air saturation pumps, pressure vessels, and complex chemical dosing skids. However, when factoring in the total cost of ownership, the DAF often provides a lower operational cost per pound of oil removed by reducing the burden on subsequent biological treatment stages and minimizing potential environmental fines.
