DAF or Clarifier for Mining Wastewater in Rockholds, US: 2026 Guide

Why 40 CFR 437 and ESG Targets Are Forcing the 2026 Decision in Rockholds

For a Rockholds, Kentucky mining or metals plant in 2026, the right answer is rarely DAF or clarifier alone — it is dissolved air flotation as primary to strip FOG and colloidal fines, with a lamella as polish to hit the 40 CFR 437 effluent envelope for TSS, total recoverable lead, zinc, copper, and iron, within the pH 6.0–9.0 band (per 40 CFR 437.30–437.32 daily-maximum and monthly-average limits). DAF CAPEX runs 1.5–2.5× a lamella at equal flow, but its footprint of 0.2–0.4 m² per m³/h is roughly one-tenth that of a conventional clarifier at 5–8 m² per m³/h, and it is the only technology that handles intermittent emulsified oil on the same skid (Zhongsheng field data, 2026).

Three pressures are converging on Whitley County operators in 2026. First, the regulatory hammer: 40 CFR 437 sets daily-maximum limits for TSS (30 mg/L), total recoverable lead (0.6 mg/L), zinc (1.0 mg/L), copper (1.0 mg/L), and iron (3.0 mg/L), plus the pH 6.0–9.0 envelope — and any plant re-permitting under the 2026 NPDES cycle in Kentucky has to demonstrate the technology can hit those numbers, not just the older monthly averages. Second, the capital cycle: many in-service clarifiers in Eastern Kentucky date to the 1970s, and ESG-driven closed-loop water-reuse targets have pushed replacement from a maintenance-line item to a board-level decision. Third, the local stream profile: acid-mine-drainage-influenced inflows carry dense Fe and Mn, intermittent tramp oil from on-site maintenance shops, and winter operation below 10°C — none of which the generic DAF sizing tables for food plants address. The real question is which technology goes first, not DAF vs clarifier as a binary.

What Makes a Rockholds Mining Stream Different from a Food-Processing Stream

A canonical Rockholds-area mining or metals stream runs 1,500–3,000 mg/L TSS in concentrator service and 100–300 mg/L in mixed-metals refinery service, dominated by Fe(OH)₃, Al(OH)₃, and Mn floc plus silica fines and magnetite (per S1 scenario data). The solids-bound metals — lead, zinc, copper, iron — ride on those floc particles, so removal of the floc is removal of the regulated metals, which is why a TSS technology choice is also a metals compliance choice under 40 CFR 437.

Three local characteristics break the food-plant defaults. First, an intermittent 50–200 mg/L emulsified cutting-oil load from the on-site maintenance shop or truck wash that a clarifier cannot settle in its residence time — the oil exits in the overflow and trips the NPDES oil-and-grease envelope (per S1 scenario 2). Second, cold-weather operation: at 5°C, micro-bubble nucleation kinetics slow 20–30% versus 20°C (Zhongsheng field data, 2026), so any DAF sized from a 20°C table needs a 10–15% margin on the recycle pump and saturation vessel to hold performance through an Eastern Kentucky winter. Third, modest site footprints typical of Whitley County operators mean civil and building cost per square meter is a real line item — a 600 m² conventional clarifier vault is a different conversation than a 30 m² packaged DAF skid. Stream characterization is the only way to brief a vendor correctly, and these three parameters — floc density, FOG load, and winter temperature — are the ones the FOG-skimmed food-plant sizing tables leave out.

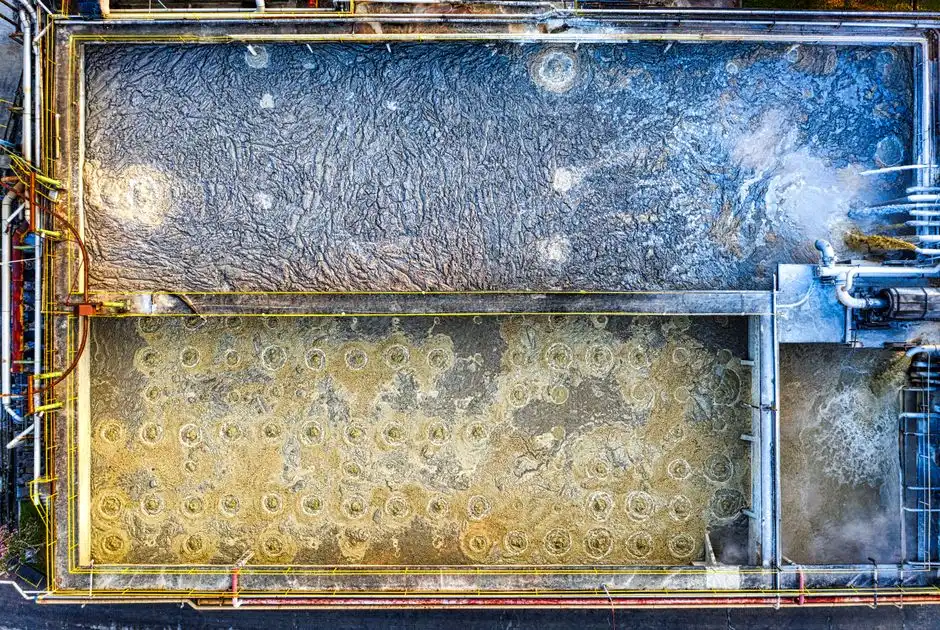

How a DAF System Actually Works on Metal-Hydroxide Floc

A DAF unit saturates clarified recycle at roughly 6 bar (87 psi) in a packed pressure vessel, then depressurizes through a release nozzle back into the flotation tank at atmospheric pressure. The pressure drop forces dissolved air out of solution as 30–50 µm micro-bubbles that attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment (per S1, S4, S5). Without the chemistry step, micro-bubbles pass right past colloidal fines and DAF underperforms — the conditioning is not optional.

The standard coagulant stack for mining duty is polyaluminum chloride (PAC), ferric chloride, or alum paired with 1–5 mg/L anionic polymer flocculant. With that stack in place, removal performance runs >90% for TSS, FOG, COD, and BOD, and the unit can also capture particulate metals and colloidal silica when upstream precipitation chemistry is right (per S1, S4). The upper-bound TSS figure cited in vendor literature is 97% (S4), achieved on well-conditioned floc. A packaged ZSQ packaged DAF system covers 4–300 m³/h across 13 standard models, which keeps custom-engineering markup out of the mid-band Rockholds flows between roughly 15 and 200 m³/h. For a Whitley County plant sizing a 2026 replacement, that mid-band coverage is the practical reason the DAF conversation starts at the ZSQ catalog rather than a bespoke build.

How Lamella and Conventional Clarifiers Compare on the Same Stream

A lamella clarifier stacks inclined plates inside a compact tank to multiply effective settling area, pushing surface loading to 20–40 m/h and dropping footprint to roughly 0.3–0.6 m² per m³/h. A conventional gravity clarifier — the legacy rectangular or circular tank common on 1970s-era mining sites — runs at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h (per S1). Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, which cuts coagulant consumption by up to 30% (Zhongsheng P10) — a real OPEX line item for high-throughput Rockholds sites.

The conventional gravity clarifier loses on footprint for almost every 2026 Rockholds scenario: at 100 m³/h, a conventional unit needs roughly 600 m² of tank area versus 30–50 m² for a lamella, and the civil and excavation cost swamps any equipment savings. The high-rate lamella clarifier plate pack is the technology that makes the lamella column competitive on dense Fe(OH)₃ or Al(OH)₃ floc at 20–30 m/h. One Eastern Kentucky-specific risk: sludge hopper freezing in an unheated vault is a real winter OPEX item, and it is the reason the cold-weather rule below treats lamella as a freeze-liability technology unless the vault is heated or the sludge line is heat-traced.

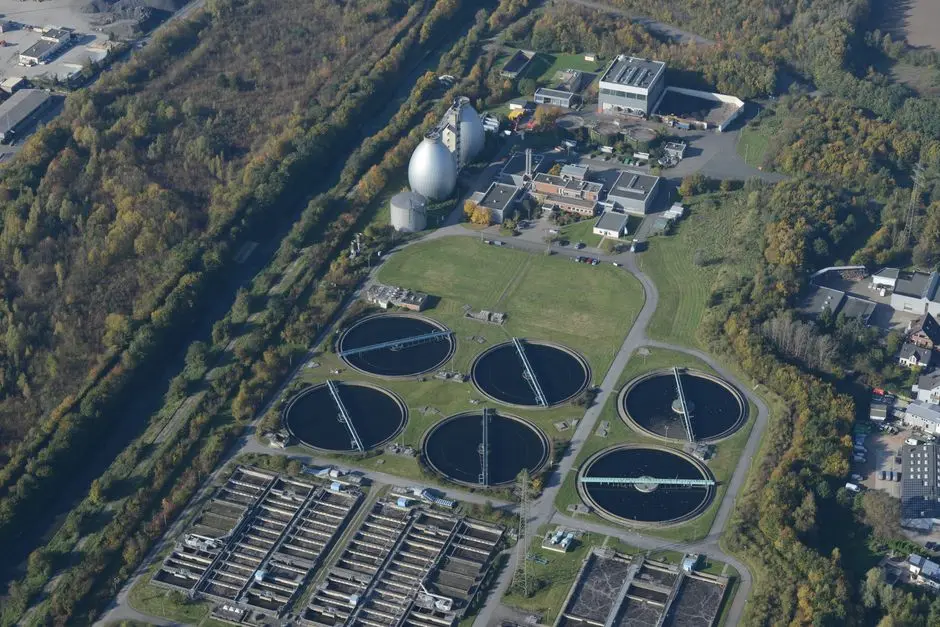

Head-to-Head: DAF vs Lamella vs Conventional Clarifier (2026 Comparison Table)

For a 40 CFR 437-bound mining stream in 2026, the comparison below is the artifact to hand to a non-technical decision-maker. Rows are the parameters procurement actually asks about; values are drawn from S1, S4, and S5 reference data with the Zhongsheng field-data multipliers applied.

The head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer for a space-constrained Rockholds site. For readers comparing adjacent basin decisions, the DAF vs clarifier for mining wastewater in Huntsville article covers the warm-climate, high-flow counterpart, while the warm-baseline DAF vs clarifier for mining wastewater in South Weber, UT piece is the closest published comparison for a small-footprint Western US site.

Three Rules That Decide the Choice on a Rockholds Stream

Floc-density rule. Chemically conditioned floc with specific gravity >1.05 settles readily and favors a clarifier; the same floc, once polymer-conditioned, also binds tightly to 30–50 µm bubbles, so either technology works when the upstream chemistry is right (per S1, S4). The decision on a Rockholds site therefore turns less on floc density and more on the next two rules.

FOG rule. Free oil and grease do not settle in a clarifier's residence time and exit in the overflow — any FOG load has to be handled upstream or in a polish step (per S1). For a Whitley County plant with an on-site maintenance shop, truck wash, or cutting-fluid operation, this rule alone makes DAF primary non-negotiable. A clarifier-only line would push the oil straight to the NPDES outfall and trip 40 CFR 437 on oil-and-grease as well as TSS.

Cold-weather rule. At 5°C, micro-bubble nucleation kinetics slow 20–30% versus 20°C, so apply a 10–15% sizing margin on the DAF recycle pump and saturation vessel for plants that run through Eastern Kentucky winters (Zhongsheng field data, 2026). The same rule cuts the other way for a lamella in an unheated vault — the sludge hopper is a freeze liability unless the vault is heated or the sludge line is heat-traced, and that OPEX line is rarely in the original budget.

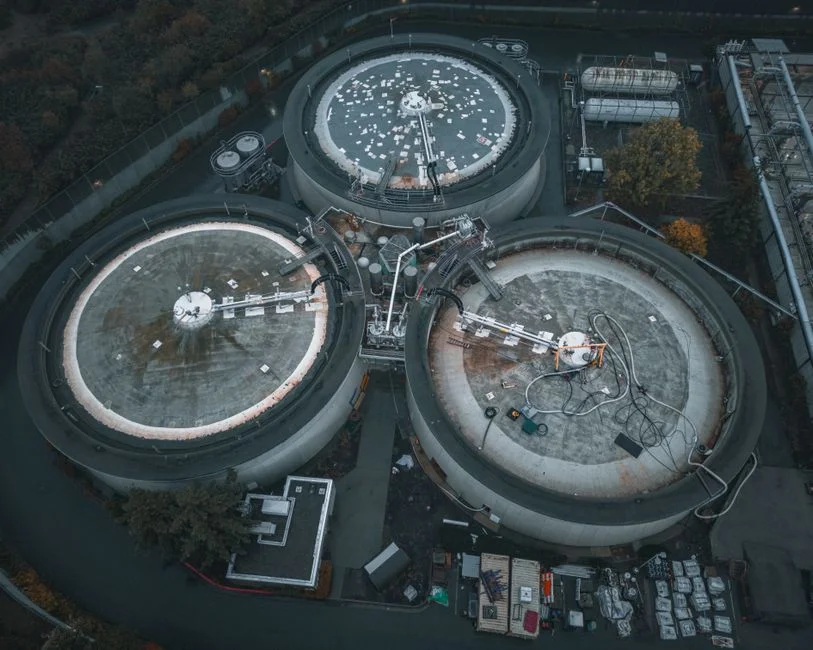

Worked Example: Sizing and Costing a 100 m³/h Rockholds Baseline

Baseline: 100 m³/h combined mining and metals wastewater, 1,500 mg/L TSS as Fe(OH)₃ floc, 50–200 mg/L emulsified oil from on-site maintenance, pH 7–8, 5°C winter design. This is the mid-band Rockholds flow that fits inside the standard ZSQ DAF catalog with no custom-engineering markup. The table below turns the abstract numbers into a defensible procurement memo.

The DAF CAPEX premium at 1.5–2.5× looks largest in cold, space-rich sites where a lamella fits cheaply into an existing vault, and smallest where every square meter of excavation and building is expensive. At 100 m³/h, the footprint gap is roughly 30 m² of DAF versus 600 m² of conventional clarifier — that is the difference between a packaged skid on a concrete pad and a poured vault. Two pieces of kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS). The recommended configuration for this 100 m³/h baseline is DAF primary, lamella polish, automatic chemical dosing skid, plate-and-frame filter press on the combined sludge stream.

2026 Decision Tree for Rockholds Mining and Metals Plants

Branch 1 — Any emulsified oil or FOG on site? If yes (maintenance shop, truck wash, cutting fluids, equipment washdown), DAF primary is non-negotiable. A clarifier would discharge the oil to the NPDES outfall and trip 40 CFR 437 on oil-and-grease as well as TSS (per S1 scenario 2). Add a lamella polish only if colloidal fines bleed through after the DAF.

Branch 2 — Flow above 200 m³/h, no oil, dense settleable hydroxide floc? A high-rate lamella at 20–30 m/h on the plate-pack projected area is defensible; add a DAF polish only if colloidal fines bleed through (per S1 scenario 1). This is the taconite-style line that lamella-only advocates point to, and it works — but only when FOG is genuinely zero across all shift patterns.

Branch 3 — Variable or intermittent low flow below 20 m³/h, cold winters, limited operator hours? A packaged DAF skid that starts and stops in minutes wins on uptime versus a lamella in an unheated vault (per S1 scenario 3). Cold-weather freeze risk and intermittent-duty startup are the two factors that push a low-flow Eastern Kentucky site off the lamella path.

Default recommendation when branches tie: DAF primary plus lamella polish, sized to 40 CFR 437 daily-maximum metals limits, not monthly averages. Daily-maximum sizing is the difference between passing an inspection and receiving a Notice of Violation, and the polishing lamella is the cheapest insurance against a single bad shift. For a Whitley County plant with no FOG and high flow, the lamella-only line is acceptable, but most 2026 RFPs in Eastern Kentucky are still written around the combined DAF-plus-lamella configuration because the FOG question rarely has a clean answer across all shifts. For adjacent chemistry framing, the DAF vs clarifier for mining wastewater in Huntsville article walks through the same decision logic for a high-flow warm-climate site, while the gold mining wastewater treatment process guide covers the cyanide- and arsenic-bearing stream variants.

Frequently Asked Questions

Does 40 CFR 437 require a DAF or a clarifier specifically?

No. Neither technology is explicitly mandated by 40 CFR 437, but the rule sets daily-maximum and monthly-average effluent limits for TSS, total recoverable lead (0.6 mg/L daily max), zinc (1.0 mg/L), copper (1.0 mg/L), and iron (3.0 mg/L), plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; most US plants run DAF primary plus lamella polish for margin against the daily-maximum numbers.

How should a DAF be sized for a Rockholds plant that runs through Eastern Kentucky winters?

Apply a 10–15% sizing margin on the recycle pump and saturation vessel, and insulate or heat-trace the saturation vessel and recycle line. Micro-bubble nucleation kinetics slow by 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), so a summer-sized unit under-performs in January on a Whitley County pad.

Is a lamella-only line acceptable for a FOG-free Eastern Kentucky mining stream?

Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams at 20–30 m/h on the plate-pack projected area. Add a DAF polish step only if colloidal fines start bleeding through, or if a maintenance shop discharge adds intermittent oil the lamella cannot capture. The 20–40 m/h lamella range (Zhongsheng P10) is for clean, well-conditioned hydroxide floc only.

What is the real-world footprint difference between a DAF and a conventional clarifier at 100 m³/h?

A DAF at 0.2–0.4 m² per m³/h needs roughly 20–40 m² of footprint at 100 m³/h, versus 500–800 m² for a conventional gravity clarifier at 5–8 m² per m³/h — a ratio of roughly 1:20 (Zhongsheng field data, 2026). For a space-constrained Rockholds site, that ratio is the single largest CAPEX driver once excavation and building cost are added.
