Why Pisgah Mining Plants Are Rethinking the DAF vs Clarifier Question in 2026
For a Pisgah, Alabama mining or metals plant in 2026, the right answer is rarely dissolved air flotation alone or a clarifier alone — it is sequencing. Run a ZSQ series dissolved air flotation system as primary to strip FOG, tramp oil, and colloidal fines, then a lamella as polish to land inside the 40 CFR 437 daily-maximum envelope for TSS, lead, zinc, copper, iron, and pH 6.0–9.0. Use lamella-only on FOG-free, high-flow iron or taconite streams at 20–30 m/h plate-pack surface loading.
Pisgah sits in the historic gold and iron belt of Jackson County, AL, just south of the Guntersville Reservoir watershed — a corridor of small hard-rock and aggregate operations whose discharge paths run into the Tennessee River basin. Three 2026 pressures are forcing the equipment decision: 40 CFR 437 effluent limits on ore mining and dressing streams, a capital-replacement cycle for 1970s-era clarifiers, and ESG-driven closed-loop water-reuse targets. None of those are solved by picking one technology in isolation. The honest answer to "DAF or clarifier?" is "what goes first, and what goes second?" — decided by floc density, FOG load, and cold-weather operation on a Pisgah winter site.
The Pisgah Stream Profile: What Actually Hits the Clarifier
Pisgah mining and metals streams are dominated by dense metal-hydroxide floc: Fe(OH)₃ from iron-bearing runoff and CIP tailings neutralization, Al(OH)₃ from coagulation steps, silica fines, and magnetite from concentration circuits. On top of that sits intermittent tramp oil and emulsified cutting oil from on-site maintenance shops and truck wash bays. A representative iron/taconite stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc, while a mixed-metals shop scenario runs 100–300 mg/L TSS with 50–200 mg/L emulsified cutting oil (per DAF vs clarifier for mining wastewater in 2026: which should US factories choose).
That profile drives two mechanical consequences. First, chemically conditioned Fe(OH)₃ at specific gravity >1.05 settles readily in a clarifier, so a lamella at 20–30 m/h surface loading removes it cleanly without air flotation. Second, free oil and grease do not settle in any clarifier's residence time — the oil exits in the overflow. That single fact is the FOG rule in action, and it is why a clarifier-only line will fail an oil-and-grease compliance check the first time a shop wash or hydraulic leak lines up with the clarifier feed. Seasonal hardness and turbidity swings in the Guntersville Reservoir watershed, fed by winter rain events and reservoir-level drawdown, add another 15–25% variability to the TSS load a Pisgah clarifier must absorb between November and March.
Three Rules That Decide DAF vs Lamella on a Mining Line
- Floc-density rule. Chemically conditioned floc with specific gravity >1.05 settles readily and favors a clarifier; the same floc, once polymer-conditioned, also binds tightly to 30–50 µm micro-bubbles, so either technology can remove it when chemistry is right (per S1, S4).
- FOG rule. Free oil and grease do not settle in a clarifier's residence time — they exit in the overflow — so any FOG load must be handled upstream or in a polish step before reaching a clarifier.
- Cold-weather rule. Micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, requiring a 10–15% sizing margin on the recycle pump and saturation vessel (Zhongsheng field data, 2026).
Worked example for a Pisgah winter plant. For a 100 m³/h stream at 5°C, baseline recycle is approximately 30% of flow at 20°C. To hold float performance through a Pisgah cold snap, increase recycle pump capacity and saturation vessel volume by 12% — i.e., spec the pump at 33 m³/h recycle (versus 30 m³/h) and oversize the saturation vessel by 12% in working volume. Insulate or heat-trace the recycle line and saturation vessel. Skip that margin and a January cold front will cut bubble yield and float the lamella's residual TSS load past the 40 CFR 437 daily-maximum envelope.
How DAF and Lamella Actually Work on a Mining Line
A dissolved air flotation unit floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed vessel. When the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm bubbles (per S1, S5). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. Coagulants typically include polyaluminum chloride (PAC), ferric chloride, or alum, paired with an anionic polymer flocculant at 1–5 mg/L — without that conditioning, micro-bubbles pass right past colloidal fines and DAF underperforms (per S1, S4).
A lamella clarifier stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10). For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only.
Side-by-Side: DAF vs Lamella vs Conventional Clarifier for Pisgah Service
| Parameter | DAF | Lamella | Conventional Clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% (S5 reports up to 97%) | 85–92% | 70–85% |
| FOG / emulsified oil capture | High — float mechanism captures 30–50 µm-bound oil | Poor — oil exits in overflow | Poor — oil exits in overflow |
| Footprint (m² per m³/h) | 0.2–0.4 | 0.3–0.6 | 5–8 |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x (Zhongsheng field data, 2026) | 1.0x | 0.7–0.9x (but huge civil/building cost) |
| Energy use | 8–15 kWh/m³ (compressor + recycle) + chemistry | Scraper drive + chemistry (up to 30% savings via sludge recycle) | Scraper drive only (~0.1–0.3 kWh/m³) |
| Cold-weather performance (<10°C) | Moderate — size 10–15% margin on recycle | Low — freeze risk in unheated sludge hopper | Low — same freeze risk; larger vault |
| Float / underflow dryness | Float 4–8% DS — easier dewatering | Underflow 2–5% DS | Underflow 1–3% DS |
| Best-fit stream | FOG, emulsified oil, colloidal fines, light floc | Dense settleable hydroxide floc, high flow, no oil | Legacy installations, very large settling basins |
DAF wins on FOG, colloidal fines, footprint, and float dryness. Lamella wins on CAPEX for FOG-free streams at very high flow. The conventional clarifier loses on footprint and is rarely the 2026 answer for a Pisgah retrofit.
40 CFR 437 and Alabama ADEM: What a Pisgah Discharge Has to Hit
40 CFR 437 (Ore Mining and Dressing) sets daily-maximum and monthly-average effluent limits for TSS, total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0 for any discharge to waters of the United States (per 40 CFR 437.30–437.32). The rule does not mandate a specific technology — a well-sized DAF or lamella, paired with chemical precipitation, can meet those limits. Many 2026 US plants run DAF primary plus lamella polish for margin against the daily-maximum envelope.
On the Alabama side, ADEM Admin. Code ch. 335-6-6 implements NPDES in the state and requires the same compliance envelope for any discharge to waters of the United States in the Pisgah watershed, which drains to the Tennessee River basin via the Guntersville Reservoir. The practical implication for a Pisgah procurement lead: most 2026 lines will run DAF primary for FOG and colloidal fines, then a lamella polish for residual TSS, to give explicit margin against the daily-maximum metals limits and avoid excursions on the first heavy winter storm. For broader pretreatment framing across metals-bearing streams, the mining pretreatment for NPDES compliance 2026 guide walks through comparable chemistry decisions.

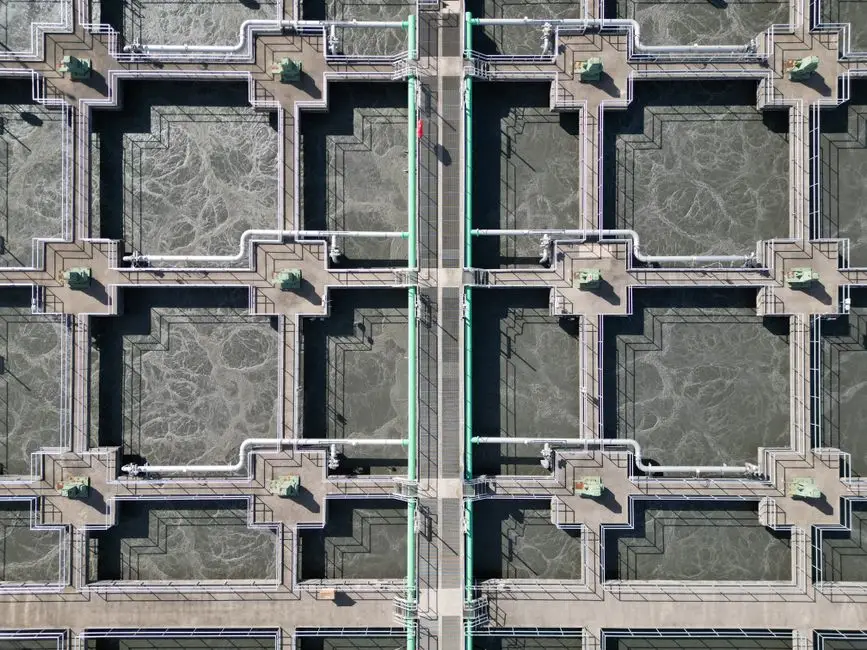

Three Pisgah Scenarios: What the 2026 Decision Looks Like in Practice
Scenario 1 — Iron/taconite concentrator, 250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-efficiency lamella clarifier with sludge recirculation as primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. Add a DAF polish only if a maintenance shop or truck wash starts contributing FOG. Expected 40 CFR 437 effluent: TSS <30 mg/L achievable with lamella alone; metals controlled at the upstream precipitation step.
Scenario 2 — Mixed-metals refinery with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model with no custom-engineering cost.
Scenario 3 — Cold-weather, low-flow (<20 m³/h) gold-mine dewatering, intermittent winter operation. A 15 m³/h sump discharge that runs intermittently through winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. Adjacent pretreatment framing on comparable chemistry is in the DAF or clarifier for mining wastewater in Claremore guide, and the warm-climate counterpart at DAF vs clarifier for mining/metals wastewater in Rimini, US covers a non-freezing analog for comparison.
CAPEX, OPEX, and Footprint: What the 2026 Cost Band Actually Looks Like
The headline ratio for 2026: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (Zhongsheng field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, that is the difference between roughly 30 m² of DAF footprint and 600 m² of conventional clarifier footprint. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where the lamella fits cheaply) and smallest in dense urban industrial corridors (where every square meter of building is expensive).
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle, but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream plate-and-frame filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency. Two pieces of supporting kit make the 2026 cost band defensible in front of procurement: a PLC-controlled automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and the filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS). For a standard ZSQ series dissolved air flotation system, the 4–300 m³/h flow range in 13 standard models keeps custom-engineering markup out of mid-band Pisgah flows.
Frequently Asked Questions
Does 40 CFR 437 require a DAF or a clarifier specifically?
No. Neither technology is explicitly required by 40 CFR 437, but the rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0. A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin. In Alabama, ADEM Admin. Code ch. 335-6-6 implements the same NPDES envelope for Pisgah discharges.
What surface loading should a Pisgah lamella be designed to on dense Fe(OH)₃ floc?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only, and assumes proper coagulant and polymer conditioning upstream.
Can a DAF still operate in Pisgah winter conditions?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter — for a 100 m³/h stream, spec the recycle at 33 m³/h and oversize the saturation vessel by 12%.
How much smaller is a DAF footprint than a conventional clarifier?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² of DAF footprint and 600 m² of clarifier footprint (Zhongsheng field data, 2026).
