Why Claremore Mining Plants Are Rethinking the Clarifier in 2026
40 CFR Part 437 (Ore Mining and Dressing) sets the binding effluent envelope for any Claremore-area mining or metals-fabrication plant discharging to waters of the United States: daily-maximum and monthly-average limits for total suspended solids and for total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0 (per 40 CFR 437.30–437.32). A second 2026 pressure is capital-cycle: a large share of in-service gravity clarifiers at US mining and metals sites date to the 1970s, and ESG-driven closed-loop water-reuse targets now turn clarifier replacement into a board-level decision rather than a maintenance line item. A third pressure is geography — Claremore sits in the Verdigris River basin (tributary to the Arkansas River) and the regional NE Oklahoma winter routinely pulls ambient temperatures below 5°C, which forces any open-vault sedimentation step into cold-weather sizing territory. The right framing for 2026 is not "DAF or clarifier" but "which one goes first, and where does the other fit as polish." The full sequencing argument is laid out in the broader DAF vs clarifier for mining wastewater in 2026 guide.
DAF and Lamella Clarifier Mechanisms in 30 Seconds
A dissolved air flotation unit floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified water from the DAF outlet is pressurized to about 6 bar (87 psi) and saturated with air in a packed saturation vessel; when the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm micro-bubbles. Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough. Without an upstream coagulant and 1–5 mg/L anionic polymer, micro-bubbles pass right past colloidal fines and the DAF underperforms — so the unit is a chemistry-dependent device, not a standalone settler. A packaged ZSQ dissolved air flotation system covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band flows.
A lamella clarifier stacks inclined plates inside a compact tank to multiply effective settling area, pushing surface loading to 20–40 m/h versus 1–2 m/h for a conventional clarifier at the same flow. A conventional gravity clarifier is a large rectangular or circular tank relying on settleable specific gravity >1.05, which is why its footprint runs 5–8 m² per m³/h. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (HydropureWater field data, 2026). A reference high-efficiency lamella sedimentation tank plate pack delivers the 20–40 m/h band that makes lamella competitive in the first place. Three rules govern which mechanism wins: the floc-density rule (specific gravity >1.05 favors a clarifier, but polymer-conditioned floc also binds tightly to micro-bubbles so either works when chemistry is right), the FOG rule (free oil does not settle in a clarifier's residence time), and the cold-weather rule (micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent for plants that run through NE Oklahoma winters).

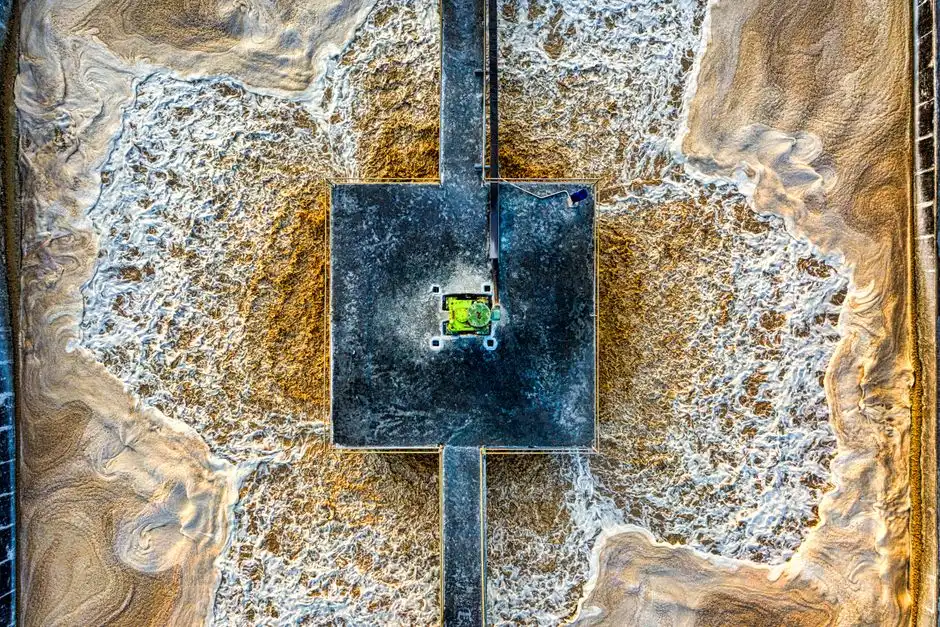

DAF vs Lamella vs Conventional Clarifier: 2026 Comparison
Procurement teams require specific stream parameters to evaluate these technologies for metal-hydroxide applications. Use the table below as a decision block to walk the stream profile against the columns.
| Parameter | Dissolved Air Flotation (DAF) | Lamella Clarifier (inclined plate) | Conventional Gravity Clarifier |
|---|---|---|---|
| TSS removal (dense Fe(OH)₃ / Al(OH)₃ floc) | 90–95% (per HydropureWater field data, 2026) | 85–92% on well-conditioned hydroxide floc | 80–90% at 1–2 m/h surface loading |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x (HydropureWater field data, 2026) | 1.0x baseline | 0.7–0.9x equipment, plus large civil/building cost |
| Footprint per m³/h | 0.2–0.4 m² | 0.3–0.6 m² | 5–8 m² |
| Energy use | 8–15 kWh/m³ (compressor + recycle pump) + chemistry | 0.1–0.3 kWh/m³ scraper drive + chemistry | Scraper drive + pumping; large vault heat loss in winter |
| Cold-weather performance (<10°C) | Moderate — slower bubble nucleation; size 10–15% margin on recycle | Low — freezing risk in unheated sludge hopper | Low — same freeze risk in much larger vault |
| FOG, emulsified oil, colloidal fines | Strong — primary use case | Poor — oil exits in overflow | Poor — oil exits in overflow |
| Float / underflow dryness | Float 4–8% DS — easier downstream dewatering | Underflow 2–5% DS | Underflow 1–3% DS |
| Coagulant demand | Standard dose + 1–5 mg/L anionic polymer | Up to 30% lower via sludge recirculation contact | Standard dose; poor contact utilization |
DAF outperforms on FOG, colloidal fines, footprint, and float dryness; lamella is more cost-effective for FOG-free streams at high flow, while the conventional clarifier is rarely the optimal 2026 solution. Support the train with an automatic chemical dosing skid to maintain consistency against variable influent, and a downstream plate-and-frame filter press sized to the float or underflow dryness.
Three Claremore Scenarios: Which Train to Specify
Scenario 1 — Iron or taconite concentrator, 250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. Expected 40 CFR 437 effluent: TSS <30 mg/L achievable with lamella alone; metals controlled at the upstream precipitation step against the daily-maximum limits for Pb, Zn, Cu, and Fe.
Scenario 2 — Mixed-metals refinery with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model with no custom-engineering cost. For lithium-bearing or spodumene-adjacent streams, the spodumene processing wastewater treatment guide walks through comparable precipitation chemistry.
Scenario 3 — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering. A 15 m³/h sump discharge runs intermittently through a NE Oklahoma winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime against the 40 CFR 437 pH 6.0–9.0 band, which is the parameter most likely to drift if a settler goes down and copper-bearing water sits in a vault.
CAPEX, OPEX, and Footprint Math for a 100 m³/h Stream
DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That ratio narrows once civil work, excavation, and footprint-driven building costs are included, as lamella requires 0.3–0.6 m² per m³/h and DAF requires only 0.2–0.4 m² per m³/h. For a 100 m³/h stream, this results in a footprint difference of roughly 30 m² for DAF versus 600 m² for a conventional clarifier; at industrial building costs of $200–400 per square meter in Claremore, the civil costs alone can swing six figures. DAF's premium is highest in cold, space-rich sites and lowest in dense urban industrial corridors where square footage is expensive.
Operational costs narrow the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle, but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press. The DAF's air compressor and recirculation pump consume 8–15 kWh per m³ treated, representing a known, scalable cost. Pair the train with an automatic chemical dosing skid and a plate-and-frame filter press to optimize efficiency.
Frequently Asked Questions
Does 40 CFR 437 require DAF or a clarifier?
Neither technology is explicitly required. 40 CFR 437 sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against the daily-maximum metals envelope.
What surface loading should a lamella be designed at for dense Fe(OH)₃ floc?
Design at 20–30 m/h on the plate-pack projected area for well-conditioned Fe(OH)₃ or Al(OH)₃ floc. Drop to 10–15 m/h for fine silica or low-density floc. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only (HydropureWater field data, 2026).
Can a DAF be run in a cold NE Oklahoma winter?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter.
Can a lamella handle a taconite stream alone?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
