Why 2026 Is the Year Abbeville Mining Plants Replace Their Clarifier
40 CFR 437 (Ore Mining and Dressing) sets daily-maximum and monthly-average effluent limits for total suspended solids, total recoverable lead, zinc, copper, and iron, and pins discharge pH to the 6.0–9.0 band for any release to waters of the United States (per 40 CFR 437.30–437.32). For Abbeville-area metals and mining-support plants routing through the South Carolina Department of Environmental Services (SCDES) for an NPDES or industrial pretreatment permit, that envelope is non-negotiable in 2026.
Two pressures are converging on the same calendar year. The first is capital cycle: a large share of the clarifiers still in service across the Upstate metals-fabrication corridor date to the 1970s, and the maintenance backlog is now a board-level replacement decision. The second is ESG-driven closed-loop water-reuse pressure layered on top of the discharge permit — operators who want to recycle process water cannot tolerate the carryover TSS and emulsified oil that an aging clarifier releases.
The question is therefore not "DAF or clarifier" as a binary choice. The working thesis is: which unit goes first, in what order, and on which stream fraction. The answer for most 2026 Abbeville capex reviews is dissolved air flotation (DAF) as primary to strip FOG and colloidal fines, with a high-rate lamella as polish to land the metals and TSS envelope inside the permit window. For context on how the same logic plays out in an adjacent basin, see the DAF vs clarifier for mining wastewater in Metcalfe County guide.
How a DAF Actually Works on a Metals-Hydroxide Stream
A dissolved air flotation unit floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel. When the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm bubbles (per commercial reference data on DAF mechanism, 2026). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment.
Removal performance for DAF on conditioned metal-hydroxide floc is 90–95% for TSS, FOG, COD, and BOD (per commercial DAF performance reference, 2026), and the unit also captures particulate metals and colloidal silica when upstream chemistry is right. Coagulants typically include polyaluminum chloride (PAC), ferric chloride, or alum, paired with an anionic polymer flocculant at 1–5 mg/L. Without that conditioning, micro-bubbles pass right past colloidal fines and the unit underperforms.
Float dryness runs 4–8% dry solids (DS), which is a downstream plate-and-frame filter press advantage: thicker feed cake shortens press cycle time and reduces polymer demand on the dewatering side. A representative packaged ZSQ series DAF system covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band flows.
How a Lamella Clarifier Differs From a Conventional Gravity Clarifier
A lamella clarifier — also called an inclined-plate settler or high-rate sedimentation tank — stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (HydropureWater engineering data, 2026).

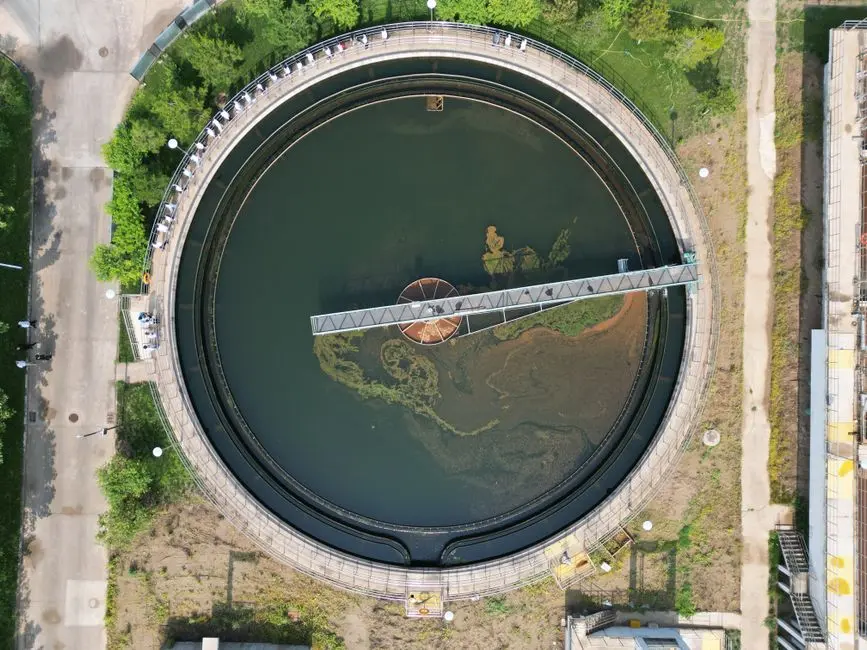

A conventional gravity clarifier is a large rectangular or circular tank operating at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h. At an Abbeville site where every square meter of vault or building is billable, that ratio alone usually retires the conventional option before any chemistry discussion begins. Lamella underflow runs 2–5% DS — wetter than DAF float, so downstream dewatering sizing has to plan for a thinner feed.
The HydropureWater lamella clarifier line targets the 20–40 m/h plate-pack loading band that makes the lamella column competitive with DAF on dense, well-conditioned hydroxide floc in the first place. That distinction matters for the head-to-head table that follows: a lamella is not a generic clarifier, and a conventional clarifier is not a budget lamella.
DAF vs Lamella vs Conventional Clarifier: 2026 Head-to-Head
This table is the artifact to hand to a non-technical decision-maker. The rows reorganize dense metal-hydroxide stream parameters — not food-processing FOG defaults — into the columns procurement actually asks about.
| Parameter | DAF (dissolved air flotation) | Lamella (inclined plate) | Conventional gravity clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% | 85–95% on well-conditioned floc | 70–85% on settleable solids only |
| Equipment CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x | 1.0x | 0.7–0.9x equipment, large civil offset |
| Footprint per m³/h | 0.2–0.4 m² | 0.3–0.6 m² | 5–8 m² |
| Energy demand | 8–15 kWh/m³ (compressor + recycle) plus chemistry | 0.1–0.3 kWh/m³ (scraper) plus chemistry | Scraper drive plus chemistry |
| Cold-weather performance below 10°C | Moderate — size 10–15% margin for slower bubble nucleation | Low — freeze risk in unheated sludge hopper | Low — same freeze risk in larger vault |
| FOG, emulsified oil, colloidal fines | Strong (primary duty) | Weak (carryover to overflow) | Weak (carryover to overflow) |
| Float / underflow dryness | 4–8% DS float — easier dewatering | 2–5% DS underflow | 1–3% DS underflow — large sludge volume |
The verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer once vault and excavation cost are credited. For a 100 m³/h stream, the table translates to roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint — the headline ratio for any Abbeville capex review. Abbeville winters are mild, but January lows near 0°C still warrant the 10–15% recycle sizing margin because micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (HydropureWater field data, 2026).
For the equipment itself, compare the ZSQ series DAF system against the HydropureWater lamella clarifier at the same design flow to anchor the CAPEX and footprint numbers above.
Three Rules That Decide Which Mechanism Wins
Three rules translate the table into a usable pre-filter you can apply to your own influent data without an engineer in the room.
Rule 1 — Floc density. Chemically conditioned floc with specific gravity above 1.05 settles readily and favors a clarifier; the same floc, once polymer-conditioned, also binds tightly to 30–50 µm micro-bubbles, so either technology works when chemistry is right (per academic and commercial DAF-chemistry references, 2025–2026). The exception is light, low-density floc, which micro-bubbles lift far more reliably than a clarifier captures.
Rule 2 — FOG. Free oil and grease do not settle in a clarifier's residence time — they exit in the overflow. Any FOG load has to be handled upstream or in a polish step. A maintenance shop discharge, a cutting-oil emulsion, or a truck-wash tie-in forces DAF primary or a dedicated oil-removal unit ahead of the clarifier.
Rule 3 — Cold weather. Micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent for any plant that runs through winter. Abbeville's Southeast climate is mild, but the sizing margin costs little up front and protects the permit envelope during a January cold snap.
If those three rules point to DAF primary plus a polish step, the rest of the article is about which polish — and in which configuration.
Which Configuration Fits Your Abbeville Stream: Four Scenarios
Apply the framework to four stream profiles that map to the Upstate metals-fabrication corridor. Each closes with the expected 40 CFR 437 envelope result.
Scenario A — Iron / taconite-style concentrator, 250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. Expected 40 CFR 437 effluent: TSS under 30 mg/L achievable with lamella alone; lead, zinc, copper, and iron controlled at the upstream precipitation step.
Scenario B — Mixed-metals refinery with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF primary is non-negotiable — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ series DAF system with no custom-engineering cost, and a compact lamella polish finishes the envelope. Hold the dose steady with an automatic chemical dosing skid. Expected 40 CFR 437 effluent: TSS under 20 mg/L, metals inside daily-maximum, pH 6.0–9.0.
Scenario C — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering. A 15 m³/h sump discharge that runs intermittently through winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. Expected 40 CFR 437 envelope: TSS under 30 mg/L with intermittent flows handled inside the monthly-average window.
Scenario D — Legacy clarifier retrofit at an existing Abbeville plant. Keep the existing basin as flow equalization, install a DAF upstream to strip FOG and colloidal fines, and a compact lamella polish downstream. Total CAPEX stays inside the 1.5–2.5x DAF-premium band once avoided civil cost is credited against new construction. The retrofit also halves the new footprint and lets the plant stay in operation during the changeover, which is often the deciding factor for a 2026 capex committee. Expected 40 CFR 437 envelope: TSS under 20 mg/L, daily-maximum metals cleared with margin, pH held at the automatic chemical dosing skid setpoint. For the comparable Upstate metals-fabrication framing, see the DAF vs clarifier for fabricated metals wastewater guide.
2026 CAPEX, OPEX, and Footprint Reality Check for Abbeville Plants
The headline ratio for 2026: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, that is the difference between roughly 30 m² of DAF footprint and 600 m² of conventional clarifier footprint. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where the lamella fits cheaply) and smallest in dense industrial corridors (where every square meter of building is expensive).
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle, but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency. Two pieces of supporting kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS). For pretreatment framing that crosses basins, the mining and metals pretreatment compliance guide covers the same numbers from a different state perspective.
Frequently Asked Questions
Does 40 CFR 437 mandate DAF or a clarifier?
No. Neither technology is explicitly required by 40 CFR 437, but the rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin.
What surface loading should we design a lamella to for Fe(OH)₃ floc?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only (HydropureWater engineering data, 2026).
Can a DAF run through an Abbeville winter?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter, even in Abbeville's mild Southeast climate.
Can we run a lamella alone as primary on a taconite stream?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
How much smaller is a DAF than a conventional clarifier?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² and 600 m² of clarifier footprint (HydropureWater field data, 2026).
