Why Bangor Boro Mining and Metals Plants Are Re-asking the DAF vs Clarifier Question in 2026
For Bangor Boro mining and metals factories in 2026, the answer is rarely DAF or clarifier alone — most lines run DAF as primary to strip FOG and colloidal fines, with a lamella clarifier as polish to hit 40 CFR 437 daily-maximum limits for TSS, lead, zinc, copper, and iron. Cold Slate Belt winters and tight urban footprints push the CAPEX ratio (DAF at 1.5–2.5x lamella) toward a hybrid in most cases.
The regulatory forcing function is 40 CFR 437 (Ore Mining and Dressing), which sets daily-maximum and monthly-average effluent limits for total suspended solids, total recoverable lead, zinc, copper, and iron, and a pH band of 6.0–9.0 for any discharge to waters of the United States (per 40 CFR 437.30–437.32). Every 2026 Bangor Boro metals-bearing discharge — slate fines runoff, fabricated-metals finishing blowdown, or legacy Superfund-adjacent seeps — sits inside that envelope. The second pressure is capital-cycle: many legacy clarifiers in the Slate Belt date to the 1970s, and ESG-driven closed-loop water-reuse targets now make replacement a board-level decision rather than a maintenance line item (per S1). The third pressure is stream profile — dense metal-hydroxide floc (Fe, Mn, Al hydroxides, silica fines, magnetite) with intermittent tramp oil — which is the opposite of the FOG-heavy food-processing stream most generic DAF articles assume.
Bangor Boro sits in Northampton County in the Slate Belt, with January averages below freezing and active industrial wastewater discharges to the Bushkill and Monocacy Creek tributaries of the Delaware River basin. That puts two real 2026 decision drivers on the table: Delaware River Basin Commission (DRBC) review for any flow above the local threshold, and winter operability when a sludge hopper in an unheated vault will freeze. For operators evaluating the full decision tree, the broader 2026 DAF vs clarifier guide walks the same logic across other US basins.
How DAF and Clarifiers Actually Separate Solids — Bangor Boro Plant Operators Need the Mechanism
A dissolved air flotation (DAF) unit reverses the separation vector. Clarified water drawn from the DAF outlet is pressurized to roughly 6 bar (87 psi) and saturated with air in a packed saturation vessel. When the saturated recycle stream is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm micro-bubbles (per S1, S3). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. Coagulants (polyaluminum chloride, ferric chloride, or alum) paired with 1–5 mg/L anionic polymer flocculant are essential — without that conditioning, micro-bubbles pass right past colloidal fines and DAF underperforms (per S1, S3).
A lamella clarifier (inclined-plate settler) stacks inclined plates inside a compact tank. The plates multiply effective settling area so surface loading climbs to 20–40 m/h, and footprint drops to 0.3–0.6 m² per m³/h — roughly one-tenth that of a conventional gravity clarifier at the same flow (per S1, S3). Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10).
A conventional gravity clarifier is a large rectangular or circular tank at 1–2 m/h surface loading and 5–8 m² per m³/h footprint. It is rarely the 2026 answer for Bangor Boro plants on footprint alone, and the freeze risk in an unheated vault is the deal-breaker in winter.
Three rules govern which mechanism wins. The floc-density rule: chemically conditioned floc with specific gravity >1.05 settles readily and favors a clarifier; the same polymer-conditioned floc binds tightly to 30–50 µm bubbles, so either works when chemistry is right. The FOG rule: free oil and grease do not settle in a clarifier's residence time — they exit in the overflow — so any FOG load has to be handled upstream or in a polish step. The cold-weather rule: micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent for plants that run through a Slate Belt winter (Zhongsheng field data, 2026).

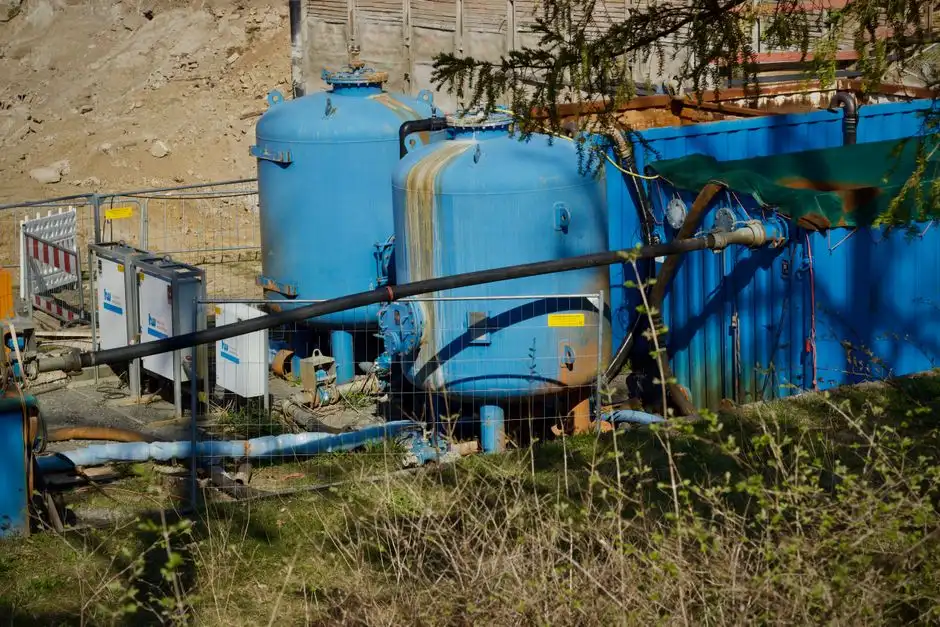

2026 Head-to-Head: DAF, Lamella, and Conventional Clarifier for Bangor Boro Mining Streams
This is the page to hand to a non-technical decision-maker. The table reorganizes the dense metal-hydroxide stream parameters — not food-processing FOG defaults — into the rows procurement actually asks about. For a 100 m³/h Bangor Boro stream, the difference is roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint — a 20x swing that defines the 2026 decision.
| Parameter | DAF | Lamella Clarifier | Conventional Gravity Clarifier |
|---|---|---|---|
| TSS removal (dense Fe(OH)₃ / Al(OH)₃ floc) | 90–95% | 90–95% (clean, well-conditioned floc) | 80–90% |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x (Zhongsheng field data, 2026) | 1.0x | 0.7–0.9x (but huge civil cost) |
| Footprint at 100 m³/h | 0.2–0.4 m² per m³/h → ~30 m² | 0.3–0.6 m² per m³/h → ~50 m² | 5–8 m² per m³/h → ~600 m² |
| Energy | 8–15 kWh/m³ (compressor + recycle) + chemistry | Scraper drive only (~0.1–0.3 kWh/m³) + chemistry | Scraper drive + low pumping |
| Coagulant demand | Standard | Up to 30% lower (sludge recycle, Zhongsheng P10) | Standard |
| Cold-weather (<10°C) | Moderate (size 10–15% margin; insulate saturation vessel) | Low (freezing risk in unheated sludge hopper) | Low (same freeze risk; larger vault) |
| Sludge dryness | Float 4–8% DS — easier downstream dewatering | Underflow 2–5% DS | Underflow 1–3% DS |
| Best fit | FOG, emulsified oil, colloidal fines, light floc, cold variable flow | Dense settleable hydroxide floc, high flow, no oil | Legacy installations, very large settling basins |
The head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer. A reference ZSQ series DAF system covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band flows. For FOG-free dense-hydroxide streams, a HydropureWater high-efficiency lamella clarifier plate pack delivers the 20–40 m/h surface-loading band that makes the column competitive in the first place.
Three Bangor Boro Stream Archetypes and the Right 2026 Configuration for Each
The Bangor Boro operator usually has one of three real situations on the floor. Each maps to a defensible 40 CFR 437 configuration.
Scenario A — Slate aggregate wash or taconite-style concentrator at ~250 m³/h. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite and silica fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. Expected 40 CFR 437 effluent: TSS <30 mg/L achievable with lamella alone; lead, zinc, copper, and iron controlled at the upstream precipitation step against the 40 CFR 437 daily-maximum envelope. Add a DAF polish only if a maintenance shop or truck wash starts contributing FOG intermittently (per S1).
Scenario B — Secondary metals refinery or fabricated-metals finishing with cutting-oil emulsions at ~80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits for lead and zinc (see the dedicated lead removal process guide and the zinc removal methods and 2026 limits breakdowns). The 80 m³/h flow sits mid-band on a standard ZSQ series DAF system with no custom-engineering cost. Hold dose tight against variable influent with an automatic chemical dosing skid so the system never drifts out of its design window.
Scenario C — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering running intermittently through winter. A 15 m³/h sump discharge that starts and stops on pump calls. A compact DAF skid brings online in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime (per S1). January averages in Bangor Boro sit below freezing, so this is not a theoretical risk — it is the climate reality that justifies the 10–15% cold-weather sizing margin on the recycle pump and saturation vessel.

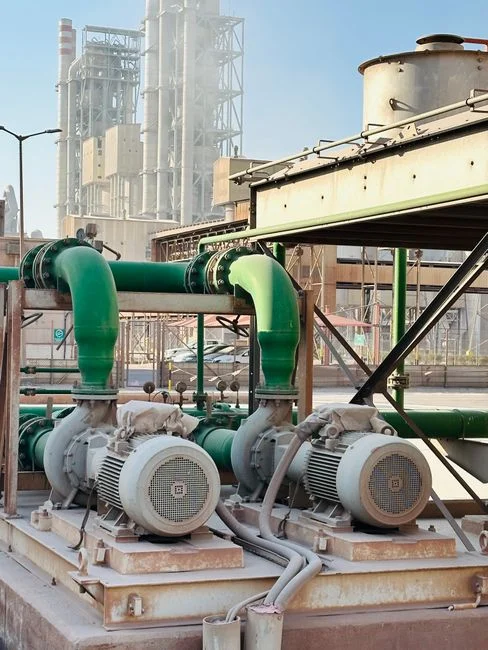

2026 CAPEX and OPEX Band for Bangor Boro Mining and Metals Plants
The headline ratio for 2026: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (Zhongsheng field data, 2026). That ratio narrows once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h Bangor Boro stream, that is the difference between roughly 30 m² of DAF footprint and 600 m² of conventional clarifier footprint. The DAF CAPEX premium therefore looks largest in cold, space-rich sites and smallest in dense urban industrial corridors where every square meter of building is expensive.
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle (Zhongsheng P10), but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency.
Two pieces of adjacent kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS). For Bangor Boro plants weighing FOG-bearing streams, a DAF-primary / lamella-polish configuration on a 100 m³/h stream lands roughly in the mid-band of the 2026 CAPEX range and recovers the DAF premium through smaller civil work, faster startup, and easier downstream dewatering.
Frequently Asked Questions
Does 40 CFR 437 require a specific technology like DAF or a clarifier?
No. Neither technology is explicitly required by 40 CFR 437, but the rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0. A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against the daily-maximum envelope (per S1).
How do I size a lamella clarifier for dense Fe(OH)₃ or Al(OH)₃ floc?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range (Zhongsheng P10) applies to clean, well-conditioned hydroxide floc only — colloidal or low-density streams need the conservative end of the band.
Can a DAF run reliably through a Bangor Boro winter?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter.
Can a taconite or iron concentrator run lamella-only with no DAF?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
How big is the footprint difference between DAF and a conventional clarifier?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² and 600 m² of clarifier footprint (Zhongsheng field data, 2026).
