How to Size ZLD for Machining Coolant Blowdown: 2026 Engineering Guide
Equipment & Technology Guide
Zhongsheng Engineering Team
Why Machining Coolant Blowdown Is a Different ZLD Problem
Most 2022–2024 ZLD literature, including Plata et al. (2022), focuses on recirculating cooling tower blowdown at power facilities, where the primary concern is total dissolved solids (TDS) and scaling, rather than free and emulsified oils. This distinction is critical because machining coolant blowdown contains a complex matrix of semi-synthetic or synthetic lubricants, glycols, biocides, triazines, and tramp oil that behave very differently from inorganic salts. For instance, power plant blowdown may contain specific inhibitors like phosphates or bromides, but these do not typically cause the same severe fouling issues on heat-transfer surfaces as the organic and oily components found in metalworking fluids (Zhongsheng field data, 2026). Attempting to feed oil-laden coolant blowdown directly into a brine concentrator, particularly a mechanical vapor recompression (MVR) falling-film evaporator, can lead to rapid fouling of tube bundles, often within hours, necessitating frequent and costly clean-in-place (CIP) cycles. Therefore, any ZLD sizing for machining coolant blowdown must prioritize quantitative oil & grease (O&G) and chemical oxygen demand (COD) data, not just TDS, as the primary drivers for pretreatment design. As framed by Ahmed (2023) in a West Virginia University thesis, ZLD systems often target the recovery of 'critical minerals and low-salinity water'; however, in coolant blowdown, the 'minerals' are more often simple salts like sodium chloride and sulfates derived from pH adjusters, corrosion inhibitors, and biocide formulations, rather than high-value strategic elements.
Step 1: Characterize the Coolant Blowdown Stream
Accurate characterization of the machining coolant blowdown stream is the foundational step for designing a robust ZLD system, directly influencing component selection and sizing. Key parameters required for a comprehensive mass and energy balance include daily flow rate (m³/day), Chemical Oxygen Demand (COD), Biochemical Oxygen Demand (BOD₅), Total Suspended Solids (TSS), oil & grease (O&G, encompassing both free and emulsified fractions), Total Dissolved Solids (TDS), Total Nitrogen (TN), conductivity, pH, temperature, and an estimate of the tramp oil fraction. For a typical metalworking plant in 2026, engineers should anticipate COD levels ranging from 2,000–15,000 mg/L, O&G concentrations between 200–2,000 mg/L before initial treatment, TDS values from 1,500–8,000 mg/L, and Total Nitrogen in the range of 50–300 mg/L (Zhongsheng field data, 2026). It is crucial to collect composite samples across at least seven operating days to accurately capture shift-to-shift variations in coolant concentration, biocide dosing, and production schedules. Plata et al. (2022) emphasized that blowdown characterization is the primary determinant for the ZLD train split in power facilities; similarly, for machining coolant, the dominant variable driving pretreatment design is the O&G load, rather than solely TDS.
Parameter
Typical Range (Machining Coolant Blowdown)
Unit
Flow Rate
5–100
m³/day
Chemical Oxygen Demand (COD)
2,000–15,000
mg/L
Biochemical Oxygen Demand (BOD₅)
500–5,000
mg/L
Total Suspended Solids (TSS)
50–500
mg/L
Oil & Grease (O&G)
200–2,000
mg/L
Total Dissolved Solids (TDS)
1,500–8,000
mg/L
Total Nitrogen (TN)
50–300
mg/L
pH
7.0–9.5
-
Temperature
25–45
°C
Step 2: Pretreatment to Protect the Thermal Train
Effective pretreatment is critical for ZLD systems handling machining coolant blowdown, as it prevents rapid fouling of downstream thermal evaporators and reverse osmosis membranes. The first stage of pretreatment typically involves a dissolved air flotation (DAF) system for oil and coolant removal, designed to reduce free and emulsified oil concentrations to below 30 mg/L (Zhongsheng field data, 2026). DAF is the workhorse for coolant blowdown because its robust design effectively handles the fluctuating surfactant loads and high oil content that would rapidly blind conventional media filters. Following DAF, a multi-media filter is employed as the second stage to further reduce TSS to below 10 mg/L, protecting the sensitive RO membranes from particulate fouling. A third, optional polishing step before reverse osmosis (RO) involves ultrafiltration (UF) with a pore size typically between 0.01–0.05 μm. This UF stage provides an additional barrier against colloidal fouling; Plata et al. (2022) included UF in their 9% UF/RO train for power plant blowdown (S1), establishing a precedent for its role in high-recovery ZLD systems. Finally, pH and temperature conditioning are essential to meet the specific feed specifications of both RO membranes and the brine concentrator; typical brine concentrator feed requires a pH range of 6.5–8.5 and a temperature below 45 °C for optimal performance of falling-film evaporators (Zhongsheng field data, 2026).
Step 3: Build the ZLD Train — RO/UF, Brine Concentrator, and Crystallizer
The ZLD train for machining coolant blowdown typically integrates mechanical separation, thermal concentration, and crystallization to achieve high water recovery and solid waste generation. Drawing from the model proposed by Plata et al. (2022) for power plant blowdown (S1), the pretreated coolant blowdown is split: approximately 9% is directed to an UF/RO polishing train, while the remaining ~91% proceeds to the thermal concentration stages. The UF/RO train is designed to recover 75–90% of its feed as high-quality permeate (S1), with industrial RO systems often achieving 95% recovery (per Zhongsheng RO product line specs). This means that for every 100 m³/day of pretreated blowdown, the 9 m³/day fed to RO yields approximately 7.5 m³/day of permeate and 1.5 m³/day of additional brine, which is then combined with the main 91 m³/day stream and sent to the brine concentrator.
The brine concentrator, typically a mechanical vapor recompression (MVR) falling-film evaporator, is often staged in 2–3 effects to maximize energy efficiency. This unit concentrates the combined RO reject and main blowdown stream, raising its TDS from an initial ~3–5% to a more concentrated ~15–20% (Zhongsheng field data, 2026). The overall water recovery from the brine concentrator train is typically 88% (Plata et al., 2022, S1). The distillate from the brine concentrator is then polished through mixed-bed ion exchange, as modeled by Plata et al. (2022) (S1), to achieve reuse-quality makeup water suitable for the coolant recirculating loop. Finally, the concentrated blowdown from the brine concentrator is fed to a crystallizer—either a forced-circulation or Oslo-type—which further increases the TDS to over 25% and produces a dry salt cake for disposal.
ZLD Stage
Feed Concentration (TDS)
Output Concentration (TDS)
Typical Water Recovery
Key Function
UF/RO Polishing (9% of flow)
1,500–8,000 mg/L
<50 mg/L (Permeate)
75–95% (of 9% stream)
High-quality water recovery, further concentration of salts
Brine Concentrator (91% of flow + RO reject)
3–5%
15–20%
88% (overall system)
Volume reduction, high-purity distillate production
Mixed-Bed Ion Exchange
<50 mg/L (BC distillate)
<1 mg/L (Polished Water)
>99.9% (water quality)
Ultrapure water for reuse
Crystallizer
15–20%
>25% (Slurry)
>99.5% (to ZLD)
Solid salt cake production
Step 4: Size the Crystallizer and Final Solid-Handling Train
Crystallizer sizing is dictated by the concentrate's total dissolved solids (TDS) load, the target water recovery, and the thermal energy balance required for complete solids precipitation. To achieve true zero liquid discharge, the crystallizer must recover over 99.5% of the water from its feed, producing a slurry with a high solids content. The primary design considerations include the evaporative load (expressed in kW or MMBtu/hr) needed to remove the remaining water, and the required crystallizer residence time to grow a uniformly sized, easily dewaterable crystal product. This involves a trade-off: higher evaporative loads can reduce footprint but increase energy consumption, while longer residence times may reduce energy intensity but require larger vessels.
Following crystallization, the salt slurry requires dewatering to produce a dry cake suitable for landfill disposal, typically with less than 5% moisture content (Zhongsheng field data, 2026). Plate and frame filter presses are the standard equipment for dewatering ZLD salt cakes in 2026 due to their robust construction and ability to handle abrasive solids and achieve low moisture content. The final step in closing the ZLD loop is condensate management: vapors from both the brine concentrator and the crystallizer are condensed, polished through mixed-bed ion exchange, and then reused as high-quality makeup water for the machining coolant recirculating loop, thereby eliminating liquid discharge and minimizing freshwater demand.
BC vs CCRO: Choosing the Right ZLD Variant for Your Plant
Selecting between brine concentrator-based (ZLD-BC) and closed-circuit reverse osmosis (ZLD-CCRO) systems for machining coolant blowdown depends on site-specific economic drivers, target water recovery, and final concentrate disposal requirements. The ZLD-BC scenario, as modeled by Plata et al. (2022) (S1), achieves an overall water recovery of 88% from blowdown and has a levelized cost of water (LCOW) of $2.9/m³, representing approximately 6.3 times the cost of conventional discharge. This approach is generally preferred when a dry solid waste product is mandated or when high chloride levels in the feed exceed the operational limits of RO membranes (typically >20,000 mg/L for standard RO, Zhongsheng field data, 2026).
Conversely, the ZLD-CCRO scenario, also detailed by Plata et al. (2022) (S1), boasts a higher water recovery of 93% and a significantly lower LCOW of $0.97/m³, which is about 2.1 times the cost of conventional discharge. ZLD-CCRO is a more attractive option when energy cost is the dominant OPEX concern and the residual concentrated brine can be cost-effectively managed via deep-well injection or off-site trucking, rather than requiring a dry solid. These LCOW figures, derived from power-plant blowdown, should be treated as starting points; actual coolant-specific OPEX will likely be higher due to the intensive DAF/UF pretreatment load and increased biocide fouling potential, a known gap in the current peer-reviewed literature for 2024–2026.

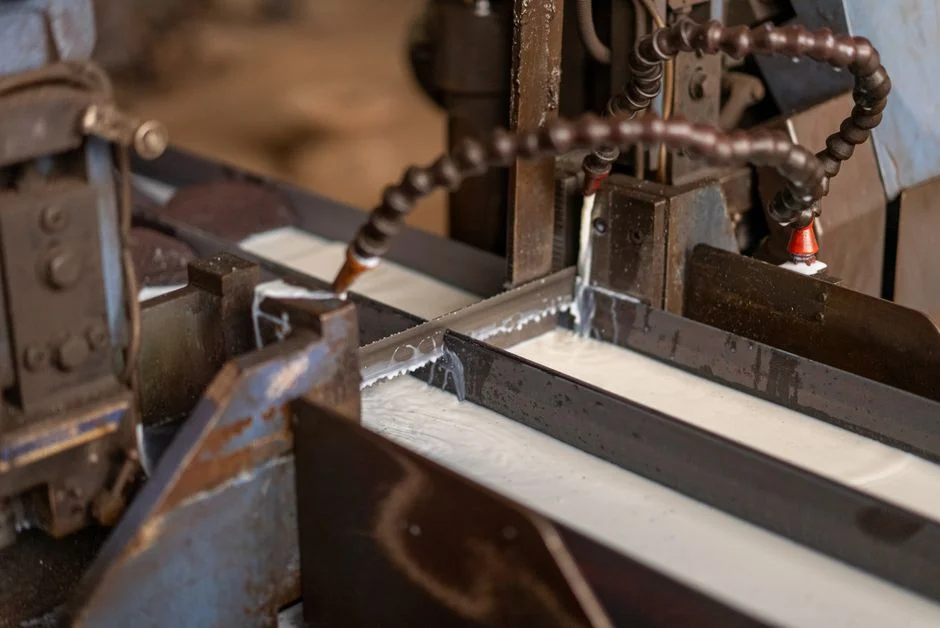

A robust deployment checklist for a machining coolant ZLD system in 2026 ensures all critical design and operational parameters are addressed before significant capital investment. The essential steps include: completing comprehensive influent characterization, reviewing DAF/UF pilot data to confirm pretreatment efficacy, justifying the 91/9 ZLD train split with a detailed mass balance, securing sign-off on the brine concentrator's thermal energy budget, and finally, establishing a clear pathway for crystallizer salt disposal. For quick sizing, a rule of thumb suggests that for every 100 m³/day of pretreated coolant blowdown, expect approximately 2.5–4.0 MWh/day of thermal energy consumption in the brine concentrator train, yielding around 700–900 m³/day of recovered water at the 88% recovery benchmark (Zhongsheng field data, 2026). It is important to flag an acknowledged open literature gap: as of 2026, there is no peer-reviewed paper that quantifies ZLD OPEX specifically for machining coolant blowdown, meaning engineers must still extrapolate cost estimates from power-plant and FGD blowdown data (Ahmed, 2023, S2), applying appropriate contingency factors for the unique challenges of organic and oil-laden streams.
Frequently Asked Questions
What is the 91/9 split in ZLD for machining coolant blowdown?
The 91/9 split, adapted from Plata et al. (2022) (S1), refers to directing approximately 91% of the pretreated blowdown flow to a thermal brine concentrator for bulk water recovery, while sending the remaining 9% to an ultrafiltration/reverse osmosis (UF/RO) polishing train. This split optimizes overall water recovery (88–93%) and manages the high salt load by concentrating the majority of the stream thermally.
What is the typical CAPEX/OPEX order of magnitude for a machining coolant ZLD system?
Based on power-plant ZLD benchmarks (Plata et al., 2022, S1), the levelized cost of water (LCOW) for a ZLD-BC system can be $2.9/m³, roughly 6.3 times that of conventional discharge. For ZLD-CCRO, it's about $0.97/m³, or 2.1 times conventional discharge. While specific CAPEX varies widely by flow and complexity, these LCOW figures highlight the significant operational cost increases driven by energy and chemical consumption.
When should I choose a Brine Concentrator (BC) ZLD over a Closed-Circuit Reverse Osmosis (CCRO) ZLD?
Choose a ZLD-BC system when a dry solid waste product is required, or when the influent's high total dissolved solids (TDS) or chloride levels exceed the practical limits of reverse osmosis membranes (e.g., >20,000 mg/L TDS). ZLD-CCRO is generally preferred when energy efficiency is paramount, and the concentrated brine can be economically managed via deep-well injection or off-site trucking.
Is ZLD required by regulation for machining coolant blowdown?
ZLD is not universally mandated by federal regulations in the United States for all industrial discharges, including machining coolant blowdown. However, specific state or local discharge permits, or the absence of a viable discharge point, can effectively require ZLD. Additionally, companies often pursue ZLD for water reuse, sustainability goals, and to mitigate future regulatory risks, especially in water-stressed regions.
What are the critical oil & grease limits for ZLD thermal trains?
For effective operation of thermal brine concentrators, the oil & grease (O&G) concentration in the feed stream must be rigorously controlled, typically to below 30 mg/L (Zhongsheng field data, 2026). Higher O&G levels lead to severe fouling of heat exchanger surfaces, reducing heat transfer efficiency, increasing energy consumption, and necessitating frequent, costly chemical clean-in-place (CIP) procedures, undermining the system's economic viability.
