A drinking water treatment plant converts raw water into safe tap water through seven sequential steps: screening, coagulation, flocculation, sedimentation, filtration, disinfection, and distribution. Coagulation with aluminum sulfate at 10-100 mg/L removes 90-95% of total suspended solids (TSS). Under the EPA Surface Water Treatment Rule, filtered systems must achieve 3-log Giardia and 4-log virus removal/inactivation; free-chlorine CT for 3-log Giardia varies with temperature and pH, and values near 450 mg-min/L appear in EPA CT tables for cold, high-pH water. The exact train depends on source water quality and on frameworks such as the EPA Safe Drinking Water Act, Directive (EU) 2020/2184 (which recast and repealed 98/83/EC as of 12 January 2023), and WHO Guidelines for Drinking-water Quality (4th Ed.).

Why Drinking Water Treatment Plants Matter: Source-to-Tap Safety

Globally, 2 billion people lack safely managed drinking water, contributing to 485,000 diarrheal deaths annually from unsafe water (WHO, 2022; CDC). Drinking water treatment plants are the primary barrier between contaminated raw water and public health. Inadequate treatment, as seen in the Flint, Michigan crisis, shows what happens when water quality targets are missed. Surface sources (rivers, lakes, reservoirs) typically show high turbidity, seasonal pathogen loads (Cryptosporidium, Giardia), and variable organic content. Groundwater often carries dissolved minerals, heavy metals (arsenic, fluoride), or industrial contaminants. Long-term exposure to contaminants drives chronic disease risk beyond acute illness. Regulators respond with maximum contaminant levels (MCLs) and treatment technique requirements under the US EPA Safe Drinking Water Act, Directive (EU) 2020/2184, and the WHO Guidelines for Drinking-water Quality (4th Ed.). The conventional multi-barrier train—intake, coagulation, flocculation, sedimentation, filtration, disinfection, storage, and distribution—implements those requirements in series.

Step 1: Screening and Intake – Removing Large Debris Before Treatment

Screening and intake systems remove physical contaminants larger than 1-3 mm, protecting pumps and stabilizing downstream operations. Coarse bar screens (1-3 mm spacing), traveling water screens, and micro-screens (20-100 µm) handle leaves, branches, fish, and plastics. Micro-screens are favored for surface sources with seasonal algal blooms. Intake design must address depth, velocity, and location. Operators avoid thermoclines and benthic zones where sediment and anaerobic conditions dominate. They hold intake velocity to 0.3-0.6 m/s to limit fish entrainment. Locating intakes upstream of pollution sources reduces loading. The Catskill/Delaware system serving New York City uses multi-level intakes to manage seasonal turbidity spikes that reach 500 NTU during storms. Field experience shows zebra mussel fouling and screen clogging as the most common operational headaches, fixed by routine cleaning. For robust primary screening, plants often deploy rotary mechanical bar screen systems.

Step 2: Coagulation – Neutralizing Particles for Easier Removal

Coagulation destabilizes suspended particles and colloids, typically achieving 90-95% TSS removal at EPA 2023 benchmarks. Negatively charged particles (clay, silt, organic matter) repel each other. Coagulants work by charge neutralization (zeta potential moved from -15 to -30 mV toward -10 to +10 mV), sweep flocculation, and adsorption onto coagulant floc. Three coagulants dominate municipal practice. Aluminum sulfate (alum) doses at 10-100 mg/L and performs best at pH 6-7. Ferric chloride doses at 20-150 mg/L and tolerates pH 5-9. Polyaluminum chloride (PAC), a pre-hydrolyzed product, doses at 5-50 mg/L, works at lower temperatures, and produces less sludge. Jar testing per ASTM D2035 sets the dose; online zeta potential meters feed real-time control. Food-grade chitosan is common in food and beverage plants to protect taste and odor. Most plants pair coagulation with packaged skid units, and similar packaged approaches such as the Underground Package Sewage Treatment Plant (WSZ Series) show how factory-built dosing skids simplify field installation.

Coagulant Type	Typical Dosing Rate (mg/L)	Optimal pH Range	TSS Removal Efficiency	Notes
Aluminum Sulfate (Alum)	10-100	6.0-7.0	90-95%	Most common, forms aluminum hydroxide floc
Ferric Chloride	20-150	5.0-9.0	90-95%	Effective over wider pH range, denser floc
Polyaluminum Chloride (PAC)	5-50	6.5-8.0	90-96%	Pre-hydrolyzed, less pH sensitive, lower sludge volume

Automated chemical dosing systems ensure precise and consistent coagulant application, optimizing performance and reducing chemical consumption.

Step 3: Flocculation – Building Larger Particles for Sedimentation

Flocculation aggregates destabilized particles into settleable flocs through gentle mixing, lifting sedimentation efficiency by 30-50% (EPA 2024). After rapid mixing, water enters flocculation basins where orthokinetic collisions (driven by fluid shear) and perikinetic collisions (Brownian motion of small particles) build larger aggregates. Operators hold the G-value between 20-80 s⁻¹ and detention time between 20-60 minutes. Tapered flocculation lowers the G-value across successive compartments so flocs grow without being sheared apart. Target flocs run 0.1-3 mm with density 1.02-1.10 g/cm³. Hydraulic flocculators use baffles for mixing without moving parts, which most plants prefer over mechanical paddles when maintenance access is limited. Well-tuned flocculation cuts the load on downstream filters and is one of the cheapest upgrades a plant can make.

Step 4: Sedimentation – Letting Gravity Do the Work

Sedimentation tanks remove 80-90% of suspended flocs by gravity; lamella clarifiers reach 90-95% removal in 30% of the footprint of conventional designs (EPA 2023). Rectangular (horizontal flow) basins, circular (radial flow) clarifiers, and inclined plate (lamella) clarifiers are the common geometries. Surface loading rate (overflow rate) drives design: 1-2 m/h for conventional tanks and 20-40 m/h for lamella clarifiers. Detention time runs 2-4 hours in conventional basins. Weir loading should stay below 10 m³/m·h to limit re-suspension. Singapore's Changi Water Reclamation Plant uses lamella clarifiers to handle 800,000 m³/day at 95% TSS removal. Sludge volume index targets below 100 mL/g indicate good settling.

Clarifier Type	Design Parameter	Typical Value/Range	TSS Removal Efficiency	Footprint Comparison
Rectangular/Circular (Conventional)	Surface Loading Rate	1-2 m/h	80-90%	100% (reference)
Rectangular/Circular (Conventional)	Detention Time	2-4 hours	80-90%	100% (reference)
Inclined Plate (Lamella)	Surface Loading Rate	20-40 m/h	90-95%	30% of conventional
Inclined Plate (Lamella)	Detention Time	0.5-1 hour	90-95%	30% of conventional

High-efficiency sedimentation tanks, particularly lamella clarifiers, are critical for maximizing particle removal and minimizing space requirements.

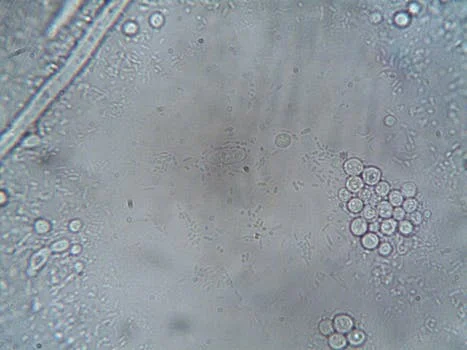

Step 5: Filtration – Removing Microscopic Contaminants

Filtration strips fine particles, pathogens, and residual turbidity. Rapid sand filters deliver 90-95% turbidity reduction, and UF membranes exceed 99% (EPA 2024). Common configurations include:

• Rapid Sand Filters: Sand media at 0.5-1.0 mm and filtration rates of 5-15 m/h. They polish residual flocs and particles at low cost.
• Multimedia Filters: Layered anthracite, sand, and garnet, decreasing in size with depth. They run longer between backwashes at 8-20 m/h.
• Membrane Filtration (MF/UF): Pore sizes from 0.01-0.1 µm deliver a near-absolute barrier against suspended solids, bacteria, viruses, and protozoa.

Turbidity targets are tight: the EPA mandates <0.3 NTU for 95% of monthly samples, WHO recommends <0.1 NTU, and semiconductor ultra-pure water (UPW) demands <0.05 NTU. Backwashing reverses flow, often with air scour (30-50 m/h), water wash (20-40 m/h), and surface wash (10-20 m/h) to prevent mudball formation. Granular activated carbon (GAC) and biological activated carbon (BAC) add polish for taste, odor, and dissolved organics.

Filtration Type	Media/Pore Size	Typical Filtration Rate	Turbidity Reduction	Key Benefit
Rapid Sand Filter	Sand (0.5-1.0 mm)	5-15 m/h	90-95%	Cost-effective, robust
Multimedia Filter	Anthracite/Sand/Garnet	8-20 m/h	92-97%	Longer run times, deeper penetration
Ultrafiltration (UF) Membrane	0.01-0.1 µm	50-100 L/m²/h	>99% (to <0.05 NTU)	Absolute barrier for pathogens, high purity

For industrial applications requiring ultrapure water, multi-media filters serve as a pretreatment step, often followed by MBR membrane bioreactor modules for advanced purification.

Step 6: Disinfection – Killing Pathogens Before Distribution

Disinfection is the final barrier, achieving 3-log inactivation of Giardia and 4-log inactivation of viruses under the EPA Surface Water Treatment Rule. Effectiveness is measured by the CT value: disinfectant concentration (mg/L) multiplied by contact time (minutes). Free-chlorine CT for Giardia is not a single fixed number; it rises as temperature falls and pH rises, and values near 450 mg-min/L appear in EPA CT tables under cold, high-pH conditions. Common disinfection options:

• Chlorine: A CT near 450 mg-min/L under cold, high-pH conditions supports 99.9% (3-log) Giardia inactivation. Chlorine forms trihalomethanes (THMs) and haloacetic acids (HAAs) when reacting with natural organic matter; EPA MCL for total THMs is 80 µg/L.
• Ozone: A CT of 1.2 mg-min/L inactivates 99.9% of Giardia and handles Cryptosporidium better than chlorine. Ozone leaves no residual and can form bromate (EPA MCL 10 µg/L) when bromide is present.
• Ultraviolet (UV) Light: At 254 nm, a dose of 40 mJ/cm² achieves 99.99% (4-log) virus inactivation and is effective against Cryptosporidium. UV produces no DBPs and provides no residual.
• Chlorine Dioxide (ClO₂): A CT of 15 mg-min/L inactivates 99.9% of Giardia while forming less THMs than free chlorine. Chlorite byproduct carries an EPA MCL of 1.0 mg/L.

Most plants combine disinfectants: ozone or UV for primary inactivation, then chloramine for residual. Los Angeles uses ozone followed by chloramines to keep THMs below 40 µg/L under the Stage 2 DBP Rule. Semiconductor fabs pair UV with reverse osmosis (RO) to avoid chemical residuals. On-site ClO₂ generators are a common way to add residual control without THM spikes.

Disinfection Method	Target Pathogen (Example)	Typical CT Value / Dose	Byproduct Risks	Residual Protection
Chlorine (Free)	Giardia (3-log)	450 mg-min/L	THMs (EPA MCL: 80 µg/L)	Yes
Ozone	Giardia (3-log)	1.2 mg-min/L	Bromate (EPA MCL: 10 µg/L)	No
UV Light	Viruses (4-log)	40 mJ/cm²	None	No
Chlorine Dioxide	Giardia (3-log)	15 mg-min/L	Chlorite (EPA MCL: 1.0 mg/L)	Yes

Step 7: Distribution – Maintaining Water Quality to the Tap

The distribution system delivers treated water while managing residual disinfectant, corrosion, and biofilm. Covered clearwells provide contact time and peak-demand storage; turnover rates of 1-2 days prevent stagnation, and mixing systems limit thermal or chemical stratification. Distribution risks include biofilm growth harboring Pseudomonas and Legionella, internal pipe corrosion releasing lead, copper, and iron, and nitrification in chloramine systems where bacteria convert ammonia to nitrite and nitrate and deplete residual. Corrosion control typically combines pH adjustment to 7.5-8.5, orthophosphate dosing at 1-3 mg/L, and careful pipe selection (ductile iron, HDPE, or PVC). Chloramine (1-4 mg/L) is preferred over free chlorine (0.2-1.0 mg/L) for long networks because of greater stability and lower DBP formation. Online sensors for turbidity, pH, and chlorine residual plus scheduled lead and copper sampling under the EPA Lead and Copper Rule keep water quality intact to the tap.

Conventional vs. Advanced Treatment Trains: Which System Fits Your Application?

The right train depends on source water quality, compliance targets, and economics. Matching technology to the actual water quality challenge keeps both CapEx and OPEX in line. Common treatment trains:

• Conventional Treatment Train (Coagulation → Sedimentation → Filtration → Disinfection): The standard for low-turbidity sources (<50 NTU) and moderate organic content.
  • CapEx: $2-5 million for a 10,000 m³/day plant.
  • OPEX: $0.10-0.20/m³.
  • Efficiency: 80-90% TSS removal, 2-log Giardia inactivation.
• Dissolved Air Flotation (DAF) + Filtration: Best for high-turbidity sources (50-3,000 NTU), algal blooms, or low-density particles; common in industrial reuse.
  • CapEx: $4-7 million for a 10,000 m³/day plant.
  • OPEX: $0.20-0.35/m³.
  • Efficiency: 95% TSS removal, higher effluent quality before filtration.
• Membrane Bioreactor (MBR) + Reverse Osmosis (RO): Required for ultra-pure water (semiconductor, pharmaceutical, boiler feed) or potable reuse from highly contaminated sources. MBR handles biological treatment and solid-liquid separation; RO removes dissolved salts, heavy metals, and remaining contaminants.
  • CapEx: $8-15 million for a 10,000 m³/day plant.
  • OPEX: $0.50-1.00/m³.
  • Efficiency: >99.9% TSS and pathogen removal, >99% dissolved solids removal.

Compliance drives technology choice. The EPA Long Term 2 Enhanced Surface Water Treatment Rule (LT2ESWTR) sets Cryptosporidium removal/inactivation credits that often force ozone, UV, or membranes. WHO Guidelines address arsenic and fluoride that require specialized removal. Industrial benchmarks (ASTM D1193 for reagent water; SEMI F63 for semiconductor UPW) demand MBR and RO to hit the purity targets. Decision framework for selecting a train:

1. Source Water Quality: Characterize physical, chemical, and biological parameters.
2. Compliance Requirements: List all relevant municipal, state, national, and industrial standards.
3. Budget: Balance CapEx against OPEX.
4. Footprint: Confirm land availability.
5. Operator Expertise: Match the technical skill level required for operation and maintenance.

Treatment Train	Typical Application	Key Efficiencies	CapEx (10,000 m³/day)	OPEX (per m³)
Conventional (Coagulation, Sedimentation, Filtration, Disinfection)	Low-turbidity surface/groundwater (<50 NTU)	80-90% TSS removal, 2-log Giardia	$2-5M	$0.10-0.20
DAF + Filtration	High-turbidity surface water (50-3,000 NTU), algae-laden, industrial reuse	95% TSS removal, superior clarification	$4-7M	$0.20-0.35
MBR + RO	Ultra-pure water, highly contaminated sources, potable reuse	>99.9% TSS & pathogen, >99% dissolved solids	$8-15M	$0.50-1.00

For more detailed engineering insights, explore our detailed engineering guide to DAF systems for high-turbidity water treatment and our reverse osmosis engineering guide for ultra-pure water applications.

Global Compliance Standards: EPA, WHO, and EU Requirements for Drinking Water

Drinking water quality is governed by the EPA Safe Drinking Water Act, WHO Guidelines, and Directive (EU) 2020/2184, which together set MCLs or parametric values for scores of parameters. Earlier EU law used Directive 98/83/EC; that instrument was recast and repealed as of 12 January 2023 (EUR-Lex). These limits protect public health by capping exposure to harmful contaminants.

• EPA Safe Drinking Water Act (SDWA): Sets legally enforceable MCLs for over 90 contaminants, including turbidity <0.3 NTU, arsenic <10 µg/L, lead <15 µg/L at the 90th percentile, benzene <5 µg/L, and total THMs <80 µg/L. The SDWA also mandates treatment techniques for selected contaminants.
• WHO Guidelines for Drinking-water Quality (4th Ed.): A global reference covering over 200 parameters. While not legally binding, the guidelines are widely adopted and adapted, including arsenic <10 µg/L and fluoride <1.5 mg/L.
• Directive (EU) 2020/2184: Recasts the former 98/83/EC framework across Member States. Parametric values include individual pesticides <0.1 µg/L, total THMs <100 µg/L, arsenic <10 µg/L, and fluoride <1.5 mg/L. The chemical parametric value for lead is 5 µg/L, with 10 µg/L retained for domestic-distribution risk assessment (EUR-Lex summary).

Industrial sectors carry their own quality standards: ASTM D1193 for reagent water (Type I-IV), SEMI F63 for semiconductor UPW (resistivity >18 MΩ·cm, <1 ppb TOC), and USP <1231> for pharmaceutical water (Purified Water, Water for Injection). Compliance often forces advanced technology: California's Division of Drinking Water requires 4-log virus removal for surface water systems, compared with 3-log for groundwater, which shapes disinfection choice. For specialized industrial context, see our article on compliance and engineering standards for hospital water treatment systems.

Parameter	EPA MCL/Action Level	WHO Guideline Value	EU Directive Limit
Turbidity	<0.3 NTU	<0.1 NTU	<1 NTU
Arsenic	<10 µg/L	<10 µg/L	<10 µg/L
Lead (90th percentile)	<15 µg/L	<10 µg/L	<10 µg/L
Total Trihalomethanes (THMs)	<80 µg/L	<100 µg/L	<100 µg/L
Fluoride	<4.0 mg/L	<1.5 mg/L	<1.5 mg/L

Who This Is For, Who Should Look Elsewhere, and Next Steps

This guide fits municipal plant engineers sizing upgrades, EPC contractors scoping tenders, and procurement teams comparing treatment trains. It applies when source water is surface or conventional groundwater and the deliverable is potable or industrial process water. Look elsewhere if you need brackish or seawater desalination (different pretreatment chemistry and energy profile) or pure-process reuse where the wastewater context dominates. Send your raw-water analysis and target flow to request a sized treatment train and budget estimate.

Frequently Asked Questions

What is the difference between coagulation and flocculation?

Coagulation is the chemical step that destabilizes suspended particles and colloids by neutralizing their surface charge (zeta potential moved to -10 to +10 mV), typically with alum at 10-100 mg/L. Flocculation is the physical step that follows, using gentle mixing at G-value 20-80 s⁻¹ to grow those destabilized particles into settleable flocs for sedimentation.

How do you calculate the CT value for disinfection?

CT is the product of disinfectant concentration C (mg/L) and contact time T (minutes). Under the EPA Surface Water Treatment Rule, systems must achieve 3-log Giardia inactivation; free-chlorine CT rises as temperature falls and pH rises, and values near 450 mg-min/L appear in EPA CT tables for cold, high-pH water. With a 1 mg/L chlorine residual at that CT level, contact time is 450 minutes, or 7.5 hours.

What is the most cost-effective treatment train for high-turbidity water?

For raw water at 50-3,000 NTU or with high algal content, a Dissolved Air Flotation (DAF) system followed by conventional filtration is typically the most cost-effective train. DAF achieves up to 95% TSS removal at an OPEX of $0.20-0.35/m³, outperforming a conventional train's 80-90% removal on challenging sources while occupying less space than sedimentation at the same flow.

How often should filters be backwashed?

Rapid sand filters typically need backwashing every 24-48 hours, or when headloss reaches 1.5 m (5 ft), or when effluent turbidity exceeds a 0.5 NTU breakthrough limit. Ultrafiltration (UF) membranes backwash more often, often every 30-60 minutes, triggered by transmembrane pressure rise or a fixed interval.

What are the key compliance risks for municipal water systems?

Top risks include meeting EPA LT2ESWTR Cryptosporidium removal/inactivation credits, staying under 80 µg/L total THMs under the Stage 2 DBP Rule, and keeping the 90th percentile lead concentration below 15 µg/L under the Lead and Copper Rule. Non-compliance triggers fines and public health advisories.
