Why GaN Wastewater Treatment Demands a Custom ZLD Approach
GaN wastewater from semiconductor fabrication facilities presents unique challenges due to its complex composition, which includes highly toxic and valuable metals like gallium, alongside ammonia and fluoride that complicate conventional treatment processes. Typical GaN wastewater characteristics from 2025 semiconductor fab data reveal concentrations of 50–500 mg/L Ga, 100–1,000 mg/L NH₄-N, 50–300 mg/L F⁻, and 200–2,000 mg/L COD. These parameters far exceed current and upcoming regulatory limits, making a standard industrial wastewater treatment approach insufficient for a successful GaN wastewater treatment project.
Stricter global regulatory limits for 2025 necessitate advanced solutions. China's GB 31573-2025 mandates discharge limits of <0.5 mg/L Ga and <10 mg/L NH₄-N. Similarly, the EU Industrial Emissions Directive sets Best Available Techniques Associated Emission Levels (BAT-AELs) for semiconductor fabs at <1 mg/L Ga, while U.S. EPA pretreatment standards require <5 mg/L Ga. Meeting these stringent targets for ammonia removal from GaN wastewater and gallium requires a specialized approach, often leading to zero liquid discharge engineering.
Conventional wastewater treatment systems fail to adequately address GaN wastewater challenges due to several specific chemical interactions. Gallium, particularly in the presence of ammonia, forms stable ammine complexes like [Ga(NH₃)₆]³⁺, which resist simple precipitation. Fluoride wastewater treatment is further complicated because high fluoride concentrations can etch and damage membrane surfaces in conventional ultrafiltration (UF) or reverse osmosis (RO) systems, reducing their lifespan and efficiency. the high total dissolved solids (TDS) typically found in semiconductor wastewater rapidly fouls RO membranes, diminishing permeate quality and increasing operational costs. A hybrid process design for semiconductor wastewater treatment is essential to overcome these hurdles. For instance, a 2025 GaN fab in Suzhou successfully reduced gallium discharge from 12 mg/L to 0.3 mg/L using a hybrid ZLD system, demonstrating the efficacy of tailored solutions.
2025 GaN Wastewater ZLD Process Design: Step-by-Step Engineering Specs
A robust zero liquid discharge (ZLD) system for GaN wastewater typically integrates a five-stage process: equalization, chemical precipitation, membrane filtration, ion exchange, and final evaporation/crystallization to meet stringent 2025 discharge limits and maximize resource recovery. This comprehensive approach is critical for effective GaN wastewater treatment project implementation.
Stage 1: Equalization
The equalization tank serves to buffer variations in flow rate, pH, and contaminant concentrations. Design specifications typically include a hydraulic retention time (HRT) of 2–4 hours, maintaining a pH range of 6–8. Tanks must feature corrosion-resistant coatings (e.g., epoxy-lined or FRP) to withstand the acidic and fluoride-rich influent.
Stage 2: Chemical Precipitation
This stage focuses on bulk gallium and heavy metal removal. pH adjustment to 9–10 using sodium hydroxide (NaOH) promotes the precipitation of gallium hydroxides. Coagulant dosing with polyaluminum chloride (PAC) at 10–50 mg/L and polymeric flocculant (PAM) at 1–5 mg/L enhances particle aggregation and settling. This stage can achieve approximately 95% Ga removal from influent concentrations of 50–100 mg/L. Precise control is managed by a PLC-controlled chemical dosing system for GaN wastewater pH adjustment and precipitation.
Stage 3: Membrane Filtration
Following precipitation, the wastewater undergoes a two-step membrane filtration process:
- Ultrafiltration (UF): Employing membranes with 0.1 μm pore size, UF removes suspended solids, colloids, and larger organic molecules, achieving 99% TSS removal.
- Nanofiltration (NF) or Reverse Osmosis (RO): These systems, with pore sizes of 0.001–0.01 μm (NF) or <0.001 μm (RO), reject dissolved salts, remaining heavy metals, and most organic contaminants. They achieve 90% COD removal and produce a high-quality permeate suitable for subsequent ion exchange. Industrial RO systems for GaN wastewater polishing and water reuse are crucial here.
Stage 4: Ion Exchange
This is a critical stage for selective gallium recovery from wastewater and polishing for trace contaminant removal. Specialized chelating resins are used to selectively adsorb residual gallium ions. This stage is designed to achieve 99.8% Ga removal, bringing gallium concentrations down to below 0.1 mg/L. Resin regeneration cycles typically occur every 12–24 hours, depending on influent loading.
Stage 5: Evaporation/Crystallization
The final stage in semiconductor fab ZLD systems concentrates the brine from the RO stage and the regenerant from ion exchange. Technologies like mechanical vapor recompression (MVR) or multi-effect evaporators are employed to recover 95% or more of the water for reuse. The remaining concentrated solids are crystallized into salts for proper disposal or further processing.
The following table illustrates typical influent and target effluent parameters for a 2025 GaN wastewater ZLD system:
| Parameter | Typical Influent (mg/L) | Target Effluent (mg/L) | Removal Efficiency (%) |
|---|---|---|---|
| Gallium (Ga) | 50–500 | <0.05 | >99.9 |
| Ammonia-Nitrogen (NH₄-N) | 100–1,000 | <5 | >99.5 |
| Fluoride (F⁻) | 50–300 | <5 | >98 |
| Chemical Oxygen Demand (COD) | 200–2,000 | <30 | >98.5 |
| Total Suspended Solids (TSS) | 50–200 | <1 | >99.5 |
| Total Dissolved Solids (TDS) | 1,000–5,000 | <50 (after RO) | >99 |
Gallium Recovery: Hybrid System Design for 99.8% Efficiency
Achieving 99.8% gallium recovery from GaN wastewater is feasible through a meticulously designed hybrid system that leverages both chemical precipitation and highly selective ion exchange technologies. Understanding gallium speciation is fundamental to optimizing its recovery. In highly alkaline conditions (pH > 9), gallium typically exists as the gallate anion, Ga(OH)₄⁻. However, in acidic conditions (pH < 7), particularly in the presence of fluoride, it can form stable fluoride complexes such as GaF₃. These different forms dictate the most effective recovery strategy.
The choice between precipitation and ion exchange for gallium recovery hinges on several factors. Chemical precipitation is generally a more cost-effective initial step for bulk removal (e.g., 95% efficiency) when gallium concentrations are high (e.g., >50 mg/L). It involves pH adjustment and the addition of coagulants to form insoluble gallium hydroxides. However, precipitation is less selective and may co-precipitate other metals, leading to lower purity. Ion exchange, while requiring a higher initial CAPEX, offers superior selectivity and can achieve ultra-high recovery rates, often exceeding 99.8% of residual gallium, producing a purer gallium concentrate. This makes it ideal for polishing and high-value resource recovery.
For maximizing gallium recovery from wastewater, resin selection is paramount. Chelating resins, specifically those with iminodiacetic acid functional groups, exhibit high selectivity for gallium ions even in complex matrices. Weak-base anion exchangers, such as Amberlite IRA-67, can also be effective, particularly for gallate anions at higher pH. The resin's capacity, selectivity, and resistance to fouling are critical parameters for a successful hybrid wastewater treatment system.
The regeneration protocol for gallium-loaded resins typically involves a 2–4% NaOH solution with a contact time of 30–60 minutes. This process elutes the adsorbed gallium, forming a concentrated gallium-rich solution. Zhongsheng Environmental's lab data from recent case studies indicate that this regeneration method yields gallium recovery efficiency of approximately 95% from the resin, with the resulting concentrate achieving 99.8% purity after further processing. For example, a 2025 GaN fab recovered 12 kg/month of gallium (99.8% purity) using a hybrid system, demonstrating a significant return on investment by offsetting 30% of CAPEX in just 18 months. An automatic chemical dosing system ensures precise control over the pH and regenerant concentration for optimal performance.

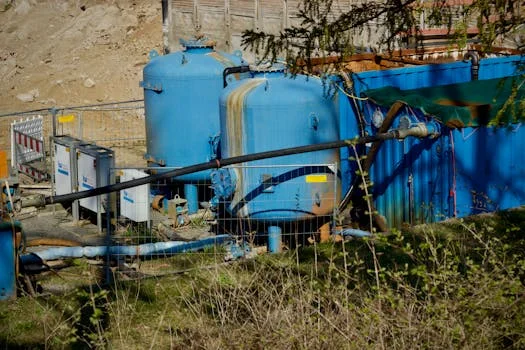

Equipment Sizing & Selection: 2025 Cost-Optimized Guide for GaN Fabs
Optimized equipment sizing and selection for a GaN wastewater ZLD system can significantly reduce both initial capital expenditure (CAPEX) and ongoing operational expenditure (OPEX) while ensuring compliance with 2025 standards. For equalization tanks, a common rule of thumb from 2025 industry benchmarks is to size them for 1.5–2.0 times the average daily flow, providing ample buffering capacity. Membrane systems, such as UF and RO, are typically sized based on a flux rate of 0.5–1.0 m³/h/m², considering the specific characteristics of GaN wastewater and potential fouling. Robust MBR systems for semiconductor wastewater with 99.9% TSS removal can also be integrated for upstream biological treatment if high organic loads are present.
Chemical dosing for the precipitation stage involves specific dosages: PAC at 10–50 mg/L, PAM at 1–5 mg/L, and NaOH for pH adjustment typically requiring 5–20 mg/L, depending on influent acidity. These dosages are critical for efficient GaN wastewater treatment project performance. For membrane selection, PVDF (polyvinylidene fluoride) ultrafiltration membranes with a 0.1 μm pore size are often preferred for their chemical resistance, especially to fluoride. This is followed by polyamide reverse osmosis membranes, which offer 99% rejection rates for dissolved solids, crucial for achieving ZLD and producing high-quality permeate. These systems are scalable for typical semiconductor fab ZLD systems with flows ranging from 50–200 m³/h. Industrial RO systems are a core component for water recovery.
A detailed cost breakdown for a zero liquid discharge engineering project for GaN wastewater reveals significant capital and operational expenses. For a 50 m³/h system, CAPEX typically ranges from $800K–$1.5M, while a larger 200 m³/h system can cost $2M–$3.5M. These figures encompass equipment procurement, installation, and commissioning. Operational expenditure (OPEX) for GaN wastewater treatment typically falls within $0.50–$1.20/m³. This OPEX is primarily driven by chemicals (approximately 40%), energy consumption (30%), labor (20%), and maintenance (10%).
| Cost Category | CAPEX (50 m³/h) | CAPEX (200 m³/h) | OPEX Breakdown |
|---|---|---|---|
| Equipment | $600K–$1.1M | $1.5M–$2.7M | Chemicals: 40% |
| Installation & Commissioning | $200K–$400K | $500K–$800K | Energy: 30% |
| Total CAPEX Range | $800K–$1.5M | $2M–$3.5M | Labor: 20% |
| Average OPEX per m³ | $0.50–$1.20 | $0.50–$1.20 | Maintenance: 10% |
When evaluating vendors for a GaN wastewater treatment project, critical criteria include: 1. Demonstrated GaN-specific experience, 2. A proven track record of ZLD compliance, 3. Guaranteed gallium recovery rates, and 4. Robust local service and support capabilities. These factors ensure a reliable and economically viable solution.
Compliance & Risk Mitigation: 2025 GaN Wastewater Discharge Standards
Meeting the evolving global and regional discharge standards for GaN wastewater, particularly the stringent 2025 regulations, necessitates proactive compliance strategies and robust risk mitigation protocols for semiconductor fabs. These updated standards reflect a global push for stricter environmental controls in advanced manufacturing. For detailed insights into these regulations, refer to our comprehensive article on 2025 semiconductor wastewater discharge standards and ZLD compliance strategies.
Key regulatory benchmarks for 2025 GaN discharge limits include:
- China GB 31573-2025: Effective January 2025, this standard mandates stringent limits of <0.5 mg/L Ga, <10 mg/L NH₄-N, and <15 mg/L F⁻ for semiconductor and integrated circuit manufacturing wastewater.
- EU Industrial Emissions Directive: For semiconductor fabs, the Best Available Techniques Associated Emission Levels (BAT-AELs) typically require <1 mg/L Ga and <10 mg/L NH₄-N, emphasizing resource efficiency and minimized environmental impact.
- U.S. EPA Pretreatment Standards: While federal standards like <5 mg/L Ga and <25 mg/L NH₄-N exist, local publicly owned treatment works (POTWs) often impose significantly stricter local limits, requiring fabs to achieve near-ZLD levels for specific contaminants.
Beyond established pollutants, emerging risks such as PFAS (per- and polyfluoroalkyl substances) in GaN wastewater are gaining regulatory attention. PFAS compounds, sometimes used in etching or cleaning processes, require specialized detection methods (e.g., LC-MS/MS) and advanced treatment options like granular activated carbon (GAC) adsorption, ion exchange resins, or high-pressure RO for effective removal and compliance.
Effective compliance strategies for GaN fabs include: 1. Implementing real-time monitoring systems (e.g., online Ga analyzers) to detect excursions immediately, 2. Designing redundant treatment trains to ensure continuous compliance even during maintenance or upset conditions, and 3. Conducting regular third-party environmental audits to verify system performance and adherence to evolving regulations. These measures are essential for mitigating discharge risks and maintaining operational licenses.
Frequently Asked Questions
Understanding the practical implications of GaN wastewater treatment and ZLD systems is crucial for semiconductor fab engineers and EHS managers, prompting several common inquiries regarding cost, recovery, and operational differences.
What is the typical CAPEX for a GaN wastewater ZLD system?
The typical Capital Expenditure (CAPEX) for a complete GaN wastewater Zero Liquid Discharge (ZLD) system, including advanced gallium recovery from wastewater, ranges from $1.2M to $3.5M. This range accommodates systems with flow rates from 50 m³/h to 200 m³/h, covering equipment, installation, and commissioning.
How much gallium can be recovered from GaN wastewater?
With a well-designed hybrid wastewater treatment system incorporating ion exchange and precipitation, it is possible to achieve 99.8% gallium recovery from GaN wastewater. For a typical 200 m³/h fab, this translates to recovering 10–20 kg/month of high-purity gallium, providing a significant economic benefit.
What are the key differences between treating GaN and SiC wastewater?
The primary difference lies in their specific contaminants and recovery targets. GaN wastewater treatment projects prioritize ammonia removal from GaN wastewater and gallium recovery from wastewater due to their high concentrations and value. SiC (silicon carbide) wastewater treatment, conversely, typically focuses on high total suspended solids (TSS) removal and fluoride wastewater treatment, as well as managing silicon and other heavy metals, with less emphasis on specific resource recovery compared to gallium.
Can GaN wastewater be reused in semiconductor processes?
Yes, treated GaN wastewater can be reused in semiconductor processes, but it requires additional polishing. After the ZLD process, the recovered water, while highly purified, typically needs further treatment stages such as reverse osmosis (RO) followed by electrodeionization (EDI) to meet the stringent ultrapure water (UPW) standards required for critical fab operations.
What are the most common failures in GaN wastewater treatment systems?
The most common failures in GaN wastewater treatment systems include: 1. Membrane fouling, particularly from fluoride and high TDS, which reduces flux and increases cleaning frequency. 2. Ion exchange resin poisoning from organic compounds or competing ions, which diminishes gallium selectivity and capacity. 3. pH control drift in precipitation tanks, leading to inefficient gallium precipitation and potential discharge violations.
