Which separation method fits the actual wastewater?
For semiconductor wastewater near Manor in 2026, choose DAF when factory testing shows fine, colloidal, oily, or chemically conditioned solids that can be reliably floated; choose a gravity or lamella clarifier when solids demonstrate dependable settling and simplicity, lower chemical demand, or conventional sludge handling dominates. Neither option should be selected from generic capacity or TSS-removal claims. Segment the wastewater, characterize flow, TSS, particle size, pH, metals, FOG, and reuse requirements, then compare both technologies on the same feed through representative conditioning and pilot trials. Manor alone does not establish the governing limits, and neither separator removes all dissolved contaminants or guarantees downstream compliance.
The choice should follow the dominant physical separation problem. Fine, oily, colloidal, or conditioned particles that can be floated with reliable bubble attachment are candidates for dissolved air flotation. Solids with repeatable settling characteristics support gravity sedimentation or a lamella clarifier, particularly where the plant values fewer process steps or conventional sludge withdrawal.
HydropureWater’s catalog range of 4–300 m³/h across 13 DAF models is an initial equipment screen, not a sizing basis for a fab. The selected system must remain appropriate for the segment’s minimum, average, and peak flow, solids envelope, chemistry, and production variability.
The supplied research establishes no local Manor discharge limit or semiconductor-specific regulatory threshold. The factory must identify its verified discharge permit, pretreatment requirements, and any water-reuse specification before treating any separator as a compliance solution.
Separate the fab wastewater before comparing equipment
Segmented sampling is necessary because production chemistry, cleaning cycles, dumping practices, flow variability, and downstream reuse requirements can change the separation problem within one site. A site-wide composite can conceal the stream that controls peak loading, chemical demand, or membrane-pretreatment risk.
Build a sampling plan around each candidate stream rather than averaging production and cleaning wastewater. For every segment, establish minimum, average, and peak flow; TSS; particle-size distribution; pH; metals; FOG where relevant; and response to candidate coagulants and flocculants. Record whether the particles are settleable, fine, colloidal, floatable, or dominated by oil-bearing solids. These data also establish the required solids outcome against a pretreatment or reuse specification rather than an arbitrary TSS-removal percentage.
The chemical-conditioning response deserves separate attention. A PLC-controlled chemical dosing and coagulation system can be evaluated with the separator, but a laboratory dose alone does not establish full-scale floc stability, residual chemical levels, or downstream compatibility.
| Segmented input | What the data must establish | Procurement consequence |
|---|---|---|
| Minimum, average, and peak flow | Hydraulic envelope and production variability | Prevents a unit selected from nominal catalog capacity alone |
| TSS and particle-size distribution | Whether solids are settleable, fine, colloidal, or floatable | Identifies the dominant separation mechanism |
| pH, metals, and FOG where relevant | Soluble-contaminant context and conditioning needs | Defines whether solids separation is only one part of the treatment train |
| Chemical-conditioning response | Dose, mixing, floc stability, and residual chemistry | Separates conditioning limitations from separator limitations |
| Reuse or pretreatment specification | Required solids outcome and carryover constraint | Prevents selection against an arbitrary removal percentage |
Identify the stream that controls each design condition separately. One segment may control hydraulic loading, another peak solids loading, and another chemical demand or downstream fouling risk. Equipment selected on plant-wide averages can therefore be undersized or chemically mismatched for the stream that actually governs performance.

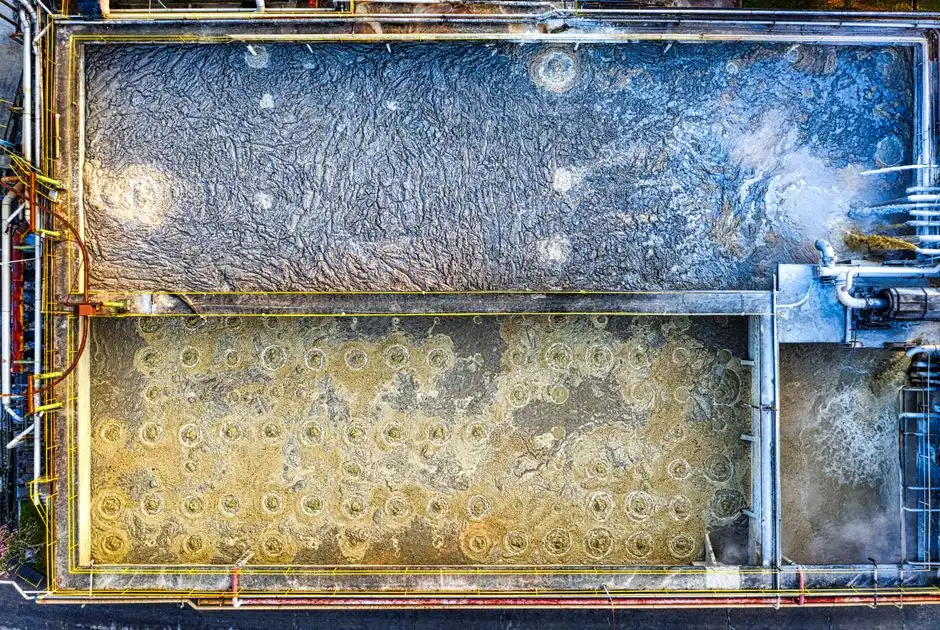

How DAF and clarifiers remove solids
Dissolved air flotation separates suspended solids by attaching microbubbles to particles, lifting them to the surface, and removing the resulting float with a skimmer. Clearwater Industries describes 30–50 micron microbubbles in its DAF systems, but that is a commercial equipment statement, not a universal design requirement.
DAF normally requires the wastewater to be evaluated with coagulation and flocculation before flotation. Conditioning enlarges particles and improves contact with the microbubbles, which then carry the floc to the surface. Heavy material may still settle in the collection zone, so float and settled solids require distinct handling provisions.
A gravity clarifier separates particles according to their settling velocity and the available separation area. A lamella clarifier adds inclined plates, increasing effective separation area within a more compact structure. Its distinction is therefore settling geometry, not a different downstream treatment objective.
Neither mechanism removes dissolved contaminants simply because suspended solids are captured. Metals may remain dissolved or occur in several chemical forms, while soluble cleaning chemicals require treatment selected for their chemistry. Bulk solids removal can protect a membrane or reclaim system, but it does not by itself establish the final water-quality result.
For a semiconductor treatment train, the engineering question is whether the actual particles float reliably after conditioning or settle reliably without excessive chemical demand. A grab sample may show which behavior appears possible; only a representative, controlled trial establishes whether it persists through production changes and cleaning cycles.
Compare DAF and a lamella clarifier for the same factory
DAF and a lamella clarifier can meet the same bulk-solids objective, but their operating requirements differ because flotation and settling respond differently to particle properties and hydraulic conditions. The comparison must include the conditioning system, solids removal, utilities, operator actions, and the next treatment step—not just separator TSS removal.
| Engineering criterion | DAF | Lamella or gravity clarifier |
|---|---|---|
| Particle behavior | Favored for floatable, conditioned, fine, colloidal, or oil-bearing solids | Favored when solids demonstrate dependable settling |
| Conditioning | Normally evaluated with coagulation and flocculation to improve particle size and bubble contact | May need less conditioning, although flocculation can improve settling where required |
| Hydraulic verification | Peak flow, available flotation area, recycle arrangement, air saturation, and loading | Peak flow, available settling area, solids inventory, and sludge withdrawal |
| Recovered solids | Surface float plus settled heavy material; float return must be prevented | Concentrated settled sludge; hopper withdrawal and sludge conditioning require verification |
| Equipment complexity | Includes recycle, air saturation, conditioning, skimming, and instrumentation | Generally fewer process steps, but plate fouling, sludge removal, and access still require attention |
| Downstream fit | Can provide bulk solids removal before membranes, subject to pilot evidence | Can protect downstream units if settling and particle carryover are controlled |
HydropureWater states that its lamella clarifier achieves surface-loading rates of 20–40 m/h and reduces chemical consumption by up to 30%. These are product specifications requiring project-specific verification, not guarantees for semiconductor wastewater. Bid comparison should request the test wastewater, conditioning chemistry, flow, solids loading, test method, and sample point behind every comparable performance claim.
Hydraulic behavior can reverse a choice based only on particle classification. A DAF trial must remain stable through peak flow, and its skimmer must remove float rather than allow it to return. A clarifier trial must demonstrate that solids inventory, plate fouling, and withdrawal do not become limiting. In both cases, measure residual conditioning chemicals and particle carryover at the outlet.
Downstream fit should determine the acceptance criteria. A separator that meets a bulk-solids target can still compromise a membrane or reuse operation through residual flocculant, pH change, dissolved contaminants, or fine-particle passage. The separator should therefore be pilot-tested together with the next reuse or pretreatment step.
Treat manufacturer performance claims as screening evidence
Manufacturer removal and flow ranges support preliminary equipment screening, but they do not establish performance in a semiconductor factory. Each claim must retain its test context, including wastewater, conditioning chemistry, flow, solids loading, test method, and sample point.
DAF Corporation reports TSS removal of 92%–98% for the FC Maximizer and 85%–90% for the RC UniMax. The same supplier lists hydraulic ranges of 10–11,000 gpm for the FC Maximizer and 10–1,000 gpm for the RC UniMax. These are supplier-reported results and equipment ranges tied to named configurations, not fab guarantees.
Clearwater Industries reports that its COMPACT DAF handles 66 GPM or less with one skid and uses a modular two-skid arrangement for larger flows. That is a supplier configuration for preliminary screening, not a universal flow-per-unit rule.
The 2026 MDPI paper, A Simplified Whole-Plant Model to Predict Biosorption in a High-Rate Biological Contactor, assumed 70% solids capture for DAF in a municipal high-rate biological contactor process. The value was a model assumption, and the municipal feedstock cannot be treated as semiconductor performance evidence.
Use published data to build a candidate shortlist. Do not use it to accept a bid without wastewater-specific testing, a defined operating envelope, and a final equipment proposal tied to the factory’s treatment train. The industrial DAF system or lamella clarifier selected from catalog data alone would still be exposed to performance and compliance risk.
Run a comparable pilot before ordering
A matched pilot is the most reliable way to distinguish conditioning effects from separator performance. Both candidates must receive the same wastewater, feed condition, representative flow range, and measurement points; otherwise, the comparison cannot support a purchase decision.
Test DAF and the lamella or gravity candidate across production campaigns and cleaning cycles. Measure TSS, particle-size distribution, pH, residual conditioning chemicals, and flow before and after separation. For DAF, record conditioning dose, mixing, floc stability, bubble-to-particle contact, float concentration, skimmer stability, and settled-solids behavior. For the clarifier, record settling performance, plate condition, sludge concentration, withdrawal behavior, and solids inventory.
| Pilot stage | Required checks | Decision supported |
|---|---|---|
| Feed characterization | TSS, particle-size distribution, pH, metals, FOG where relevant, and flow envelope | Identifies the dominant separation problem and candidate streams |
| Conditioning | Chemistry, dose, mixing, pH response, residual chemicals, and floc stability | Shows whether flotation or settling is limited by chemistry |
| Matched separation trial | Same feed, flow, TSS measurements, and particle-carryover observations | Compares DAF with lamella or gravity separation |
| Solids handling | Float or sludge concentration, recovery rate, withdrawal, and dewatering observations | Confirms that captured solids leave the unit and can be handled |
| Mass balance | Captured solids, discharged solids, and accumulated inventory reconciled | Tests whether nominal removal reflects real solids capture |
| Production verification | Representative campaigns, cleaning cycles, and flow changes | Confirms that one sample does not overstate steady performance |
| Downstream trial | Membrane flux, residual chemistry, reuse quality, or pretreatment impact | Confirms fit with the complete treatment train |
Reconcile captured solids, discharged solids, and accumulated inventory. A nominal removal percentage does not prove that solids leave the unit or that the recovered material can be dewatered. Evaluate a plate-frame filter press in parallel if the separator’s recovered solids cannot use the factory’s existing handling route.
If either trial underperforms, inspect chemical compatibility, conditioning, hydraulic upset, and solids removal before attributing failure to the separator. Track chemical consumption, available tank area, operator actions, and skimming stability through flow and production-campaign changes. A separator that performs well in steady bench testing but loses float or sludge stability during cleaning dumps is not yet proven for service.
Build a technically comparable RFQ and approval checklist
A technically comparable RFQ should define the wastewater, separation objective, and operating envelope before suppliers price equipment. Headline capacity, unqualified TSS removal, and equipment price cannot distinguish bids that solve the same factory problem.
Require every bidder to use the segmented minimum, average, and peak flow; wastewater analysis; required separation outcome; chemical-conditioning concept; and downstream treatment constraints. Do not apply a universal flow-per-unit rule. A bid is not technically compliant until the proposed system covers the factory’s actual flow, solids loading, chemistry, production variability, and next reuse or pretreatment requirement.
Ask for model-specific quotations separating the separator, coagulation and flocculation equipment, tanks, pumps, air-saturation system, instrumentation, controls, installation, and sludge handling. Request chemical-consumption and utility estimates because the supplied research supports no reliable universal DAF or clarifier price. This allows procurement to compare the operating and downstream consequences of each bid rather than ranking quotations on separator price alone.
For every performance statement, require the exact wastewater, conditioning chemistry, flow, solids loading, test method, sample point, and evidence supporting the claim. Each proposal must also identify the applicable Manor site requirements and the proposed treatment-train position. If the project includes advanced treatment or zero-liquid-discharge objectives, use the 2026 industrial zero-liquid-discharge roadmap to keep the separator within the intended architecture.
Before approval, verify that a separator is only one part of the train and has not been presented as a complete compliance solution. Current permits, influent testing, downstream constraints, and the final equipment proposal must align with the selected design.
Frequently Asked Questions
How should a DAF or clarifier for semiconductor wastewater in Manor be sized?
Use segmented minimum, average, and peak flow together with TSS, particle-size distribution, chemistry, and production variability. HydropureWater’s 4–300 m³/h catalog range is an initial screen, not final sizing. A bidder should show how its proposed configuration remains inside the tested wastewater and operating envelope during production campaigns and cleaning cycles.
Which supplier evidence should be checked before selecting a separator?
Request the exact wastewater, conditioning chemistry, flow, solids loading, test method, sample point, and downstream constraint behind every performance claim. Manufacturer removal rates and flow ranges are screening references. A pilot on the factory’s wastewater must support the final comparison between DAF and a lamella or gravity candidate.
What should a buyer request to compare DAF and clarifier cost?
Request model-specific pricing that separates the separator, coagulation and flocculation equipment, tanks, pumps, air saturation, controls, installation, utilities, chemical consumption, and sludge handling. The research supports no universal price, so compare lifecycle inputs and downstream impacts rather than using a single equipment quotation.
Can either separator guarantee compliance with a Manor discharge or reuse requirement?
No. Identify the governing permit, reuse specification, and pretreatment duty, then confirm the selected separator’s outlet against the next treatment step. DAF and clarifiers remove suspended solids; soluble cleaning chemicals and dissolved metals may require further treatment. A local discharge limit or semiconductor-specific threshold must come from the factory’s verified requirements rather than generic equipment claims.
What should be checked if the pilot fails?
Diagnose chemical compatibility, conditioning, hydraulic upset, floc stability, and solids removal before blaming the separator. Reconcile captured, discharged, and accumulated solids, then repeat the comparison under representative production and cleaning conditions. Failed mass balance or unstable float or sludge withdrawal is a system-design issue, not proof that DAF or a clarifier is inherently unsuitable.
