Separate the Wastewater Streams Before Choosing Equipment
A data center in Nay Pyi Taw should separate sanitary sewage from cooling-tower blowdown before selecting treatment. Cooling blowdown carries concentrated dissolved minerals, suspended solids, treatment chemicals and elevated temperature, so its volume must be calculated from the cooling design, local climate and make-up-water quality—not a generic rule of thumb. The project should then assess connection to a permitted sewer, treatment of sanitary sewage on site, and possible reuse of treated blowdown. On-site pretreatment may be required for pH, solids, chemicals or metals, with DAF, filtration and chemical dosing selected only after representative testing and confirmation from the relevant Myanmar authorities.
Sanitary sewage comes from restrooms, canteens and similar domestic activities. Cooling-tower blowdown is a different stream: it is the minimum discharge of recirculating water required to remove the buildup of dissolved materials as evaporation concentrates the remaining water. Other streams may include reverse-osmosis reject, softener backwash, maintenance drain-downs and air-handling condensate. Each stream needs its own flow, chemistry and destination decision; combining them at the collection point can obscure the treatment duty and complicate reuse.
Blowdown volume should come from the mechanical engineer because it depends on the cooling configuration, local climate and make-up-water quality. The designer should provide daily and peak blowdown, evaporation and make-up flow, cooling-system configuration, cycles of concentration, make-up-water analysis, chemical program, and normal operating and emergency-dump conditions. A data-center cooling blowdown treatment framework provides a useful technical reference, but the project-specific balance remains the controlling input.
The initial sample plan should characterize pH, temperature, conductivity or TDS, suspended solids, residual biocides, scale and corrosion inhibitors, and copper or zinc. Temperature and chemical content can affect sewer infrastructure and biological treatment, so a permit discussion based only on flow is incomplete. The data-center wastewater and reuse planning guide provides a comparable stream-separation approach for another project context.
| Stream | What must be established first | Likely decision to resolve |
|---|---|---|
| Sanitary sewage | Average and peak flow, fixture discharges and local receiving availability | Permitted sewer connection or on-site treatment |
| Cooling-tower blowdown | Cooling balance, make-up-water analysis, chemical program, temperature, conductivity/TDS, solids and metals | Accepted sewer discharge, dedicated treatment or controlled reuse |
| RO reject and softener backwash | Source-system operating data and separate composition | Return to the relevant treatment train or disposal route |
| Drain-downs and condensate | Generation frequency, temperature, additives and contamination risk | Segregated handling and documented disposal route |
Establish the Receiving Route and Local Approval Path
Three receiving routes should be compared: connection to a permitted sanitary sewer for accepted flows, dedicated on-site treatment for sanitary sewage or process water that cannot be sewered, and controlled reuse where the receiving application and water quality are acceptable. A sewer connection is not an entitlement. The project must obtain written acceptance of the proposed flow and pollutant profile before treating connection availability as a design basis.
The supplied research provides a United States comparison framework, not a Myanmar rule. Under that framework, a significant industrial user may be designated by an average process discharge of 25,000 gallons per day or more, a process flow equal to 5% or more of the treatment plant’s dry-weather capacity, or potential harm to the plant (Black Forged Data Centers, 2026). Those thresholds must not be imported into Nay Pyi Taw. The source also does not provide a verified Nay Pyi Taw data-center sewer permit, industrial-user rule, local effluent limit or surface-water discharge condition.
The confirming parties are the municipal or industrial sewer operator, the relevant Myanmar environmental and water authorities, and the project environmental engineer. Ask the sewer operator to confirm accepted parameters, sampling requirements, pretreatment obligations, charges, connection conditions and who will own the discharge line. The environmental consultant should establish the applicable Myanmar approval path and obtain written terms for any proposed discharge or reuse.
Capacity must be checked below the site connection: receiving sewer, lift station and treatment plant should all accept average and peak blowdown. Heat-wave and peak-load discharge events need separate review. A comparison of industrial pretreatment permit requirements can help structure that review, while the Myanmar authority—not the cited US framework—sets the enforceable requirements.
United States examples demonstrate the project conditions that can arise, not local precedent. In Goodyear, Arizona, a development agreement approved in March 2023 included developer funding for a treatment-plant expansion, a dedicated discharge line and capacity commitments (Black Forged Data Centers, 2026). A Shreveport draft agreement would require the developer to build needed sewer improvements and set charges using metered water use. These examples show why agreements, dedicated lines, metering and peak-capacity commitments belong in the commercial schedule.
| Route | Evidence needed before selection | Principal risk if skipped |
|---|---|---|
| Sanitary sewer | Written acceptance of flow, pollutants, temperature, sampling and pretreatment; confirmation of sewer, lift-station and plant capacity | Redesign, rejected connection or upgrade obligations |
| On-site treatment | Confirmed flow and chemistry, treatment objectives, effluent destination, land, utilities and Myanmar approval pathway | Oversized or unsuitable equipment and an unapprovable discharge route |
| Controlled reuse | Recipient water-quality specification, seasonal demand, storage and distribution, chemistry and chemical-compatibility review | Water-quality failure and treatment guarantees that cannot be demonstrated |

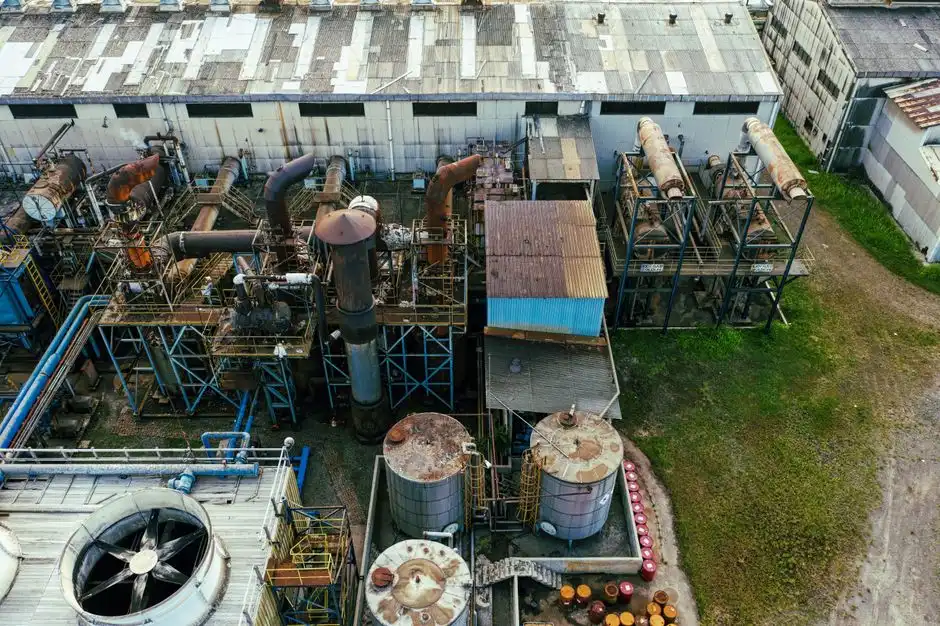

Characterize Blowdown Chemistry and Set Treatment Goals
Cooling blowdown requires a contaminant-specific design because physical separation does not remove the dissolved salt load. The supplied engineering source identifies elevated TDS, chlorides, sulfates, phosphates, extreme pH, elevated temperature, biocides and copper or zinc as potential concerns (RSP Engineers, undated). The project must characterize the actual cooling-water chemical package rather than assume the chemistry of a generic tower.
Sampling should cover make-up water, circulating water and discharge blowdown during normal operation and peak load. Required analyses include conductivity or TDS, pH, temperature, suspended solids, hardness, chloride, sulfate, phosphate, residual biocide and relevant metals. Sampling points should be accessible and representative of combined and segregated streams. The acquisition-focused wastewater requirements guide reinforces the need to define changing site conditions before accepting inherited treatment assumptions.
Set treatment goals by destination. Sewer acceptance requires the receiving authority’s confirmed profile and limits. Washdown or dust-control reuse needs a lower-grade specification, but it still requires a controlled application and water-quality basis. Cooling-makeup reuse is more demanding because membrane scaling, chemical compatibility, biocide interactions and residual treatment requirements must be assessed.
Cycles of concentration do not prove equipment performance. At 4 CoC, the theoretical blowdown ratio is 25% of make-up; at 6 CoC, it is 20%. That is a 5-percentage-point, or 20%, reduction in theoretical blowdown—not a 50% improvement (Genesis Water Technologies, undated). Actual blowdown can exceed theory by 15–30% because of unmeasured losses and emergency dumps (Genesis Water Technologies, undated). Equipment sizing should therefore use confirmed average and peak flows rather than the theoretical ratio alone.
Physical separation followed by targeted treatment can reduce make-up demand by 15–25% where suitable reuse applications exist, according to Genesis Water Technologies, undated. Treat that as a generic commercial claim, not a Nay Pyi Taw performance guarantee, and require the supplier to define the flow, application and operating conditions supporting its offer.
| Decision point | Input to establish | Procurement consequence |
|---|---|---|
| Suspended solids and colloids | Representative TSS, turbidity and floatable-material data | Determine whether clarification, filtration or polishing is required |
| Dissolved salts | TDS/conductivity, hardness, chloride, sulfate and phosphate | Determine whether physical treatment is sufficient or desalination is needed |
| Chemical compatibility | Biocide, scale/corrosion inhibitor and metal data | Define materials, controls and receiving-route constraints |
| Reuse | Recipient specification and seasonal demand | Set measurable effluent guarantees and storage requirements |
Build the Treatment Train from Contaminants and Reuse Goals
A defensible treatment train starts with equalization and flow measurement, followed by physical separation, pH or chemical adjustment where required, targeted polishing, optional disinfection, and storage or reuse distribution. This sequence should be adapted only after the receiving route, stream chemistry and reuse specification are fixed.
DAF is the primary physical-separation option when suspended solids, oil, grease or colloidal material must be removed. A DAF system for cooling-blowdown solids separation can screen coagulated or flocculated material, but it does not solve concentrated dissolved salts. If the project needs substantial dissolved-solids reduction, evaluate RO or another appropriate desalination process after pretreatment, then address concentrate management or recovery.
UF is a downstream polishing or reuse option for suitable low-turbidity, low-colloid duties. An ultrafiltration system for targeted polishing is not a substitute for assessment of high-TDS, chemically conditioned blowdown. Membrane compatibility, feed chemistry, backwash waste and concentrate or reject handling must be reviewed before selection.
Use automatic chemical dosing for measured pH adjustment, coagulation or flocculation, and other specialty additions. The automatic chemical dosing for pH and coagulation control must be selected around the complete cooling-water chemical program. Acid and caustic selection, storage, containment, duty-standby strategy and dosing control should be engineered rather than reduced to equipment size alone.
Temperature can determine whether a holding or cooling step is required. Any maximum temperature must come from the relevant authority; the illustrative 150°F value in RSP Engineers, undated, is not a Nay Pyi Taw limit. A sanitary-sewage route also requires a different process basis from process-water DAF or UF. Compare a wastewater treatment package with MBR where the sanitary flow must be handled on site; do not use process-water equipment selection as the sanitary basis.
Design monitoring from the start: flow, pH, conductivity or TDS, temperature, level, and differential pressure or turbidity as appropriate. Provide sampling points, laboratory access, alarms, bypass prevention and operating records. These requirements determine whether a skid is merely a treatment unit or an operable plant with a defensible compliance history.

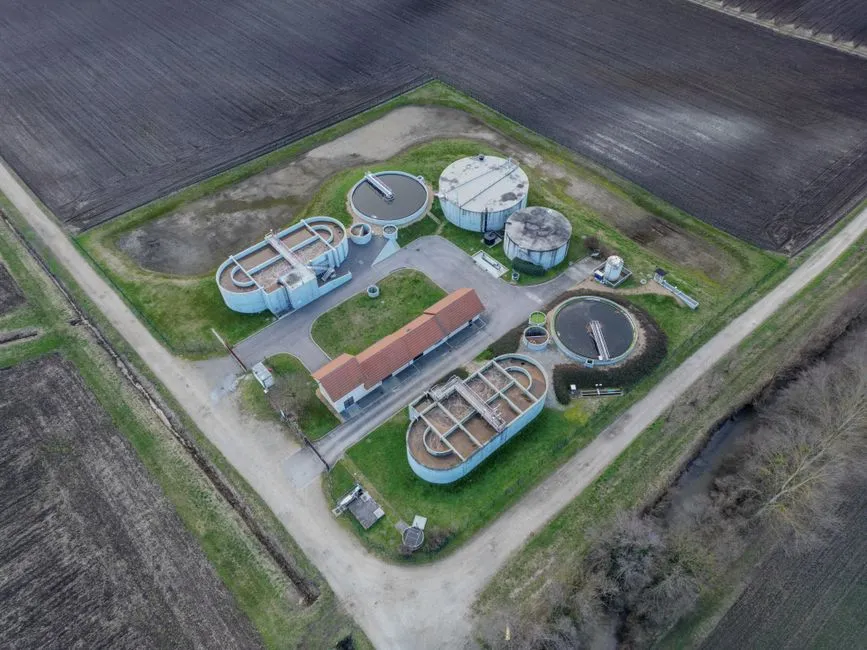

Match HydropureWater Equipment to the Actual Treatment Tasks
Equipment selection should follow confirmed tasks, not a pre-selected “complete plant.” The DAF system’s catalog range is 4–300 m³/h across 13 standard models, so final selection requires confirmed average and peak flow plus the required solids-removal objective. The UF system’s stated duty is 0.03 micron PVDF membrane filtration at 2,000–40,000 L/h; it accepts up to 300 ppm turbidity and uses automatic backwash and air scour. Those specifications do not establish suitability for high-TDS cooling blowdown, which requires a feed-chemistry and compatibility review.
Automatic chemical dosing should be specified only after the contaminants, receiving requirements and control philosophy are defined. Require PLC control, containment, safe chemical storage, alarms, and duty-standby considerations where continuity matters.
For sanitary sewage outside a municipal sewer, compare the WSZ package plant, rated at 1–80 m³/h, with the MBR range of 10–2,000 m³/day and near-reuse-quality effluent below 1 μm. Review the underground integrated sewage treatment package and integrated MBR treatment route against the confirmed sanitary flow, footprint, effluent destination and operating capability. Neither product route replaces a receiving-authority review.
The procurement sequence is explicit: freeze flows and chemistry; obtain written receiving requirements; issue a performance-based specification; complete pilot or bench testing where chemistry is uncertain; then select equipment and guarantees. A supplier should define its basis of design rather than ask the project to infer treatment limits from a catalog capacity.
| Equipment task | Selection basis | Required commercial evidence |
|---|---|---|
| DAF solids separation | Average and peak flow, solids/colloid load, floatables and required removal | Guaranteed flow and effluent solids duty, footprint, utilities and control philosophy |
| UF polishing | Turbidity, colloids, bacteria duty, feed chemistry and membrane compatibility | Feed limits, recovery, cleaning, backwash and reject arrangements |
| Automatic dosing | Chemical program, pH or coagulation duty, storage and operating staffing | Capacity range, controls, alarms, containment and chemical-consumption basis |
| Sanitary package or MBR | Sanitary flow, effluent destination, footprint, odor control and reuse objectives | Process basis, effluent guarantee, commissioning tests, media and maintenance scope |
Plan Permitting, Commissioning and Long-Term Operations
Wastewater treatment becomes a project responsibility when the mechanical engineer, civil engineer, environmental consultant, treatment supplier, sewer operator and environmental authority have assigned deliverables. RSP Engineers, undated, stresses early utility coordination because late discovery of restrictive discharge limits can force redesign. The project environmental engineer should maintain the decision log, and no route should be called permitted until the responsible authority confirms it in writing.
Reserve land early for tanks, pumps, chemical storage, containment, drainage, access, sample points and reuse distribution. A simple pH-neutralization skid may occupy a few hundred square feet, while filtration and chemical precipitation may require several thousand square feet; these are illustrative planning ranges from RSP Engineers, undated, not a Nay Pyi Taw design. The civil engineer should size the area from the selected equipment and site utilities after flows and chemistry are fixed.
Commissioning should cover equipment installation, flushing and media conditioning, instrument calibration, representative wastewater testing, steady-state performance, alarm tests, redundancy checks and operator training. The acceptance test should use the same water quality and flow basis promised in the purchase specification. Define how chemical delivery, waste float or sludge, membrane cleaning, sampling and laboratory analysis are handled during startup.
Long-term operating controls must assign responsibility for pumps, blowdown, chemical inventory, preventive maintenance, alarms, sampling frequency, laboratory results and permit records. Include bypass alarms, safe drain-down procedures and contingency storage. A recycled-water planning reference illustrates the broader importance of aligning reuse with local resource and approval conditions, but it is not evidence of a Nay Pyi Taw requirement.
Set a revision trigger: if the cooling system, make-up source, chemical program, projected flow, reuse application or receiving route changes, revisit the treatment train, guarantees and approval application before modifying the plant. This avoids treating a preliminary flow estimate as a permanent design basis.
Frequently Asked Questions
What treatment does a Nay Pyi Taw data center need for cooling blowdown?
It needs a site-specific train based on measured blowdown flow, cooling-water chemistry and the receiving route. A defensible concept commonly begins with equalization and solids separation, then adds pH or chemical adjustment, targeted polishing and disinfection only where the destination requires them. No technology should be guaranteed before representative testing and written confirmation of the Myanmar approval pathway.
Is a DAF or UF system the right first purchase for cooling blowdown?
DAF is primarily suited to suspended solids, floatables and colloidal removal; UF is a finer polishing option for suitable low-turbidity, low-colloid duties. Neither automatically provides substantial dissolved-solids reduction. Select the first unit by the contaminant, destination, confirmed peak flow and available operating capability—not by treating the two technologies as interchangeable.
How much does the wastewater treatment system cost?
No defensible price can be stated before average and peak flows, chemistry, receiving requirements, treatment objectives, utilities and land are confirmed. Request a basis of design and lifecycle-cost comparison covering equipment, tanks, chemical storage, controls, membranes or media, power, consumables, residuals, commissioning and compliance monitoring. Compare quotations on the same duty and guarantee basis, not on skid price alone.
What should a supplier provide to reduce compliance risk?
Require a guaranteed flow and duty basis, P&ID, materials of construction, control narrative, alarms, instrument list, chemical and residual-handling plan, utility requirements, FAT and SAT protocols, commissioning tests, warranty terms, spare parts and local service support. These deliverables should be tied to the receiving route and written treatment objectives; the data-center cooling-blowdown treatment reference for Yaoundé provides a useful comparison for the same kind of project decision.
Can treated blowdown return to the cooling tower?
Only after site-specific assessment of dissolved solids, hardness, biocide compatibility, microbial control and the selected cooling process. Lower-grade reuse such as washdown or dust control may be the more practical first phase, provided the receiving application and water-quality specification are confirmed. Cooling-makeup reuse should not be promised from conductivity removal or a generic treatment claim alone.
