How Mining/Metals Plants Near Shelbyville Meet 2026 Pretreatment Limits

The Regulatory Stack Shelbyville Plants Must Navigate

Sewer discharge from a mining or metals plant in the Shelbyville area is regulated under the Clean Water Act §307(b) pretreatment program at 40 CFR Part 403, with categorical ceilings layered in by sector. The relevant categorical rules are 40 CFR Part 437 (Ore Mining and Dressing, NAICS 2122) for hard-rock and metal-ore operations, 40 CFR Part 436 (Mineral Mining and Processing), which EPA promulgated in 1975 and which carries 15 named subparts covering dimension stone, kaolin, ball clay, feldspar, talc, garnet, and other industrial minerals, and 40 CFR Part 433 (Metal Finishing) where plating, pickling, or anodizing lines exist.

Direct discharge to surface water is a separate pathway under CWA §402 and an NPDES permit, and most plants carry both authorizations because they have separate stormwater outfalls and a sewer manhole. The local POTW's sewer-use ordinance, not the federal floor, is the binding number, and a single excursion is a CWA §309 civil penalty of up to $25,000 per day per violation, as the parallel 2026 pretreatment playbook for Halo-area plants frames it. For an adjacent non-metallics read, the food and beverage pretreatment playbook for a Williamson-area plant shows the same hierarchy applied to a different effluent profile.

Three 2026 Drivers Rewriting the Floor for Shelbyville Discharges

Three near-term regulatory shifts are moving the compliance floor under a 2024 design, and each one changes what a Shelbyville-area plant must specify in the next permit cycle. First, the Lead and Copper Rule Revisions (LCRR) are pushing the lead action level toward 10 µg/L, and POTWs are re-deriving local limits at much lower numbers; a plant designed to today's 0.3 mg/L lead ceiling should expect lead to become the binding constraint within two permit cycles, which means hydroxide precipitation alone is no longer a defensible endpoint for a strict POTW. Second, EPA's 2024 Multi-Sector General Permit (finalized 2024-09) added PFAS monitoring requirements for PFOS, PFOA, PFHxS, and PFNA across sectors that include metal mining, and local control authorities are adopting the same analytical suite even for sewer discharges; if the POTW's annual self-monitoring report now carries a PFAS panel, GAC or ion-exchange polishing needs to be in the design envelope even if today's permit does not require it. Third, the 2025 ore-mining BAT revisions (2025-03) tightened the cost-benefit envelope on total recoverable metals, so plants that relied on hydroxide precipitation to 0.5–2.0 mg/L residuals are now installing sulfide polishing or ion exchange where hydroxide used to be enough. Treat all three as the next permit-cycle risk when you specify, not as background reading, and confirm against the specific POTW ordinance before any equipment is sized.

The Influent Envelope That Sizes the Train

Raw acid mine drainage and spent process solutions typically arrive at the headworks at pH 2–4 with total suspended solids in the hundreds to several thousand mg/L, dissolved heavy metals (Pb, Cu, Zn, Cd, Ni, As), and elevated sulfate and TDS in leach-pad runoff and brine streams. The dissolved heavy metals define the categorical applicability under 40 CFR Part 437 and the local POTW limit, and they come from a specific source: the reaction of water and oxygen with sulfide minerals such as pyrite and pyrrhotite, which is the standard definition of acid rock drainage. ARD is not event-driven; it is persistent, which is why the equalization basin, not the clarifier, is the unit operation that decides whether a spike becomes a violation. Elevated sulfate and TDS push the reagent choice toward NaOH rather than lime in high-TDS service, because lime generates 3–5× more sludge at the same neutralization duty and that sludge has to be dewatered, hauled, and disposed of. For legacy sites where historic gold processing may have left mercury and cyanide in commingled streams, a full analytical panel (TSS, pH, total and dissolved metals, sulfate, TDS, cyanide where applicable) should precede any equipment selection.

Defensible Unit-Operation Train in the Order Water Sees It

A defensible train for a small-to-mid Shelbyville-area plant follows the order water sees it, with each step sized to remove a defined fraction of the load so the next step performs within its design envelope.

1. Spec the equalization basin at 8–24 hours of average daily flow to dampen batch discharges from shift changes, dump-leach cycles, and mill clean-outs — a 4-hour basin passes every upstream spike straight into the clarifier.
2. Install a rotary mechanical bar screen ahead of the equalization basin to keep rags and debris out of downstream pumps and valves.
3. Use an automatic chemical dosing skid with a single PLC for pH and coagulant as the smallest unit operation that pays for itself the first time the operator is not standing next to it at 2 a.m.
4. After dosing, a DAF system or lamella clarifier handles the metal-hydroxide solids. Standard DAF units cover 4–300 m³/h across 13 models with hydraulic loading of 5–25 m/h; lamella is preferred for metal-hydroxide sludge while multi-DAF is preferred for oily streams.
5. For residuals below 0.3 mg/L, add sulfide precipitation (NaHS, FeS) on a slipstream — sulfide achieves 0.01–0.05 mg/L versus 0.5–2.0 mg/L for hydroxide, with reagent cost 2–4× higher and a sealed reactor with H₂S scrubbing required.

Design for the peak 2-hour flow with 20–30% turndown capacity, and treat to the local POTW's sewer-use ordinance — not just the federal categorical standard, because the local numbers are tighter and the penalty structure (civil penalties up to $25,000/day per violation under CWA §309) is enforced directly by the local control authority.

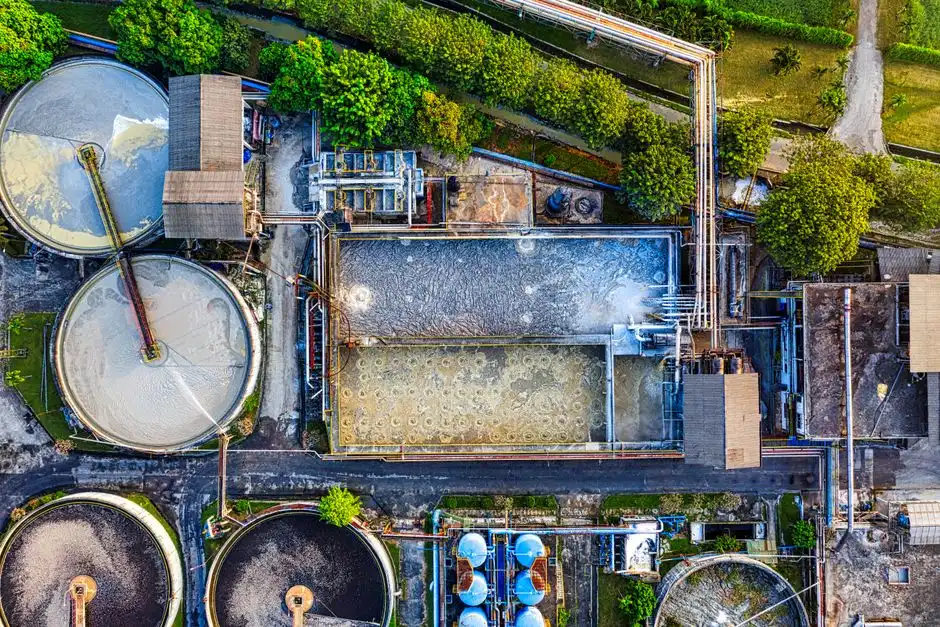

Why the Equalization Basin Pays for Itself First

The equalization basin is the most undersized piece of equipment in most mining/metals pretreatment plants, and the most expensive to retrofit. The single number that justifies the investment is the monthly average, not the daily max. Set-up: 100 m³/h average flow, one 2-hour mill clean-out spike of 250 m³/h carrying 1,200 mg/L TSS and 8 mg/L zinc.

Translate the difference into CWA §309 risk: a single monthly-average excursion is a violation; a sustained excursion is a pattern of violations enforced directly by the local control authority. The marginal cost of a 24-hour basin over a 4-hour basin is small compared to a $25,000/day civil penalty, and the basin is the only unit operation in the train that can be installed once and never replaced.

Sizing, Sludge Handling, and Reuse Economics

A plate and frame filter press is the standard dewatering step for mining metal-hydroxide sludge, producing 25–35% dry solids cake that can be hauled to a subtitle-D landfill or, in the case of recoverable metals, returned to a smelter. Filtration areas range from 5 m² for small packaged units to over 100 m² for full-scale presses; filtrate returns to the head of the plant to keep the recycle loop closed. SME's technical position supports maximizing water recycling to reduce both freshwater demand and discharge volume, which is the same conclusion reached in the MBR vs conventional activated sludge for a Somerville-area mining plant evaluation: on-site reuse lowers permit risk, but the residual blowdown must still meet local POTW limits before it reaches the sewer manhole. Always confirm three things on the permit before equipment is ordered: local limits for each metal on the analytical panel, maximum daily and instantaneous loading rates, and any slug-control or flow-equalization requirements the POTW has added to the discharge authorization.

Frequently Asked Questions

Is the sewer-discharge pretreatment program the same as the NPDES surface-water permit?

No. NPDES permits govern direct discharge to surface water under Clean Water Act §402. Sewer discharge to a POTW is regulated under CWA §307(b) and 40 CFR Part 403, with categorical standards in 40 CFR Part 437 (Ore Mining and Dressing) and 40 CFR Part 433 (Metal Finishing) where applicable. Most plants carry both authorizations because they have separate stormwater outfalls and a sewer manhole, and the local POTW enforces the sewer-side limits directly.

What is the typical 2026 local limit versus the federal categorical ceiling for zinc, copper, and lead?

Local sewer-use ordinances in 2026 typically set zinc at 0.3–1.0 mg/L monthly average and copper at 0.3–0.5 mg/L monthly average, tighter than the 40 CFR Part 437 categorical standard of 1.0 mg/L daily max / 0.5 mg/L monthly average. Lead is being driven downward by LCRR to roughly 10 µg/L as the action level, which is one to two orders of magnitude below the Part 437 floor. Always confirm against the specific POTW ordinance before sizing equipment, and request the current local-limit derivation from the control authority as a written input to any sizing calculation.

What flow range and hydraulic loading should we spec for a DAF or lamella clarifier?

Standard DAF system units cover 4–300 m³/h across 13 models, with hydraulic loading of 5–25 m/h. Below 10 m³/h, packaged skid systems are common; 50 m³/h typically lands in the mid-range factory-built modular band with a single DAF train. Above 100 m³/h, multiple DAF trains in parallel or a lamella clarifier becomes more economical, especially when the stream is a metal-hydroxide sludge rather than an oily emulsion. A full discussion of the trade-off is in the DAF vs clarifier decision for a Sumner-area mining plant factory guide.

What supplier and lead-time inputs should we request before issuing a purchase order for a filter press and clarifier train?

Request three written inputs from any shortlisted supplier: a confirmed filtration area (m²) and cake dry-solids spec matched to your sludge volume and haul-off route, a guaranteed hydraulic loading curve for the proposed DAF or lamella at your design TSS and temperature, and a documented lead time for the filter press and clarifier with shipping terms. Filter-press lead times vary widely with plate count, frame size, and whether the unit is factory-built modular or field-assembled, so request the supplier's current production schedule in writing before locking the PO. Confirm that the proposed plate and frame filter press is rated for the metal-hydroxide cake characteristics and that the press manufacturer can size against your daily sludge volume, not just your peak.
