Data Center Wastewater & Cooling Blowdown Treatment in Izmir, Turkey (2026 Guide)

Why Izmir's Aegean Grid Changes the 2026 Design Baseline

Izmir sits on the Aegean coast between the Gediz and Küçük Menderes basins, two catchments already classified as water-stressed under Turkish basin-management plans, and the 2026 hydrology picture forces the wastewater train into the front of the bid, not the back. KETOS (2025) reports that 75–90% of data centers worldwide still depend on water-based cooling, so any hydrology constraint on the local utility becomes a permit-defining input rather than background context. The blowdown from those towers is the stream regulators, the basin authority, and the municipality will all have a view on.

İZSU's 2025–2026 industrial tariff has moved toward a multi-tiered structure that penalizes high-volume users, the same direction ISKI has taken on the Marmara side (S3). For a hyperscale campus drawing millions of liters per day, the marginal block on that tariff is the line item that decides whether reuse or discharge wins the BOM comparison. The Gediz–Küçük Menderes basins also carry peak summer tourism demand on the same water that peak cooling season uses, which raises the social-license cost of any unpermitted or under-treated discharge.

Compliance anchors are well defined. SKKY (Su Kirliliği Kontrolü Yönetmeliği) Table 16 sets the discharge envelope, İZSU's pretreatment and connection rules govern the sewer interface, and the EWC 11 01 09* family codes the cooling-blowdown waste stream for shipment, hauling, or on-site handling. The Istanbul data center blowdown guide covers the same regulatory architecture on the Marmara side and is useful for the equalization→DAF→MMF→UF→RO train layout, but Izmir needs its own hydrology, regulator (İZSU, not ISKI), and grid-stress evidence to be defensible on a 2026 bid.

Sizing the 2026 Izmir Blowdown Stream

At a WUE of 1.8 L/kWh and PUE 1.2, a 20 MW Izmir site needs roughly 720,000 L/day of makeup water, while a 100 MW AI-ready campus needs about 3,600,000 L/day (Ecologix, 2025). The engineer must add ~0.02% of circulation as drift loss to the makeup figure (Ecologix, 2025) and oversize equalization by 20–30% to cover the next rack-density generation (S3). The blowdown stream is the fraction that does not evaporate, and it is what the İZSU permit will meter.

Blowdown volume follows the relationship B = E / (CoC − 1), where E is evaporative loss. At CoC 4, blowdown equals about 25–30% of makeup; at CoC 6 it drops to roughly 20% (Genesis Water Tech, 2025). At CoC 5–6, a 20 MW Izmir site produces around 180,000–220,000 L/day of blowdown, and a 100 MW AI campus produces about 900,000–1,100,000 L/day (S3; Ecologix, 2025).

The table below summarizes the sizing envelope an engineer can carry into a 2026 İzSU permit submission. Hyperscale AI sites are reported in the 1.14–1.70 million L/day range (Ecologix, 2025), with some 100 MW sites consuming up to 2,000,000 L/day of total water (IDE Tech, 2025). The values for a 100 MW site below reflect the Izmir-specific blowdown range supported by the research.

Expected Izmir Blowdown Influent Profile

With Aegean municipal supply at roughly 250–500 ppm TDS and a cooling tower at CoC 5–6, an Izmir site produces blowdown in the 1,500–3,000 ppm TDS window, consistent with the 1,200–6,000 mg/L envelope cited for blowdown generally (Genesis Water Tech, 2025; S3). This is the design point for membrane selection and antiscalant dosing, and it already exceeds typical municipal sewer TDS limits without treatment.

Other expected parameters for the influent specification: pH 7.5–9.0, silica 20–80 mg/L as SiO₂, and temperature 30–40°C (S3). Three species cap conventional RO recovery — silica, calcium carbonate, and calcium sulfate — the same scale-formers that limit brackish RO to 75–80% recovery before flux decays and cleaning frequency spikes (IDE Tech, 2025).

The stream will also carry residual biocides, phosphonates, and trace Cu/Zn from corrosion-inhibitor breakdown, plus suspended solids in the 10–50 mg/L range from corrosion products, biofilm fragments, and airborne particulates (Genesis Water Tech, 2025; S3). These species drive DAF chemistry, antiscalant selection, and the case for placing UF between media filtration and RO. The UF vs DAF pretreatment comparison walks through how these influent characteristics translate into equipment selection.

The Defensible 2026 Process Train for an Izmir Site

The defensible 2026 process train for an Izmir blowdown stream is equalization → DAF or lamella clarification → multi-media filtration → UF → RO, with reject branched either to a brine concentrator plus crystallizer (ZLD) or to controlled discharge under an İZSU permit. The same sequence is documented for the Marmara side in the Ibadan data center blowdown guide and the Istanbul reference, and it transfers to İzmir because the influent envelope and the SKKY Table 16 limits are aligned.

1. Equalization basin at 24–48 h HRT buffers TDS, pH, and temperature swings so downstream equipment sees a stable feed. Mix with slow-speed paddles and avoid aeration to prevent CO₂ stripping that would shift calcium carbonate equilibrium (S3).
2. DAF or lamella clarification removes suspended solids, oils, and flocked metal hydroxides before they load the filters. DAF clarification units in the 4–300 m³/h range handle variable solids well; lamella plates at 20–40 m³/m²·h are an alternative when footprint is tight (S3).
3. Multi-media filtration with anthracite/sand/garnet polishes to SDI <5 ahead of UF. The multi-media filters protect membrane life by stripping the particulates DAF misses.
4. UF as RO pretreatment with 0.03 µm PVDF membranes rated to ~300 NTU feed, delivering consistent SDI <3. UF pretreatment skids typically operate in the 2,000–40,000 L/h range per skid (S3).
5. RO at 75–80% recovery as the conservative default. Pushing past 90% needs a controlled-salt-precipitation step upstream of the RO plus dynamic RO cycling (IDE Tech, 2025). industrial RO units sized for blowdown reuse should be specified with antiscalant injection, periodic clean-in-place, and concentrate-side pressure exchangers where parasitic load matters.
6. Reject management: RO concentrate either feeds a brine concentrator plus crystallizer (ZLD) or is discharged under an İZSU permit when salinity, temperature ΔT, and metals stay inside SKKY Table 16.

Across all wet stages, a PLC-controlled chemical dosing skid handles pH correction, antiscalant, and biocide feed to keep recovery and flux on target. The table below captures the sizing envelope at each stage:

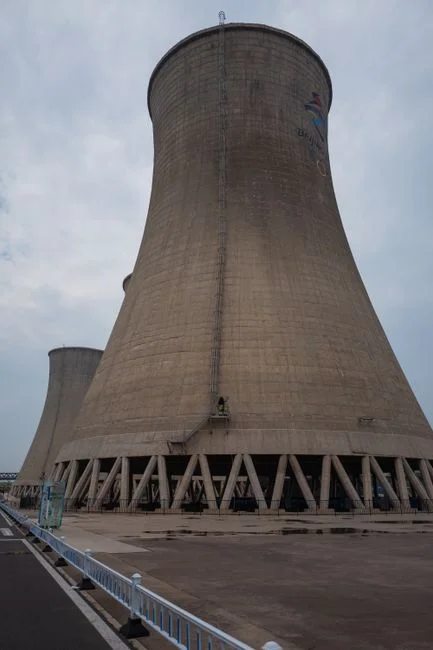

Reuse-to-Tower vs ZLD: The 2026 Fork

Cooling-tower makeup reuse is the 2026 default for most Izmir builds. It achieves 60–85% recovery, sits at a lower CAPEX than ZLD, and avoids the parasitic load of thermal concentration (Genesis Water Tech, 2025; S3). ZLD combines RO (70–80% recovery) with MVC or a brine concentrator (95–98% of the concentrate) and a crystallizer, reaching 95–99% overall recovery (Genesis Water Tech, 2025). ZLD CAPEX typically runs $3–8 million with OPEX of $5–15 per 1,000 gallons treated; MVC distillate comes off at TDS <10 mg/L (Genesis Water Tech, 2025).

The decision triggers for ZLD are narrow: an İZSU sewer moratorium, a sub-basin that is explicitly ZLD-classified, or a corporate water-positive mandate that makes any liquid discharge unacceptable (S3). For most 2026 Izmir builds, those conditions are not met, and the reuse-to-tower path wins on simple payback. Genesis Water Tech (2025) published a worked 15 MW water-stressed example: 60% blowdown recovery, $200,000 CAPEX, 6.7-year simple payback on water alone, compressing to 3–5 years once avoided discharge fees and energy recovery are credited. The same logic should overlay İZSU's industrial tariff and CSRD-style disclosure pressure that any site serving EU tenants will face.

Sizing and Footprint: 20 MW vs 100 MW Izmir Builds

A 20 MW Izmir site at CoC 5–6 fits a single skid-mounted train — one DAF, one multi-media filter, one UF, and one RO — in a single equipment room with the PLC-controlled chemical dosing skid alongside (S3). At ~180,000–220,000 L/day of blowdown, this is the right starting point for a 48-hour BOM and a defensible İZSU permit submission.

A 100 MW AI-ready campus at PUE 1.2 needs parallel trains, dedicated equalization sized for 48 h, and serious reject handling. Hyperscale AI sites are reported in the 1.14–1.70 million L/day range (Ecologix, 2025), with some 100 MW sites consuming up to 2,000,000 L/day (IDE Tech, 2025). AI-dense racks now exceed 50 kW per rack and push PUE and WUE upward, so oversizing equalization by 20–30% is cheap insurance for the next rack generation (S3). Under İZSU tariff and CSRD-style disclosure pressure, Izmir projects should expect a 3–5 year simple payback on water reuse once avoided discharge fees and energy recovery are credited (Genesis Water Tech, 2025; S3). The Rawalpindi data center blowdown guide walks through the same equipment-room layout logic for a comparable dry-climate build.

Frequently Asked Questions

What does a 20 MW Izmir data center spend on a cooling-blowdown reuse train in 2026?

Genesis Water Tech (2025) published a worked 15 MW / water-stressed example: 60% blowdown recovery, $200,000 CAPEX, 6.7-year simple payback on water alone, compressing to 3–5 years once avoided discharge fees and energy recovery are credited. For a 20 MW Izmir site, scale the CAPEX roughly with the blowdown volume and request a sized quotation from the equipment vendor — do not assume a linear multiple on the 15 MW figure without vendor confirmation.

What size UF and RO skid does a 20 MW Izmir blowdown stream need?

A 20 MW site at CoC 5–6 produces about 180,000–220,000 L/day of blowdown (S3; Ecologix, 2025). UF skids are documented in the 2,000–40,000 L/h range per skid (S3), so the UF and RO each fit a single skid with the chemical dosing skid alongside. Confirm the final skid count, recovery target, and antiscalant program with the vendor against your site's actual blowdown TDS, silica, and temperature profile.

When is ZLD mandatory for an Izmir data center, and when is reuse enough?

Trigger ZLD only when İZSU imposes a sewer moratorium, the sub-basin is explicitly ZLD-classified, or the operator carries a corporate water-positive mandate (S3). For most 2026 Izmir builds, cooling-tower makeup reuse at 70–80% RO recovery is the lower-CAPEX, lower-parasitic-load default. ZLD CAPEX typically runs $3–8 million with OPEX of $5–15 per 1,000 gallons treated (Genesis Water Tech, 2025), which only pencils out under the conditions above.

What documentation does İZSU require for a 2026 blowdown discharge permit?

An İZSU submission typically references SKKY Table 16 for the discharge envelope, the EWC 11 01 09* family for the waste code, and İZSU's pretreatment and connection rules for the sewer interface. Ecologix (2025) defines three conditions that make on-site treatment mandatory: effluent exceeds municipal limits, the site is in a water-scarce area committing to ZLD or ≥70% recovery, and the local WWTP cannot accept the daily volume. Confirm the latest document list and any 2025–2026 tariff changes with İZSU before finalizing the bid.
