DAF or Clarifier for Chemicals Wastewater in Kiowa, US: 2026 Factory Guide

What Makes Chemical Plant Wastewater Different from Food or Mining Streams

Chemical plant effluent routinely swings from pH 2 to pH 12 within a single shift, carries total dissolved solids above 10,000 mg/L, and delivers emulsified organics, solvents, and catalyst fines that neither food nor mining benchmarks capture. Most published DAF-vs-clarifier comparisons lean on a food case at 95% FOG removal and a mining case at 90% TSS reduction; both are useful upper-bound references, but neither describes what a Kiowa organic chemicals or surfactants plant actually discharges (per Ecologix DAF vs. Clarifier selection guide).

Three 40 CFR Part 414 subcategories dominate the Kiowa permitting picture:

• 40 CFR 414.40 — Organic Chemicals. Effluent limits typically run BOD5 150–300 mg/L daily maximum and TSS 100–300 mg/L; resin fines and reaction byproducts dominate the suspended fraction.
• 40 CFR 414.60 — Plastics, Resins, and Synthetic Fibers. Limits target suspended oligomers, latex residues, and wash-water solids; low-density particles resist gravity settling.
• 40 CFR 414.70 — Surfactants. Limits are set on MBAS (methylene blue active substances) or LAS, both of which respond to coagulant-conditioned air flotation far better than to plain sedimentation.

Streams in this region also carry legacy concerns from the Rocky Mountain Arsenal-era chemical manufacturing footprint, which the Colorado Discharge Permit System now layers onto federal limits. Any 2026 CAPEX decision that ignores 40 CFR Part 414 subcategory effluent limits will fail regulatory review before it clears the first permit renewal.

How DAF and Clarifiers Actually Separate Contaminants

DAF generates 10–100 µm microbubbles by pressurizing recycle flow at 4–6 bar in a saturator, then flashing it to atmospheric pressure inside the flotation cell; the bubbles attach to hydrophobic particles or to chemically conditioned flocs and lift them at 5–15 m/h to a surface blanket that is skimmed off (per Cleantechnology Post DAF technology reference, 2026-08). The air-to-solids ratio is the single most important design variable: at 0.005–0.06 mL air per mg of solids, insufficient air starves the attachment step while excess air disrupts the sludge blanket. Hydraulic loading runs 5–30 m³/m²·h in standard cells, and up to 40 m³/m²·h in lamella-packed high-rate designs — roughly 50–80% smaller than a comparably rated gravity clarifier.

Clarifiers rely on Stokes-law settling; a lamella clarifier multiplies the effective settling area with inclined plates spaced 50–80 mm apart, reaching surface loadings of 20–40 m/h on dense inorganic solids. Chemical conditioning is optional for raw settleables but is often required when influent carries colloidal or emulsified fractions. The clearest OPEX contrast is sludge density: DAF underflow runs 2–6% total solids, while clarifier underflow typically lands at 0.5–2% — a 3–4× dewatering cost multiplier for the same dry-tonne throughput.

For chemical plant effluent, the practical meaning is that DAF wins whenever the particle density is close to water — emulsified oils, latex residues, surfactant micelles — while lamella clarifiers win on dense catalyst fines, salts, and bulk inorganics where the only thing preventing rapid settling is tank cross-section.

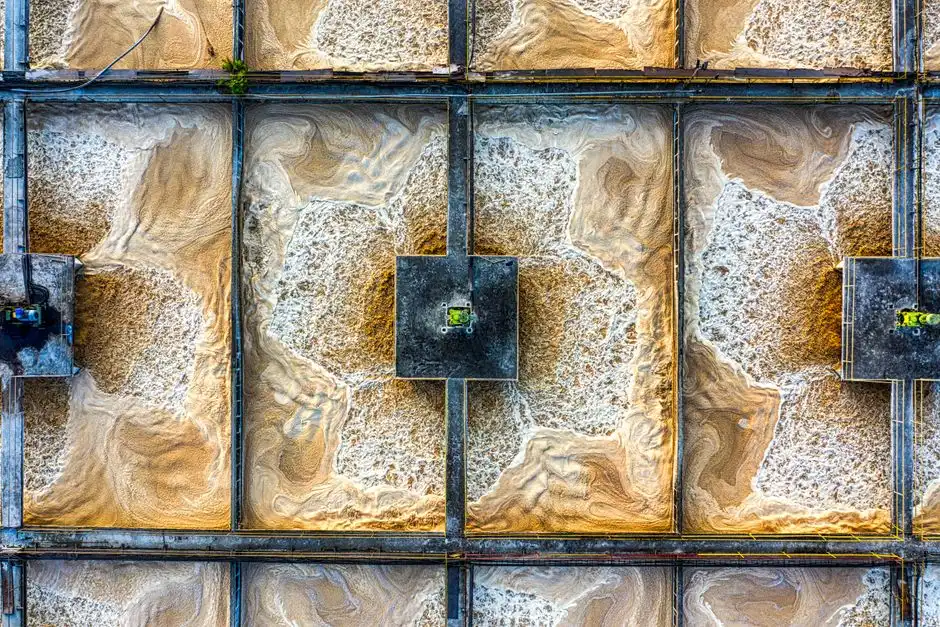

Matching 40 CFR Part 414 Effluent Limits to the Right Primary Clarifier

Translating the federal limits into a technology choice is more reliable than reading effluent data in isolation. Subcategory 414.40 organic chemicals effluent typically runs BOD5 150–300 mg/L daily maximum and TSS 100–300 mg/L; field data on DAF primary units consistently show 40–60% BOD reduction on emulsified organic streams, which handles the BOD end of the spec comfortably and leaves headroom for the downstream biological step (Cleantechnology Post, 2026-08). A standalone clarifier on the same stream struggles to drop below 200 mg/L TSS without coagulant aid.

Subcategory 414.60 (plastics and resins) is dominated by suspended oligomer and resin fines with densities near 1.0 g/cm³. DAF microbubble attachment outperforms gravity settling on these particles because Stokes-law settling velocity approaches zero as density difference collapses. Subcategory 414.70 (surfactants) is governed by an MBAS or LAS limit, and the established control technology since the 1990s has been DAF with cationic polymer conditioning; clarifiers without flotation aid rarely hit LAS limits on cosmetic and detergent-grade waste.

The Ecologixsystems hybrid-system FAQ confirms that DAF upstream of a clarifier combines oil removal with sedimentation — the configuration most Colorado chemical plants adopted after 2020 once multi-contaminant streams became routine.

Footprint, OPEX, and 2026 Drivers for a Kiowa Plant

DAF's saturator compressor and recycle pump drive the largest OPEX line, typically 0.8–1.4 kWh/m³ of treated flow; clarifiers are largely passive once running, which is why clarifier OPEX can run 15–25% below DAF over a 5–10 year horizon on a comparable feed. That gap closes fast when the clarifier needs polymer dosing, when its underflow requires additional thickening, or when discharge limits force a downstream polishing step that a DAF primary would have eliminated.

For a Kiowa facility, the 2026 pressure points are regulatory, not just financial:

• Colorado Discharge Permit System (CDPS) PFAS monitoring. DAF is the preferred unit operation to remove PFAS-bound particulates upstream of GAC or RO polishing; standalone clarifiers leave most particle-associated PFAS in the water column.
• ELG tightening for organic chemicals. The 2026 effluent guideline revisions push more plants toward zero-liquid discharge, where DAF's 2–6% sludge solids dramatically reduces evaporator hydraulic load compared with a clarifier's 0.5–2% underflow.
• Variable influent from batch reactors. pH swings of 2–12 are routine at 414.40 facilities, and DAF's smaller tank volume responds faster to equalization upsets than a 2,000 m² clarifier basin.

Capacity bands matter for the CAPEX write-up: the ZSQ series DAF system covers 4–300 m³/h across 13 models, while the HydropureWater lamella clarifier delivers 20–40 m/h surface loading for the polishing step. For a mid-sized Colorado chemical plant in the 50–150 m³/h range, a single ZSQ cell followed by a single lamella unit is the typical 2026 layout.

For procurement leads, the Goose Creek chemical plant pretreatment guide walks through how similar Midwestern facilities justified the hybrid configuration to finance committees; the Morristown chemicals factory guide and Bishop chemicals DAF vs clarifier guide cover parallel CAPEX cases for adjacent subcategories.

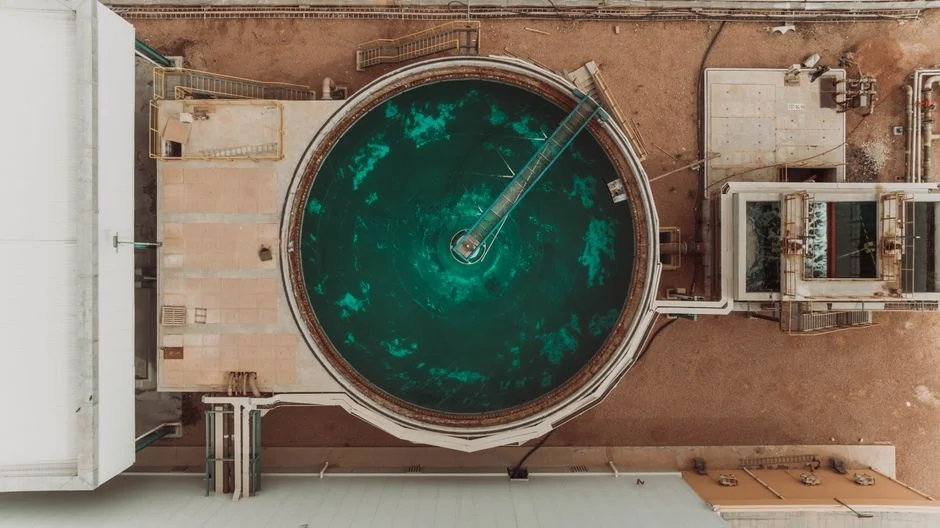

Decision Framework: Pick DAF, Clarifier, or Hybrid for Your Stream

1. Default to DAF if the stream is >20% emulsified organics, contains surfactants, oils, or sub-100 µm suspended particles — DAF routinely delivers 95% FOG removal vs the 70% a clarifier manages on the same stream (per Ecologixsystems 2026).
2. Default to lamella clarifier if the stream is dominated by dense settleable inorganics (catalyst fines, salts, metal hydroxides) at high flow with little FOG — the 90% solids reduction documented on mining sediment is a defensible upper bound.
3. Default to hybrid DAF → lamella clarifier for combined organic-and-inorganic streams typical of 40 CFR 414 facilities; this is the most common 2026 answer for Kiowa plants running 414.40 organic chemicals or contract manufacturing with mixed waste inputs.
4. Confirm via jar testing and a 2–4 week pilot on the actual effluent before committing CAPEX — air-to-solids ratio and polymer selection are stream-specific and pilot data is the only defensible input for a vendor guarantee.

Frequently Asked Questions

Which is better for chemical plant wastewater — DAF or clarifier?

DAF outperforms a clarifier on emulsified oils, surfactants, and sub-100 µm particles, hitting >95% FOG removal versus 70% for a clarifier on the same stream (per Ecologixsystems 2026). For most 40 CFR Part 414 facilities, a hybrid DAF primary followed by a lamella clarifier polish delivers the lowest 10-year TCO.

What hydraulic loading rate should I size a DAF or lamella clarifier to?

DAF standard cells handle 5–30 m³/m²·h, with high-rate lamella-packed designs reaching 40 m³/m²·h; lamella clarifiers run 20–40 m/h surface loading (per Cleantechnology Post, 2026-08 and HydropureWater lamella clarifier specs). Always confirm against jar test and pilot data before finalizing the surface area.

How does 40 CFR Part 414 drive the choice between DAF and clarifier?

Subcategory 414.40 sets BOD5 limits of 150–300 mg/L and TSS 100–300 mg/L that DAF consistently meets on the BOD side; 414.60 low-density oligomer fines and 414.70 MBAS/LAS limits both respond to microbubble attachment better than gravity settling. A clarifier-only train typically fails the BOD or MBAS end of these subcategory limits without polymer-intensive tertiary steps.

What sludge solids concentration should I expect from each technology?

DAF underflow runs 2–6% total solids, while clarifier underflow typically lands at 0.5–2% (per Cleantechnology Post, 2026-08). For zero-liquid-discharge planning, the 3–4× sludge density advantage materially shrinks evaporator sizing and OPEX.

Do Colorado or 2026 regulatory drivers push plants toward DAF?

Yes. Colorado Discharge Permit System permits now include PFAS monitoring, and DAF is the preferred unit operation to remove PFAS-bound particulates ahead of GAC or RO polishing. The 2026 ELG revisions for organic chemicals also favor DAF because thicker sludge reduces evaporator load on the path to zero-liquid discharge.
