Why Blacksburg Mining and Metals Plants Are Forcing the 2026 DAF-vs-Clarifier Decision
For Blacksburg-area mining and metals plants, the 2026 capital question is being forced by three converging pressures that no maintenance line item can absorb. The first is the federal effluent envelope under 40 CFR 437.30–437.32, which sets daily-maximum and monthly-average limits for total suspended solids, total recoverable lead, zinc, copper, and iron, and a pH band of 6.0–9.0 for any discharge to waters of the United States (per EPA 40 CFR 437, 2026). The second is the Virginia DEQ VPDES permit linkage, which transcribes those federal limits into the site-specific permit and attaches monitoring, reporting, and whole-effluent toxicity (WET) requirements to any outfall on the New River basin. The third is the legacy-clarifier inventory itself: a large share of the in-service conventional clarifiers in the Southwest Virginia hard-rock footprint dates to the 1970s and now sits on a 50-year replacement cycle.
ESG and water-reuse targets are the board-level trigger that pushed that cycle forward. Closed-loop reuse on a concentrator or refinery line typically demands TSS <30 mg/L and oil <10 mg/L on a clarified stream that never sees the VPDES outfall, which is a tighter envelope than the federal rule and one that a tired rectangular clarifier cannot reliably hold. The local stream profile makes it harder: dense metal-hydroxide floc (Fe, Mn, Al hydroxides, silica fines, magnetite) with intermittent tramp oil from maintenance bays and truck wash — the opposite of the FOG-heavy food-processing default most generic DAF articles assume (HydropureWater field data, 2026). The central framing used in the rest of this article: the question is not DAF or clarifier — it is which one goes first, and that decision hinges on whether the stream is FOG-bearing, FOG-free, or variable.
How a DAF Actually Behaves on a Metal-Hydroxide Stream
A ZSQ series dissolved air flotation system works by pressurizing a clarified recycle stream to approximately 6 bar (87 psi) and saturating it with air in a packed saturation vessel. When that recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm micro-bubbles (per Rodrigues and Rubio, 2007, Int. J. Miner. Process. 82:1–13). Those micro-bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. The smaller the bubble, the higher the bubble surface flux, and the better the capture of ultrafine particles below 5 µm that a clarifier simply cannot pull out of suspension (Rodrigues and Rubio, 2007).
On a metal-hydroxide stream, well-conditioned DAF removes 90–95% of TSS, FOG, COD, and BOD (HydropureWater field data, 2026), and the same unit also captures particulate metals and colloidal silica when upstream chemistry is right (per EPA performance evaluation, nepis.epa.gov/20007J4U). That chemistry is not optional. Coagulants — typically polyaluminum chloride (PAC), ferric chloride, or alum — paired with an anionic polymer flocculant at 1–5 mg/L are required to make the floc both dense enough to bind micro-bubbles and large enough to be lifted. Without that conditioning, micro-bubbles pass right past colloidal fines and DAF underperforms a properly sized clarifier. Two practical advantages matter for the 2026 decision: DAF reaches stable operation within minutes of start-up, which is critical for intermittent streams, and the float runs 4–8% dry solids (DS) — roughly twice the dryness of a clarifier underflow, which dewateres more easily in a downstream plate-and-frame filter press. A matched HydropureWater automatic chemical dosing skid holds the coagulant and polymer dose tight against variable influent so the DAF stays inside its design window.

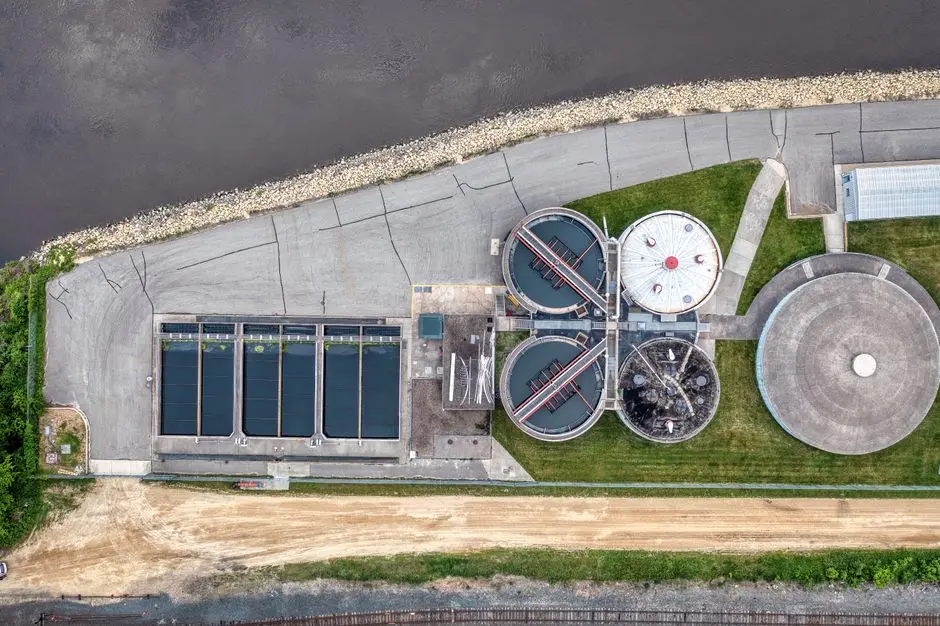

How a Lamella Clarifier (and a Conventional Clarifier) Behave on the Same Stream
A lamella clarifier — packaged as the HydropureWater high-efficiency sedimentation tank (lamella clarifier) — stacks inclined plates inside a compact tank, multiplying effective settling area. Surface loading climbs to 20–40 m/h, which is roughly an order of magnitude higher than a conventional gravity clarifier operating at just 1–2 m/h. The footprint math drives the 2026 capital decision: a lamella runs 0.3–0.6 m² per m³/h, versus 5–8 m² per m³/h for a conventional clarifier. For a 100 m³/h line, that is roughly 30–50 m² of lamella plate area versus 500–800 m² of conventional clarifier basin — and the conventional tank also needs a deep sludge hopper, a traveling bridge, and a building footprint that a lamella does not (HydropureWater field data, 2026).
Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, which acts as a weighted floc blanket and cuts coagulant consumption by up to 30% (HydropureWater P10 reference, 2026). On a chemically conditioned, FOG-free Fe(OH)₃ or Al(OH)₃ floc with specific gravity above 1.05, a lamella alone can hit TSS <30 mg/L and give clean margins against 40 CFR 437 daily-maximum metals limits at the upstream precipitation step. Two factors still disqualify the conventional clarifier as a 2026 answer on a Southwest Virginia site. First, footprint-driven civil and building cost: 600–800 m² of tank plus a sludge pump vault is a budget line that wipes out any equipment-CAPEX savings. Second, freeze risk in an unheated sludge hopper through a Blacksburg winter, where January lows average –5°C to –8°C and can drop below –15°C — a frozen hopper stops sludge withdrawal and shuts the line down. A lamella in an insulated vault can be winterized; a conventional open clarifier usually cannot.
Head-to-Head: DAF vs Lamella vs Conventional Clarifier on a Mining Stream
The table below is the page to hand to a non-technical decision-maker. Rows are organized around the questions procurement actually asks on a 2026 capital review, not the food-processing FOG defaults that dominate generic guides.
| Parameter | DAF (ZSQ) | Lamella Clarifier | Conventional Clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% | 80–90% (depends on floc density) | 60–80% |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x | 1.0x | 0.7–0.9x equipment, but high civil/building cost |
| Footprint at 100 m³/h | ~30 m² (0.2–0.4 m² per m³/h) | ~40–50 m² (0.3–0.6 m² per m³/h) | ~600 m² (5–8 m² per m³/h) |
| Energy use | 8–15 kWh/m³ (compressor + recycle) | ~0.1–0.3 kWh/m³ (scraper drive) | ~0.1–0.3 kWh/m³ (scraper drive) |
| Coagulant use | Standard dose + 1–5 mg/L anionic polymer | Up to 30% less via sludge recycle | Standard dose |
| Cold-weather performance (<10°C) | Moderate — size 10–15% margin on recycle pump and saturation vessel | Low — freezing risk in unheated sludge hopper | Low — same freeze risk; larger vault |
| FOG / emulsified oil capture | High — primary mechanism | Poor — oil exits in overflow | Poor — oil exits in overflow |
| Float / underflow dryness | Float 4–8% DS — easy dewatering | Underflow 2–5% DS | Underflow 1–3% DS |
| Start-up time | Minutes | Hours (floc blanket) | Hours |
One-line verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer on a mining site. The cold-weather row is the one that should land the 10–15% sizing margin rule for plants that run through a Blacksburg winter — micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so under-sizing the recycle pump and saturation vessel is the most common 2026 retrofit mistake (HydropureWater field data, 2026). For a broader clarifier-side framing, the secondary clarifier vs alternatives engineering comparison walks through the same decision logic from the municipal side.
Three Blacksburg-Basin Scenarios That Map to Real 2026 Plant Choices
Scenario 1 — Iron / taconite-style concentrator, 250 m³/h, no tramp oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no oil load. Flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. A lamella-only line can reach TSS <30 mg/L on chemically conditioned floc; metals are controlled at the upstream precipitation step against 40 CFR 437 daily-maximum limits for Pb, Zn, Cu, and Fe. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently — in that case, a small DAF after the lamella is cheaper than upsizing the lamella for colloidal fines.
Scenario 2 — Mixed-metals refinery with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the VPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model with no custom-engineering cost, and the float dewaters cleanly in a downstream plate-and-frame filter press sized for the 4–8% DS float band. The comparable warm-climate configuration is detailed in the DAF vs clarifier for mining wastewater in 2026 which should US factories choose Conroe, TX case.
Scenario 3 — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering sump. A 15 m³/h sump discharge that runs intermittently through a Southwest Virginia winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. The saturation vessel and recycle line should be insulated and heat-traced, and the recycle pump and saturation volume should be sized with the 10–15% cold-weather margin. The 40 CFR 437 envelope this configuration is designed to clear: TSS daily-max 50 mg/L (30-day average 25 mg/L) at the upstream precipitation step, pH 6.0–9.0, with metals controlled on the lime/sulfide dose rather than on the DAF. For food-stream DAF design parallels, the DAF engineering specs, costs and compliance guide covers the chemistry and bubble-size logic in more depth.
The 2026 Cost Band a Blacksburg Plant Can Defend in Front of Procurement
The headline CAPEX ratio for 2026: a DAF runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, the difference is roughly 30 m² of DAF footprint versus ~600 m² of conventional clarifier footprint. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where the lamella fits cheaply inside an existing bay) and smallest in dense industrial corridors or greenfield sites where every square meter of heated building is expensive.
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle, but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency. Two pieces of kit make the 2026 cost band defensible in front of procurement: an HydropureWater automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS). Plants that put both on the same 2026 capital request consistently close the procurement review in one cycle, because the cost band is anchored to operating data, not vendor list price.
Frequently Asked Questions
Does 40 CFR 437 require a DAF or a clarifier for a mining or metals plant?
No. The rule sets daily-maximum and monthly-average effluent limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0, but it does not mandate a specific unit operation. A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against 40 CFR 437.30–437.32.
What surface loading should a lamella clarifier be designed at for a metal-hydroxide stream?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range applies to clean, well-conditioned hydroxide floc only (HydropureWater P10, 2026).
Can a DAF operate in a Blacksburg winter without freezing the recycle line?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter.
Can a taconite or iron concentrator run lamella-only without a DAF?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
How much smaller is a DAF than a conventional clarifier at the same flow?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² and 600 m² of clarifier footprint (HydropureWater field data, 2026).
