DAF or Clarifier for Mining/Metals Wastewater in Fairhope: 2026 Factory Guide

Why the 2026 Question in Fairhope Is DAF-and-Clarifier, Not DAF-or-Clarifier

For Fairhope, Alabama mining and metals plants in 2026, the answer is not DAF or clarifier but which goes first. Run DAF as primary to strip FOG, emulsified cutting oil, and colloidal fines, then a lamella as polish to hit the 40 CFR 437.30–437.32 daily-maximum envelope (TSS, total recoverable Pb, Zn, Cu, Fe; pH 6.0–9.0) before discharge to any Mobile Bay tributary. DAF CAPEX runs 1.5–2.5× a comparable lamella at equal flow but at roughly one-tenth the footprint of a conventional clarifier, a ratio that swings the cost decision on the Mobile-Baldwin industrial corridor once you price building enclosure.

40 CFR 437 (Ore Mining and Dressing) sets both daily-maximum and monthly-average effluent limits for TSS, total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0, and that envelope governs every Fairhope discharge to waters of the United States (per 40 CFR 437.30–437.32). In Alabama, the NPDES program is delegated to the state, and ADEM Admin. Code ch. 335-6 implements the federal limits and adds the monitoring, sampling, and reporting framework that any Fairhope facility must satisfy (ADEM Admin. Code ch. 335-6, 2025). The takeaway for a procurement lead: the regulatory envelope is the same one cited for comparable streams, but the local permit and outfall conditions tilt the design.

Gulf-Coast operating realities change two of the standard rules of thumb. First, the cold-weather rule: micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), which is a hard constraint in northern-tier states. Fairhope sees only one or two sub-5°C nights a year, so the same 20–30% penalty collapses into a 10–15% design margin on the recycle pump and saturation vessel. Second, the resilience rule: hurricane-season power loss is the real 2026 risk, and a DAF's compressed-air load is a non-trivial generator-backup item that a lamella's scraper drive is not. Add chronic humidity that complicates insulation and corrosion protection on outdoor skids, plus a tidal-influenced outfall that tightens the back-pressure window on the polish step. The 2026 capital cycle is also pushing the decision: many in-service clarifiers in the corridor date to the 1970s, and ESG-driven closed-loop water-reuse targets have moved replacement to a board-level line item, not a maintenance request. For comparable reasoning on a neighboring basin, the DAF vs clarifier for mining wastewater in South Weber, UT guide walks through a colder-climate counterpart.

How DAF and Clarifiers Separate the Same Floc Differently

A dissolved air flotation unit floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified effluent is pressurized to approximately 6 bar (87 psi), saturated with air in a packed saturation vessel, then depressurized back to atmospheric in the flotation tank, releasing 30–50 µm micro-bubbles that attach to chemically conditioned floc and lift it to the surface (per S1, S5). A surface skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. Removal performance in this service class runs >90% for TSS, FOG, COD, and BOD, and a properly conditioned DAF can also capture particulate metals and colloidal silica (per S4, S5). Coagulants typically include polyaluminum chloride (PAC), ferric chloride, or alum, paired with an anionic polymer flocculant at 1–5 mg/L; without that conditioning, micro-bubbles pass right past colloidal fines and DAF underperforms (per S1, S4).

A lamella clarifier stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10). A conventional gravity clarifier is a large rectangular or circular tank operating at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h; for new builds in 2026, that footprint is rarely defensible against the building-cost arithmetic on the Gulf Coast. For the engineering parameters behind the 20–40 m/h band and the plate-pack geometry that drives it, the lamella clarifier specifications and design parameters guide covers the underlying math.

Three rules govern which mechanism wins on a given stream. First, the floc-density rule: chemically conditioned floc with specific gravity >1.05 settles readily and favors a clarifier; the same floc, once polymer-conditioned, also binds tightly to 30–50 µm micro-bubbles, so either works when chemistry is right (per S1, S2, S4). Second, the FOG rule: free oil and grease do not settle in a clarifier's residence time, so any FOG load has to be handled upstream or in a polish step. Third, the cold-weather rule: a 10–15% sizing margin on the DAF's recycle pump and saturation volume is prudent for any plant that runs through winter (Zhongsheng field data, 2026), but on the Alabama coast that margin is small enough to ignore the enclosure-cost premium a northern plant would have to pay.

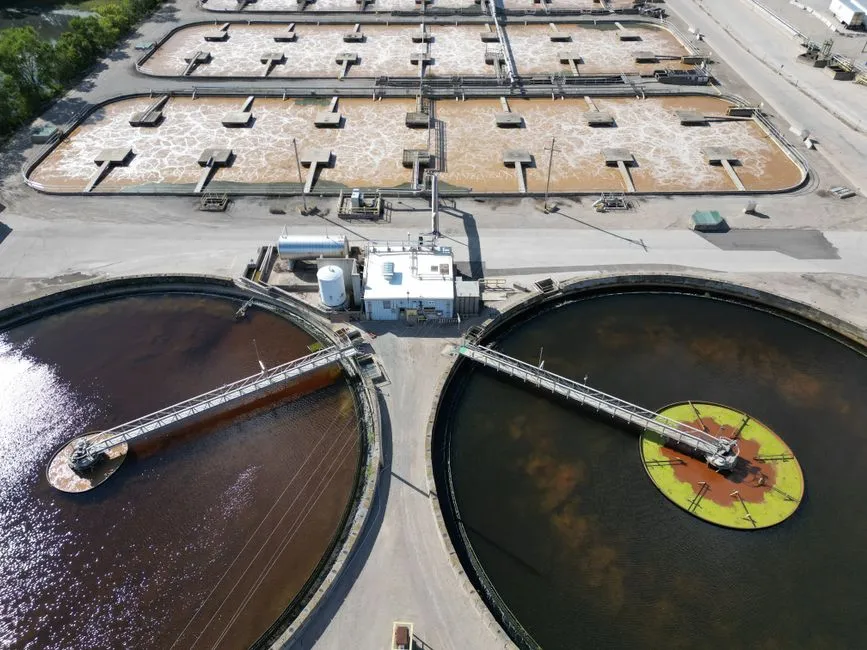

Head-to-Head: DAF vs Lamella vs Conventional Clarifier for a 40 CFR 437 Stream

The table below reorganizes the dense metal-hydroxide stream parameters — not food-processing FOG defaults — into the rows procurement actually asks about. Use it as the printed page to hand to a non-technical decision-maker.

Head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer. The reference packaged units to anchor the columns are the ZSQ series dissolved air flotation system on the DAF side and the high-efficiency lamella clarifier on the lamella side.

Two Fairhope Scenarios That Drive the Configuration

Scenario A — Aggregate/taconite-style concentrator, ~250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil from the process itself. The flow and density favor a high-rate lamella primary at 30 m/h surface loading on the plate pack, requiring roughly 8–9 m² of projected plate area, and TSS <30 mg/L is achievable with the lamella alone. Metals are controlled at the upstream chemical-precipitation step (lime or NaOH to pH 8.5–9.0, sulfide precipitation for residual Pb/Zn), not in the clarifier itself. Add a DAF polish only if a maintenance shop or truck-wash bay starts contributing intermittent FOG that the lamella cannot capture without bleeding oil straight to the NPDES outfall. For a parallel cold-climate data point, the DAF vs clarifier for mining wastewater in South Weber, UT article walks through a comparable FOG-free stream under winter constraints.

Scenario B — Mixed-metals finishing shop with cutting-oil emulsions, ~80 m³/h. Combined process wastewater runs 100–300 mg/L TSS plus copper and zinc precipitates, with 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary; a clarifier would discharge the emulsified oil straight to the outfall and trip the 40 CFR 437 oil-and-grease and TSS daily-maximums in the same sampling event. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits on Pb, Zn, Cu, and Fe. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model, which covers 4–300 m³/h across 13 standard models, so no custom-engineering premium is paid. For a comparable configuration under a slightly different climate envelope, the DAF vs clarifier for mining wastewater in Webster piece covers a near-coastal analog.

CAPEX, OPEX, and the Fairhope Building-Cost Reality

The headline ratio for 2026: DAF equipment CAPEX runs 1.5–2.5× a comparable lamella at equal flow (Zhongsheng field data, 2026). That gap narrows quickly once civil work, excavation, and footprint-driven building costs are added. A lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, the difference is roughly 30 m² of DAF footprint versus 50–60 m² of lamella footprint versus 600 m² of conventional clarifier footprint. On the Mobile-Baldwin corridor, where industrial building cost runs high and available pads are tight, that differential erases most of the DAF equipment premium before procurement ever gets to the line item.

OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle (Zhongsheng P10), but the DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press than the lamella's 2–5% DS underflow. The DAF's air compressor and recirculation pump are real line items at 8–15 kWh per m³ treated, but they are a known, scalable cost rather than a contingency. Two pieces of kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS).

One Fairhope-specific OPEX line that northern-tier guides miss: hurricane-season generator backup. A DAF's compressed-air load draws continuously during a treatment cycle, so any plant that runs an emergency generator for process continuity must size the generator to cover the DAF compressor plus recycle pump, not just the lighting and control loads. A lamella's scraper drive draws two orders of magnitude less and rides through most outages on a small UPS. For a 100 m³/h DAF at 8–15 kWh/m³, that is roughly 60–80 kW of continuous compressor load on top of the rest of the plant, worth penciling into the resilience budget before the 2026 hurricane season rather than after the first outage.

Frequently Asked Questions

Is a DAF or a clarifier required by 40 CFR 437?

Neither technology is explicitly required. The rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against the daily-maximum envelope.

What is the right surface loading to design a lamella for in 2026?

For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h band (Zhongsheng P10) is for clean, well-conditioned hydroxide floc only and should not be used as a default for streams with significant colloidal fines or low-density light floc.

How much does cold weather change DAF sizing for Fairhope?

Micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), but Fairhope sees only one or two sub-5°C snaps per year. A 10–15% sizing margin on the recycle pump and saturation volume is sufficient, with insulation or heat-trace on the recycle line; the larger Gulf-Coast risk is hurricane-season power loss, not sustained cold.

Can a lamella alone meet 40 CFR 437 daily-maximum metals limits?

Yes, on FOG-free streams like taconite concentrate or aggregate wash water. Metals are controlled at the upstream chemical-precipitation step (pH adjustment, sulfide precipitation), not in the clarifier itself. The lamella only needs to settle the conditioned metal-hydroxide floc, which it does efficiently when floc S.G. exceeds 1.05.

How much smaller is a DAF than a conventional clarifier?

A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between roughly 30 m² of DAF footprint and 600 m² of conventional clarifier footprint (Zhongsheng field data, 2026), which is the single largest line-item swing on the Mobile-Baldwin corridor.
