How Petroleum Plants Near Carthage, US Meet 2026 Pretreatment Limits

The 2026 Compliance Frame for a Carthage-Area Refinery

Under 40 CFR Part 403.5(a), the general pretreatment prohibition forbids any industrial discharge to a POTW that causes pass-through or interference, and EPA states explicitly that this rule applies whether or not the POTW has an approved pretreatment program and whether or not the industrial user has been issued a control mechanism — there is no "silent" exemption just because the Village of Carthage has not yet sent a permit. Pass-through, defined at 40 CFR Part 403.3(p), is a discharge that exits the POTW into waters of the U.S. and, alone or with other sources, is a cause of a violation of the POTW's SPDES (New York's NPDES-equivalent) permit. Interference, at 40 CFR Part 403.3(k), is a discharge that inhibits or disrupts the POTW, its treatment processes, or its sludge use or disposal and is therefore a cause of an SPDES permit or RCRA violation. Layered on top of the general prohibition is 40 CFR Part 419, the petroleum refining categorical standard, which sets technology-based numerical limits for refinery process wastewater independent of any local program. The receiving POTW's SPDES permit is the legally binding downstream limit, and the Village of Carthage Article II definitions for "control manhole," "Significant Industrial User," and "significant noncompliance" ground that federal frame locally. A 2021 ACS ES&T Engineering review on U.S. industrial water scarcity flagged the reuse pressure that is now tightening those local numbers in the 2024–2026 National Pretreatment Program review cycle, so the regulatory contract a refinery owns the moment it ties into a sewer is denser than it was five years ago. The compliance logic is identical to the analogous 40 CFR Part 414 chemical plant compliance playbook — federal prohibition plus categorical standard plus local control mechanism, with the lower of the two numerical bars governing.

What the Village of Carthage Control Manhole Actually Sees

Refinery process wastewater is a blend of streams that the POTW's sampler does not see as separate pipes — it sees a mixed liquor. Desalter brine carries emulsified oil, salts, and trace metals; spent caustic from refinery alkylation or ethylene units carries sulfides and phenols at high pH; sour-water stripper bottoms carry dissolved H₂S and ammonia; tank draw contributes free oil and bottom sludge; and loading-rack, ballast, and oily utility water round out the load. The parameter set a Carthage-area refinery is typically judged on is fairly stable across U.S. refiners: oil & grease, TSS, sulfides (both dissolved and total), phenols, BTEX, ammonia-nitrogen, pH, hexavalent chromium, and COD. Local POTW limits vary by municipality, but typical ranges a refinery can expect to engineer against are 50–100 mg/L for oil & grease, 1–10 mg/L for sulfides, and 0.5–5 mg/L for phenols, with metals and BTEX often pulled in as quarterly monitoring parameters under the SIU permit. The local number is routinely more stringent than the 40 CFR Part 419 categorical number because the control authority must protect its own SPDES permit and its biosolids program — a refinery's compliance strategy has to clear whichever bar is lower. Sulfides and phenols are the most common "interference" triggers because both are toxic to nitrifying bacteria and to the heterotrophs running the POTW's activated-sludge basin; a slug of either can knock a municipal biobasin off its perch in hours, which is where the bulk of enforcement letters originate.

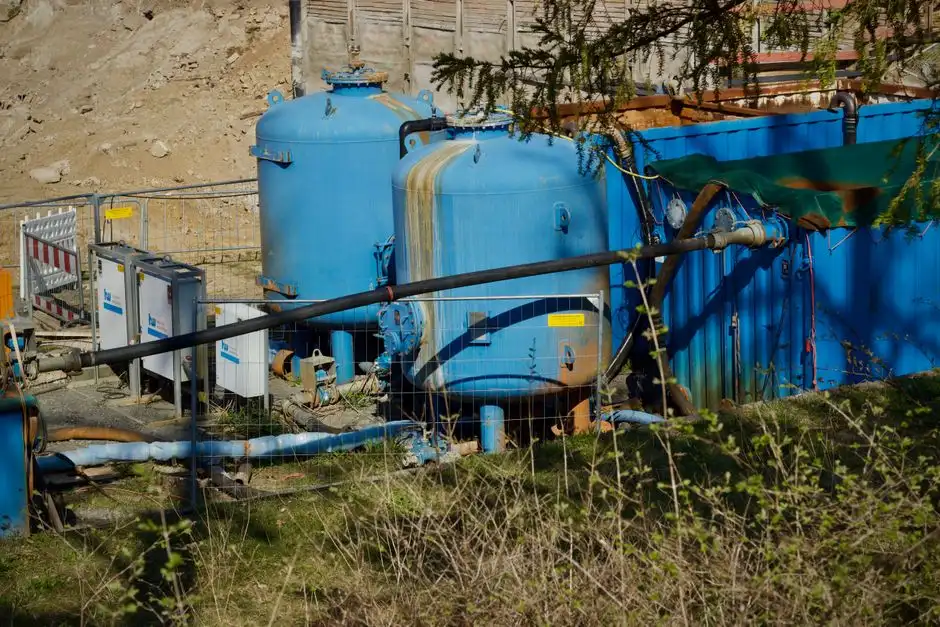

The Five-Stage Refinery Pretreatment Train

U.S. refiners run a five-stage train between the process sewer and the POTW's manhole. The exact equipment varies, but the unit operations and their order are remarkably consistent.

Stage 1 — API separator or corrugated-plate interceptor (CPI). Free oil is removed by gravity because it is the cheapest and most forgiving operation, and because everything downstream (pumps, membranes, sensors) suffers if free oil is not taken out first. A well-operated API separator typically leaves 100–200 mg/L oil & grease in the water phase; a CPI hits a similar band in a much smaller footprint. This stage sets the floor for emulsified-oil load on Stage 2.

Stage 2 — Dissolved air flotation (DAF) or induced gas flotation (IGF). Micro-bubble flotation strips the emulsified oil, FOG, and colloidal TSS that the API unit cannot catch, and brings oil & grease down to roughly 15–30 mg/L. Operating air-to-solids ratios sit in the 0.02–0.06 range, hydraulic retention is 15–30 minutes, and saturator recycle rates run 20–50% of forward flow. A refinery-scale refinery DAF micro-bubble flotation unit in this duty is typically specified in the 4–300 m³/h capacity range, with skid-mounting for tie-in during scheduled turnarounds. The outlet of this stage has to clear the 50–100 mg/L POTW oil & grease ceiling on its own, with margin, before any biological polishing is asked to clean up oil.

Stage 3 — Equalization and neutralization. Flow and pH swings from spent-caustic pushes, desalter upsets, and tank transitions are smoothed in an EQ basin sized for 8–24 hours of hydraulic retention, and pH is adjusted to 6–9 before the biological stage. This is the single most important control point for preventing interference events; a slug of high-pH, high-sulfide spent caustic is the textbook case of a discharge that would inhibit the POTW's biomass and trigger a violation downstream.

Stage 4 — Biological polishing. An MBBR or MBR reduces phenols, sulfides, benzene, and ammonia-nitrogen. MBBRs are robust to load swings and tolerate the 200–800 mg/L COD that survives the front of the train; MBRs add a <1 µm flat-sheet PVDF membrane barrier that holds biomass at 8,000–12,000 mg/L and produces a polished effluent with <5 mg/L TSS and <1 NTU turbidity, in roughly 60% of the footprint an equivalent CAS basin would need — which is why the MBR flat-sheet module (0.1 µm PVDF) is the default for space-constrained refinery retrofits.

Stage 5 — Polishing and monitoring. A multimedia filter catches any TSS breakthrough, an online oil-in-water analyzer (typically a fluorescence-based probe on the final effluent line) alarms on a 10–20 mg/L setpoint, and pH/conductivity probes feed the control room. Every stage in this train maps to either a pass-through risk (oil, TSS, BTEX, ammonia) or an interference risk (sulfides, phenols, pH swings, slug flows) defined in 40 CFR Part 403.

Pollutant-by-Pollutant Responsibility Map

The table below maps the refinery-side pollutant to a typical inlet range, a typical POTW local limit, the stage that does the primary removal, and the polishing step that protects the permit. The numbers describe the engineering bands seen in practice; the specific number in the Village of Carthage SIU permit is set by the local control authority and can be more stringent than 40 CFR Part 403 alone.

For tight-footprint refinery retrofits, the polishing step in the last four rows is increasingly the MBR flat-sheet module, which is used as the final barrier before the sewer rather than as the sole biological stage. Where chemistry must be tightly controlled — pH trim ahead of DAF, coagulant dose for emulsified-oil break, or reducing agent for Cr(VI) — an automatic chemical dosing system tied to flow and online analyzer feedback is the standard 2026 retrofit.

The Five-Step Documentation Playbook

The treatment train is the engineering side; the documentation side is where most EPA and state enforcement actions actually land. A refinery's pass-through/interference defense runs through five repeatable steps.

Step 1 — Get classified as a Significant Industrial User (SIU) and obtain a control mechanism from the POTW control authority. The control mechanism lists the local numerical limits, the monitoring schedule, and the reporting cadence that the refinery will be judged against. Until that document is in hand, the refinery is still on the hook under 40 CFR Part 403.5(a), but without a defined sampling schedule.

Step 2 — Self-monitoring with 24-hour flow-weighted composite sampling. Most POTWs require monthly sampling for oil & grease, TSS, sulfides, phenols, and ammonia, and quarterly for metals, BTEX, and hexavalent chromium. Results are reported on a DMR or its local equivalent, and exceedances trigger accelerated monitoring.

Step 3 — Slug-control plan written, current, and trained out. EPA enforcement actions under 40 CFR Part 403.8(b)(4) and the SIU permit language repeatedly target the slug-control plan. The plan must cover loading racks, tank transitions, and batch discharges; it must define what counts as a slug, what the refinery will do to contain it, and how it will notify the POTW. Any discharge that could cause interference must be reported within 24 hours.

Step 4 — Accidental-discharge reporting. When a slug escapes — a spent-caustic overflow, a desalter upset, a tank-bottom-water release — the refinery must notify the POTW and the relevant hazardous-waste authorities within the EPA-prescribed window and follow up with a written report describing the cause, the corrective action, and the revised prevention measures. Slug plans that exist on paper but were not followed are the most common root cause in consent decrees.

Step 5 — Maintain auditable records. Keep the BMP file, the chemical inventory against SIU permit restrictions, the operator training records, the chain of custody for every composite sample, and the calibration logs for the online analyzers. Pairing that record set with cloud monitoring for online analyzers and DMR reporting turns a "no pass-through" claim into a defensible one during a Village of Carthage or EPA inspection.

Frequently Asked Questions

What federal rules govern a Carthage-area refinery discharging to a POTW?

Refinery discharges to a POTW are governed by 40 CFR Part 403, with the petroleum refining category at 40 CFR Part 419 setting the technology-based categorical standards, and 40 CFR Part 403.5(a) imposing the general pass-through and interference prohibition that applies whether or not a local control mechanism has been issued.

What is the Village of Carthage control manhole and why does it matter?

Per Village of Carthage Article II, the control manhole is the manhole accessible to the control authority in or upstream of the street lateral such that samples collected represent the discharge to the POTW — it is the legally defined compliance sampling point for every parameter on the SIU permit.

What O&G level can a DAF hit before biological polishing?

A refinery DAF operating at ASR 0.02–0.06, recycle 20–50% of forward flow, and HRT 15–30 minutes reliably brings oil & grease to 15–30 mg/L, clearing the 50–100 mg/L POTW local ceiling on its own before any biological stage is asked to clean up oil.

When does a refinery trip Significant Noncompliance?

Under the Village of Carthage Article II definition, a user is in significant noncompliance when 66% or more of all measurements taken during a six-month period exceed the daily maximum or average limit for the same pollutant parameter — the chronic-violations trigger, not a single excursion.

Does a refinery need a slug-control plan even with a working DAF?

Yes. 40 CFR Part 403.8(b)(4) and standard SIU permit language require a written, trained-out slug-control plan; a DAF alone fails on free-oil slugs because free oil blankets the bubble surface and crashes the air-to-solids ratio, so the plan — not the equipment — is the legal defense.
