Why 2026 Forces the DAF-or-Clarifier Question for Graham Mining and Metals Plants
40 CFR Part 437 (Ore Mining and Dressing) sets daily-maximum and monthly-average effluent limits for total suspended solids, total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0 for any discharge to waters of the United States (per 40 CFR 437.30–437.32). The 2026 capital cycle for Graham, US mining and metals plants is being forced by that envelope: a clarifier that passed muster in the 1990s often misses the monthly-average metals limit on a contemporary closed-loop water-reuse scheme, and the cost of a permit excursion now sits on a board agenda rather than a maintenance work order. Many in-service units in the Carolina mining corridor date to the 1970s and are being replaced on ESG-driven water-reuse targets, which puts the technology choice in front of non-technical decision-makers who will sign off on a multi-million-dollar line item.
The Graham stream profile is the opposite of the FOG-heavy food-processing wastewater most DAF articles assume. A taconite concentrator or mixed-metals refinery produces dense Fe(OH)₃ and Al(OH)₃ floc, silica fines, magnetite, and intermittently tramp oil from the maintenance shop or truck wash — a profile that breaks generic food-sector DAF-versus-clarifier content. Most 2026 lines will run a national DAF vs clarifier for mining wastewater guide recommendation of DAF as primary to strip FOG and colloidal fines, with a lamella as polish to land inside the 40 CFR 437 envelope. A lamella alone works on FOG-free iron or taconite streams; a conventional gravity clarifier is rarely the 2026 answer because its 5–8 m² per m³/h footprint drives civil cost into the same range as a DAF once excavation and a building are priced in.
How a DAF Unit and a Clarifier Actually Work on a Metal-Hydroxide Stream
A dissolved air flotation unit floats solids using 30–50 µm micro-bubbles generated from a pressurized recycle stream. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel; when the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution and attaches to chemically conditioned floc (per S1, S5). A skimmer sweeps the float into a sludge trough, clarified water exits below the float blanket, and heavy settleable solids drop to a bottom sediment compartment. Removal performance in industrial service runs >90% for TSS, FOG, COD, and BOD, and a DAF can also capture particulate metals and colloidal silica when upstream chemistry is right (per S4, S5). Conditioning is the primary constraint: coagulant pairings on mining service typically include polyaluminum chloride (PAC), ferric chloride, or alum with an anionic polymer flocculant at 1–5 mg/L — without that dose the micro-bubbles pass right past colloidal fines and the DAF underperforms (per S2, S4).
These units function as distinct mechanical systems, and understanding their physical footprint is necessary to evaluate the technology. A lamella clarifier stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. A conventional gravity clarifier is a large rectangular or circular tank operating at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h and its civil cost dominates a 2026 capital estimate (per S2). A ZSQ series dissolved air flotation system covers 4–300 m³/h across 13 standard models, while a HydropureWater high-efficiency lamella clarifier plate pack delivers the 20–40 m/h surface-loading band that makes the lamella column competitive.

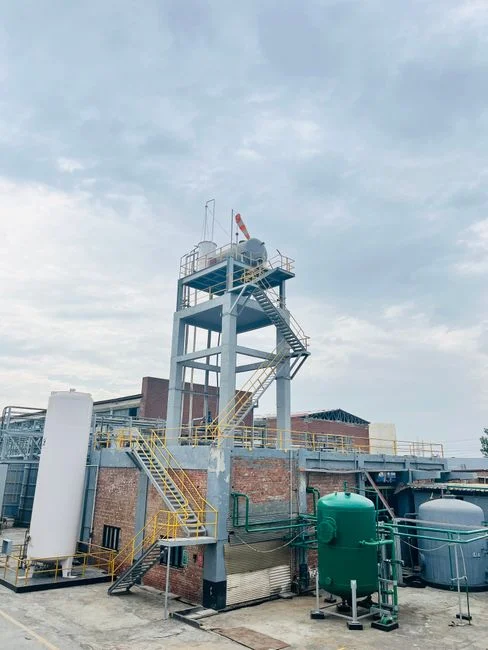

DAF vs Lamella vs Conventional Clarifier: 2026 Comparison Matrix for Mining Service
For a Graham plant engineer handing a board memo to a non-technical reader, the rows below are the ones procurement actually asks about. The numbers are sized for a dense Fe(OH)₃ / Al(OH)₃ floc stream, not the food-processing FOG default that most comparison articles use.
| Parameter | Dissolved Air Flotation (DAF) | Lamella Clarifier | Conventional Gravity Clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% (per S5) | Comparable on well-conditioned floc | Lower and variable, especially on colloidal fines |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x (HydropureWater field data, 2026) | 1.0x (baseline) | 0.7–0.9x equipment, but civil and building cost dominate |
| Footprint (per m³/h) | 0.2–0.4 m² | 0.3–0.6 m² | 5–8 m² — roughly 30 m² vs 600 m² at 100 m³/h (per S2) |
| Energy use | 8–15 kWh/m³ (compressor + recycle) plus chemistry | ~0.1–0.3 kWh/m³ (scraper drive) plus chemistry | Scraper drive only; large pumps for recirculation |
| Cold-weather performance (<10°C) | Moderate — size 10–15% margin on recycle and saturation vessel for slower bubble nucleation | Low — freezing risk in unheated sludge hopper | Low — same freeze risk on a much larger vault |
| Best-fit stream | FOG, emulsified oil, colloidal fines, light floc, variable influent | Dense settleable hydroxide floc, very high flow, no oil | Legacy installations, very large settling basins |
The head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness (4–8% DS versus 2–5% DS for a lamella underflow). The lamella wins on CAPEX for FOG-free streams at very high flow, especially with a sludge-recycle loop that cuts coagulant consumption by up to 30% (HydropureWater field data, 2026). The conventional clarifier loses on footprint and is rarely the 2026 answer once civil and building costs are added.
Three Graham-Area Scenarios That Decide the Choice
Scenario 1 — Iron / taconite concentrator at 250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. Expected 40 CFR 437 effluent: TSS <30 mg/L is achievable with the lamella alone; the metals envelope for total recoverable Pb, Zn, Cu, and Fe is controlled at the upstream precipitation step, not in the clarifier itself (per 40 CFR 437 daily-maximum limits).
Scenario 2 — Mixed-metals refinery with cutting-oil emulsions at 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model with no custom-engineering cost, which keeps the CAPEX line item defensible. The chemistry and precipitation framing tracks the North Little Rock mining pretreatment compliance guide closely enough that the same coagulation train transfers.
Scenario 3 — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering. A 15 m³/h sump discharge running intermittently through winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime — micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent (HydropureWater field data, 2026). Across all three scenarios the 40 CFR 437 daily-maximum envelope for Pb, Zn, Cu, Fe and pH 6.0–9.0 sets the compliance floor; metals are controlled at the upstream precipitation step, not in the DAF or lamella itself.

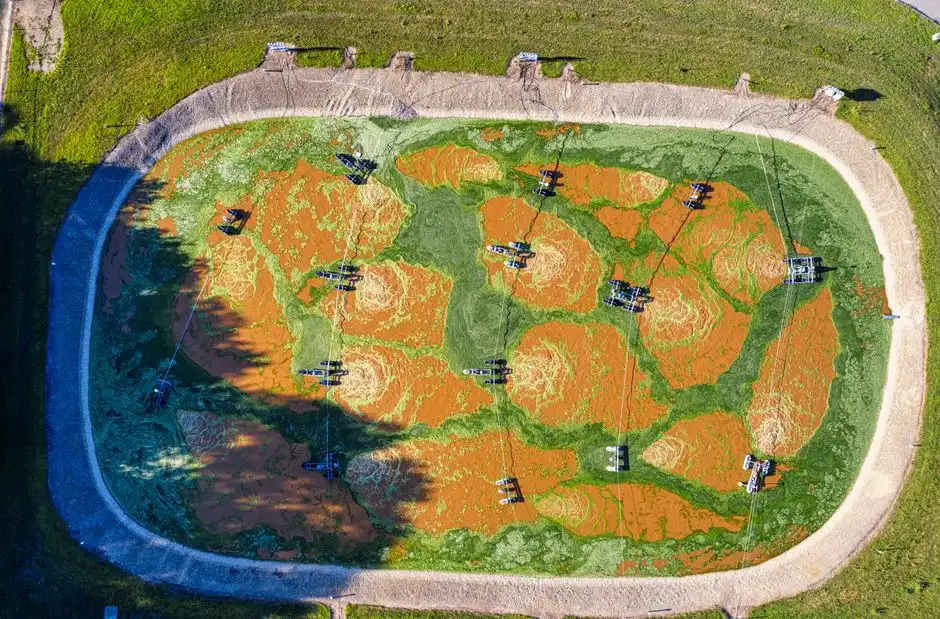

CAPEX, OPEX, and Civil Cost: Why the 1.5–2.5x Ratio Misleads
The headline ratio for 2026 is that DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, the difference is roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint — a small equipment room versus a dedicated building. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where a lamella fits cheaply) and smallest in dense industrial corridors where every square meter of building is expensive.
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle (HydropureWater field data, 2026), but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream plate-and-frame filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost rather than a contingency. Two pieces of kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float (4–8% DS) or the lamella underflow (2–5% DS).
Frequently Asked Questions
Does 40 CFR 437 mandate DAF or a clarifier?
No. Neither technology is explicitly required by 40 CFR 437, but the rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0. A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin.
How do I size a lamella for Fe(OH)₃ / Al(OH)₃ floc?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine
Frequently Asked Questions
Is a DAF or a clarifier required by 40 CFR 437 for mining wastewater?
40 CFR 437, the Centralized Waste Treatment Point Source Category, does not mandate the use of Dissolved Air Flotation (DAF) or clarifiers by name. Instead, it establishes effluent limitation guidelines based on best available technology economically achievable (BAT), which typically requires achieving specific concentration limits for pollutants like oil and grease, heavy metals, and total suspended solids.
While the regulation dictates the performance standards, the choice between a DAF and a clarifier is determined by the wastewater characterization and the ability of the chosen treatment train to consistently meet the numerical discharge limits set forth in the specific subpart applicable to the mining facility.
What surface loading rate should I use to size a lamella clarifier for iron hydroxide floc?
For iron hydroxide precipitates, which typically exhibit low settling velocities and light floc density, the design surface loading rate for a lamella clarifier should generally range between 0.25 and 0.50 meters per hour (approximately 0.1 to 0.2 gallons per minute per square foot of projected plate area).
In practice, sizing must account for the specific flocculant dosage and the sludge volume index. If the iron concentration is high, lower loading rates are required to prevent solids carryover and to ensure the lamella plates do not blind or accumulate excessive solids that impede the settling path.
Can a dissolved air flotation system operate in winter below 5°C?
Yes, a DAF system can operate below 5°C, but its efficiency is significantly impacted by water temperature. As temperature decreases, water viscosity increases, which slows the terminal rise velocity of the air-solids bubble aggregates according to Stokes' Law.
To maintain performance in cold climates, operators must increase the air-to-solids (A/S) ratio to compensate for reduced bubble buoyancy and potentially increase polymer dosing to improve floc strength. Furthermore, mechanical components and piping must be insulated or heat-traced to prevent ice formation in the recycle pump and saturation tank assemblies.
Can a taconite concentrator run a lamella clarifier without a DAF?
Yes, a taconite concentrator can utilize a lamella clarifier as a standalone primary solids separation unit, provided the mineral tailings and iron ore fines have sufficient density and settling velocity to reach the underflow hopper without excessive carryover.
This configuration is successful when the wastewater stream has low concentrations of emulsified oils or extremely fine, buoyant particles that would otherwise require flotation. If the waste stream contains significant quantities of light, hydrophobic solids or froth flotation reagents that hinder gravity settling, the clarifier may require chemical coagulation and flocculation conditioning to achieve discharge compliance.
How much smaller is a DAF footprint compared to a conventional clarifier?
A DAF system typically occupies 25% to 50% of the footprint required by a conventional circular gravity clarifier of equivalent hydraulic capacity. This reduction is primarily due to the higher rise rates achievable through air-bubble attachment, which allows for shorter hydraulic retention times.
While a conventional clarifier relies on gravity alone, often requiring surface loading rates of 0.5 to 1.5 meters per hour, a DAF system can often be loaded at rates exceeding 5 to 10 meters per hour. This makes DAF units the preferred choice for mining sites in Graham with constrained space or high costs associated with concrete civil works.
