Why Dunn-Area Refineries Are Judged Against 40 CFR 403, Not Their Own Numbers
40 CFR Part 403.5(a) imposes a general prohibition that applies whether or not the receiving POTW has an approved pretreatment program and whether or not the industrial user has been issued a control mechanism — there is no "silent" exemption just because the local authority has not yet issued a permit (per EPA, 40 CFR 403.5(a)). The legal test is pass-through, defined in 40 CFR Part 403.3(p) as a discharge that exits the POTW into waters of the U.S. and, alone or with other sources, is a cause of a violation of the POTW's NPDES permit, including any increase in the magnitude or duration of an existing violation. Interference, under 40 CFR Part 403.3(k), is a discharge that inhibits or disrupts the POTW, its treatment processes, or its sludge use and disposal, and therefore causes a POTW NPDES violation or a violation of sewage-sludge requirements under CWA §405 or RCRA. The judgment is made on what the receiving plant's effluent and biosolids look like — not on what the refinery believes it is sending down the sewer.
Refineries and terminals in the Dunn, NC corridor discharge to NC DEQ-delegated POTWs — the City of Dunn WWTF and the Harnett County Water Treatment Plant — both of which operate under NPDES permits in the Cape Fear River Basin. Local limits are written to protect the outfall and the biosolids program simultaneously, so the local numerical ceiling on a given pollutant is routinely tighter than the federal categorical bar. Layered on top, 40 CFR Part 403.5(b) sets specific prohibitions the refinery must clear regardless of permit status: closed-cup flashpoint below 140 °F (60 °C), pH below 5.0 unless the works is specifically designed for it, solids or viscous wastes at volumes that obstruct flow, heat that pushes the POTW headworks above 40 °C (104 °F), and petroleum or non-biodegradable oil at any mass loading that causes interference or pass-through (per EPA, 40 CFR 403.5(b)).
Where Federal and Local Limits Actually Disagree
40 CFR Part 419 is the petroleum refining category and sets technology-based effluent limits across subcategories including cracking, lube, and integrated refining. Because those limits are technology-based, they are routinely looser than what a Dunn-area POTW needs to protect its own NPDES permit and biosolids program. The local control authority sets site-specific local limits under 40 CFR Part 403.5(c), and those numbers — not the federal categorical bar — drive day-to-day compliance (per EPA, "Local Limits"). The practical rule is straightforward: the refinery must clear whichever limit is lower and document that it has done so.
The parameter set is consistent across U.S. refiners: oil & grease, total suspended solids, sulfides (both dissolved and total), phenols, benzene/total BTEX, ammonia-nitrogen, pH, hexavalent chromium, and COD. Local numerical ranges typically land at 50–100 mg/L for O&G, 1–10 mg/L for sulfides, and 0.5–5 mg/L for phenols, with metals and BTEX pulled in as quarterly monitoring parameters under the SIU permit (HydropureWater field data, 2026). The table below shows where the federal categorical bar (40 CFR Part 419 subcategory maximum) and the Dunn-area POTW local limit typically land for a cracking-subcategory refinery; the refinery's compliance number is the lower of the two.
| Parameter | 40 CFR Part 419 (cracking subcategory, daily max) | Typical Dunn-area POTW local limit | Tighter bar |
|---|---|---|---|
| Oil & grease (mg/L) | ~100 | 50–100 | Local (most POTWs sit at 50) |
| Total sulfides (mg/L) | Not numerically limited in subcategory | 1–10 | Local |
| Phenols (mg/L) | Not numerically limited in subcategory | 0.5–5 | Local |
| BTEX (total, mg/L) | Not in subcategory limits | 0.1–1 (often quarterly GC/MS) | Local |
| Hexavalent chromium (mg/L) | 0.10 (40 CFR 419 subcat limits) | 0.05–0.10 (quarterly metals) | Local or equal |
| pH (s.u.) | 6.0–9.0 | 6.0–9.0 (40 CFR 403.5(b) floor) | Equal |
The gap is largest on sulfides and phenols, where the federal subcategory imposes no numerical ceiling at all. A Dunn-area POTW will fill that gap, which is why the equalization and biological stages of the train carry so much weight in the compliance narrative.
The Refinery Wastewater Stream and Why It Slugs

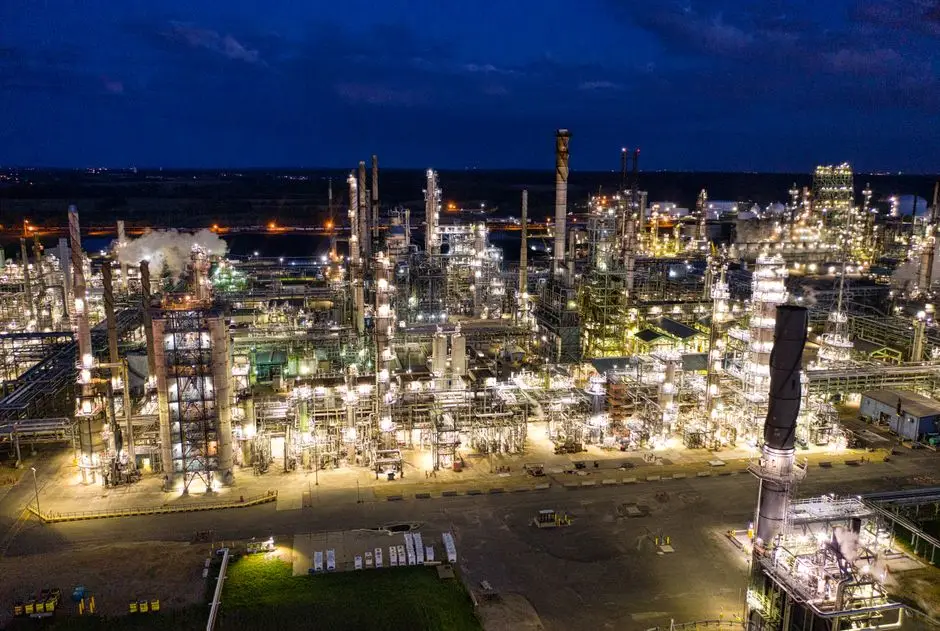

Refinery process wastewater is a blend of desalter brine, spent caustic, sour-water stripper bottoms, tank draw, loading-rack and ballast water, and oily utility water. Each stream contributes a different pollutant and a different slug risk: desalters carry emulsified oil, salts, and trace metals; spent caustic carries sulfides and phenols at high pH (often pH >12); sour water carries dissolved H₂S and ammonia; tank draw contributes free oil and bottom sludge. The pollutant mix the POTW actually sees is set by sewering discipline — whether streams are kept segregated, combined at the lift station, or batched to the treatment train — and by slug-prevention discipline at the unit (HydropureWater field data, 2026).
Sulfides and phenols are the most common "interference" triggers because both are toxic to nitrifying bacteria and to the heterotrophs running the POTW's activated-sludge basin. A slug of either can knock a municipal biobasin off its perch in hours, and phenols also drive downstream odor and corrosivity complaints — which is where the bulk of enforcement letters originate. The slug risk is highest at loading racks, during tank transitions, and when spent caustic is pushed to the sewer in a batch instead of being routed to a controlled equalization basin.
The Five-Stage Train Between the Process Sewer and the POTW Manhole
U.S. refiners run a five-stage train between the process sewer and the POTW manhole. The exact equipment varies, but the unit operations and their order are remarkably consistent, and each stage maps to either a pass-through risk (oil, TSS, BTEX, ammonia) or an interference risk (sulfides, phenols, pH swings, slug flows) defined in 40 CFR Part 403.
Stage 1 — API separator or corrugated-plate interceptor (CPI). Free oil is removed by gravity; a well-operated API leaves 100–200 mg/L O&G in the water phase, and a CPI hits a similar band in a smaller footprint. This stage sets the floor on emulsified-oil load to Stage 2 (HydropureWater field data, 2026).
Stage 2 — Dissolved air flotation (DAF) or induced gas flotation (IGF). Micro-bubble flotation strips emulsified oil, FOG, and colloidal TSS, and brings O&G down to roughly 15–30 mg/L. Operating air-to-solids ratios run 0.02–0.06, hydraulic retention is 15–30 minutes, and saturator recycle is 20–50% of forward flow. Refinery-duty DAF systems in this duty are typically specified in the 4–300 m³/h capacity range, with skid-mounting for tie-in during scheduled turnarounds. A refinery-duty DAF system sized to clear the local O&G ceiling on its own is the stage that protects the rest of the train from oil fouling.
Stage 3 — equalization and neutralization. An EQ basin sized for 8–24 h HRT smooths flow and pH swings from spent-caustic pushes, desalter upsets, and tank transitions; pH is trimmed to 6–9 before the biological stage. This is the single most important control point for preventing interference events, because a slug of high-pH, high-sulfide spent caustic is the textbook case of a discharge that would inhibit the POTW's biomass.
Stage 4 — biological polishing. MBBR or MBR reduces phenols, sulfides, benzene, and ammonia-nitrogen. MBBRs tolerate the 200–800 mg/L COD that survives the front of the train; an integrated MBR system for refinery polishing adds a <1 μm flat-sheet PVDF membrane barrier that holds MLSS at 8,000–12,000 mg/L and produces a polished effluent with <5 mg/L TSS and <1 NTU turbidity, in roughly 60% of the footprint an equivalent CAS basin would need. A 0.1 μm PVDF flat-sheet MBR module is increasingly used as the final barrier before the sewer on tight-footprint refinery retrofits.
Stage 5 — polishing and monitoring. A multimedia filter catches TSS breakthrough; an online fluorescence-based oil-in-water analyzer on the final effluent line alarms on a 10–20 mg/L setpoint; pH/conductivity probes feed the control room. The table below maps each stage to its primary removal target and the risk it controls under 40 CFR Part 403.
| Stage | Unit operation | Primary target | Key operating number | 40 CFR 403 risk controlled |
|---|---|---|---|---|
| 1 | API / CPI | Free oil | 100–200 mg/L O&G out | Pass-through (oil) |
| 2 | DAF / IGF | Emulsified oil, colloidal TSS | A/S 0.02–0.06; recycle 20–50% | Pass-through (oil, TSS) |
| 3 | EQ + neutralization | Flow, pH, sulfide spikes | 8–24 h HRT; pH 6–9 | Interference (pH, slug flow) |
| 4 | MBBR / MBR | Phenols, sulfides, BTEX, NH₃ | MLSS 8,000–12,000 mg/L (MBR) | Interference + pass-through |
| 5 | Polish + online monitoring | TSS breakthrough, alarm | Oil-in-water alarm 10–20 mg/L | Documentation defense |
Pollutant-to-Stage Removal Map
The table below is the quick reference an engineer pulls out during an NC DEQ or POTW inspection to defend each line on the DMR. Inlet ranges describe the engineering bands seen in practice; the number in your permit is set by the local control authority and can be more stringent than the ranges shown.
| Pollutant | Typical refinery inlet to pretreatment | Typical POTW local limit | Primary removal stage | Polishing / protection step |
|---|---|---|---|---|
| Oil & grease | 200–1,000 mg/L | 50–100 mg/L | API → DAF | Multimedia filter; oil-in-water analyzer |
| TSS | 100–500 mg/L | 30–100 mg/L | DAF → MBR | MBR (PVDF, <1 μm) or multimedia filter |
| Total sulfides | 5–50 mg/L | 1–10 mg/L | Equalization + biological sulfide oxidation | MBBR/MBR polishing; online S²⁻ probe |
| Phenols | 5–50 mg/L | 0.5–5 mg/L | Biological oxidation (MBBR/MBR) | Activated carbon or AOP if required |
| BTEX (total) | 1–10 mg/L | 0.1–1 mg/L (often quarterly GC/MS) | Air stripping / biological oxidation | GAC polish; quarterly compliance sampling |
| Ammonia-N | 10–50 mg/L | 10–30 mg/L | MBR nitrification | MBR flat-sheet modules; online NH₃ probe |
| pH | 5–12 s.u. | 6–9 s.u. | EQ + neutralization | Online pH trim with interlock to sewer shutoff |
| Hexavalent chromium | 0.1–1 mg/L | 0.05–0.10 mg/L (quarterly) | Reduction to Cr(III) + precipitation | Sand/multimedia filter; quarterly metals sampling |
For tight-footprint refinery retrofits, the polishing step on the last four rows is increasingly a 0.1 μm PVDF flat-sheet MBR module, used as the final barrier before the sewer rather than as the sole biological stage. The role of the MBR here is containment of biomass and solids, not a free-standing removal claim.
The Documentation Defense: SIU Permit, DMR, Slug Plan, Records
The treatment train is the engineering side; the documentation side is where most EPA and state enforcement actions actually land. A refinery's pass-through/interference defense runs through five repeatable steps. Engineers at Piedmont-area chemical plants face the same documentation framework — see the Piedmont-area chemical plant pretreatment playbook for the parallel arc on a different effluent profile.
Step 1 — Get classified as a Significant Industrial User (SIU) and obtain a control mechanism from the POTW control authority. The control mechanism lists the local numerical limits, the monitoring schedule, and the reporting cadence. Until that document is in hand, the refinery is still on the hook under 40 CFR 403.5(a), but without a defined sampling schedule.
Step 2 — Self-monitoring. Most POTWs require 24-hour flow-weighted composite sampling on a defined cadence — typically monthly for O&G, TSS, sulfides, phenols, and ammonia, and quarterly for metals, BTEX, and hexavalent chromium. Results are reported on a DMR or its local equivalent, and exceedances trigger accelerated monitoring.
Step 3 — Slug-control plan. EPA enforcement under 40 CFR Part 403.8(b)(4) and the SIU permit language repeatedly targets the slug-control plan. The plan must be written, current, and trained out, covering loading racks, tank transitions, and batch discharges; it must define what counts as a slug, what the refinery will do to contain it, and how it will notify the POTW. Any discharge that could cause interference must be reported within 24 hours.
Step 4 — Accidental-discharge reporting. When a slug escapes — a spent-caustic overflow, a desalter upset, a tank-bottom-water release — the refinery must notify the POTW and the relevant hazardous-waste authorities within the EPA-prescribed window and follow up with a written report describing the cause, the corrective action, and the revised prevention measures. Slug plans that exist on paper but were not followed are the most common root cause in consent decrees.
Step 5 — Maintain auditable records of BMPs, chemical inventory (the SIU permit lists restricted chemicals), and operator training. These are the items an EPA inspector or a POTW control-authority inspector will request first. Keep the chain of custody for every composite sample, the calibration logs for the online analyzers, and the training records for the operators who run the DAF, EQ basin, and biotreater. The paper trail is what turns a "no pass-through" claim into a defensible one.
Dunn-Area Audit-Prep Checklist
Run this list in the 30 days before an NC DEQ or City of Dunn POTW inspection:
- Confirm current SIU permit is on file and the local-limit table is posted in the control room.
- Verify the DAF A/S ratio and saturator recycle are within 0.02–0.06 and 20–50% of forward flow, and that the MBR MLSS is held between 8,000 and 12,000 mg/L.
- Pull the last 12 months of DMRs and the slug-control plan training log; confirm operator signatures are dated and current.
- Confirm the online oil-in-water analyzer alarm setpoint is between 10 and 20 mg/L and that the pH/conductivity probes are calibrated to the last documented date.
- Walk the EQ basin 8–24 h HRT, confirm spent-caustic diversion is documented, and verify the pH trim loop is interlocked to the sewer shutoff valve.
Frequently Asked Questions
What is pass-through under 40 CFR Part 403?
Pass-through, defined in 40 CFR Part 403.3(p), is a discharge that exits the POTW into waters of the U.S. and, alone or in conjunction with other sources, is a cause of a violation of the POTW's NPDES permit — including any increase in the magnitude or duration of an existing violation. The test is made on the receiving plant's effluent, not the refinery's internal sewer.
What is interference under 40 CFR Part 403?
Interference, defined in 40 CFR Part 403.3(k), is a discharge that inhibits or disrupts the POTW, its treatment processes, or its sludge use and disposal, and therefore causes a violation of the POTW's NPDES permit or of sewage-sludge requirements under CWA §405 or RCRA. Sulfides and phenols are the most common interference triggers at a refinery.
What are the typical Dunn-area POTW local limits for oil & grease, sulfides, and phenols?
Typical Dunn-area POTW local limits sit at 50–100 mg/L for O&G, 1–10 mg/L for total sulfides, and 0.5–5 mg/L for phenols, with metals and BTEX pulled in as quarterly monitoring parameters under the SIU permit (HydropureWater field data, 2026). The federal categorical bar under 40 CFR Part 419 may be looser; the refinery must clear whichever limit is lower.
What specific prohibitions apply regardless of permit status?
40 CFR Part 403.5(b) sets specific prohibitions: closed-cup flashpoint below 140 °F (60 °C), pH below 5.0 unless the works is designed for it, solids or viscous wastes at volumes that obstruct flow, heat that pushes the POTW headworks above 40 °C (104 °F), and petroleum or non-biodegradable oil at loadings that cause interference or pass-through (per EPA, 40 CFR 403.5(b)).
How quickly must a refinery notify the POTW of a slug discharge?
Any discharge that could cause interference must be reported within 24 hours of the event under the slug-control plan required by 40 CFR Part 403.8(b)(4) and the SIU permit, with a written follow-up describing the cause, corrective action, and revised prevention measures. Slug plans that exist on paper but were not followed are the most common root cause in consent decrees.
