What Defines RO Water Purification Design Criteria in 2026
RO water purification design criteria in 2026 rest on four parameters. Feed pressure runs 2-17 bar on fresh or brackish water and 40-82 bar on seawater, with recovery at 75-80% (up to 95%). Specific energy is 0.1-1 kWh/m³ for wastewater RO or about 3 kWh/m³ for seawater, and feed SDI must stay below 3.
The four parameters cascade. Feed pressure dictates pump selection and high-pressure piping class. Recovery rate sets required membrane area because higher recovery recycles more concentrate across the same membrane surface. Flux in L/m²·h (LMH) decides how many vessels run in parallel and how many stages are needed. Specific energy sets the operating-cost ceiling the project must defend against alternatives. A specification that locks pressure and recovery without checking flux and energy fails at commissioning.
Cost sensitivity tracks energy. Wastewater RO at 0.1-1 kWh/m³ usually runs on standard three-phase power. Seawater RO near 3 kWh/m³ typically needs an energy-recovery device and turns uneconomic above about 6 kWh/m³ without one. Most plants we size for brackish process water resolve these four values before selecting pumps or vessels. Engineers specifying an industrial RO water treatment system should freeze pressure, recovery, flux, and energy first.
Feed Pressure and Recovery Rate by Water Source
Feed pressure for RO systems falls into three salinity bands. Fresh water with low TDS runs 2-6 bar; brackish water at 1,000-10,000 mg/L TDS runs 6-17 bar; seawater at 35,000 mg/L TDS runs 40-82 bar (Wikipedia, "Reverse osmosis"). Osmotic pressure at the concentrate outlet sets the floor, and designers add 1-3 bar of net driving pressure on top.
Recovery rate has the widest design spread, and it is where many 2026 specifications go wrong. Wikipedia's brackish-water recovery band is 80-85%. Large-scale industrial and municipal systems recover 75-80% (up to 90% when the plant can generate higher pressure). Small seawater systems recover around 20%. Larger seawater systems recover 40-50% to control fouling and energy draw. For industrial process water and high-recovery trains, recovery can reach 95% with concentrate treatment or ZLD polishing — see the high-recovery RO vs ZLD decision analysis for brine-disposal break-even logic.
| Feed-Water Type | Feed Pressure (bar) | Typical Recovery (%) | Design Notes |
|---|---|---|---|
| Fresh water / tap | 2-6 | 75-85 | Low-pressure BWRO elements; verify scaling index |
| Brackish water (industrial) | 6-17 | 75-80 (up to 90 large-scale) | Standard 2:1 array; antiscalant required above 70% recovery |
| High-recovery brackish | 10-17 | up to 95 | Requires concentrate recirculation and tight scaling control |
| Seawater (small) | 40-70 | ~20 | Single-stage, energy recovery device justified above 10 m³/h |
| Seawater (large) | 55-82 | 40-50 | Two-stage with ERD; pass-2 booster pump typical |
Pushing recovery from 75% to 85% raises concentrate-side osmotic pressure by 30-50% and concentrate-side scaling index by 50-100%. Both raise specific energy and antiscalant dose. Plot the recovery-versus-specific-energy curve for the actual feed and pick the knee point, not the maximum number printed on a membrane brochure.

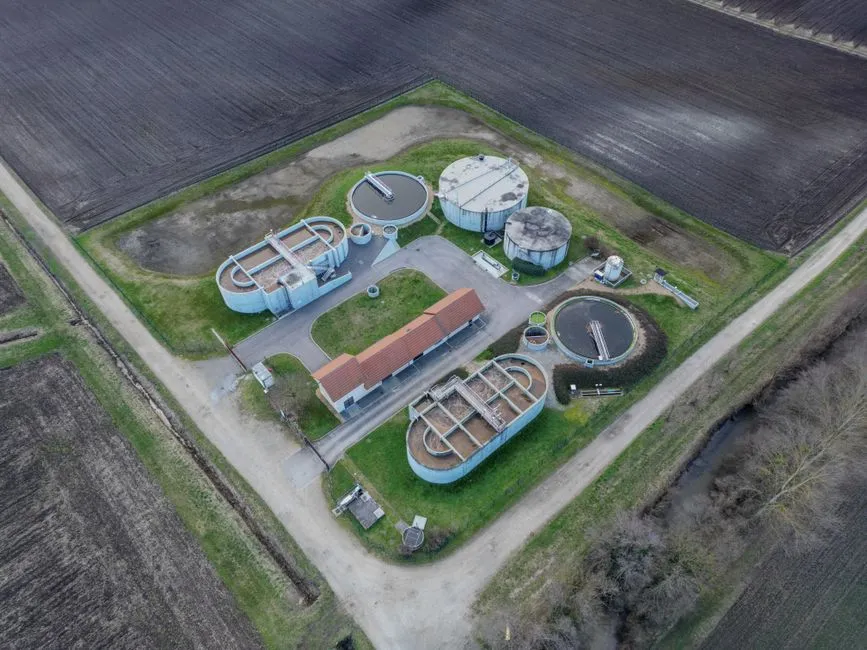

How to Select Clarifier Duty Before RO Design
Clarifier selection for industrial wastewater sits upstream of RO and does not replace membrane design criteria. Secondary clarifiers settle biomass or coagulated solids after biological or chemical treatment; they control settleable solids, not dissolved salts. Plants that skip this boundary mix unit-operation duties and under-size either the clarifier or the RO pretreatment train.
What are the design criteria for secondary clarifiers?
Secondary clarifier design criteria belong to the biological treatment train — solids loading, overflow rate, and sludge blanket control — not to the RO skid nameplate. Those hydraulic and solids limits are set by the bioreactor and sludge settleability. After clarification, residual dissolved solids still require RO purification design criteria for feed pressure, recovery, flux, SDI, and energy. Treat clarifier sizing and RO sizing as sequential packages, not interchangeable checklists.
When the brief asks how to select a clarifier system for industrial wastewater design criteria, start with solids removal targets and sludge handling, then hand clarified water to the RO pretreatment train. An Integrated Water Purification System (JY Series) packages clarification-style pretreatment with downstream polishing when a plant needs one vendor envelope. Keep the RO membrane limits separate so SDI, free chlorine, and recovery stay explicit.
Pretreatment Criteria: SDI, Turbidity, and Free Chlorine Limits
Feed-water Silt Density Index (SDI) must be below 3 at the RO inlet, with a design target below 2 for thin-film composite (TFC) polyamide membranes at industrial flux. Turbidity must be below 1 NTU after the final pretreatment step. These two numbers cause more premature flux decline and shortened membrane life in field service than any other pair of limits. Every operating parameter depends on them being met consistently, not on average.
Free chlorine is the third pretreatment limit and the one most often violated. TFC polyamide membranes tolerate less than 0.1 mg/L free chlorine continuously. Above that level, chloramine oxidation attacks the polyamide cross-link structure, raising salt passage and cutting rejection within weeks. Standard practice injects sodium metabisulfite (SMBS) upstream of the cartridge filter at roughly 3 mg SMBS per 1 mg Cl₂, sized for the maximum chlorine residual in the feed. That is why most industrial trains treat activated carbon or SMBS dosing as non-optional.
Multi-media filtration is the workhorse that hits SDI <3 and turbidity <1 NTU for most surface-water and clarified-wastewater feeds. Sand-anthracite-garnet beds rated at 10-15 m/h filtration velocity typically deliver SDI 1-3 on settled feed. Higher-solids feeds need coagulation upstream of the filter. The multi-media RO pretreatment filter should be sized to a mass-loading rate of 5-10 g/m² of backwash water per cycle, not only to flow rate. Wikipedia notes that TFC membrane permeability can improve 30-40% when flow across the membrane surface stays uniform — a result that depends on feed quality leaving pretreatment.
Flux, Staging, and Membrane Area Sizing
Flux is permeate volumetric flow per unit membrane area, expressed in LMH (L/m²·h). For brackish-water RO at 25°C, the industrial design range is 15-25 LMH. Seawater typically runs 10-15 LMH. High-recovery brackish or wastewater reuse often stays below 15 LMH to control fouling at the concentrate end. Operating above 25 LMH on industrial feed accelerates fouling and can cut cleaning intervals from 6-12 months down to weeks.
Staging links flux to recovery. A single-stage 1:1 array suits recovery up to 50%. A 2:1 array (two stage-1 vessels feeding one stage-2 vessel) targets about 75% recovery on brackish water. Multi-pass trains add a second RO pass over first-pass permeate to reach 99%+ rejection for high-purity duty. Stage-1 concentrate becomes stage-2 feed. Stage-2 concentrate goes to brine treatment or recycles to the head of the system for high-recovery designs.
| Parameter | Brackish (BWRO) | Seawater (SWRO) | High-Purity / Reuse |
|---|---|---|---|
| Design flux (LMH) | 15-25 | 10-15 | 15-22 (1st pass), 20-30 (2nd pass) |
| Recovery target (%) | 75-80 | 40-50 | 85-90 (overall) |
| Array (typical) | 2:1 single-pass | 1:1 or 2:1 single-stage | 2:1 + 1:1 two-pass |
| Rejection (%) | 95-99 | 99-99.8 | 99.5-99.9 (post-EDI) |
Required membrane area equals permeate flow divided by flux times operating hours. For a 100 m³/h plant at 20 LMH and 22 hours/day, total membrane area is 100,000 / (20 × 22) ≈ 227 m². Dividing by the active area of a standard 8-inch element (~37 m²) gives 6-7 elements per pressure vessel and about 4-6 vessels in the first stage of a 2:1 array. The same logic applies to RO design for high-hardness wastewater, where flux often drops to 12-18 LMH to manage calcium sulfate scaling risk.
Energy Consumption and Operating Cost Design Points
Specific energy converts directly to kWh cost per cubic meter of permeate, so it is the most economically sensitive design parameter. The 2026 baseline numbers from Wikipedia remain 0.1-1 kWh/m³ for wastewater RO (low-pressure brackish included) and roughly 3 kWh/m³ for seawater RO without energy recovery. A brackish system at 75% recovery and 10 bar typically sits at 0.4-0.6 kWh/m³. The same train pushed to 85% recovery at 14 bar often sits at 0.8-1.0 kWh/m³.
For seawater systems, the energy-recovery device (ERD) is the largest operating-cost lever. Industry-accepted values put SWRO with an isobaric ERD at 1.5-2 kWh/m³, a 35-50% cut versus the 3 kWh/m³ baseline without recovery. Pelton-wheel and turbocharger ERDs reach similar ranges at slightly lower capital cost. Above about 50% recovery on SWRO, the osmotic ceiling forces specific energy back up rapidly.
Higher recovery lowers specific energy per cubic meter of permeate but raises specific energy per cubic meter of feed pressurized. At 75% recovery, 1.33 m³ of feed is pressurized per 1 m³ of permeate. At 90% recovery, 1.11 m³ of feed is pressurized per 1 m³ of permeate, yet at higher pressure because concentrate-side osmotic pressure has risen. Plot both curves before locking recovery. Engineers comparing operating economics should review the energy profile of an industrial RO water treatment system against site power tariffs before finalizing recovery.
Selecting the Right RO Configuration by Application
Application drives configuration, and configuration fixes every parameter above. Boiler feedwater typically uses single-pass BWRO with 95-98% rejection and antiscalant dosing. Pharmaceutical and semiconductor plants need double-pass RO plus electrodeionization (EDI) to reach 16-18 MΩ·cm resistivity. Food and beverage plants use single-pass BWRO with CIP-friendly sanitary piping. Power stations on brackish cooling-tower makeup often target high-recovery BWRO at 85-90% to cut blowdown disposal cost. The wrong configuration usually doubles energy cost or halves membrane life.
High-recovery designs (90-95%) pay when brine disposal is expensive — deep-well injection fees, off-site hauling, or ZLD evaporator capacity limits. Standard 75-80% recovery remains the economic optimum for most industrial sites with sewer disposal at typical municipal rates. If brine disposal exceeds roughly $5-10 per cubic meter of concentrate, high-recovery often pays back within 2-3 years. The pretreatment sequence stays fixed across applications: multi-media filter → cartridge filter (5 µm absolute) → RO, with SMBS between the cartridge filter and RO for residual chlorine control.
| Application | Configuration | Recovery (%) | Rejection Target | Post-Treatment |
|---|---|---|---|---|
| Boiler feedwater | Single-pass BWRO | 75-80 | 95-98% | Mixed-bed polish optional |
| Pharmaceutical / semiconductor | Double-pass RO + EDI | 85-90 | 99.5-99.9% | EDI to 16-18 MΩ·cm |
| Food & beverage | Single-pass BWRO, sanitary | 75-80 | 96-98% | CIP loop, UV optional |
| Power — cooling-tower makeup | High-recovery BWRO | 85-90 | 95-98% | Side-stream filtration |
| Seawater desalination | Single-stage SWRO + ERD | 40-50 | 99-99.8% | Calcite contactor, disinfection |
An industrial RO water treatment system specified in 2026 should carry four core parameters on its nameplate: feed pressure band, design recovery, design flux, and specific energy at design point. If any item is missing, the package is not ready for procurement. Compact plants can also evaluate an Integrated Water Purification System (JY Series) when pretreatment and RO need to ship as one skid.
Who This Is For and Next Step
This guide is for plant engineers, EPC contractors, and procurement managers sizing industrial or municipal RO trains from feed analysis through nameplate limits. Teams shopping only for primary clarifier hardware without a dissolved-solids removal step should stay on the solids-separation scope and return here when permeate quality targets appear. Before issuing an RFQ, freeze feed TDS, SDI path, recovery, flux, and specific energy, then request a quote with those four numbers attached.
Frequently Asked Questions
What is the standard feed pressure for brackish water RO systems?
Brackish-water RO systems operate between 6 and 17 bar of feed pressure, with the setpoint driven by feed TDS and concentrate-side osmotic pressure at design recovery (per Wikipedia, "Reverse osmosis"). Standard industrial plants at 75% recovery typically run 10-14 bar. High-recovery plants near 90% sit at the upper end of the band when concentrate osmotic pressure demands it.
What SDI value is required to protect RO membranes?
Feed-water SDI must be below 3 at the RO membrane inlet, with a design target below 2 for thin-film composite polyamide membranes. Turbidity at the same point must stay below 1 NTU. Exceeding these limits typically doubles the rate of flux decline and halves the interval between cleanings on industrial feed water.
What is the typical specific energy for wastewater RO versus seawater RO?
Wastewater RO runs at 0.1-1 kWh/m³ depending on feed salinity and recovery. Seawater RO runs at roughly 3 kWh/m³ without energy recovery and drops to 1.5-2 kWh/m³ with an isobaric or Pelton energy-recovery device (per Wikipedia, "Reverse osmosis"). Site power tariff then converts those figures into annual operating cost.
What recovery rate is achievable on industrial brackish water systems?
Standard industrial BWRO recovers 75-80% of feed water. Large-scale municipal and industrial plants can reach 90% when they generate the required pressure. High-recovery configurations with concentrate treatment reach 95% (per Wikipedia, "Reverse osmosis") when scaling chemistry and brine handling allow it.
What free chlorine limit applies to polyamide TFC membranes?
Polyamide TFC membranes tolerate less than 0.1 mg/L free chlorine continuously. Above that threshold, oxidative damage raises salt passage and reduces rejection within weeks of exposure. SMBS dosing at roughly 3 mg per 1 mg Cl₂ remains the standard protection method ahead of the cartridge filter.
