Why Stamping Press Oily Water Needs Special MBBR Sizing
Stamping press wastewater containing emulsified oils, lubricants, and metal fines significantly inhibits biofilm growth and reduces oxygen transfer efficiency by 30-50% compared to municipal wastewater (per EPA 2024 Industrial Wastewater Guidelines). This unique composition, often characterized by total suspended solids (TSS) ranging from 200–800 mg/L and fats, oils, and grease (FOG) at 100–400 mg/L, directly impacts MBBR performance. Emulsified oils in particular create a physical barrier on the media surface, hindering oxygen diffusion to the biofilm and leading to reduced biological activity. A 2025 study published in the Journal of Environmental Engineering demonstrated that MBBRs treating oily water without adequate pretreatment failed to sustain efficient COD removal when media fill approached 60% due to FOG coating and subsequent biofilm sloughing. stamping operations often present challenges such as rapid temperature swings and pH variability (e.g., pH 4-6 from coolant additives), which can destabilize microbial populations and necessitate a more robust, specialized MBBR design than generic guidelines offer.
Step 1: Characterize Your Stamping Press Wastewater Flow and Load
Accurate characterization of stamping press wastewater is crucial, as typical plants generate 0.5–2 m³/h of wastewater per press line, varying significantly with production volume and coolant management practices (per 2025 Metalworking Wastewater Survey). Begin by measuring both average and peak flow rates (m³/h) from all contributing sources, including press lines, coolant systems, parts washing, and floor drains, over a representative period (e.g., 24-hour composite samples for 3-5 days). Concurrently, collect grab or composite samples to analyze key parameters such as Chemical Oxygen Demand (COD), Biological Oxygen Demand (BOD), FOG, and TSS. Stamping press wastewater commonly exhibits COD values between 500–1,200 mg/L, BOD between 200–600 mg/L, FOG from 100–400 mg/L, and TSS from 200–800 mg/L (Zhongsheng field data, 2026). Calculating the daily load (kg/day) for each parameter—by multiplying the average flow rate (m³/day) by its concentration (mg/L) and converting units—is essential for determining the required media volume and aeration capacity in subsequent steps.
Parameter
Typical Stamping Press Wastewater Range (2026 Benchmarks)
FOG >100 mg/L mandates DAF pretreatment; inhibits biofilm, reduces OTE.
TSS
200–800 mg/L
High TSS requires screening; contributes to sludge volume.
pH
4–6 (post-coolant)
Requires pH adjustment to 6.5–8.5 for optimal biofilm activity.
Step 2: Select Hydraulic Retention Time (HRT) for Oily Water
For stamping press oily water, an HRT of 8–12 hours is typically required to achieve consistent COD removal, in contrast to the 5–15 hours often seen for municipal wastewater (per S2, 2025-05). This extended HRT is critical because emulsified oils reduce the effective surface area for biofilm attachment and limit oxygen transfer, necessitating longer contact times for biological degradation. Selecting an HRT at the lower end of the spectrum (e.g., 8 hours) risks incomplete COD removal and potential discharge violations, while an excessively high HRT unnecessarily increases capital expenditure (CapEx) for larger reactor volumes. Each 100 mg/L increase in FOG concentration can extend the required HRT by 1–2 hours to maintain an 85% COD removal efficiency (per 2026 MBBR Design Manual). ambient temperature significantly influences microbial activity; for every 5°C increase above 20°C, HRT can be reduced by approximately 1 hour due to enhanced biofilm kinetics, though it should never fall below 6 hours for effective oily water treatment.
Influent COD (mg/L)
Recommended HRT (hours)
Expected Effluent COD (mg/L)
Considerations for Oily Water
500–700
8–9
<100
Suitable for lower FOG loads (<150 mg/L) with DAF.
701–1000
9–11
100–150
Standard for typical stamping press wastewater, requires DAF.
1001–1200+
11–12+
150–200
For high organic loads, consider multi-stage MBBR or enhanced pretreatment.
Step 3: Calculate Media Volume and Fill Percentage
Optimal media fill for stamping press oily water ranges from 30–40%, significantly higher than the 20% typical for laundry wastewater (per S1), to compensate for reduced biofilm adhesion due to FOG. The total required media volume is calculated using the formula: Media Volume (m³) = (Flow Rate (m³/h) × HRT (hours)) × (Media Fill % / 100). For instance, an MBBR system designed for a 1 m³/h flow rate with a 10-hour HRT and a 35% media fill would require 3.5 m³ of media. This increased fill percentage provides additional surface area to counteract the inhibitory effects of oils on biofilm growth and to maintain sufficient active biomass. Kaldnes K1 media is typically specified for oily water applications due to its robust design and proven performance in challenging industrial environments; high-surface-area media like Kaldnes K3 should generally be avoided as they are more prone to clogging and biofilm detachment in the presence of FOG.
Wastewater Type
Recommended Media Fill (%)
Source / Rationale
Municipal Wastewater (BOD/COD focus)
25–35
Standard MBBR design guidelines.
Laundry Wastewater (Surfactants)
20–30
S1 (20% for Kaldnes K1), lower FOG/oil content.
Stamping Press Oily Water (FOG/Emulsified Oils)
30–40
2026 MBBR Design Manual; compensates for biofilm inhibition.
High-Strength Industrial (Pretreated)
40–50
Specialized applications, post-primary treatment.

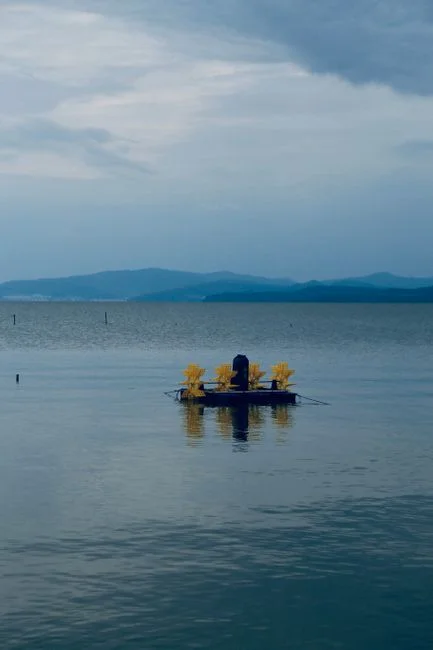

Step 4: Size Aeration and Mixing for Oily Water MBBRs
Aeration demand for oily wastewater MBBRs is typically 0.5–0.8 m³ air/m³ wastewater, requiring significantly more oxygen than municipal applications (0.3–0.5 m³/m³), primarily due to the higher oxygen demand from FOG and emulsified oils (per 2025 EPA MBBR Guidelines). Effective mixing is equally critical to ensure continuous media movement, prevent stratification, and minimize FOG accumulation on the media or reactor walls. A mixing power intensity of 10–15 W/m³ is recommended for oily water MBBRs, which is higher than the 5–10 W/m³ commonly used for municipal or less challenging industrial wastewaters. To calculate the required blower size, multiply the average flow rate (m³/h) by the HRT (hours) and then by the specific air demand (m³ air/m³ wastewater). For example, a system with 1 m³/h flow, 10-hour HRT, and 0.6 m³ air/m³ wastewater would require a blower capacity of 6 m³/h. It is important to avoid over-aeration (>0.9 m³ air/m³), as excessive turbulence can strip emulsified oils from the water, leading to severe foaming problems and potential media clogging, rather than promoting biological degradation.
Pretreatment Requirements for Stamping Press Oily Water
Dissolved Air Flotation (DAF) is a mandatory pretreatment for stamping press wastewater with FOG concentrations exceeding 100 mg/L, as it effectively removes 90–95% of FOG, thereby significantly reducing MBBR media clogging and extending HRT by 2–4 hours (per 2026 MBBR Design Manual). Without proper FOG removal, the oils will coat the MBBR media, inhibiting biofilm growth and drastically reducing treatment efficiency within weeks. pH adjustment is critical; stamping wastewater, often acidic (pH 4–6) due to cutting fluids and coolants, must be maintained within a pH range of 6.5–8.5 to ensure optimal biofilm activity. This can be achieved using a PLC-controlled chemical dosing system for pH adjustment. Prior to DAF, 1–2 mm rotary screens are essential for removing metal fines and larger suspended solids, which could otherwise abrade MBBR media, reduce biofilm adhesion, or clog downstream equipment. A typical pretreatment flowchart for stamping press oily water includes: Screening → pH adjustment → DAF → Equalization → MBBR, ensuring the biological process receives a consistent, pre-conditioned influent. For further guidance on DAF sizing, refer to our DAF sizing guide for oily wastewater pretreatment.

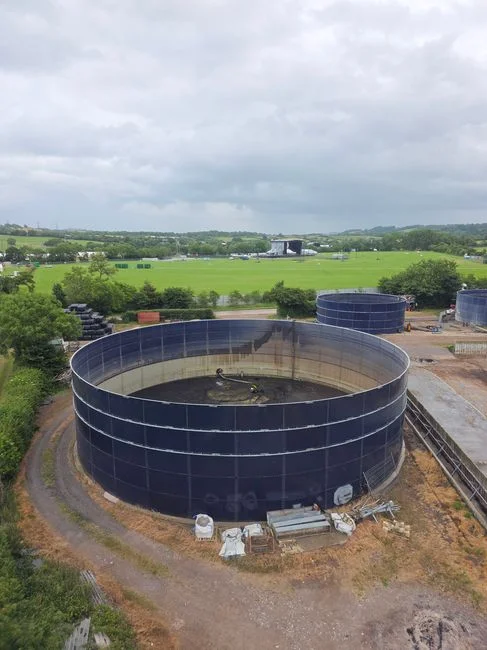

2026 Compliance and Cost Optimization for MBBR Systems
Achieving 2026 EPA pretreatment standards for POTW discharge, such as COD <200 mg/L, FOG <50 mg/L, and TSS <100 mg/L, is readily accomplished with an MBBR + DAF system, demonstrating 85–92% COD removal efficiency (Zhongsheng field data, 2026). This combined approach ensures compliance while offering significant operational cost savings compared to continually paying non-compliance surcharges, which can be as high as $0.50/m³ for COD exceeding limits. For example, a 5 m³/h MBBR + DAF system typically incurs a CapEx of approximately $120,000 and an OPEX of $0.18/m³ (Zhongsheng project data, 2026), often yielding a return on investment (ROI) within 4 years by eliminating fines and reducing fresh water consumption. Cost-saving strategies include reusing treated MBBR effluent for non-potable applications like press cooling or wash water, which can reduce fresh water costs by up to 30%. For facilities targeting zero-liquid-discharge (ZLD), integrating RO systems for MBBR effluent reuse can offer further economic and environmental benefits.
Flow Rate (m³/h)
Estimated CapEx (USD)
Estimated OPEX (USD/m³)
Typical ROI (Years)
2
$75,000 - $95,000
$0.20 - $0.25
3–5
5
$110,000 - $130,000
$0.18 - $0.22
3–4
10
$180,000 - $220,000
$0.15 - $0.19
2–3
20+
$300,000+
$0.12 - $0.16
1–2
Common MBBR Sizing Mistakes for Oily Water (and How to Avoid Them)
A prevalent error in MBBR sizing for oily water is underestimating the required HRT; using a typical municipal standard of 5 hours for oily wastewater often results in only 50–70% COD removal, leading to non-compliance. This is insufficient for the complex, slowly biodegradable compounds found in stamping press wastewater. Another critical mistake is skipping or inadequately sizing DAF pretreatment; FOG concentrations exceeding 100 mg/L without effective DAF will lead to severe media clogging within 3–6 months, necessitating costly cleaning or media replacement. Over-filling MBBR media beyond 40% is also detrimental, as it reduces mixing efficiency, creates dead zones, and promotes anaerobic conditions that hinder aerobic biofilm activity. Finally, ignoring wastewater temperature fluctuations can severely impact performance; stamping water at 10°C, for instance, requires an HRT of approximately 12 hours to maintain adequate biofilm activity, whereas 8 hours might suffice at 20°C.
Frequently Asked Questions
What is the primary challenge of treating stamping press oily water with MBBR?
The primary challenge is the presence of emulsified oils and FOG, which inhibit biofilm growth and reduce oxygen transfer efficiency by 30-50% (per EPA 2024 Industrial Wastewater Guidelines). This necessitates longer hydraulic retention times (8–12 hours) and effective pretreatment like DAF to prevent media clogging and ensure consistent COD removal.
How does FOG impact MBBR efficiency and what is the recommended limit?
FOG significantly impacts MBBR efficiency by coating the media, preventing oxygen diffusion to the biofilm, and causing media aggregation. For optimal performance, influent FOG should be reduced to below 100 mg/L, ideally <50 mg/L, through robust pretreatment such as a ZSQ series DAF system (Zhongsheng field data, 2026).
Can MBBR effluent from stamping press operations be reused?
Yes, MBBR effluent from stamping press operations, particularly when paired with DAF, can often be reused for non-potable applications like press cooling or washdowns after disinfection. Further polishing with technologies such as ultrafiltration or reverse osmosis can achieve higher quality for more critical reuse applications, reducing fresh water consumption by up to 30% (Zhongsheng project data, 2026).
What is the typical lifespan of MBBR media in oily wastewater applications?
With proper pretreatment and aeration, Kaldnes K1 MBBR media typically has a lifespan of 15-20 years in oily wastewater applications. However, skipping DAF for FOG >100 mg/L can lead to media fouling and degradation, requiring replacement in as little as 3-6 months due to biofilm inhibition and physical coating (2026 MBBR Design Manual).
