MBBR for Rendering Plant Wastewater Design: 2026 Process & Cost Guide

Why Rendering Wastewater Challenges Conventional Biological Treatment

Rendering plant effluent typically carries COD of 5,000–25,000 mg/L, BOD of 2,500–12,000 mg/L, TKN of 200–800 mg/L, total phosphorus of 30–150 mg/L, FOG of 500–3,000 mg/L, and source temperatures of 30–55°C (per Zhongsheng field data, 2026). The BOD/COD ratio sits at 0.4–0.6, confirming high biodegradability, but the substrate is dominated by blood proteins, soluble lipids, and suspended paunch solids that hydrolyze slowly and release ammonia in pulses as rendering batches cycle. A conventional activated sludge basin cannot absorb that combination. Filamentous organisms bloom on residual FOG that slips past pre-treatment, sludge volume indices routinely exceed 200 mL/g, and nitrification collapses whenever free ammonia exceeds 10–15 mg/L — a near-daily event in batch-rendered cookers. Observed yield coefficients on rendering ASP run 0.4–0.6 kg VSS/kg COD removed, so a 100 m³/day plant hauling 8,000 mg/L COD produces roughly 2,500–4,000 kg DS/day of waste activated sludge. The influent also carries sulfide from blood breakdown, surfactants from caustic-in-place cleaning, and residual sanitizers (typically quaternary ammonium or peracetic acid) — each capable of knocking out a suspended-growth culture within hours. The result is chronic SVI violations, nitrification failure, and a clarifier that turns into a floating mat within a shift. Any biological system that targets this stream must protect biomass from the toxicity while still metabolizing the load.

How MBBR Works for High-Strength Rendering Effluent

MBBR passes free-floating HDPE biofilm carriers through aerated reactors, where coarse-bubble diffusers keep the media in constant motion and transfer oxygen to the attached biomass. Carrier density of 0.94–0.97 g/cm³ is slightly below water, so aeration energy alone suspends the bed without mechanical mixers. Protected internal surface area of 500–1,200 m²/m³ of carrier — most 2026 industrial designs using 600–800 m²/m³ — provides far more biomass inventory per unit reactor volume than a suspended-growth system (Zhongsheng field data, 2026). The biofilm structure itself is the key engineering advantage on rendering duty: a 50–200 µm diffusion layer buffers attached cells from ammonia shocks above 50 mg/L NH₃-N, sulfide excursions above 20 mg/L, and FOG micro-spikes that would lyse flocs in an aeration basin. Carrier fill of 30–60% of working volume — 40% as the typical mid-point for rendering applications — balances biological capacity against the risk of carrier carryover through effluent screens and the aeration horsepower needed to fluidize the bed. No sludge recirculation is required: biomass grows on the carriers, excess sloughs off with the effluent, and the wasting step is implicit in carrier drag-out. This eliminates return activated sludge pumping, the secondary clarifier dependency, and the most common failure mode of a rendering ASP.

MBBR Design Parameters for Rendering Plant Wastewater (2026 Benchmarks)

Design a dual-stage MBBR for rendering duty in 2026 using the parameter set below. The high-rate carbon stage operates at 15–40 g COD/m²·day on protected carrier area, or 4–10 kg COD/m³·day of reactor working volume (Zhongsheng field data, 2026). The nitrification stage runs much lower at 0.5–1.5 g NH₃-N/m²·day because Nitrosomonas and Nitrobacter grow at 5–10× the doubling time of heterotrophs. Hydraulic retention time splits as 8–16 h for Stage 1 and 10–20 h for Stage 2, giving 18–36 h total MBBR HRT on raw rendering influent. Hold dissolved oxygen at 2–4 mg/L in both stages with coarse-bubble aeration delivering 30–60 Nm³ air per m³ of wastewater treated. The practical operating window is 25–32°C once the stream is pre-cooled — nitrification rates drop sharply below 15°C but the rendering stream arrives hot, so winter operation is rarely rate-limiting. Maintain pH at 6.5–8.5 with 7.0–7.5 as the nitrification optimum; protein hydrolysis depresses pH in the carbon stage and alkalinity supplementation at 4–6 mg CaCO₃ per mg NH₃-N nitrified is standard practice. Carrier specification: HDPE, 10–12 mm cylindrical or 25 mm Kaldnes-style, density 0.94–0.97 g/cm³, 500–1,200 m²/m³ protected area. Install a rotary fine screen for rendering headworks at 1–2 mm aperture upstream — hair, bone fragment, and paunch mat will otherwise accumulate in the reactor and blind the carrier-retaining screens.

Process Flow: Pre-Treatment Through MBBR to Discharge or Reuse

The full train runs hot process stream → coarse solids removal → DAF system for FOG and blood pre-treatment → 1–2 mm fine screening → flow equalization → Stage 1 MBBR (high-rate carbon) → Stage 2 MBBR (nitrification) → lamella clarifier for MBBR biomass separation → disinfection → discharge or RO reuse. DAF must precede the MBBR: removing >95% of FOG and blood solids upstream protects the carrier biofilm from coating and keeps the aeration diffusers from fouling. Inside the MBBR, perforated retaining screens at the effluent weir keep the 10–25 mm carriers inside the reactor while sloughed biomass and fine TSS pass through. That sloughed biomass carries 100–300 mg/L TSS off Stage 2 and requires the lamella clarifier or post-DAF to polish down to <30 mg/L for NPDES or EU rendering effluent compliance. Chlorination at 5–15 mg/L residual for 30 min contact, or UV at 30–40 mJ/cm², handles disinfection. For non-food-contact reuse, RO downstream of the lamella produces permeate suitable for boiler feed or yard wash. A properly tuned MBBR+DAF+chlorination train consistently achieves effluent COD <250 mg/L, BOD <30 mg/L, NH₃-N <10 mg/L, and TSS <30 mg/L (Zhongsheng field data, 2026) — meeting the most common municipal discharge limits applied to rendering operations. Sludge wasted from the lamella or post-DAF thickens to 2–4% DS and is dewatered with a filter press for rendering sludge dewatering to 25–35% DS cake for off-site rendering or composting.

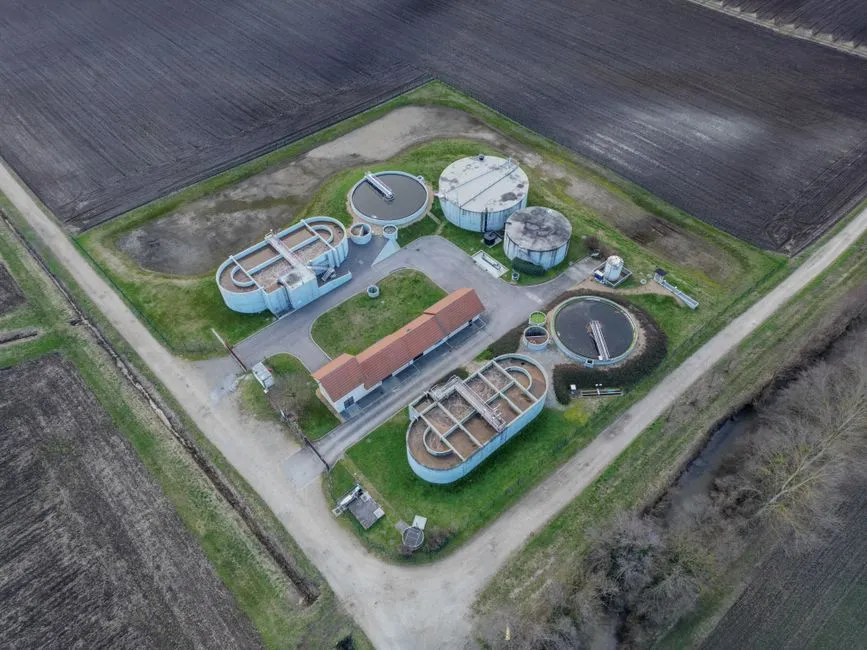

MBBR vs SBR vs Activated Sludge for Rendering Applications

For a 50–500 m³/day rendering plant, MBBR is the lowest-risk default in 2026. The decision matrix below summarizes the three options across the criteria that determine capital exposure and operating reliability on rendering duty. MBBR's decisive advantage is sludge yield 20–35% lower than conventional ASP, because biomass is retained on carriers rather than wasted as mixed liquor suspended solids, and it tolerates FOG and ammonia spikes that would crash a suspended-growth clarifier within hours. SBR offers a smaller footprint on very small flows but pays for it with long cycle times of 24–48 h versus MBBR's continuous 18–36 h flow, plus more complex decanter controls. Conventional ASP requires >95% FOG pre-removal via DAF before the biological stage and still risks filamentous bulking; it is only selected when an existing tankage must be re-used. Below 30 m³/day, packaged SBR is typically lower CAPEX. Above 500 m³/day, MBBR+DAF scales linearly with strong economics on both reactor volume and aeration efficiency.

2026 CAPEX and OPEX Benchmarks for MBBR Rendering Plants

MBBR-stage CAPEX for a 50–500 m³/day rendering plant runs $180–$450 per m³/day of installed capacity, covering reactor tankage, carriers, coarse-bubble aeration grid, and retaining screens; the lower end applies to larger flows, factory-packaged skids, and carbon-steel tankage, while the upper end reflects stainless construction, field erection, and high labor-rate destinations (Zhongsheng field data, 2026). MBBR-stage OPEX runs $0.04–$0.12 per m³ treated, dominated by aeration at 60–70% of the OPEX envelope and carrier replacement at 5–10% of media inventory per year. The full MBBR+DAF+disinfection train benchmarks at $350–$800 per m³/day for the same flow range, with DAF contributing roughly 25–30% of that total. Retrofit economics for an overloaded rendering ASP typically pay back in 18–30 months through reduced sludge-hauling costs and a 30–50% increase in hydraulic capacity on the same aeration footprint. Compared to the MBBR stage alone, a comparable MBR for palm oil mill wastewater design runs 2–3× the CAPEX at the membrane stage, which is why MBBR remains the default for rendering duty where space is not the binding constraint.

Frequently Asked Questions

What MBBR carrier fill percentage works best for rendering wastewater? 40% is the practical mid-point, with a working range of 30–60%. Below 30%, biological capacity drops and HRT must extend; above 60%, carrier carryover through the effluent screens becomes unmanageable and aeration efficiency falls.

Can MBBR handle the high FOG in rendering effluent? Yes, but only after DAF pre-treatment removes more than 95% of FOG. Without DAF, residual FOG coats the carrier surface, blocks the biofilm's diffusion layer, and triggers sloughing that washes out the nitrification stage.

How much ammonia can MBBR nitrify in rendering wastewater? Greater than 90% removal on influent TKN of 200–800 mg/L when Stage 2 HRT is 10–20 h and DO is held at 2–4 mg/L. At temperatures below 15°C, expected removal falls to 60–75% and HRT must be extended to 24–30 h to compensate.

Does MBBR require a secondary clarifier? A lamella clarifier or post-MBBR DAF is recommended to capture sloughed biomass, which leaves the reactor at 100–300 mg/L TSS. Without this polishing step, effluent TSS will not meet the <30 mg/L limit in most NPDES and EU rendering discharge permits.

What is the smallest rendering plant flow where MBBR is economical? Approximately 30 m³/day. Below that threshold, packaged SBR typically delivers lower CAPEX. Above 500 m³/day, MBBR+DAF scales linearly and remains the lowest-risk default. For related cost benchmarking across food sectors, see the food processing wastewater OPEX breakdown and the BOD removal engineering fundamentals reference; for a parallel attached-growth application, the MBBR for winery wastewater design guide uses a comparable dual-stage architecture.
