Gallium Nitride Wastewater Treatment Design: 2026 Engineering Specs, Hybrid Systems & Zero-Discharge ROI

Gallium nitride wastewater treatment for semiconductor fabs must handle dissolved arsenic (often up to 100 mg/L in process streams cited for GaN lines) plus GaN particulates from etch, CMP, MOCVD, and wafer sawing. Hybrid trains typically combine dissolved air flotation (DAF) for solids (92-97% TSS reduction), membrane bioreactors (MBR) for organics (COD <50 mg/L), and reverse osmosis (RO) for arsenic rejection (>95% for As⁵⁺ after oxidation). Zero-liquid-discharge (ZLD) add-ons with evaporative crystallizers recover 90-95% of water for reuse on tools that accept reclaim-grade permeate.

Why GaN Fab Effluent Needs a Hybrid Train

GaN fab wastewater carries high TSS (often 200-500 mg/L), acidic pH (2-4), COD of 300-800 mg/L, and arsenic at 50-100 mg/L in reported streams. Meeting discharge or reuse goals usually requires DAF for solids, MBR for COD, and oxidized RO for arsenic below 0.01 mg/L when local permits adopt drinking-water-aligned targets. Silicon-only pretreatment packages rarely size correctly for this profile.

GaN is a III/V wide-bandgap semiconductor (about 3.4 eV versus silicon at 1.1 eV) used in high-brightness LEDs, RF devices, and power electronics. Etching, chemical mechanical planarization (CMP), rinsing, MOCVD tool cleans, and wafer sawing release gallium ions (Ga³⁺), arsenic species (As³⁺/As⁵⁺), and fine GaN particulates into equalization tanks. Concentrations vary by recipe, but arsenic spikes near 100 mg/L still appear when concentrated etch baths dump into the drain without capture.

A practical distinction separates GaN from gallium arsenide (GaAs) wastewater. GaN effluent typically shows higher TSS, often 200-500 mg/L versus 100-200 mg/L on many GaAs lines. Arsenic in GaN waste streams also tends to sit lower in solubility, so more arsenic rides with solids rather than staying fully dissolved. That profile favors DAF over plain sedimentation before biology or membranes. Plants that copy a GaAs settler-only layout onto GaN CMP and sawing drains usually see rapid MBR transmembrane pressure rise within weeks.

Earlier plant summaries often cited "40 CFR 469.32" with a 0.01 mg/L arsenic ceiling for semiconductor discharges to publicly owned treatment works (POTWs). According to the current eCFR text of 40 CFR 469.25 (Electronic Crystals BAT), arsenic limits of 2.09 mg/L (maximum day) and 0.83 mg/L (30-day average) apply to manufacturers of gallium or indium arsenide crystals. According to US EPA drinking-water rules, the arsenic MCL remains 0.010 mg/L (10 ppb). Most fabs we size for therefore design to the stricter of the NPDES or POTW permit and any reuse specification, often targeting ≤0.01 mg/L arsenic at the plant fence. Non-compliance still drives CapEx decisions: the source plant brief cites civil-penalty exposure up to $50,000 per day under enforcement scenarios.

What contaminants does GaN MOCVD wastewater contain?

GaN MOCVD tool wastewater typically carries dissolved metals, residual organometallic fragments, ammonia or amine species from precursor chemistry, acidic or alkaline rinse water, and fine particulates from chamber cleans. Arsenic may appear when mixed III-V tool sets share drains with GaAs lines or when arsenic-bearing chemistries enter the same equalization tank. Most plants we survey keep MOCVD drains segregated until equalization so the hybrid train sees a stable COD and metals profile instead of slug loads that foul MBR membranes.

Equalization hydraulic retention of several hours, plus pH trim to the DAF feed window, usually stabilizes MOCVD dumps better than oversized clarifiers alone. If organics from precursor cleans push COD toward the upper 300-800 mg/L band, the MBR stage must be sized on peak day load, not monthly average, or permeate COD will miss the <50 mg/L RO feed target.

What is in GaN wafer sawing water discharge?

GaN wafer sawing discharge contents usually include diamond-blade or slurry fines, GaN kerf particles, surfactant-laden coolant water, and elevated TSS in the 200-500 mg/L band when sawing water is poorly settled. Dissolved arsenic is often lower than concentrated etch waste, but particulate solids load the DAF hard if polymer dose drifts outside 0.5-1.5 mg/L. Coolant surfactants can also depress float stability, so jar tests on actual sawing water beat generic polymer curves.

For slicing-line hydraulics and slurry handling detail, see the wafer slicing wastewater treatment process guide. This article focuses on how sawing water fits the full GaN hybrid train once it joins etch and CMP drains at equalization.

Engineering Specs for Gallium Nitride Wastewater Treatment

Hybrid train design starts from raw influent of pH 2-4, TSS 200-500 mg/L, COD 300-800 mg/L, and arsenic 50-100 mg/L (per the VSEP® case values retained from the plant brief). Addressing those parameters in one package is why EPC bids rarely stop at a single unit operation when both solids and arsenic must clear the fence-line limit.

Pretreatment: Dissolved Air Flotation (DAF)

For high solids loading, DAF is the primary clarifier. ZSQ series DAF systems for high-TSS GaN wastewater are commonly sized at surface loading rates of 10-15 m/h. Effective flocculation needs polymer dosing between 0.5-1.5 mg/L to hold 92-97% TSS reduction and keep GaN fines out of the MBR. Recycle saturation pressure and air-to-solids ratio should be confirmed on the actual slurry, because CMP and sawing solids float differently than biological floc.

Biological Treatment: Membrane Bioreactors (MBR)

After DAF, integrated MBR systems for GaN effluent COD reduction polish organics ahead of RO. Specs that hold up in fab service include polyvinylidene fluoride (PVDF) membranes at 0.1 μm pore size, operating flux of 10-20 LMH, mixed liquor suspended solids (MLSS) of 12-18 g/L, and hydraulic retention time (HRT) of 2-4 hours to push COD below 50 mg/L. Most plants we size for GaN run flux at the lower end of that band when surfactant carryover from sawing water is chronic.

Advanced Treatment: Reverse Osmosis (RO)

High-rejection RO systems for arsenic removal in GaN wastewater routinely achieve >95% rejection of pentavalent arsenic (As⁵⁺). Trivalent arsenic (As³⁺) rejection is lower, around >85%, so an oxidation step with hydrogen peroxide (H₂O₂) or sodium hypochlorite (NaOCl) ahead of RO is mandatory when As³⁺ is present. Without that redox step, even a new membrane skid can miss a 0.01 mg/L permit limit.

Zero-Discharge Add-ons: Evaporative Crystallizers

Evaporative crystallizers close the loop for zero-liquid discharge. Units with a gain-output ratio (GOR) of 10-15 can recover 90-95% of water for reuse. Remaining brine solids usually need cement encapsulation before hazardous-waste landfill. A project-level ZLD breakdown with gallium recovery metrics is documented in the GaN wastewater treatment project ZLD engineering specs.

The following table summarizes key engineering specifications for a typical GaN wastewater treatment train:

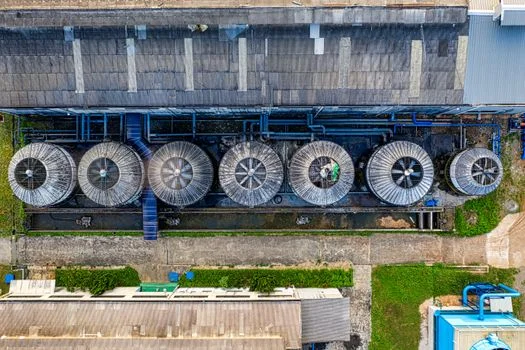

Hybrid Treatment Systems: DAF vs MBR vs RO for GaN Wastewater

Selecting the right hybrid depends on the fab effluent profile, permit wording, and whether reuse or ZLD is a board-level goal. CapEx and OPEX scale sharply once RO and crystallizers enter the train, so the comparison below is meant for go/no-go scoping before detailed design.

DAF-Only Systems

DAF alone (for example a ZSQ unit) typically removes 92-97% TSS and 30-50% COD on high-solids GaN wastewater. Dissolved arsenic removal stays below 10%, so effluent arsenic remains near influent levels of 50-100 mg/L. DAF is necessary pretreatment for membranes, not a compliance finish for arsenic under tight permits.

DAF + MBR Systems

Integrating MBR after DAF reaches roughly 95% COD removal, bringing COD below 50 mg/L, and nearly 99% TSS removal. Dissolved arsenic still sits near 50-80 mg/L because biology does not strip arsenate or arsenite at these concentrations. The pair is strong pretreatment for RO or nanofiltration (NF), not a standalone arsenic solution for drinking-water-aligned targets.

DAF + MBR + RO Systems

The DAF + MBR + RO train is the compliance workhorse for GaN fab drains. With proper As³⁺ oxidation, arsenic falls below 0.01 mg/L and COD stays <50 mg/L ahead of the RO membranes, with RO permeate often <10 mg/L COD. CapEx typically runs 20-30% higher than DAF + MBR because of high-rejection RO skids plus antiscalant, cartridge filtration, and clean-in-place systems.

Zero-Discharge (DAF + MBR + RO + Crystallizer)

Adding an evaporative crystallizer lifts overall water recovery to 90-95% and can cut OPEX 30-40% over a five-year window through lower intake and discharge fees. Footprint is roughly double a DAF + MBR block. A 2025 Taiwan fab case retained from the source brief cut arsenic from 85 mg/L to <0.005 mg/L on a DAF (ZSQ-100) + MBR (DF-150) + two-stage RO train while holding 93% water recovery.

The following table compares hybrid treatment system configurations:

Cost and ROI Analysis for GaN Wastewater Systems

Investing in a specialized GaN train needs a clear CapEx and OPEX model before the utility room is frozen. For a typical 100 m³/day system, CapEx estimates retained from the 2026 plant brief are:

• Dissolved Air Flotation (DAF) Unit: $150,000 - $300,000
• Membrane Bioreactor (MBR) System: $250,000 - $500,000
• Reverse Osmosis (RO) System: $200,000 - $400,000
• Evaporative Crystallizer (for ZLD): $500,000 - $1,000,000

A full DAF + MBR + RO package therefore lands near $600,000 to $1,200,000. A complete ZLD train with crystallizer typically spans $1,100,000 to $2,200,000 at the same 100 m³/day capacity.

OPEX per cubic meter treated is driven by energy, chemicals, and membrane life:

• Energy Costs: $0.50 - $1.20/m³ (pumps, blowers, evaporators)
• Chemical Costs: $0.20 - $0.50/m³ (coagulants, flocculants, oxidants, cleaners)
• Membrane Replacement: $0.10 - $0.30/m³ (amortized over membrane lifespan)

Water recovery on ZLD trains can cut freshwater purchase and discharge fees by 25-40%. Avoiding arsenic permit breaches removes the $50,000/day penalty exposure noted in the plant brief. MBR plus filter-press dewatering can shrink hazardous sludge volume 30-50%, which often rivals chemical cost as an OPEX lever. Payback is typically 3-5 years for ZLD and 2-3 years for DAF + MBR + RO when reuse credits and avoided penalties are counted, matching the 2025 Taiwan fab recovery path in the source case.

Common Pitfalls in GaN Wastewater Design

Membrane fouling from GaN particulates is the failure mode we see most often on rushed startups. MBR modules clog when TSS stays above about 300 mg/L into the bioreactor. Keep DAF polymer in the 0.5-1.5 mg/L window so TSS removal holds at 92-97% before biology, and alarm on DAF effluent turbidity rather than waiting for MBR differential pressure to spike.

Arsenic speciation is the second trap. RO rejects As⁵⁺ at >95% but As³⁺ nearer 85%. Skipping oxidation leaves non-compliant permeate even when conductivity looks fine. An automatic chemical dosing system for H₂O₂ or NaOCl keeps the redox step consistent across shift changes and weekend dumps.

pH control matters for both solubility and biology. GaN solubility rises sharply below pH 3, raising dissolved gallium that can stress biomass. In the MBR, hold pH near 4-6 so Ga³⁺ does not suppress COD removal. Continuous probes with dual validation beat once-per-shift grab samples on this stream.

Sludge handling closes the compliance loop. Residues from GaN treatment are typically hazardous once arsenic and gallium concentrate. Filter presses for hazardous GaN/arsenic sludge disposal can reach about 95% solids, cutting haulage volume. Cement encapsulation before a licensed hazardous-waste landfill remains the common stabilization path when regulators require it.

Operating Envelope Notes for EPC Packages

GaN treatment packages fail more often on hydraulic and chemical envelope mistakes than on missing unit operations. Peak-to-average flow ratios of 1.5-2.5 are common when sawing bays and wet benches dump together, so equalization volume must absorb those spikes before DAF. Chemical storage for oxidant and polymer should cover at least 7-14 days of peak dose, because weekend logistics delays are a frequent cause of offline redox control.

Instrument the train where decisions happen: DAF effluent turbidity, MBR TMP and flux, ORP or residual oxidant before RO, and arsenic analyzers on RO permeate when the permit limit sits near 0.01 mg/L. Operators who only track conductivity miss As³⁺ breakthrough. For brownfield installs, leave laydown space for a second RO stage or a small crystallizer skid; many fabs start at 70-85% RO recovery and add ZLD hardware after reclaim demand is proven.

Commissioning should include a solids stress test with actual sawing and CMP water, not only synthetic TSS. Confirm 92-97% TSS removal at 10-15 m/h loading and polymer 0.5-1.5 mg/L, then verify MBR COD <50 mg/L at 10-20 LMH before introducing arsenic-bearing etch dumps to the RO. That sequence prevents irreversible fouling during the first production ramp.

Selection Checklist and Next Step

Who this is for: process engineers, utility managers, and EPC leads specifying GaN, LED, or power-device fab wastewater with high TSS plus arsenic. Who should look elsewhere: fabs with silicon-only rinse water and no III-V arsenic load can often use lighter pretreatment without RO. Before you freeze CapEx, confirm these seven items on measured data, not brochure defaults:

• Influent TSS, COD, arsenic speciation (As³⁺ vs As⁵⁺), and pH at peak and average flow
• Whether MOCVD, etch, CMP, and wafer-sawing drains are segregated or combined at equalization
• Permit limit versus reuse target for arsenic (often ≤0.01 mg/L at the fence line)
• DAF surface loading (10-15 m/h) and polymer dose window (0.5-1.5 mg/L) proven on site jar tests
• MBR flux (10-20 LMH), MLSS (12-18 g/L), and HRT (2-4 h) against peak COD
• Documented oxidation step ahead of RO if As³⁺ is present
• Sludge classification, filter-press cake solids target, and ZLD brine disposal route

If you have flow, arsenic, and COD data for a 50-500 m³/day GaN line, request a treatment-train quote with those parameters attached so equipment sizing stays tied to your permit and reclaim goals.

Frequently Asked Questions

What’s the difference between GaN and GaAs wastewater treatment?

GaN wastewater typically carries higher TSS, often 200-500 mg/L, versus about 100-200 mg/L on many GaAs lines. Arsenic in GaN streams is more often tied to solids, so DAF pretreatment is preferred over plain sedimentation. GaAs packages that skip flotation frequently foul membranes when retargeted at GaN sawing and CMP drains without a solids redesign.

Can MBR systems remove arsenic from GaN wastewater?

No. MBR stages cut COD and TSS effectively but leave dissolved arsenic near 50-80 mg/L on the trains described here. Meeting ≤0.01 mg/L arsenic requires RO or NF after oxidation, sometimes with ferric precipitation as a polishing option. Use the MBR as RO pretreatment, not as the arsenic barrier for permit compliance.

What are the EPA limits for arsenic in semiconductor wastewater?

Earlier briefs cited 0.01 mg/L under a "40 CFR 469.32" label. Current eCFR 40 CFR 469.25 sets Electronic Crystals BAT arsenic at 2.09 mg/L (max day) and 0.83 mg/L (30-day average) for gallium or indium arsenide crystal makers. US EPA’s drinking-water arsenic MCL is 0.010 mg/L, and many fab permits or reuse specs still target that tighter number at the fence.

How much does a zero-discharge GaN wastewater system cost?

At 100 m³/day, a DAF + MBR + RO + crystallizer ZLD train typically costs $1.1 million to $2.2 million CapEx in the 2026 estimate band used here. Payback is commonly 3-5 years when water reuse and avoided discharge penalties are included. Energy for evaporators dominates OPEX once the crystallizer runs near design recovery.

What’s the best pretreatment for GaN wastewater?

DAF with polymer at 0.5-1.5 mg/L is the most reliable pretreatment for high-TSS GaN wastewater, delivering 92-97% TSS removal before MBR and RO. Surface loading of 10-15 m/h keeps float stable on sawing and CMP solids. Skipping DAF is the shortest path to membrane fouling on these particulate-heavy streams.
