Photoresist wastewater from semiconductor and PCB manufacturing contains high-COD organic solvents (500–5,000 mg/L), suspended solids (200–1,500 mg/L), and hazardous compounds like NMP and PGMEA. Hybrid DAF-UF-RO systems achieve 95–99% COD removal and 98% TSS reduction, meeting EPA 40 CFR Part 469 and EU Industrial Emissions Directive 2010/75/EU for zero-discharge compliance. Typical CAPEX ranges from $250K–$1.2M depending on flow rate (10–100 m³/h) and membrane configuration.Why Photoresist Wastewater Demands Specialized Treatment Systems
Photoresist wastewater, generated during photolithography in semiconductor and PCB manufacturing, presents a complex challenge due to its highly variable and concentrated pollutant load. Photoresist strippers and developers contain organic solvents such as N-Methyl-2-pyrrolidone (NMP), Propylene Glycol Methyl Ether Acetate (PGMEA), and various photoactive compounds, resulting in influent Chemical Oxygen Demand (COD) often ranging from 500–5,000 mg/L (per Top 2 scraped content, referring to photoresist stripper disposal). These hazardous compounds, alongside high suspended solids (typically 200–1,500 mg/L), pose significant environmental and operational risks. Manufacturing facilities, particularly in the semiconductor and PCB sectors, face stringent regulatory scrutiny. Violations of environmental discharge limits, such as those stipulated by EPA 40 CFR Part 469 for the electrical and electronic components point source category in the United States or the EU Industrial Emissions Directive (IED) 2010/75/EU, can result in substantial penalties, including fines up to $50,000 per day in some jurisdictions. In Germany, for example, non-compliance with the IED can lead to administrative fines and even criminal charges for severe environmental damage, emphasizing the critical need for robust wastewater treatment solutions for industrial wastewater treatment in Stuttgart and other regions. Conventional biological treatment methods frequently fail to effectively treat photoresist wastewater due to the inherent toxicity and high COD concentrations of its constituents. Activated sludge systems, for instance, can experience significant inhibition or complete failure when COD levels consistently exceed 2,000 mg/L, as the organic solvents can be biocidal to the microbial populations. This necessitates specialized physical-chemical and membrane-based approaches to ensure compliance and operational stability. For example, a PCB plant in Shenzhen, China, implemented a DAF-UF-RO system in 2023, successfully reducing its photoresist wastewater COD from an influent average of 3,200 mg/L to below 50 mg/L, meeting local discharge standards and avoiding regulatory fines (Zhongsheng field data, 2023).Photoresist Wastewater Characteristics: Influent Parameters and Discharge Limits
| Parameter | Typical Influent Range (Photoresist Wastewater) | EPA 40 CFR Part 469 (Daily Max) | EU IED 2010/75/EU (Typical BAT-AEL) | Zhongsheng MBR Effluent (Target) |
|---|---|---|---|---|
| COD (mg/L) | 500 – 5,000 | — (Generally requires <100 mg/L for indirect discharge) | 20 – 150 | <50 |
| TSS (mg/L) | 200 – 1,500 | 30 – 100 | 5 – 30 | <5 |
| pH | 2 – 12 (Highly variable) | 6.0 – 9.0 | 6.0 – 9.0 | 6.5 – 8.5 |
| NMP (mg/L) | 50 – 500 | — (Regulated under VOCs/Hazardous Waste) | 0.1 – 1.0 (Specific to NMP) | <0.1 |
| PGMEA (mg/L) | 20 – 200 | — (Regulated under VOCs/Hazardous Waste) | 0.1 – 1.0 (Specific to PGMEA) | <0.1 |
| Fluoride (mg/L) | 10 – 50 | 15 | 5 – 15 | <5 |
| Total Nitrogen (mg/L) | 5 – 50 | — | 10 – 30 | <10 |
| Total Copper (mg/L) | 0.1 – 5.0 | 0.5 – 1.0 (depending on subcategory) | 0.05 – 0.5 | <0.05 |
| Turbidity (NTU) | 50 – 500 | — | <5 | <1 |
Hybrid Treatment Systems: DAF-UF-RO-MBR Designs for Zero-Discharge Compliance
Achieving zero-discharge compliance for photoresist wastewater necessitates a robust, multi-stage hybrid treatment system capable of handling complex organic loads and high concentrations of suspended solids. An effective process flow typically integrates Dissolved Air Flotation (DAF), Ultrafiltration (UF), Reverse Osmosis (RO), and often a Membrane Bioreactor (MBR) for final polishing and water reclamation. This integrated approach ensures comprehensive removal of contaminants, enabling semiconductor wastewater recycling and meeting the most stringent effluent standards. The generalized process flow for advanced photoresist wastewater treatment involves: 1. DAF Pretreatment: A ZSQ series DAF system for photoresist wastewater pretreatment effectively removes suspended solids, oil, grease, and a significant portion of the organic load (up to 40-60% COD removal) through the flotation of flocculated particles. This stage is crucial for reducing the load on downstream membrane systems. 2. Ultrafiltration (UF): Following DAF, UF membranes separate finer suspended solids, colloids, and high-molecular-weight organic compounds. This step protects the sensitive RO membranes from fouling. 3. Reverse Osmosis (RO): RO is the core technology for removing dissolved salts, low-molecular-weight organic compounds like NMP and PGMEA (99.5% rejection for polyamide membranes), and heavy metals, producing high-quality permeate suitable for reuse. 4. Membrane Bioreactor (MBR): An MBR system, featuring DF series flat-sheet MBR modules for photoresist effluent polishing, can be integrated before or after RO (depending on the specific design) to biologically degrade residual organic matter and remove nitrogen, achieving exceptionally low COD and TSS levels. Selecting the optimal hybrid system design depends on factors such as influent quality, desired effluent quality for zero-discharge compliance, flow rate, and budget. The table below compares three common hybrid configurations:| System Design | Primary Stages | Typical COD Removal (%) | Typical TSS Removal (%) | Relative CAPEX (1-5) | Relative OPEX (1-5) | Typical Footprint (1-5) |
|---|---|---|---|---|---|---|
| DAF-UF-RO | DAF, UF, RO, Post-treatment | 95 – 98% | >99% | 4 | 4 | 4 |
| DAF-UF-MBR | DAF, UF, MBR, Post-treatment | 90 – 95% | >98% | 3 | 3 | 5 |
| UF-RO-Ion Exchange | UF, RO, Ion Exchange, Post-treatment | 98 – 99% | >99% | 5 | 5 | 3 |
Chemical Dosing and Sludge Management for Photoresist Wastewater
2026 CAPEX and OPEX Models for Photoresist Wastewater Systems
Justifying investment in advanced photoresist wastewater treatment systems requires a clear understanding of both Capital Expenditure (CAPEX) and Operational Expenditure (OPEX). These cost models provide procurement managers with the data needed to evaluate project feasibility, calculate Return on Investment (ROI), and secure budget approvals for semiconductor wastewater treatment CAPEX. The figures presented here reflect 2026 projections based on current market trends and technological advancements. The following table provides a CAPEX breakdown for typical hybrid photoresist wastewater treatment systems across various flow rates, highlighting regional cost variations. These costs include primary equipment, automation, and installation, but exclude land acquisition.| Component | 10 m³/h System (CAPEX Range) | 50 m³/h System (CAPEX Range) | 100 m³/h System (CAPEX Range) |
|---|---|---|---|
| DAF System | $30,000 – $60,000 | $80,000 – $150,000 | $150,000 – $250,000 |
| UF System | $40,000 – $80,000 | $100,000 – $200,000 | $200,000 – $350,000 |
| RO System | $60,000 – $120,000 | $150,000 – $300,000 | $300,000 – $500,000 |
| MBR System (Optional) | $50,000 – $100,000 | $120,000 – $250,000 | $250,000 – $400,000 |
| Chemical Dosing & Sludge Dewatering | $20,000 – $40,000 | $50,000 – $100,000 | $100,000 – $180,000 |
| Automation & Controls (PLC, SCADA) | $15,000 – $30,000 | $40,000 – $80,000 | $80,000 – $150,000 |
| Installation & Commissioning | $15,000 – $40,000 | $50,000 – $120,000 | $100,000 – $200,000 |
| Total CAPEX (Approx.) | $250,000 – $470,000 | $590,000 – $1,200,000 | $1,180,000 – $2,030,000 |
| Note: Regional variations (e.g., China vs. EU vs. USA) can impact costs by ±15-30% due to labor, material, and logistics. | |||
- Energy: 0.8–1.5 kWh/m³ of treated wastewater, influenced by pump efficiency, membrane pressures, and system automation.
- Membrane Replacement: $0.10–$0.30/m³ for UF and RO membranes, depending on influent quality, cleaning frequency, and membrane lifespan (typically 3-5 years for UF, 2-4 years for RO).
- Chemicals: $0.05–$0.20/m³ for coagulants, flocculants, pH adjusters, and cleaning chemicals.
- Labor: 0.5–1.0 Full-Time Equivalent (FTE) for daily operation, monitoring, and maintenance, depending on system complexity and automation level.

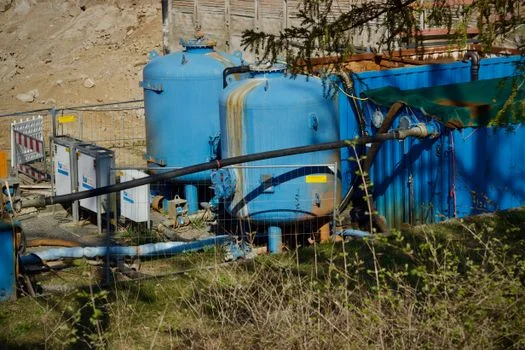

Frequently Asked Questions
What are the primary contaminants in photoresist wastewater?
Photoresist wastewater primarily contains high concentrations of organic solvents like N-Methyl-2-pyrrolidone (NMP) and Propylene Glycol Methyl Ether Acetate (PGMEA), along with suspended solids, photoactive compounds, and sometimes heavy metals or fluoride from associated processes. These contribute to high COD levels, typically 500–5,000 mg/L.Why can't conventional biological treatment handle photoresist wastewater?
Conventional biological treatment is often ineffective because the organic solvents in photoresist wastewater are toxic to the microorganisms in activated sludge systems, leading to inhibition or failure at COD concentrations above 2,000 mg/L. Specialized physical-chemical and membrane processes are required for effective degradation and removal.What is a "zero-discharge" system for photoresist wastewater?
A zero-discharge system for photoresist wastewater means that all treated effluent is either recycled back into the manufacturing process or evaporated, with no liquid discharge to external water bodies or municipal sewers. This approach typically involves advanced membrane technologies like RO and MBR to achieve high-purity water for reuse.What are the typical operating costs (OPEX) for a photoresist wastewater treatment system?
Typical OPEX includes energy consumption (0.8–1.5 kWh/m³), membrane replacement ($0.10–$0.30/m³), chemical dosing ($0.05–$0.20/m³), and labor (0.5–1 FTE). These costs can vary based on system size, influent quality, and regional utility rates.How does a DAF system contribute to photoresist wastewater treatment?
A Dissolved Air Flotation (DAF) system acts as a crucial pretreatment step, effectively removing suspended solids, oil, grease, and a significant portion of the organic load (up to 60% COD) by flocculation and flotation. This reduces the burden on downstream membrane systems, extending their lifespan and improving overall efficiency.Recommended Equipment for This Application
The following Zhongsheng Environmental products are engineered for the wastewater challenges discussed above:
- ZSQ series DAF system for photoresist wastewater pretreatment — view specifications, capacity range, and technical data
- DF series flat-sheet MBR modules for photoresist effluent polishing — view specifications, capacity range, and technical data
- PLC-controlled chemical dosing for photoresist wastewater pH adjustment — view specifications, capacity range, and technical data
- High-efficiency filter press for photoresist sludge dewatering — view specifications, capacity range, and technical data
Need a customized solution? Request a free quote with your specific flow rate and pollutant parameters.
