Printed circuit board (PCB) manufacturing generates wastewater laden with heavy metals (copper, nickel, lead) and organic solvents, requiring advanced treatment to meet EPA and EU discharge limits. Hybrid DAF-RO-MBR systems achieve 99.8% copper recovery and zero-liquid discharge (ZLD), with CAPEX ranging from $500K to $15M depending on plant capacity (5–500 m³/h). This guide provides 2025 engineering specs, contaminant-specific treatment methods, and cost models to help PCB manufacturers select compliant, cost-effective equipment.
Why PCB Wastewater Treatment is a Regulatory and Operational Crisis in 2025
EPA’s 2025 PCB effluent guidelines (40 CFR Part 469) lower copper limits to 3.38 mg/L and nickel to 3.98 mg/L, forcing upgrades for 68% of U.S. PCB plants (per 2024 EPA enforcement data). This significant tightening of regulations creates an urgent need for advanced wastewater treatment solutions, as many existing conventional systems are no longer sufficient to achieve compliance. Beyond federal mandates, China’s GB 21900-2022 imposes even stricter limits for lead (< 0.2 mg/L) and organic solvents (< 50 mg/L COD), with non-compliance fines up to $150K/year for plants >100 m³/day, highlighting a global trend towards more stringent environmental protection. For instance, a Shenzhen PCB plant faced a 30-day shutdown in 2024 after exceeding copper discharge limits by 400%, costing an estimated $2.1M in lost production and fines. The financial and reputational risks of non-compliance extend to supply chain disruptions for electronics OEMs, with major players like Apple incorporating sustainability requirements for their suppliers as early as 2023. These pressures underscore that effective PCB wastewater treatment is not merely an environmental concern but a critical operational and strategic imperative for business continuity and market access.
Contaminant Profile: What’s in PCB Wastewater and Why It’s Hard to Treat
PCB wastewater contains a complex mix of heavy metals (copper: 50–500 mg/L, nickel: 20–200 mg/L, lead: 5–50 mg/L), organic solvents (methanol, acetone, DMF), and suspended solids (100–1,000 mg/L TSS) originating from various stages like etching, plating, and rinsing processes. Copper and nickel, prevalent from electroplating and electroless plating baths, form stable complexes with organic ligands such as EDTA, making their removal challenging for conventional precipitation methods and often requiring advanced chemical precipitation or ion exchange for >95% removal (per EPA 2024 benchmarks). Organic solvents, frequently used in stripping and cleaning operations, contribute to high chemical oxygen demand (COD) levels, typically ranging from 1,000–5,000 mg/L, which necessitates robust biological treatment (e.g., MBR systems) or advanced oxidation processes (AOP) for effective degradation and compliance. the pH variability in PCB wastewater, ranging from highly acidic (pH 2) to highly alkaline (pH 12), significantly impacts treatment efficiency; for example, the performance of DAF systems drops substantially below pH 5, requiring precise pH neutralization as a critical pretreatment step. Understanding this intricate contaminant profile is essential for designing an effective and compliant wastewater treatment process. For precise control of chemical additions, an automatic chemical dosing system can optimize pH adjustment and precipitation.
Contaminant
Source Process
Typical Concentration Range (mg/L)
Regulatory Limit (EPA 40 CFR 469)
Copper (Cu)
Electroplating, Etching, Rinsing
50–500
3.38
Nickel (Ni)
Electroplating, Rinsing
20–200
3.98
Lead (Pb)
Soldering, Plating
5–50
0.69
Organic Solvents (Methanol, Acetone, DMF)
Stripping, Cleaning
— (contributes to COD)
— (contributes to COD)
COD
Organic solvents, Additives
1,000–5,000
250
TSS
Etching residues, Particulates
100–1,000
— (removed by pretreatment)
Treatment Technology Deep Dive: DAF vs. MBR vs. RO for PCB Wastewater

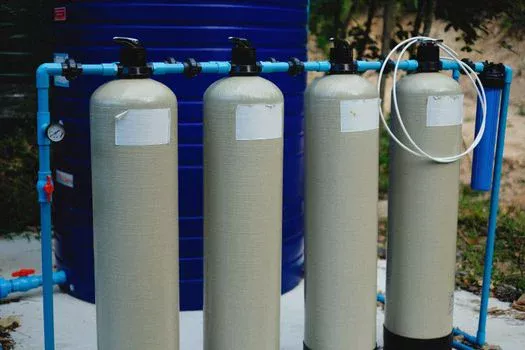

printed circuit board wastewater treatment equipment - Treatment Technology Deep Dive: DAF vs. MBR vs. RO for PCB Wastewater
Effective PCB wastewater treatment often relies on a combination of advanced technologies, each suited for specific contaminant removal challenges. Dissolved Air Flotation (DAF) systems are typically employed as a primary pretreatment step, effectively removing 90–95% of total suspended solids (TSS) and 60–80% of heavy metals by using micro-bubble flotation to lift particulates to the surface for skimming. Optimal DAF performance for PCB wastewater, particularly in removing complexed metals, often requires precise chemical dosing with coagulants like ferric chloride (50–100 mg/L) or PAC (30–50 mg/L) to enhance flocculation (Top 1 page data). Following pretreatment, Membrane Bioreactor (MBR) systems excel at organic degradation and further solids removal, achieving 95% COD removal and 99% TSS removal with 0.1 μm PVDF membranes. MBR technology eliminates the need for secondary clarifiers, significantly reducing the overall treatment plant footprint by up to 60% compared to conventional activated sludge systems (per MBR product specs). For ultimate water recovery and zero-liquid discharge (ZLD) goals, Reverse Osmosis (RO) systems are indispensable, recovering 75–90% of treated water for reuse while achieving 99% rejection of dissolved heavy metals and salts. However, RO systems require robust pretreatment, such as DAF or ultrafiltration, to prevent membrane fouling from suspended solids and larger organic molecules (data from Top 1 page). Hybrid DAF-RO-MBR systems combine the strengths of each technology: DAF for initial solids and heavy metal removal, MBR for efficient organic degradation and biological treatment, and RO for high-purity water recovery and ZLD compliance. These integrated systems represent a CAPEX investment of $1.5M–$12M for plants with capacities ranging from 50–500 m³/h (2025 cost models), offering a comprehensive solution for complex PCB wastewater streams. Zhongsheng Environmental offers specialized DAF systems for PCB wastewater pretreatment, high-performance MBR systems for PCB wastewater treatment, and robust RO systems for PCB wastewater recovery and ZLD.
Heavy Metals: 99%, Salts: 99%, Water Recovery: 75-90%
Medium
1.0-2.5
High
High (membrane replacement, energy)
Quarterly (membrane cleaning), 3-5 years (membrane replacement)
Hybrid DAF-RO-MBR
Comprehensive (near 100% for targeted contaminants, ZLD capable)
Medium-Large
1.5-3.5
High
High
Regular (integrated system)
Step-by-Step Process Flow: How a Hybrid DAF-RO-MBR System Treats PCB Wastewater
A robust hybrid DAF-RO-MBR system meticulously treats PCB wastewater through a series of integrated stages, ensuring comprehensive contaminant removal and water recovery. The process begins with **Step 1: Equalization Tank**, which is crucial for balancing variations in flow rate, pH, and contaminant concentrations from different PCB manufacturing processes. This tank typically provides a retention time of 4–8 hours (per EPA 2024 guidelines) and aims to stabilize the pH to a target range of 6.5–8.5, preventing shock loading to downstream biological and membrane units. Following equalization, **Step 2: DAF System** (Dissolved Air Flotation) serves as the primary physical-chemical pretreatment. Here, micro-bubbles generated by dissolved air lift suspended solids, oils, greases, and precipitated heavy metals to the surface for removal by a skimmer. Chemical dosing, typically with ferric chloride (50–100 mg/L) or PAC (30–50 mg/L) as a coagulant and polymer (1–5 mg/L) as a flocculant, enhances the removal efficiency, achieving 90% TSS and 60% heavy metal reduction. The clarified effluent then proceeds to **Step 3: MBR System** (Membrane Bioreactor), where biological degradation of organic pollutants (COD, BOD) occurs alongside physical filtration. Submerged PVDF membranes with a 0.1 μm pore size effectively remove 99% of TSS and achieve COD levels below 50 mg/L. The mixed liquor suspended solids (MLSS) concentration in the MBR is typically maintained between 8,000–12,000 mg/L, with a membrane flux rate of 15–25 LMH (liters per square meter per hour). After biological treatment, the high-quality MBR permeate enters **Step 4: RO System** (Reverse Osmosis) for advanced polishing and water recovery. The RO membranes, operating at pressures of 10–20 bar, reject 99% of dissolved heavy metals, salts, and residual organics, yielding permeate with TDS typically below 50 mg/L and achieving a water recovery rate of 75–85% for reuse in manufacturing processes. Finally, **Step 5: Sludge Dewatering** addresses the concentrated waste streams from DAF and MBR. A plate and frame filter press for PCB sludge dewatering is commonly used to reduce sludge volume by 80%, producing a dewatered cake with 30–40% solids content, significantly lowering disposal costs (per sludge treatment product specs).
A typical process flow diagram for a hybrid DAF-RO-MBR system for PCB wastewater would visually represent these stages:
1. **Influent Collection & Equalization Tank:** Showing raw wastewater entering, pH and flow sensors, agitators, and discharge to DAF.
2. **Chemical Dosing & DAF Unit:** Illustrating coagulant and flocculant addition points, the DAF tank with air saturation vessel, micro-bubble generation, surface skimmer for sludge removal, and clarified water outflow.
3. **MBR System:** Depicting the anoxic and aerobic biological tanks, submerged membrane modules, aeration systems, permeate pumps, and backwash capabilities.
4. **RO System:** Highlighting cartridge filters for pre-RO protection, high-pressure pumps, RO membrane vessels, permeate collection, and concentrate (brine) discharge.
5. **Sludge Treatment:** Showing sludge lines from DAF and MBR to a sludge thickening tank, followed by a filter press and dewatered cake discharge.
Key operational parameters would be annotated at each stage, including flow rates (e.g., 100 m³/h), retention times (e.g., 6 hours in equalization), chemical doses (e.g., 80 mg/L ferric chloride), pH targets, MLSS concentrations, membrane flux, and recovery rates, providing a comprehensive engineering overview.
Cost Breakdown: CAPEX, OPEX, and ROI for PCB Wastewater Treatment Systems
printed circuit board wastewater treatment equipment - Cost Breakdown: CAPEX, OPEX, and ROI for PCB Wastewater Treatment Systems
Implementing a hybrid DAF-RO-MBR system for PCB wastewater treatment involves significant capital expenditure (CAPEX), which for 2025 ranges from $1.5M to $12M, scaling directly with plant capacity (50–500 m³/h). A typical CAPEX breakdown for such a system allocates approximately 15% to the DAF unit, 40% to the MBR system, 30% to the RO system, and the remaining 15% to automation, instrumentation, civil works, and installation. Operational expenditure (OPEX) for these advanced systems typically falls between $0.80–$2.50/m³ treated wastewater. Major contributors to OPEX include energy consumption ($0.30–$0.80/m³), primarily for pumps, blowers, and RO high-pressure pumps; chemical costs ($0.20–$0.50/m³) for coagulation, flocculation, pH adjustment, and membrane cleaning; and membrane replacement ($0.10–$0.30/m³), which accounts for the periodic replacement of MBR and RO membranes. The return on investment (ROI) for these systems is driven by several factors, including significant savings from water reuse ($0.50–$1.50/m³ by reducing freshwater intake), reduced sewer discharge fees ($0.20–$0.80/m³), and avoided regulatory fines ($50K–$200K/year for non-compliance). For zero-liquid discharge (ZLD) systems, the payback period is typically estimated between 3–7 years, making them a financially viable long-term solution. For example, a 200 m³/h PCB plant in Dongguan reported reducing its OPEX by 30% by upgrading from a conventional activated sludge system to an MBR-based system, achieving a 4-year payback period through improved effluent quality and reduced sludge volume.
Regulatory Compliance: How to Meet EPA, EU, and China GB Standards for PCB Wastewater
Meeting the stringent discharge limits for printed circuit board wastewater is a complex challenge that requires a deep understanding of regional regulations and effective treatment strategies. In the U.S., EPA 40 CFR Part 469 sets specific limits for direct discharge, including copper at < 3.38 mg/L, nickel at < 3.98 mg/L, lead at < 0.69 mg/L, and COD at < 250 mg/L. For facilities discharging to municipal sewers, pretreatment standards apply to prevent interference with municipal treatment plants. The EU Urban Waste Water Directive (91/271/EEC) imposes even stricter limits, with copper typically < 0.5 mg/L, nickel < 2 mg/L, and COD < 125 mg/L, though individual member states may implement more rigorous standards (e.g., Germany's copper limit of < 0.3 mg/L). China’s GB 21900-2022 standards are among the most demanding globally, stipulating copper < 0.5 mg/L, nickel < 0.5 mg/L, lead < 0.2 mg/L, and COD < 80 mg/L, with a strong emphasis on ZLD for plants in water-scarce regions. To achieve these diverse and often challenging limits, effective compliance strategies include: (1) Robust pretreatment for heavy metals, typically involving chemical precipitation or ion exchange to reduce concentrations to acceptable levels before biological treatment; (2) Advanced biological treatment, such as MBR systems, for efficient degradation of organic compounds to meet COD/BOD limits; (3) Polishing with RO for ultimate water recovery and ZLD, essential for meeting the lowest limits and enabling water reuse; and (4) Continuous monitoring of key parameters like pH, TSS, and metal concentrations to ensure real-time compliance and enable rapid adjustments. For comprehensive insights into regional compliance, explore regional compliance guides for industrial wastewater treatment.
Contaminant
EPA Limit (40 CFR 469) (mg/L)
EU Limit (Typical) (mg/L)
China GB 21900-2022 Limit (mg/L)
Typical Treatment Method
Copper (Cu)
3.38
0.5
0.5
Chemical Precipitation, Ion Exchange, RO
Nickel (Ni)
3.98
2.0
0.5
Chemical Precipitation, Ion Exchange, RO
Lead (Pb)
0.69
— (often grouped with heavy metals)
0.2
Chemical Precipitation, RO
COD
250
125
80
MBR, AOP, RO
TSS
— (removed by pretreatment)
35
30
DAF, MBR, Filtration
How to Select the Right PCB Wastewater Treatment System for Your Plant
printed circuit board wastewater treatment equipment - How to Select the Right PCB Wastewater Treatment System for Your Plant
Selecting the optimal PCB wastewater treatment system requires a systematic evaluation of plant-specific requirements, regulatory mandates, and financial considerations. **Step 1: Assess plant capacity (m³/h) and contaminant profile** by analyzing historical wastewater data for heavy metals (copper, nickel, lead), organic solvents (COD), and suspended solids (TSS). Use the contaminant table provided earlier to identify your key pollutants and their concentration ranges. **Step 2: Determine discharge requirements (direct, indirect, or ZLD)**. Direct discharge to surface waters or municipal sewers has specific limits, while zero-liquid discharge (ZLD) systems, which require advanced RO and potentially evaporators for brine disposal, are ideal for water-stressed regions or maximum sustainability goals. **Step 3: Evaluate footprint constraints.** MBR systems are particularly advantageous here, reducing the required physical space by up to 60% compared to conventional activated sludge systems, which is critical for urban or space-limited facilities. **Step 4: Compare CAPEX and OPEX** for different system configurations, leveraging the cost tables and ROI insights. Hybrid DAF-RO-MBR systems generally offer the best balance of performance and cost-effectiveness for most PCB plants with capacities between 50–500 m³/h, providing both compliance and water reuse benefits. **Step 5: Consider automation and maintenance requirements.** PLC-controlled systems reduce labor costs and improve operational stability but necessitate skilled operators for tasks like membrane cleaning, chemical dosing, and troubleshooting.
A decision tree for selecting a PCB wastewater treatment system would guide this process with key questions:
* **Is ZLD required or highly desirable?**
* Yes -> Consider Hybrid DAF-RO-MBR with advanced RO and brine management (evaporators).
* No -> Proceed to next question.
* **Are your discharge limits extremely stringent (e.g., China GB or EU < 0.5 mg/L metals)?**
* Yes -> Hybrid DAF-RO-MBR for high contaminant removal and polishing.
* No -> Proceed to next question.
* **Do you have severe footprint constraints?**
* Yes -> Prioritize MBR-based systems for compact design.
* No -> Proceed to next question.
* **What is your budget for CAPEX and OPEX?**
* High budget, long-term ROI focus -> Hybrid DAF-RO-MBR for water reuse and ZLD.
* Moderate budget, compliance focus -> DAF-MBR system.
* Lower budget, basic compliance -> Enhanced chemical precipitation + conventional biological treatment.
This framework helps tailor the solution to specific plant needs, ensuring both regulatory compliance and operational efficiency. For similar applications, consider exploring silicon wafer wastewater treatment systems for semiconductor plants or solar cell wastewater treatment for photovoltaic manufacturing.
Frequently Asked Questions
What are the primary contaminants in PCB wastewater?
PCB wastewater primarily contains heavy metals like copper, nickel, and lead from plating and etching, along with organic solvents (e.g., methanol, acetone) that contribute to high chemical oxygen demand (COD), and suspended solids (TSS) from various manufacturing processes. These contaminants require specialized treatment due to their toxicity and complex chemical forms, such as chelated metals.
Why are hybrid DAF-RO-MBR systems recommended for PCB wastewater?
Hybrid DAF-RO-MBR systems are recommended because they combine the strengths of each technology: DAF for initial heavy metal and TSS removal, MBR for efficient biological degradation of organics and ultrafiltration, and RO for advanced polishing, water recovery, and achieving zero-liquid discharge (ZLD). This integrated approach provides comprehensive treatment for the complex contaminant profile of PCB wastewater, ensuring compliance with stringent regulations and enabling water reuse.
How do RO membranes prevent fouling in PCB wastewater applications?
RO membrane fouling prevention in PCB wastewater systems relies heavily on robust pretreatment, typically involving DAF and MBR. DAF removes larger suspended solids and some heavy metals, while MBR effectively eliminates remaining suspended solids, bacteria, and most organic matter. This multi-stage pretreatment reduces the particulate and colloidal load on the RO membranes, minimizing scaling and biological fouling, thus extending membrane lifespan and maintaining permeate flux.
What is the typical payback period for a ZLD system in a PCB plant?
The typical payback period for a zero-liquid discharge (ZLD) system in a PCB plant ranges from 3 to 7 years. This ROI is driven by significant operational savings from reduced freshwater consumption through water reuse ($0.50–$1.50/m³), lower sewer discharge fees ($0.20–$0.80/m³), and the avoidance of substantial regulatory fines ($50K–$200K/year) associated with non-compliance. These financial benefits often outweigh the higher initial CAPEX of ZLD systems over the long term.
