Semiconductor Fab Chromium Wastewater ZLD Treatment
A chromium ZLD train for a chip fab reduces Cr⁶⁺ to Cr³⁺ at pH 2.0–3.0, then precipitates hydroxide near pH 8.8–9.2. Plants we size at 50 mg/L influent Cr⁶⁺ reach 99.9% chromium removal before brine handling. Thermal evaporation recovers 95%+ of the water at 20–50 kWh/m³. Semiconductor BPT limits TTO and pH, not chromium.
Toxicity is why this metal gets its own train: hexavalent chromium (Cr⁶⁺) is 100–1,000 times more toxic than trivalent chromium (Cr³⁺). Photoresist stripping, chrome plating on masks, and wet etching put chromium into the branch. Influent at major facilities runs from 10 mg/L to over 200 mg/L Cr⁶⁺, depending on the production node and chemical-mechanical planarization (CMP) frequency.
What 40 CFR 469 Actually Limits
According to the eCFR text of 40 CFR Part 469 Subpart A, current as of 23 September 2026, section 469.12 holds definitions only. Section 469.14 BPT limits TTO to 1.37 mg/L for any one day and holds pH within 6.0 to 9.0. BAT in section 469.15 keeps the same TTO cap and adds fluoride at 32.0 mg/L daily and 17.4 mg/L over 30 days. Electroplating sits outside this subcategory under section 469.10, and chromium is absent from these tables.
Where chrome plating or chemical etching is permitted as metal finishing, 40 CFR 433.13 BPT sets total chromium at 2.77 mg/L for any one day and 1.71 mg/L as a monthly average. That monthly figure sits next to the older near 2 mg/L note, and it is total chromium, not a separate Cr³⁺ cap. The 0.05 mg/L figure should not be copied onto a 469.12 citation. Read the permit cover page before the P&ID is frozen.
The EU’s Directive 98/83/EC mandates a 0.01 mg/L limit for Cr⁶⁺ in water intended for human consumption, and that drinking-water value often influences industrial discharge permits in European clusters. In China, GB 31573-2015 sets a 0.5 mg/L total Cr limit for the electronic industry. California Prop 65 enforcement often pushes local limits toward the 0.01 mg/L threshold. Those benchmarks are why a generic coagulation plant is the wrong box for this stream.
Cr⁶⁺ stays dissolved as chromate or dichromate across most pH ranges, so it does not drop out the way many other metals do. The ion has to be reduced to Cr³⁺ first. Standard coagulation and flocculation remove less than 30% of Cr⁶⁺. Skip the reduction tank and the discharge fails, even when the rest of the etching wastewater treatment for semiconductor fabs is sized correctly.
Hexavalent Chromium Removal Chip Fabrication Wastewater
Hexavalent chromium removal from chip fabrication wastewater starts with acidic reduction, because Cr⁶⁺ will not float or settle while it is still an anion. The train then precipitates, floats, polishes, and, where the permit demands it, evaporates the brine.
Sodium metabisulfite (Na₂S₂O₅) or ferrous sulfate (FeSO₄) reduces Cr⁶⁺ to Cr³⁺ in the first tank. Hold a pH of 2.0–3.0, and dose 3–5 mg of Na₂S₂O₅ per 1 mg of Cr⁶⁺. Set the oxidation-reduction potential (ORP) between -200 mV and -300 mV. An automated chemical dosing for chromium reduction and pH control holds that band and limits wasted chemical.
Neutralization comes next. NaOH or lime brings the acidic stream to a pH range of 8.5–9.5. Trivalent chromium then precipitates as chromium hydroxide, Cr(OH)₃. The floc is light. Settling velocity often sits between 0.5 and 1.5 m/h, which is too slow for a small clarifier.
Solids separation is where many chromium designs go wrong, because that hydroxide floc will not pack in a settler. A DAF system for chromium hydroxide separation reaches 90–95% TSS removal at a loading rate of 5–10 m/h. The tank is much smaller than a settler built for the same flow. Most plants we size for this floc run the DAF at the lower end of that loading band while polymer dose is still being tuned.
Specify a Dissolved Air Flotation (DAF) System when the jar test shows a rising sludge, not a sinking one. If the floc later sinks faster than 1.5 m/h after a coagulant change, a clarifier can be reconsidered. Until that test exists, flotation is the default for chromium hydroxide.
Membrane polishing is for reuse or for a limit the float cell cannot hit. An industrial RO system for chromium polishing and ZLD rejects 98–99.5% of Cr³⁺ at 10–20 bar. Ultrafiltration ahead of the RO skid is the usual answer to residual polymer. Without that UF step, the membranes foul and the 99.5% rejection in the table becomes a paper number.
Zero liquid discharge, when the permit demands it, starts only after RO. Brine goes to an evaporator or a crystallizer. Thermal ZLD on this brine uses 20–50 kWh/m³. Forward osmosis (FO) is a lower-energy way to concentrate chromium brine before final crystallization. The table target for this last stage is 95%+ water recovery.
| Process Stage | Key Parameter | Operational Target | Removal/Efficiency |
|---|---|---|---|
| Reduction | pH / ORP | pH 2.5 / -250 mV | >99% Cr⁶⁺ to Cr³⁺ |
| Precipitation | pH | pH 8.8 - 9.2 | Formation of Cr(OH)₃ |
| DAF Separation | Loading Rate | 5 - 10 m/h | 90-95% TSS Removal |
| RO Polishing | Pressure | 10 - 20 bar | 99.5% Cr Rejection |
| ZLD Evaporation | Energy Use | 20 - 50 kWh/m³ | 95%+ Water Recovery |

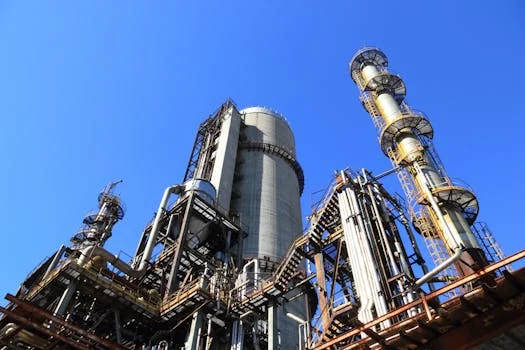

Technology Comparison: Chemical Reduction vs. Ion Exchange vs. Membrane Systems
Technology choice for fab chromium wastewater follows influent strength, footprint, and the effluent number on the permit, not a vendor preference. Chemical reduction remains the workhorse above 50 mg/L. Ion exchange and membranes earn their place on polishing and on high-purity reuse.
| Technology | Influent Range | Effluent Quality | CAPEX ($/m³/day) | OPEX ($/m³) | Compliance |
|---|---|---|---|---|---|
| Chem. Reduction + DAF | 50–200 mg/L | 0.1–0.5 mg/L | $500–$1,200 | $0.15–$0.40 | China/Taiwan |
| Ion Exchange (IX) | <10 mg/L | <0.01 mg/L | $800–$1,500 | $0.20–$0.50 | EU/California |
| Membrane (RO/NF) | <50 mg/L | <0.05 mg/L | $1,200–$2,500 | $0.30–$0.80 | EPA/ZLD |
| Hybrid (Red+DAF+RO) | 10–200 mg/L | <0.01 mg/L | $1,500–$3,500 | $0.40–$1.00 | Global ZLD |
Chemical reduction plus precipitation is the robust pick for high-strength influent, and it produces hazardous sludge under EPA D007. Expect 0.5–1.5 kg of sludge per m³ of treated water. Ion exchange polishes well, then the regenerant brine still needs a ZLD path. RO fits the water-reuse block described in wafer fab ZLD system designs and costs, where permeate can feed cooling towers or scrubbers.
ZLD System Costs for Chromium Wastewater: CAPEX, OPEX, and ROI Calculator
ZLD system cost for a chromium branch is dominated by the evaporator and the RO skid, not by the reduction tanks. For a 100 m³/h train, the component bands below are the estimating split still used at concept stage.
| System Component | Estimated CAPEX | Key Technical Spec |
|---|---|---|
| Chemical Reduction Unit | $200,000 – $500,000 | Dual-stage ORP control |
| DAF/Clarification | $150,000 – $400,000 | High-rate DAF |
| RO/NF Polishing | $500,000 – $1,200,000 | High-rejection membranes |
| Thermal Evaporator | $300,000 – $1,000,000 | MVR or Multi-effect |
| Automation/SCADA | $100,000 – $300,000 | Integrated PLC control |
OPEX on these trains runs from $0.25 to $0.60 per m³ of treated water. Na₂S₂O₅ and NaOH are about 25% of that OPEX, and power for RO pumps plus evaporators is about 40%. Membrane replacement every 3–5 years adds about 15%. Chromium sludge disposal, often missed at concept stage, runs $200–$500 per ton, and a plate-and-frame filter press for chromium sludge dewatering can cut sludge volume by 60–75%.
A fab treating 50 m³/h of chromium wastewater, with $2M CAPEX and $0.40/m³ OPEX, can see payback in 3–5 years. That sketch assumes freshwater at $0.50/m³ and avoided penalties of $25,000 to $100,000 per violation day in places such as Taiwan or the United States. The other return is water security: during municipal rationing, recovered water keeps tools running. Treat the 3–5 year figure as a screen, and rebuild it with the site water tariff.
The chromium branch is only one block on a fab ZLD balance sheet. Plant-wide specs and cost structure sit in Chip Fab Wastewater ZLD: 2026 Engineering Specs, Cost Data &. Use that page for the shared evaporator, and use this page for the chromium chemistry ahead of it.
What to Lock Before the Chromium Package Is Released
Seven items should be frozen before a chromium package goes out for bid. Most plants we review still leave sludge price and the permit citation blank at this gate.
- Split chrome-mask plating rinse from fluoride etch before the reduction tank. Fluoride under section 469.15, at 32.0 mg/L daily, is a different problem from chromium.
- Write the permit basis on the datasheet. Part 469 has no chromium row. Where 433.13 applies, total chromium is 2.77 mg/L daily and 1.71 mg/L monthly. A local Cr⁶⁺ cap may still read 0.01 mg/L.
- Fix reductant at 3–5 mg of Na₂S₂O₅ per 1 mg of Cr⁶⁺, a pH of 2.0–3.0, and ORP between -200 mV and -300 mV.
- Default to DAF at 5–10 m/h when settling velocity is between 0.5 and 1.5 m/h.
- Add RO only if reduction plus DAF cannot reach the permit. That pair’s effluent band in the comparison table is 0.1–0.5 mg/L.
- Price sludge as EPA D007 at 0.5–1.5 kg per m³ and $200–$500 per ton, after a 60–75% volume cut on the press.
- Put 20–50 kWh/m³ on the ZLD OPEX line before anyone quotes a 3–5 year payback.
Compliance Checklist: Meeting Global Chromium Discharge Limits
Chromium discharge compliance for a chip fab is a stack of national, state, and local numbers, and those numbers do not match. Audit the installed train against the benchmarks below, then against the actual permit, which wins.
- United States (EPA semiconductor subcategory): 40 CFR 469.12 does not set 0.05 mg/L Cr⁶⁺. BPT in 469.14 is TTO at 1.37 mg/L and pH 6.0 to 9.0. State notes for California or Oregon may still be significantly lower (0.01 mg/L).
- United States (metal finishing, where it applies): 40 CFR 433.13 sets total chromium at 2.77 mg/L as a daily maximum and 1.71 mg/L as a monthly average.
- European Union: 0.01 mg/L Cr⁶⁺ for drinking water (98/83/EC) and 0.5 mg/L total Cr for industrial discharge (2010/75/EU).
- China: 0.5 mg/L total Cr for the electronic industry (GB 31573-2015). Surface water discharge in Tier-1 cities often requires 0.05 mg/L Cr⁶⁺.
- Taiwan: 0.5 mg/L total Cr (EPA Taiwan, 2023 update). Continuous monitoring is mandatory for facilities discharging >100 m³/day.
- South Korea: 0.5 mg/L total Cr under the Water Quality and Ecosystem Conservation Act.
- California drinking water, not a fab discharge limit by itself: According to the California State Water Resources Control Board, the hexavalent chromium MCL is 0.010 mg/L, or 10 µg/L, effective on 1 October 2024. Total chromium stays at 50 µg/L. The same page states that U.S. EPA raised the federal total-chromium MCL to 100 µg/L in 1991 and that California did not adopt that change. The public health goal cited there is 0.02 µg/L, set in 2011, and hexavalent chromium is listed under Title 27 CCR section 27001.
Continuous online Cr⁶⁺ analyzers belong at the effluent point, not only in the reduction tank. Quarterly reports should show concentration and a mass balance of chromium in and out, so losses are not hiding in the brine. That brine often shares equipment with high-salinity wastewater treatment solutions for fabs. If the mass balance does not close, the missing chromium is usually in the press cake or a floor drain, not in a meter error.
