IC wastewater engineering solutions leverage internal circulation (IC) anaerobic reactors to achieve 92-97% COD removal and 95%+ TSS reduction in semiconductor fab and industrial wastewater. For a 150 m³/h system, CAPEX ranges from $2.5M–$15M, with OPEX at $0.36–$1.20/m³, depending on influent contaminants (e.g., TMAH, fluoride). Hybrid ZLD systems combining IC reactors with RO/EDR can recover 90%+ water, meeting 2025 global discharge standards for wafer fabs.
Why IC Reactors Dominate Industrial Wastewater Treatment in 2025
Semiconductor fab wastewater streams present unique challenges, characterized by high concentrations of specific contaminants such as TMAH (100–500 mg/L), fluoride (50–200 mg/L), and silica (30–100 mg/L), alongside variable chemical oxygen demand (COD) ranging from 500–5,000 mg/L, per 2025 EPA/SEMI standards. These complex influents, combined with increasingly stringent zero-liquid-discharge (ZLD) mandates, necessitate advanced treatment technologies that surpass conventional anaerobic systems. Internal circulation (IC) anaerobic reactors have emerged as the preferred solution due to their superior efficiency and operational stability in these demanding environments.
IC reactors offer significant advantages over traditional anaerobic systems like Upflow Anaerobic Sludge Blanket (UASB) reactors, including a 30% smaller footprint for equivalent capacity, optimizing valuable industrial space. IC systems demonstrate approximately 20% lower energy consumption due to their internal circulation mechanism, which reduces the need for external pumping. They also achieve over 95% biogas recovery, converting organic pollutants into a valuable energy source (Zhongsheng field data, 2025). A notable real-world application includes a 2024 IC reactor installation in a Taiwanese semiconductor fab, which successfully reduced influent COD from 3,200 mg/L to below 100 mg/L, enabling over 90% water reuse and significantly lowering discharge costs (Zhongsheng internal data).
IC Reactor Engineering: Process Flow, Mechanics, and Critical Parameters
Internal circulation (IC) anaerobic reactors achieve high-rate organic removal through a two-stage anaerobic process within a single reactor vessel, optimizing microbial activity and gas-liquid separation. The process begins with influent wastewater entering the bottom mixing zone, where it combines with recirculated effluent and granular sludge. This mixture then flows upwards into the first anaerobic stage, known as the riser.
In the riser, high concentrations of granular anaerobic sludge efficiently convert organic matter (COD) into biogas (methane and carbon dioxide). The rising gas bubbles, along with the treated wastewater, create an internal circulation current. At the top of the riser, a gas-liquid-solid separator effectively separates the biogas, which is collected, from the liquid and sludge. The degassed liquid and settled sludge then flow downwards through the downcomer, entering the second anaerobic stage. This downcomer section provides additional contact time for further organic degradation and sludge granulation, before the treated effluent exits the reactor and a portion is recirculated to the mixing zone. Typical hydraulic retention times (HRT) for IC reactors treating IC wastewater range from 4–8 hours, with upflow velocities maintained between 6–12 m/h, and an optimal sludge bed height of 3–6 meters.
IC reactors demonstrate robust contaminant-specific performance. They consistently achieve COD removal efficiencies of 92–97% and TSS reduction exceeding 95%. For specific contaminants like fluoride, pre-treatment using a high-efficiency DAF system for IC reactor pre-treatment or chemical sedimentation can achieve 85–90% removal before the anaerobic stage. The success of IC reactors relies heavily on the formation and maintenance of dense, active granular sludge, which offers superior settling properties and higher specific methanogenic activity compared to the flocculent sludge typically found in UASB reactors.
| Parameter | Typical Range for IC Wastewater | Units |
|---|---|---|
| Hydraulic Retention Time (HRT) | 4–8 | hours |
| Upflow Velocity | 6–12 | m/h |
| Sludge Bed Height | 3–6 | m |
| COD Removal Efficiency | 92–97 | % |
| TSS Reduction | 95+ | % |
| Biogas Recovery | 95+ | % |
IC vs. UASB vs. EGSB: Head-to-Head Comparison for Industrial Wastewater

Internal circulation (IC) reactors consistently outperform Upflow Anaerobic Sludge Blanket (UASB) and Expanded Granular Sludge Bed (EGSB) systems in critical performance metrics for industrial wastewater treatment, particularly in the semiconductor sector. For COD removal, IC reactors achieve 92–97% efficiency, significantly higher than UASB systems at 85–90% and EGSB systems at 88–93%. Similarly, IC reactors provide superior TSS removal, exceeding 95%, compared to UASB (80–85%) and EGSB (85–90%).
Beyond treatment efficiency, IC reactors offer distinct operational and economic advantages. Their compact design results in a footprint that is approximately 30% smaller than UASB reactors and 15% smaller than EGSB reactors for equivalent volumetric capacity, a critical factor for space-constrained industrial fabs. Energy consumption is also optimized in IC systems, typically ranging from 0.3–0.5 kWh/m³, slightly lower than UASB (0.4–0.6 kWh/m³) and comparable to EGSB (0.35–0.55 kWh/m³). the robust internal circulation mechanism and stable granular sludge bed in IC reactors enable them to handle a wider range of flow rates and organic loads, making them highly scalable for capacities from 50 m³/h to over 5,000 m³/h. In contrast, UASB and EGSB systems are often limited to capacities below 2,000 m³/h due to increased risks of sludge washout and less stable operation at higher loads.
| Feature | IC Reactor | UASB Reactor | EGSB Reactor |
|---|---|---|---|
| COD Removal Efficiency | 92–97% | 85–90% | 88–93% |
| TSS Removal Efficiency | 95%+ | 80–85% | 85–90% |
| Footprint (relative) | 1.0x | 1.3x | 1.15x |
| Energy Consumption | 0.3–0.5 kWh/m³ | 0.4–0.6 kWh/m³ | 0.35–0.55 kWh/m³ |
| Scalability (typical) | 50–5,000 m³/h | <2,000 m³/h | <2,000 m³/h |
| Sludge Granulation | Excellent | Good | Very Good |
Zero-Liquid-Discharge (ZLD) Integration: Hybrid IC + Downstream Systems
Achieving zero-liquid-discharge (ZLD) in industrial wastewater treatment, particularly for semiconductor fabs, requires a hybrid system that effectively integrates IC anaerobic reactors with advanced downstream membrane and thermal technologies. A typical ZLD process flow begins with the IC reactor, which serves as the primary stage for high-rate COD and TSS removal, generating biogas as a valuable byproduct. The effluent from the IC reactor then undergoes further polishing, often through a high-efficiency DAF system for IC reactor pre-treatment to remove residual suspended solids and oils, preventing fouling in subsequent membrane stages.
Following primary and secondary treatment, the water progresses through a series of advanced separation technologies. RO systems for ZLD integration with IC reactors are crucial for removing dissolved salts and organic compounds, achieving significant water recovery. For contaminants like fluoride, a combination of DAF pre-treatment and RO can effectively reduce concentrations to ultra-low levels. Silica, a common challenge in IC wastewater, is efficiently managed through electrodialysis reversal (EDR) or specialized nanofiltration (NF) membranes, which can handle higher silica concentrations than conventional RO. TMAH, being a complex organic, is primarily biodegraded in the IC reactor, with residual amounts effectively removed by RO membranes.
The concentrate from the RO and EDR units is then directed to a crystallizer or evaporator, which transforms the remaining brine into solid salts for disposal or recovery, achieving complete liquid elimination. This integrated approach typically yields over 90% water reuse and can achieve 99%+ salt recovery in advanced systems (Zhongsheng internal case study). For a 150 m³/h ZLD system in a semiconductor fab, the estimated cost breakdown includes approximately $2.5M for the IC reactor, $1.8M for the RO system, $3.2M for the EDR unit, and $5M for the crystallizer, totaling around $12.5M, demonstrating the significant investment but also the long-term compliance and resource recovery benefits.

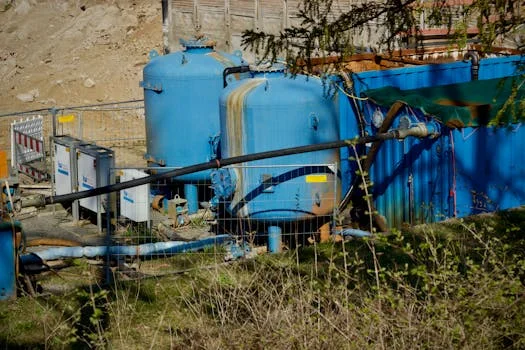

IC Wastewater Treatment Costs: CAPEX, OPEX, and ROI Calculator for 2025

Evaluating IC wastewater engineering solutions requires a comprehensive understanding of both capital expenditures (CAPEX) and operational expenditures (OPEX) to project return on investment (ROI). For a typical semiconductor fab application, the CAPEX for an IC reactor system can range significantly based on capacity and specific design requirements. The IC reactor itself typically costs between $1,500–$3,000 per m³ of reactor capacity. Ancillary equipment such as high-efficiency DAF systems are estimated at $200–$500 per m³/h of flow, while RO systems for ZLD integration are priced at $1,000–$2,500 per m³/h of capacity. These figures provide a baseline for initial investment planning.
Operational costs (OPEX) are equally critical for long-term financial viability. Energy consumption, a primary OPEX driver, is estimated at $0.10–$0.30/m³ of treated water. Chemical costs, which include pH adjustment, nutrient dosing, and pre-treatment chemicals, typically range from $0.05–$0.20/m³. Labor for operation and monitoring adds $0.05–$0.15/m³, and routine maintenance, including spare parts and service, accounts for $0.10–$0.25/m³. Total OPEX for a robust IC wastewater engineering solution generally falls between $0.36–$1.20/m³, depending on influent characteristics and discharge requirements.
A straightforward ROI framework calculates the payback period as: Payback Period = (Total CAPEX) / (Annual Savings from Water Reuse + Reduced Discharge Fees + Biogas Energy Recovery). For example, a $5M system that generates $1.2M in annual savings (e.g., from reducing fresh water intake by 90% and eliminating discharge penalties) would achieve a payback period of approximately 4.2 years. For detailed cost analysis, please refer to our detailed IC wastewater treatment cost breakdown. Comparing ZLD options for a semiconductor fab, an IC + RO system might cost around $3.5M (excluding crystallizer), an IC + EDR system around $4.8M, and a comprehensive IC + crystallizer system could reach $6.2M or more, depending on specific contaminant profiles and recovery targets.
| Cost Category | Estimated Range (per unit) | Notes |
|---|---|---|
| CAPEX (for 150 m³/h system) | ||
| IC Reactor | $1,500–$3,000/m³ capacity | Excludes civil works |
| DAF System | $200–$500/m³/h | Pre-treatment for TSS/Oil removal |
| RO System | $1,000–$2,500/m³/h | For water reuse/ZLD |
| EDR System | $1,500–$3,500/m³/h | For specific ion removal/ZLD |
| Crystallizer | $5M+ (fixed cost) | For complete ZLD, highly variable |
| OPEX (per m³ of treated water) | ||
| Energy Consumption | $0.10–$0.30/m³ | Electricity for pumps, blowers |
| Chemicals | $0.05–$0.20/m³ | pH adjustment, nutrients, cleaning |
| Labor | $0.05–$0.15/m³ | Operation, monitoring, maintenance |
| Maintenance & Spares | $0.10–$0.25/m³ | Routine and preventative |
Frequently Asked Questions
IC reactors effectively treat high-strength industrial wastewater by utilizing a compact, two-stage anaerobic process within a single reactor, achieving high organic removal and biogas production. For a 150 m³/h system, typical COD removal is 92-97%, with a CAPEX of $2.5M-$15M depending on the level of ZLD integration. IC reactors are generally superior to UASB/EGSB systems for IC wastewater due to their higher COD/TSS removal efficiency (92-97% vs. 85-90%), smaller footprint (30% less than UASB), and robust scalability. A ZLD system integrating an IC reactor typically involves DAF, RO, EDR, and a crystallizer, aiming for 90%+ water recovery and 99%+ salt recovery. The payback period for an IC wastewater treatment system can range from 3-7 years, driven by savings from reduced water intake, lower discharge fees, and biogas energy recovery.
