Why a Brewton mining or metals stream does not have one answer
Mining and metals wastewater is rarely a single-fraction problem. A typical 2026 plant stream carries five coexisting fractions: dense mineral fines from a tailings thickener overflow or mill discharge, colloidal clays that do not settle cleanly, oils and greases from mobile equipment, residual flotation reagents from the mill circuit, and dissolved heavy metals that have crossed the pH boundary into solution or back into hydroxide precipitate.
A single-mechanism clarifier sized only for the settleable fraction will discharge the colloidal, buoyant, and dissolved loads; a DAF unit forced to handle raw tailings will be overwhelmed by the silt and clay fraction it cannot lift. The selection has to start with which fraction dominates the specific Brewton stream — tailings thickener overflow, mill discharge, metal-finishing rinse, or AMD neutralisation overflow — before any equipment is named. The matrix the rest of this article uses scores both units against those fractions, with the dominant mechanism (micro-bubble flotation at 30–50 µm versus gravity sedimentation) determining which stream belongs in which unit (Clearwater Industries; Fluence, via HydropureWater, 2026).
How a DAF actually separates a mining stream
A dissolved air flotation unit separates suspended matter by attaching micro-bubbles to flocculated particles and floating the resulting aggregate to the surface, where a skimmer pulls the sludge blanket into a collection trough (Clearwater Industries, 2026). The bubbles are 30–50 µm in diameter, small enough to adhere to oil droplets, fine precipitates, biological flocs, and the loose floc produced by polymer conditioning. The process is paired with chemical conditioning: coagulant, pH adjustment, and polymer flocculant are dosed into flocculation tubes (15–45 second flash mix) or impeller mix tanks, with contact time set empirically by jar testing. When coagulation and flocculation are properly tuned, DAF solids removal rises and the floated sludge is thick enough to need little further dewatering — a direct cost lever for a 2026 water-reuse spec.
The available mechanical configurations cover low to high solids loads: the Clearwater FPAC is a low-built cross-flow separator for small-to-medium flows with very high contaminant loads, the FPBC is a high-profile lamella design for low-to-medium loads, and the FPHF is a hybrid cross/counter-flow unit for large flows with medium-to-large loads (Clearwater Industries, 2026). The Compact DAF is a pre-assembled turnkey system with chemical conditioning equipment, sensors, instruments, and a PLC control panel; flows of 66 GPM or less are managed with a single skid design, while flows larger than 66 GPM are treated with a modular two-skid system. Performance is chemistry-limited rather than tank-limited: the Logan, Utah wastewater treatment plant study recorded an optimum dose of 30 mg/L aluminium sulphate for algae and phosphorus removal on a lagoon effluent, and explicitly framed DAF optimisation as an empirical jar-test exercise rather than a default supplier value (Utah State University, 2011, via HydropureWater, 2026). The boundary to write into the spec is that DAF is not well suited to water sources that contain high levels of heavier particles that do not float, such as silt and clay (Fluence, via HydropureWater, 2026) — that is why a DAF cannot be the primary unit on raw tailings. A DAF system for mining and metals wastewater paired with a PLC-controlled coagulant and flocculant dosing skid is the standard configuration for this duty.
| Parameter | Specification / Range | Source |
|---|---|---|
| Bubble diameter | 30–50 µm | Clearwater Industries, 2026 |
| Flash-mix contact time (flocculation tubes) | 15–45 s | Clearwater Industries, 2026 |
| Compact DAF single-skid flow limit | ≤ 66 GPM | Clearwater Industries, 2026 |
| Compact DAF two-skid flow | > 66 GPM | Clearwater Industries, 2026 |
| Standard material of construction | 304SS; 316SS, polypropylene, other materials on request | Clearwater Industries, 2026 |
| Recorded optimum jar-test dose (Logan, UT) | 30 mg/L aluminium sulphate (algae/phosphorus removal on lagoon effluent) | Utah State University, 2011, via HydropureWater, 2026 |
| Boundary condition | Not well suited to high silt and clay loadings | Fluence, via HydropureWater, 2026 |

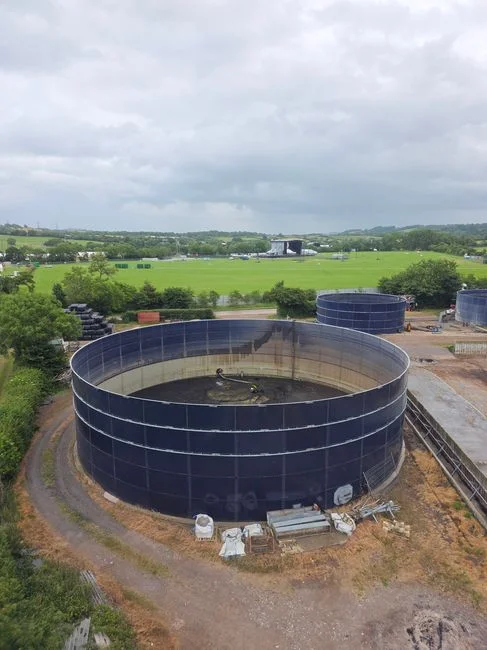

How a clarifier separates a mining stream
A clarifier separates by gravity. Particles with specific gravity greater than water settle under the surface overflow rate set by the tank geometry, the sludge is withdrawn from the bottom, and clarified water overflows a peripheral or peripheral-and-imperforate launder. A conventional clarifier is the workhorse of mineral processing — a thickener on the tailings side, a primary sedimentation tank ahead of any downstream treatment — and its performance is set by particle settleability, surface overflow rate, and sludge withdrawal design, rather than by chemical conditioning intensity. Lamella designs compress the footprint of that same mechanism: inclined plates multiply the effective settling area inside a smaller tank volume, which raises the allowable surface loading rate for a given footprint. For a Brewton site with a fixed civil footprint and a high underflow solids target, a high-rate lamella clarifier for mineral fines is the standard selection. The trade-off is that lamella plates do not change the mechanism: dense mineral fines and metallurgical sludges settle, while colloidal fines, oils, surfactants, and dissolved metals pass to whatever polishing step follows (HydropureWater, 2026).
DAF vs clarifier: a fraction-by-fraction matrix for Brewton streams
The matrix below scores the two units against the contaminant fractions a 2026 specification has to address. The dominant mechanism — micro-bubble flotation at 30–50 µm versus gravity sedimentation — determines which stream belongs in which unit (Clearwater Industries; Fluence, via HydropureWater, 2026). The chemistry row is anchored to the Logan, Utah jar-test optimum of 30 mg/L aluminium sulphate recorded by Utah State University in 2011, with the explicit caveat that DAF optimisation is empirical rather than a supplier default.
| Criterion | DAF (Dissolved Air Flotation Clarifier) | Clarifier (Conventional or Lamella) |
|---|---|---|
| Mechanism | Micro-bubbles (30–50 µm) attach to floc and float it to the surface; skimmer removes sludge | Gravity settling; lamella plates increase effective settling area for the same footprint |
| Target fractions | Oils, greases, flotation reagents, biological flocs, fine precipitates, colloidal fines after coagulation | Dense mineral fines, tailings, metallurgical sludges with specific gravity greater than water |
| Not suited to | High silt and clay loadings, which DAF cannot lift (Fluence) | Emulsified oils, colloids, and low-specific-gravity precipitates that do not settle |
| Chemistry | Coagulant, pH, and flocculant dose set by jar testing (30 mg/L aluminium sulphate optimum, USU 2011) | Coagulant aid is optional; performance is governed by surface overflow rate and sludge withdrawal design |
| Sludge output | Thick floated sludge that may need little further dewatering (Clearwater Industries, 2026) | Thickener underflow; usually handled by a thickener or filter press |
| Footprint | Compact tank; high-rate designs available for medium-to-large flows | Large civil footprint for conventional units; lamella designs compress the footprint significantly |
| Position in train | Primary for oil/reagent/colloid loads; polisher after a clarifier for combined streams | Primary for bulk settleable solids; pre-step ahead of DAF in a combined train |
| Reuse / ZLD role | Documented for recycling process water and materials in mining waste treatment (Fluence) | Recycles clarified supernatant; does not address colloidal or buoyant load |
For most Brewton mining and metals operations the streams are combined, so the matrix points to a clarifier ahead of a DAF polisher, with the underflow from either unit sent to sludge dewatering.
Brewton compliance frame: 40 CFR 440, ADEM and water-reuse pressure
Mining and metals sites discharging in the US fall under the EPA Effluent Guidelines for the Ore Mining and Dressing Point Source Category (40 CFR 440), which a Brewton factory has to clear in the 2026 RFQ (HydropureWater, 2026). Tightening heavy-metal discharge limits push factories to remove the colloidal and precipitated metal fraction that escapes a clarifier alone — exactly the fraction DAF targets, with users citing efficient heavy-metal and oil-waste removal as the documented benefit (Fluence, via HydropureWater, 2026). Water-reuse economics make process-water recycling a 2026 priority, and DAF is documented as a tool for recycling process water and materials in mining waste treatment (Fluence, via HydropureWater, 2026). The DAF effluent still typically needs a downstream solids-removal step — filtration or membrane — before reuse or discharge, and that polish should be in the RFQ from day one. A multi-media filter for the reuse or discharge target is the typical polish step on a Brewton train. Relying solely on a clarifier often results in the carryover of fine, non-settleable colloidal metals and emulsified oils, which can drive TSS and total metal excursions under modern discharge mandates (HydropureWater, 2026).
Building the 2026 train: clarifier, DAF and downstream polish
The combined-stream sequence for a Brewton site is equalisation and grit removal → high-rate lamella clarifier (or conventional thickener) for settleable mineral fines → DAF for the colloidal, precipitated, and buoyant fraction → multi-media filter or membrane polish for the reuse or discharge target (HydropureWater, 2026; Fluence, via Seven Seas Water). Chemical conditioning sits in front of the DAF, not the clarifier: a PLC-controlled coagulant and flocculant dosing skid holds the dose at the value jar testing sets, and the Logan, UT study shows the optimum is empirical and dose-specific rather than a supplier default (Clearwater Industries, 2026; Utah State University, 2011, via HydropureWater, 2026). On the sludge side, a well-conditioned DAF produces a thick sludge that may need little further dewatering, lowering the sludge-handling line item in the OPEX, and the underflow from both units is then sent to a plate and frame filter press or a thickener. For a site with an existing clarifier that is being asked to do more, the practical move is to add a DAF as a downstream polisher rather than rebuild the primary tank — the matrix already places the DAF as the unit that captures what the clarifier lets through. For a parallel decision pattern on a fabricated-metals stream, the DAF or clarifier for fabricated metals wastewater buyer guide applies the same matrix.
Cost frame and supplier-qualification checklist for Brewton buyers
The research does not supply a 2026 unit price for either a DAF or a clarifier, so the engineer has to request a budgetary quotation tied to the specific flow, TSS, and contaminant-fraction profile of the stream (HydropureWater, 2026). What the sources do support is the cost lever inside the train: capital expenditure for industrial-grade DAF systems typically ranges from $150,000 to over $1.5 million, driven mainly by flow rate and materials of construction, with a 20–30% premium over base-model municipal units to account for the heavy-duty sludge handling systems required for high-solids mineral loading, and 316L stainless steel or specialised coatings to resist acidic or abrasive mineral slurries (HydropureWater, 2026). Ask the vendor to quote the DAF, the chemical conditioning skid, and the sludge-dewatering step as a single line, so the sludge-handling saving from a well-conditioned DAF is visible in the bid. A buyer working a wider 2026 vendor shortlist can cross-check names against the 2026 industrial wastewater management solutions providers buyer's guide.
| Checklist Item | What the Buyer Must See or Provide |
|---|---|
| Documented pilot study on similar metallurgical effluent | Vendor provides pilot data; buyer must confirm similarity of TSS, pH, metals |
| 40 CFR 440 / ADEM compliance evidence | Vendor supplies references and prior permit outcomes |
| ISO 9001 certification | Vendor provides current certificate |
| Post-commissioning support for automated chemical dosing | Vendor commits to service schedule and spare parts |
| Track record with metal-bearing effluents | Vendor supplies case studies and reference contacts |
| Influent characterisation supplied by buyer | TSS, particle size distribution, pH, temperature, dissolved heavy metals (e.g. copper, lead, zinc) |
| Bench-scale jar-test results supplied by buyer | Optimal coagulant and flocculant doses, plus required rise rate (m/h) for clarifiers or air-to-solids ratio for DAF |
| Seasonal flow variation data supplied by buyer | Consistent data across wet/dry seasons; inconsistent data leads to undersized equipment and non-compliance |
Frequently Asked Questions
Should a Brewton mining or metals plant in 2026 buy a DAF or a clarifier?
Pick by fraction. A clarifier handles the settleable mineral fines from tailings thickener overflow or mill discharge; a DAF handles the colloidal, precipitated, and buoyant load (oils, greases, flotation reagents, fine precipitates). For combined Brewton streams the spec points to a clarifier → DAF → filtration train aligned to 40 CFR 440, with downstream polish for reuse or discharge (Clearwater Industries; Fluence, via HydropureWater, 2026).
Why can't a DAF handle raw tailings on its own?
Fluence is explicit that DAF is not well suited to water sources that contain high levels of heavier particles that do not float, such as silt and clay (Fluence, via HydropureWater, 2026). The silty fraction is the boundary condition that decides the train and is the reason a clarifier sits ahead of a DAF on combined Brewton streams.
What CAPEX should we budget for an industrial DAF on a mining stream?
Capital expenditure for industrial-grade DAF systems typically ranges from $150,000 to over $1.5 million, driven mainly by flow rate and materials of construction, with a 20–30% premium over base-model municipal units for the heavy-duty sludge handling required for high-solids mineral loading, and 316L stainless steel or specialised coatings for acidic or abrasive mineral slurries (HydropureWater, 2026). Because the research does not supply a 2026 unit price for a specific flow, request a budgetary quotation tied to the actual flow, TSS, and contaminant-fraction profile of the stream.
How do we qualify a DAF or clarifier supplier for a Brewton metals site in 2026?
Require documented pilot data on similar metallurgical effluents, ISO 9001 certification, evidence of compliance with 40 CFR 440 and ADEM permit expectations, and post-commissioning support for automated chemical dosing. Provide TSS, particle size distribution, pH, temperature, dissolved heavy-metal concentrations, and bench-scale jar-testing results with optimal coagulant and flocculant doses; inconsistent seasonal data leads to undersized equipment and non-compliance (HydropureWater, 2026).
