Why Cairo residential and camp projects keep choosing containerized MBR
A containerized MBR is a "plug-and-play" sewage-treatment package in which tanks, membrane modules, blowers and controls are pre-assembled inside an ISO 20 ft or 40 ft frame, so on-site civil work drops to anchoring, pipework tie-ins and power (per Dynatec Systems' containerized MBR product description). That short installation window matters on Cairo compounds, gated communities and worker camps where laydown areas are tight and the project must hand over before the next phase of housing is released. Mobility is built in: the same unit can be redeployed to a later phase of a compound or to a new camp site as construction sequencing changes, which matches Cairo's phased real-estate delivery model (per Dynatec Systems).
The membrane module acts as an absolute barrier for TSS and biomass, so MBR effluent is normally designed around BOD ≤10 mg/L, TSS ≤5 mg/L and COD <30 mg/L as indicative targets (per the DMC Education STP-MBR design reference, presented as preliminary design targets rather than as universal statutory limits). Out-of-basin membrane configurations also make it easier to retrofit existing bioreactors and to expand capacity by adding membrane skids later (per Dynatec Systems). For an engineer in Cairo weighing civil-build STP against a packaged unit, the trade is straightforward: a containerized MBR trades a higher unit price for a shorter schedule, a smaller site footprint and a defined process envelope that can be checked against bid documents before the supplier is selected.
Step 1 — Lock the design population and the Qavg / Qp envelope
Qavg (KLD) is the project's defining hydraulic input and is calculated as the first step of any MBR sizing exercise; the DMC Education reference explicitly lists it as project-specific. Qavg is derived from the design population multiplied by a per-capita sewage generation rate, and the population basis must be agreed in writing before sizing starts — for a Cairo residential compound that is full-time residents, for a worker camp it is the peak-shift headcount, and for a resort or club it is the design occupancy plus day-staff. The same number on a drawing can therefore mean very different plants depending on which population was counted.
Peak flow Qp is then Qavg multiplied by a peak factor PF, with a preliminary PF of 2.0–2.5 per the DMC Education reference; PF covers the morning/evening peaks typical of residential and camp patterns. Where a camp has a single shift change, the actual hydraulic peak can be sharper than 2.5×, so the design PF should be established from the project's sewage-flow pattern rather than borrowed from a generic table (per DMC Education).
| Parameter | Symbol | Unit | Preliminary value |
|---|---|---|---|
| Average sewage flow | Qavg | KLD | Project-specific (population × per-capita factor) |
| Peak factor | PF | — | 2.0–2.5 |
| Peak flow | Qp | KLD | Qavg × PF |
Worked anchor for the rest of this guide: a 500-person worker camp with a per-capita sewage factor of, for example, 150 L/person·day gives Qavg = 75 KLD, and Qp = 150–188 KLD at PF 2.0–2.5. The per-capita figure itself is not supplied in the research and must be agreed from project data — any number shown here is illustrative only and should be replaced with the project's documented basis before it is sent to a supplier.

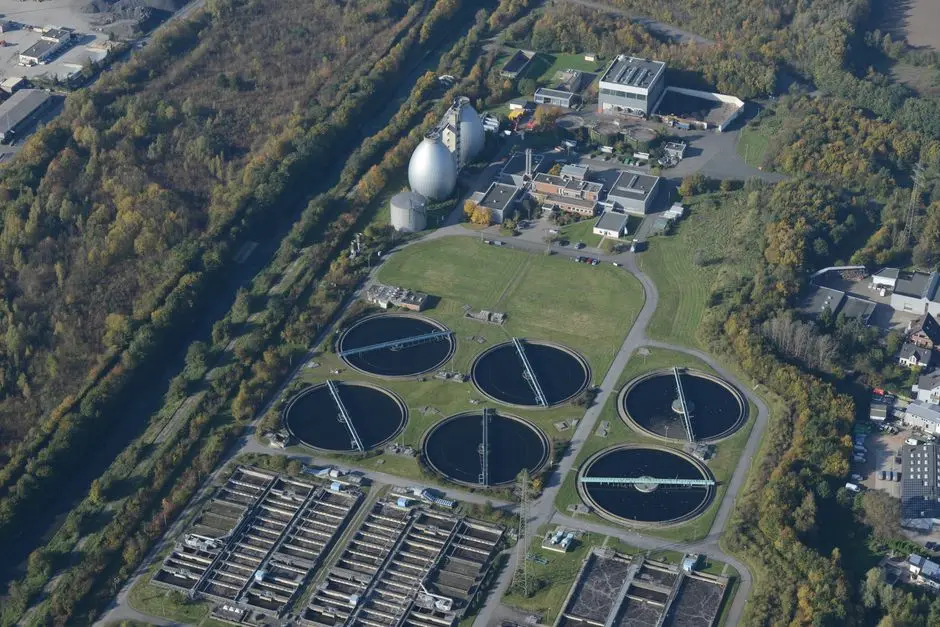

Step 2 — Set the influent characterisation and the MBR operating envelope
The second block of inputs is the influent characterisation and the MBR operating envelope, because the F/M ratio, SRT, membrane flux and TMP are all levers the engineer sets — they are not vendor defaults. Preliminary influent ranges from the DMC Education STP-MBR design reference (2026-08) are BOD 200–400 mg/L, COD 400–800 mg/L, TSS 200–300 mg/L, TKN 30–60 mg/L, pH 6.5–8.5 and temperature 20–35 °C; these are starting ranges and the final values should be selected from actual wastewater characterisation. MBR plants operate at higher MLSS than conventional activated sludge because membranes replace secondary clarification, so preliminary MLSS is 8,000–12,000 mg/L (per DMC Education).
F/M ratio is preliminary 0.08–0.15 kg BOD/kg MLSS·day and SRT preliminary 20–40 days — these are the levers used to stabilise nitrification and control sludge yield (per DMC Education). Membrane flux is preliminary 15–25 LMH and TMP preliminary 0.1–0.4 bar; upward TMP trending in operation signals membrane fouling, poor air scouring or excessive MLSS (per DMC Education). The process choice can be matched to a packaged platform such as the HydropureWater integrated MBR system, but the operating envelope must still be defended by the engineer on the project data.
| Parameter | Symbol | Unit | Preliminary value |
|---|---|---|---|
| Influent BOD | S₀ | mg/L | 200–400 |
| Influent COD | — | mg/L | 400–800 |
| Influent TSS | — | mg/L | 200–300 |
| TKN | — | mg/L | 30–60 |
| Temperature | T | °C | 20–35 |
| MBR MLSS | X | mg/L | 8,000–12,000 |
| F/M ratio | — | kg BOD/kg MLSS·day | 0.08–0.15 |
| SRT | — | days | 20–40 |
| Membrane flux | J | LMH | 15–25 |
| TMP | TMP | bar | 0.1–0.4 |
Step 3 — Size the equalization, anoxic and aeration volumes
With Qavg, S₀ and the operating envelope fixed, the next step is to convert them into tank volumes that can be sketched inside a container footprint. The equalization tank balances hydraulic and pollutant-load variations; preliminary HRT is approximately 6–8 hours, so Veq = Qavg × HRT (Qavg converted to m³/hr), plus freeboard and mixing allowance (per DMC Education, 2026-08). The anoxic tank volume should be finalised from a nitrogen mass balance, not from a fixed HRT — nitrate-rich mixed liquor is recycled from the MBR or aeration section back to the anoxic tank to drive denitrification, so the right recycle ratio is set by the required nitrate-removal performance (per DMC Education).
The aeration tank volume Va is set from the F/M target: Va = (Q × S₀) / (F/M × X), where X is MLSS in mg/L; the result is cross-checked against BOD removed = Q × (S₀ − Sₑ) / 1,000 (per DMC Education). For a residential or camp profile in Cairo where the feed includes kitchen, laundry and ablution streams, S₀ near the top of the 200–400 mg/L BOD range is appropriate, but a documented assumption or a sampling result is needed before signing off. Equalization, anoxic and aeration together sit upstream of the membrane skid, and the geometry of those three stages is usually what decides whether everything fits in one 40 ft frame.
Step 4 — Calculate membrane area, blower capacity and permeate pump head
The process side of the sizing exercise closes with three equipment numbers every containerized MBR supplier will ask for. Membrane area is permeate flow divided by design flux; if permeate flow is in m³/day, divide by 24 to get m³/hr before applying LMH (per DMC Education). For a 75 KLD (3.125 m³/hr) average flow at a flux of 20 LMH, that gives a membrane area of about 156 m² — an order-of-magnitude check only, not a sizing output, because the actual flux, number of modules and redundancy must come from the selected membrane supplier. The chosen module geometry (flat sheet vs. hollow fibre) and the arrangement of skids drive the envelope; flat-sheet configurations such as the DF-series PVDF flat sheet MBR module are commonly used in packaged plants.
Air demand has two components: biological oxygen and membrane air scouring. The preliminary oxygen-demand estimate is O₂ ≈ 1.2–1.5 × BOD removed, and the simplified blower equation is Air Flow = O₂ required / (OTE × 0.232), where 0.232 is the approximate oxygen mass fraction in air; preliminary blower discharge pressure is approximately 500–700 mbar (per DMC Education, 2026-08). The permeate pump head is static head plus friction loss plus membrane/TMP head, with VFD control recommended for stable operation (per DMC Education). Membrane air-scouring requirements must be obtained from the selected membrane supplier, because no internal number can replace that data.
| Item | Equation / basis | Preliminary value |
|---|---|---|
| Membrane area | Permeate flow (m³/hr) ÷ flux (LMH) | Project-specific |
| O₂ demand | 1.2–1.5 × BOD removed | Project-specific |
| Blower air flow | O₂ required ÷ (OTE × 0.232) | Project-specific |
| Blower discharge pressure | Static depth + losses + scour + margin | ~500–700 mbar |
| Permeate pump head | Static + friction + TMP | Project-specific |
Step 5 — Fit the process train inside a container envelope
A containerized MBR STP must house screening, equalization, anoxic, aeration, MBR membrane, UV and treated-water storage inside an ISO frame — typically a 20 ft or 40 ft container — while still allowing access for membrane maintenance. The standard process flow to fit is Raw Sewage → Bar Screen → Equalization → Anoxic → Aeration → MBR Membrane → UV → Treated Water → Reuse, with excess sludge routed to a sludge holding tank and filter press (per DMC Education). Out-of-basin membrane configurations are easier to retrofit and to expand by adding membrane skids, which is an advantage when the container envelope is tight (per Dynatec Systems).
At planning stage the engineer should request a General Arrangement drawing showing tank dimensions, weir locations, blower and permeate-pump positions, and the membrane module access hatch — the GA is what proves the container can be maintained, not just that it holds water. Upstream screening is usually a rotary drum or bar screen such as a GX-series rotary mechanical bar screen, sized to protect the membranes from fibres and large solids. The container count and the position of the sludge press, UV unit and treated-water tank are the items that most often move between a one-container and a two-container bid.
Cairo-specific sizing checks before you send the enquiry
Ambient temperature 20–35 °C sits inside the DMC reference range, but the upper end of that range reduces diffuser oxygen-transfer efficiency, accelerates biological kinetics and tightens blower margins — so the design temperature should be confirmed against the project's hottest-month data, not the annual average. Influent strength on Cairo camps is often at the upper end of the BOD 200–400 mg/L range because kitchen, laundry and ablution streams concentrate in a small catchment; a sampling result or a documented assumption is needed before S₀ is signed off (per DMC Education, 2026-08). Treated-water end use — landscape irrigation, toilet flushing, discharge to the municipal sewer — drives the disinfection stage (a pipeline UV sterilizer is commonly added downstream of the membrane) and the final quality target, which must be checked against the applicable Egyptian reuse or discharge regulation rather than a generic international standard. Sludge handling also needs a scope decision: excess sludge is routed to a sludge holding tank and dewatered with a plate and frame filter press before cake disposal, and the enquiry must state whether that press sits in the same container, a second container or outside the package.
Sizing checklist to send with your Cairo MBR enquiry
Hand the supplier: design population basis (residents, shift workers, day staff), Qavg (KLD), Qp (KLD), chosen S₀/Sₑ, target MLSS, F/M, SRT, design flux and TMP, and the intended reuse or discharge route. Ask the supplier for: tank-by-tank GA dimensions, total connected load (kW), blower model and discharge pressure, membrane area and module count, permeate pump head, and whether duty/standby blowers and permeate pumps are included. Request a separate line for: civil and anchoring requirements, sludge handling scope, control panel and SCADA/IoT scope, and a recommended spare parts list — these are the items that swing the final price but rarely appear in headline numbers. Confirm in writing the influent assumptions the supplier used; if their Qavg or S₀ differs from yours, every downstream number is wrong.
| Inputs you supply | Outputs you request |
|---|---|
| Population basis (resident / shift / day) | GA dimensions per tank |
| Qavg (KLD), Qp (KLD) | Total connected load (kW) |
| S₀ / Sₑ (mg/L) | Blower model and pressure |
| MLSS, F/M, SRT | Membrane area and module count |
| Design flux, TMP | Permeate pump head, VFD scope |
| Reuse / discharge route | Duty/standby blower & pump scope |
| Sludge handling preference | Civil/anchoring, SCADA, spares |
Frequently Asked Questions
How do I pick Qavg for a Cairo residential compound vs. a worker camp?
Use the per-capita sewage factor multiplied by the design population, but lock the population basis in writing first. A Cairo residential compound counts full-time residents because the load is continuous through the day; a worker camp counts the peak-shift headcount because flow collapses between shifts. That distinction is what makes the same nominal "500-person" project produce two different Qavg numbers, and the same peak factor (PF preliminary 2.0–2.5 per the DMC Education reference) will give very different Qp values on either side of that choice.
How many ISO containers do I need for a 200-person camp?
Map the seven process stages (bar screen → equalization → anoxic → aeration → MBR → UV → treated water) plus sludge handling against 20 ft and 40 ft envelopes, and ask each bidder for a GA drawing that shows tank dimensions, weir locations and membrane access hatches. A single 40 ft frame can sometimes hold a small camp, but a second container is normally needed once a sludge press and a meaningful treated-water tank are added; the container count should be a quoted output, not an assumption.
What treated-water quality can a containerized MBR realistically hit in Cairo?
The DMC Education reference lists BOD ≤10 mg/L, TSS ≤5 mg/L and COD <30 mg/L as indicative design targets, and the same source flags them as preliminary targets rather than universal regulatory limits. The compliance number for any Cairo project is set by the applicable Egyptian reuse or discharge regulation for the project's end use, so the supplier's performance guarantee should be matched to that regulation, not to a generic MBR brochure figure.
What is the typical lead time and shipping impact for a containerized MBR into Egypt?
Lead time is driven by three items: factory testing scope (witness test vs. dry commissioning), membrane supply chain (selected module type and quantity) and inland transport from the port of arrival to the Cairo site. The inland leg typically dominates for heavy skids because the units are over-dimensioned for normal road permits; request a transport plan with axle loads and route survey before placing the order, and confirm who is responsible for Egyptian customs clearance and on-lifting at site.
Can a containerized MBR be expanded later if the community grows?
Yes. Out-of-basin membrane configurations allow additional membrane skids to be added to the existing bioreactor (per Dynatec Systems), and a parallel container is the standard route when the hydraulic envelope itself needs to grow. The sizing brief should therefore reserve space and electrical capacity for at least one future skid, and the supplier should be asked to confirm the upgrade path against the same feed characterisation used for the original design. For a worked sizing workflow on a different African capital, see the Congo camp MBR sizing guide; for a cooler-climate European parallel, the Prague containerized MBR sizing guide applies the same steps to a different ambient envelope. Long-term operability should be cross-checked against the containerized wastewater O&M protocol before the bid is awarded.
