Why New Albany Fabricated Metals Plants Are Re-asking the DAF vs Clarifier Question in 2026
40 CFR 437 (Ore Mining and Dressing) sets the daily-maximum and monthly-average envelope for any New Albany metals plant discharging to waters of the United States, with limits on TSS, total recoverable lead, zinc, copper and iron plus a pH band of 6.0–9.0 under 40 CFR 437.30–437.32. The rule does not name a technology — it defines the ceiling, not the equipment, which is why the DAF-or-clarifier question keeps coming back to the procurement office. The same regulatory framing is detailed in a parallel DAF or Clarifier for Mining Wastewater in New Albany: 2026 Factory Guide.
Three forces converge in 2026. The regulatory pressure under 40 CFR 437 and the state NPDES permit is the first. The second is the legacy-clarifier capital cycle: many in-service clarifiers along the Ohio between New Albany and Louisville date to the 1970s and are reaching end-of-life inside the 2025–2027 capital window. The third is board-level water-reuse commitments — water-recovery targets of 60–90% in steel and aluminum finishing now sit above the maintenance budget, not inside it. A comparable pretreatment-driven framing is laid out in How Fort Worth Fabricated Metals Plants Meet Pretreatment Limits (2026 Guide), which walks a different climate through the same permit math.
Ohio River basin climate compounds the pressure. Freezing winters below 0°C and hot, humid summers above 35°C stress unheated sludge hoppers and the recycle lines on a flotation skid, and that winter profile is the part of the sizing problem that no indoor-only competitor page addresses head-on. DAF is no longer a novel procurement risk: Spracell/Supracell-style flotation has 1000+ global installations and 50+ years of refinement, with documented effluent TSS in the 20–30 mg/L band and float thickened to 2–3% DS straight out of the cell (per Lenox Institute / Krofta field data, 2022).
How DAF and Clarifiers Actually Separate Metals Floc
A dissolved air flotation system separates on buoyancy, not gravity. Clarified effluent is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel. When that saturated recycle is depressurized back into the flotation cell at atmospheric pressure, dissolved air comes out of solution as 30–50 µm micro-bubbles, which attach to chemically conditioned floc and lift it to the surface. A skimmer sweeps float into a sludge trough, clarified water exits below the float blanket, and heavy settleables drop to a bottom sediment compartment. The dense Fe(OH)₃, Al(OH)₃ and magnetite floc typical of New Albany iron/steel and aluminum streams responds well to this mechanism once the upstream chemistry is right.
Design benchmarks an engineer should sanity-check against any vendor proposal: roughly 3-minute hydraulic retention, 4–5 GPM/sqft clarification capacity, effluent TSS in the 20–30 mg/L band, and float thickened to 2–3% DS without a separate thickener (per Lenox Institute / Krofta field data, 2022). Overall removal in this service class runs >90% for TSS, FOG, COD and BOD, with up to 97% TSS in commercial mining references (HydropureWater field data, 2026). The chemistry dependency is non-negotiable: PAC, ferric chloride or alum as coagulant paired with 1–5 mg/L anionic polymer flocculant. Without that conditioning, micro-bubbles pass colloidal fines and DAF underperforms regardless of hydraulic sizing. A HydropureWater automatic chemical dosing skid holds the dose tight against variable influent so neither system drifts out of its design window.
A lamella clarifier — also called an inclined-plate settler or high-rate sedimentation tank — stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h versus 1–2 m/h for a conventional gravity clarifier. That ratio is the entire reason the 2026 retrofit path exists: a 100 m³/h line drops from roughly 600 m² of conventional clarifier footprint to about 50 m² of lamella footprint, and the civil-savings line item is what makes a lamella retrofit competitive against a full DAF primary. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (HydropureWater P10). Clarifiers fail predictably on the New Albany stream profile: free oil and emulsified FOG do not settle in residence time, they exit in the overflow, so any oil-bearing sidestream blows through a clarifier into the NPDES outfall.

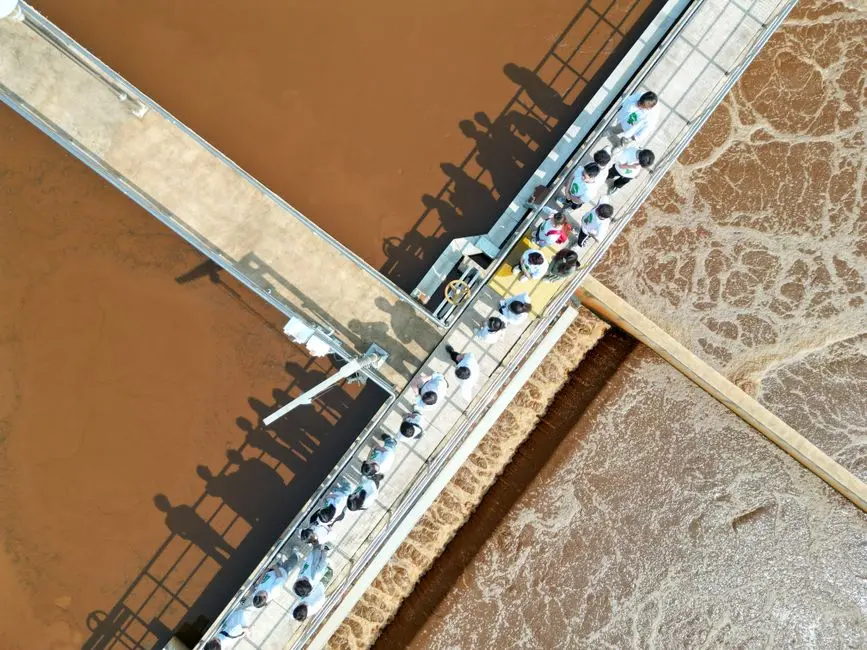

The Six-Question Comparison Matrix a New Albany Buyer Actually Asks
The table below is the single artifact most procurement officers will paste into a board memo. Rows are the six questions a New Albany buyer actually asks on a dense Fe(OH)₃ / Al(OH)₃ stream; columns are the three realistic 2026 candidates.
| Question | DAF (dissolved air flotation) | Lamella / inclined-plate clarifier | Conventional gravity clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% (up to 97% per HydropureWater field data, 2026) | 85–92% on well-conditioned hydroxide floc | 70–85%, highly residence-time dependent |
| CAPEX multiplier at equal flow (lamella = 1.0x) | 1.5–2.5x (HydropureWater field data, 2026) | 1.0x baseline | 0.7–0.9x equipment, but large civil/building delta |
| Footprint | 0.2–0.4 m² per m³/h (~30 m² at 100 m³/h) | 0.3–0.6 m² per m³/h | 5–8 m² per m³/h (~600 m² at 100 m³/h) |
| Energy | 8–15 kWh/m³ (compressor + recycle) | ~0.1–0.3 kWh/m³ (scraper drive) | ~0.1–0.3 kWh/m³ (scraper drive) |
| Cold-weather performance (<10°C) | Moderate — size recycle/saturation 10–15% margin; bubble nucleation slows 20–30% at 5°C (HydropureWater field data, 2026) | Low — freezing risk in unheated sludge hopper | Low — same freeze risk on a larger vault |
| FOG / emulsified oil / colloidal fines | Very strong — float skimmed to filter press | Very weak — emulsified oil bypasses into NPDES outfall | Very weak — same bypass on a larger tank |
Verdict from the matrix: DAF wins on FOG, colloidal fines, footprint and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer. For New Albany, the practical question is sequencing — DAF primary plus lamella polish covers the full 40 CFR 437 envelope on a mixed-metals stream, while lamella-only is defensible on a clean taconite-style flow. The same six-question logic is laid out against a Midwest copper-mine baseline in the related mining article.
Three Fabricated-Metals Scenarios for New Albany in 2026
Scenario 1 — iron/steel pickling or taconite-style concentrator at ~250 m³/h with no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area with expected 40 CFR 437 effluent TSS below 30 mg/L (per 40 CFR 437 daily-maximum limits for Pb, Zn, Cu, Fe). A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. This is the case where a lamella retrofit on the 1970s civil works is the cheapest defensible 2026 answer.
Scenario 2 — mixed-metals fabricator with cutting-oil emulsions at ~80 m³/h. Combined process wastewater runs 100–300 mg/L TSS plus 50–200 mg/L emulsified cutting oil from the maintenance shop. A dissolved air flotation system is non-negotiable as primary because a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A HydropureWater high-efficiency lamella clarifier follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard DAF model with no custom-engineering markup.
Scenario 3 — cold-weather, low-flow (<20 m³/h) copper-mine or aluminum dewatering sump with intermittent winter operation. A 15 m³/h sump discharge that runs intermittently through an Ohio River basin winter favors a compact DAF skid because it starts and stops in minutes and handles variable influent, while a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. Each scenario embodies the same sequencing logic: it is not DAF or lamella — it is which one goes first on this specific stream, and the DAF-primary-plus-lamella-polish configuration covers the full 40 CFR 437 envelope on a mixed-metals stream.

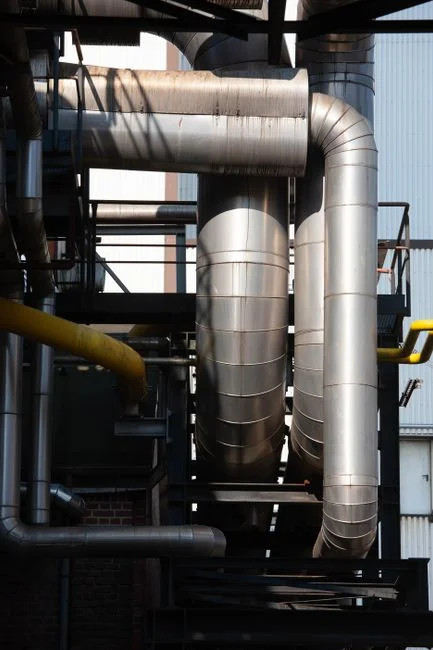

TCO, Footprint and Cold-Weather Sizing for the 2026 Capital Cycle
The headline 2026 ratio: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That gap narrows once civil work, excavation and footprint-driven building costs are added, because a DAF at 0.2–0.4 m² per m³/h is far cheaper to house than a conventional clarifier at 5–8 m² per m³/h, and a lamella at 0.3–0.6 m² per m³/h sits in between. The DAF CAPEX premium therefore looks largest in cold, space-rich sites and smallest in dense industrial corridors where every square meter of building is expensive. For a 100 m³/h stream, the difference is roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint — the same ~20x ratio that drives most 2026 retrofit decisions.
OPEX narrows the gap further once the downstream sludge line is included. The table below compares the two most common 2026 configurations on the items a procurement officer will model in the five-year TCO.
| Line item | DAF primary + lamella polish | Lamella-only primary |
|---|---|---|
| Equipment CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x equipment + small civil | 1.0x equipment + moderate civil |
| Energy | 8–15 kWh/m³ (compressor + recycle) | ~0.1–0.3 kWh/m³ (scraper drive) |
| Coagulant use | Standard dose + sludge recirculation trim | Up to 30% lower (sludge recycle) |
| Sludge line | Float 4–8% DS — smaller plate-and-frame filter press, less polymer | Underflow 2–5% DS — larger press, more polymer |
| Cold-weather mitigation | Insulate/heat-trace saturation vessel + 10–15% recycle margin (HydropureWater field data, 2026) | Insulate sludge hopper; freeze risk persists |
Two pieces of supporting equipment make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to whichever float or underflow profile is chosen. Drier feed from a DAF (4–8% DS) means a smaller press, less polymer and lower haul-off tonnage — line items that compound across a five-year operating horizon. The same dose-control logic is detailed in Auto Dosing for Wastewater Treatment: 2026 Engineering Guide. A packaged DAF covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band New Albany flows including the 80 m³/h mixed-metals scenario.
Frequently Asked Questions
Does 40 CFR 437 require DAF, or can a lamella clarifier meet the limits on its own?
No. Neither technology is named in 40 CFR 437. The rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper and iron plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against the daily-maximum metals envelope.
What is the right surface-loading rate when sizing a lamella clarifier for a fabricated-metals stream?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only and assumes proper coagulant and polymer conditioning upstream. Request vendor hydraulic calculations against your influent PSD before signing.
How much should a New Albany plant budget for DAF or lamella CAPEX in 2026?
No published 2026 unit price applies to every site, so buyers should request a packaged equipment quotation against their specific flow and influent — DAF CAPEX typically lands 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026), and a custom lamella retrofit on existing 1970s civil works is the lowest-CAPEX 2026 path for a FOG-free iron or taconite stream. Ask vendors for a five-year TCO model that includes civil, energy, polymer and haul-off line items before comparing bids.
What supplier and delivery checks protect a 2026 capital purchase from compliance risk?
Procurement should request packaged skid delivery plus factory acceptance test (FAT) documentation before signing, confirm the DAF is one of the manufacturer's standard models in the 4–300 m³/h range to avoid custom-engineering markup, and verify the proposed chemistry skid interlocks with the existing PLC and NPDES sampling port. For Ohio River basin sites, require written confirmation that the saturation vessel and recycle line are sized with the 10–15% cold-weather margin called out above, and that insulation or heat-tracing is included in the supply scope.
