Why New Albany factories are re-asking the DAF vs clarifier question in 2026
40 CFR 437 (Ore Mining and Dressing) sets the daily-maximum and monthly-average envelope for any New Albany metals plant discharging to waters of the United States: limits on TSS, total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0 under 40 CFR 437.30–437.32. The rule does not name a technology — it defines the ceiling — which is why the DAF-or-clarifier question keeps coming back to the procurement office. The Ohio River basin climate compounds the pressure: freezing winters below 0°C and hot, humid summers above 35°C, both of which stress unheated sludge hoppers and the recycle lines on a dissolved air flotation skid. Many in-service clarifiers along the Ohio between New Albany and Louisville date to the 1970s and are reaching end-of-life inside the 2025–2027 capital window. ESG-driven closed-loop water-reuse targets — water recovery of 60–90% in steel and aluminum finishing — now sit at board level, not in the maintenance budget.
Three forces are driving the 2026 replacement decision simultaneously: regulatory pressure under 40 CFR 437 and the state NPDES permit, the legacy-clarifier capital cycle, and board-level water-reuse commitments. DAF is no longer a novel risk for procurement: Spracell/Supracell-style flotation has 1000+ global installations and 50+ years of refinement, with documented effluent TSS in the 20–30 mg/L band and float thickened to 2–3% DS straight out of the cell. The question is no longer whether DAF works on metal-bearing floc — it is which unit goes first when the site already has a 50-year-old clarifier in the yard.
How DAF actually separates metal-hydroxide floc in a mining stream
A dissolved air flotation unit separates on buoyancy, not gravity. Clarified effluent is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel. When that saturated recycle is depressurized back into the flotation cell at atmospheric pressure, dissolved air comes out of solution as 30–50 µm micro-bubbles, which attach to chemically conditioned floc and lift it to the surface. A skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket; and heavy settleables drop to a bottom sediment compartment. The dense Fe(OH)₃, Al(OH)₃, and magnetite floc typical of New Albany iron/steel and aluminum streams responds well to this mechanism once the upstream chemistry is right.
Design benchmarks an engineer should sanity-check against any vendor proposal: roughly 3-minute hydraulic retention, 4–5 GPM/sqft clarification capacity, effluent TSS in the 20–30 mg/L band, and float thickened to 2–3% DS without a separate thickener (per Lenox Institute / Krofta field data, 2022). Overall removal in this service class runs >90% for TSS, FOG, COD, and BOD, with up to 97% TSS in commercial mining references (HydropureWater field data, 2026). The chemistry dependency is non-negotiable: PAC, ferric chloride, or alum as coagulant paired with 1–5 mg/L anionic polymer flocculant. Without that conditioning, micro-bubbles pass colloidal fines and DAF underperforms regardless of hydraulic sizing. A packaged ZSQ series dissolved air flotation system covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band New Albany flows.
How lamella and conventional clarifiers settle metal-hydroxide floc
A lamella clarifier — also called an inclined-plate settler or high-rate sedimentation tank — stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h versus 1–2 m/h for a conventional gravity clarifier. That is the entire reason the 2026 retrofit path exists: a 100 m³/h line drops from roughly 600 m² of conventional clarifier footprint to about 50 m² of lamella footprint, and the civil-savings line item is what makes a lamella retrofit competitive against a full DAF primary. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10).
Clarifiers fail predictably on the New Albany stream profile. Free oil and emulsified FOG do not settle in residence time — they exit in the overflow — so any oil-bearing sidestream (cutting oil, machine shop, vehicle wash) blows through a clarifier into the NPDES outfall. That is the operational reason most 2026 lines are adding a DAF upstream rather than relying on a lamella-only retrofit. A HydropureWater high-efficiency lamella clarifier works well as the polish step that brings residual TSS down after DAF has stripped the FOG and colloidal fraction, but it does not solve the oil problem on its own. The conventional clarifier — the 1970s rectangular or circular tank in the yard — loses on footprint, on cold-weather operability, and on FOG handling, which is why it is rarely the 2026 answer.
Head-to-head on a New Albany metals stream: DAF vs lamella vs conventional clarifier
The table below is the single artifact most procurement officers will paste into a board memo. Rows are the six questions a New Albany buyer actually asks on a dense Fe(OH)₃ / Al(OH)₃ stream; columns are the three realistic 2026 candidates.
| Parameter | Dissolved air flotation (DAF) | Lamella / inclined-plate clarifier | Conventional gravity clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% (up to 97% per HydropureWater field data, 2026) | 85–92% on well-conditioned hydroxide floc | 60–80% |
| CAPEX multiplier at equal flow (lamella = 1.0x) | 1.5–2.5x (Zhongsheng field data, 2026) | 1.0x | 0.7–0.9x equipment, but large civil/building delta |
| Footprint | 0.2–0.4 m² per m³/h (~30 m² at 100 m³/h) | 0.3–0.6 m² per m³/h | 5–8 m² per m³/h (~600 m² at 100 m³/h) |
| Energy use | 8–15 kWh/m³ (compressor + recycle) | ~0.1–0.3 kWh/m³ (scraper drive) | ~0.1–0.3 kWh/m³ (scraper drive) |
| Cold-weather performance (<10°C) | Moderate — size recycle/saturation 10–15% margin; bubble nucleation slows 20–30% at 5°C | Low — freezing risk in unheated sludge hopper | Low — same freeze risk on a larger vault |
| FOG / emulsified oil / colloidal fines | Strong | Weak | Very weak — emulsified oil bypasses into NPDES outfall |
| Float or underflow to filter press | Float 4–8% DS | Underflow 2–5% DS | Underflow 2–5% DS |
Verdict from the matrix: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer. For New Albany, the practical question is sequencing — DAF primary plus lamella polish covers the full 40 CFR 437 envelope on a mixed-metals stream, while lamella-only is defensible on a clean taconite-style flow.

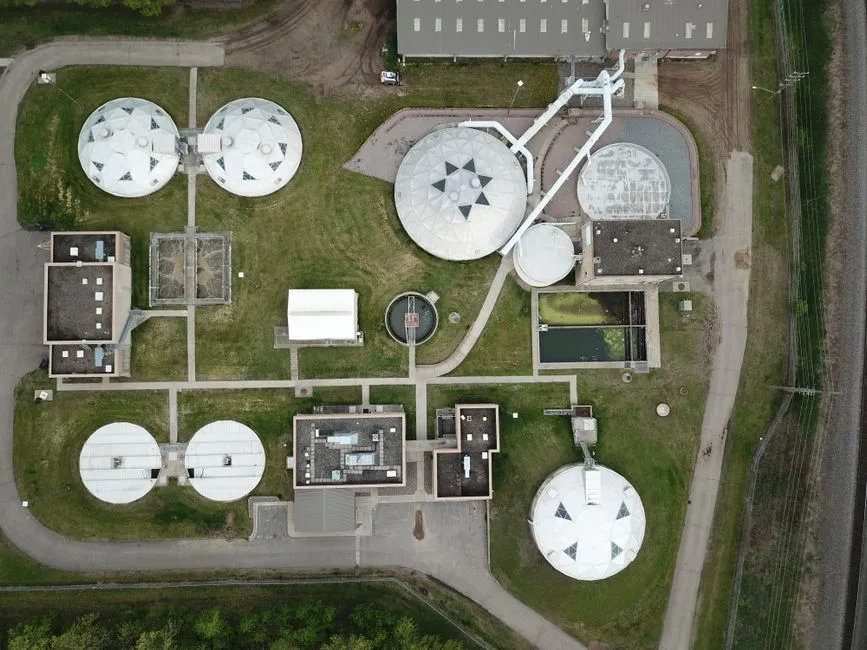

Three New Albany scenarios that map DAF, lamella, or both onto real streams
Scenario 1 — iron/steel pickling or taconite-style concentrator, ~250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area, with expected 40 CFR 437 effluent TSS below 30 mg/L. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. This is the case where a lamella retrofit on the 1970s civil works is the cheapest defensible 2026 answer (per 40 CFR 437 daily-maximum limits for Pb, Zn, Cu, Fe).
Scenario 2 — mixed-metals fabricator with cutting-oil emulsions, ~80 m³/h. Combined process wastewater runs 100–300 mg/L TSS plus 50–200 mg/L emulsified cutting oil from the maintenance shop. A ZSQ series dissolved air flotation system is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A HydropureWater high-efficiency lamella clarifier follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ model with no custom-engineering markup.
Scenario 3 — cold-weather, low-flow (<20 m³/h) copper-mine or aluminum dewatering sump, intermittent winter operation. A 15 m³/h sump discharge that runs intermittently through an Ohio River basin winter. A compact DAF skid starts and stops in minutes and handles variable influent, while a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. Each scenario embodies the same sequencing logic: it is not DAF or lamella — it is which one goes first on this specific stream.
What a 2026 New Albany line actually pays: CAPEX, footprint, and downstream sludge economics
The headline 2026 ratio: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (Zhongsheng field data, 2026). That gap narrows once civil work, excavation, and footprint-driven building costs are added, because a DAF at 0.2–0.4 m² per m³/h is far cheaper to house than a conventional clarifier at 5–8 m² per m³/h, and a lamella at 0.3–0.6 m² per m³/h sits in between. The DAF CAPEX premium therefore looks largest in cold, space-rich sites (where a lamella fits cheaply in an existing yard) and smallest in dense industrial corridors where every square meter of building is expensive. For a 100 m³/h stream, the difference is roughly 30 m² of DAF footprint versus 600 m² of conventional clarifier footprint — the same 20x ratio that drives most 2026 retrofit decisions.
OPEX narrows the gap further once the downstream sludge line is included. The table below compares the two most common 2026 configurations on the items a procurement officer will model in the five-year TCO.
| Line item | DAF primary | Lamella primary |
|---|---|---|
| Equipment CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x | 1.0x |
| Energy | 8–15 kWh/m³ (compressor + recycle) | ~0.1–0.3 kWh/m³ (scraper drive) |
| Coagulant use | Standard dose | Up to 30% lower (sludge recycle) |
| Float / underflow to filter press | Float 4–8% DS — smaller press, less polymer | Underflow 2–5% DS — larger press, more polymer |
| Civil / building cost | Low (small footprint) | Moderate |
Two pieces of supporting equipment make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to whichever float or underflow profile is chosen. Drier feed from a DAF (4–8% DS) means a smaller press, less polymer, and lower haul-off tonnage — line items that compound across a five-year operating horizon. For a parallel view of the metals-stream cost band, the 2026 nickel wastewater treatment cost breakdown walks through comparable downstream economics on a different basemetal, and the DAF vs clarifier for mining wastewater in Conroe, TX piece covers the warm-climate counterpart.
Frequently Asked Questions
Does 40 CFR 437 require DAF or a clarifier for New Albany metals discharges?
No. Neither technology is named in 40 CFR 437. The rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against the daily-maximum metals envelope.
What surface loading should a lamella clarifier be designed at on a New Albany Fe(OH)₃ stream?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only and assumes proper coagulant and polymer conditioning upstream.
Can a DAF system run through an Ohio River basin winter at near-freezing influent temperatures?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter.
Can a taconite or iron concentrator run lamella-only as primary in 2026?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
How much smaller is a DAF footprint than a conventional clarifier at the same flow?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² of DAF footprint and 600 m² of clarifier footprint.
