What Industrial Waste Treatment Actually Covers in 2026
Waste treatment in an industrial context is the engineered sequence of physical, chemical and biological processes that remove suspended solids, organics, oils, nutrients and heavy metals from liquid effluent before discharge, reuse or off-site disposal. It is not the same problem as municipal solid-waste (MSW) management: the EPA estimated roughly 600 million tons of construction and demolition (C&D) debris alone was generated in the US in 2018, sitting outside the MSW definition entirely (per EPA, cited via Wikipedia). For an operating plant, "waste" is a regulated liquid stream under a discharge consent, not a discarded object in the sense of the EU Waste Framework Directive 2008/98/EC Article 3(1) — although that directive still defines the legal boundary of what becomes a controlled waste once it leaves the site.
Design decisions for an industrial effluent treatment plant (ETP) are driven by four measurable parameters: hourly flow (m³/h), influent BOD/COD load (mg/L), total suspended solids (mg/L), and the categorical or BAT-AEL limit that applies to the receiving water or sewer. The same logic explains why roughly one-quarter of global municipal waste is uncollected and another quarter is mismanaged after collection (per Wikipedia, citing UNEP) — a problem industrial operators avoid by treating at source under permit. Engineers scoping equipment can use the engineering reference for the headworks and primary stage in the DAF system catalog, and the biological stage in the integrated MBR system page.
The Three Stages Every Waste Treatment Plant Uses
Every conventional industrial train — whether packaged for 5 m³/h or engineered for 5,000 m³/day — is organised into three sequential stages, with a parallel sludge-handling line running alongside.
- Primary (physical): rotary bar screens for rags and plastics, grit chambers for sand, and primary clarifiers or dissolved air flotation for suspended solids and free oil. The GX Series rotary bar screen handles continuous-duty fine screening at headworks; DAF units are typically rated for 3–80 m³/h per cell.
- Secondary (biological): activated sludge, A/O contact oxidation, sequencing batch reactors (SBR) or membrane bioreactors (MBR) using 0.1 µm PVDF submerged membranes. The DF-Series flat-sheet module produces 32–135 m³/day per cassette, with mixed liquor suspended solids (MLSS) routinely held at 8,000–12,000 mg/L — about double a conventional activated-sludge tank.
- Tertiary (chemical/advanced): coagulation and flocculation, sand or multi-media filtration, ultrafiltration at 0.03 µm, activated-carbon adsorption, and disinfection with chlorine dioxide, UV or ozone. The disinfectant is matched to the receiving environment and to by-product rules (e.g. trihalomethane limits under the EU Drinking Water Directive 98/83/EC).
Sludge handling runs in parallel. A plate and frame filter press typically dewaters biological sludge to 22–28% dry solids, while a decanter centrifuge reaches 18–25% — both routes defined in the 2026 decanter centrifuge working principle reference. Academic work on advanced treatment is moving fast: the Chemosphere 2020 study on fluoxetine adsorption on biochar with sulfate-radical regeneration (Escudero-Curiel et al., DOI 10.1016/j.chemosphere.2020.129318) is the most cited 2020–2024 reference for trace organic removal in pharmaceutical streams, and it is now being translated into industrial pilots.
| Stage | Typical target contaminants | Typical removal band | Effluent quality after the stage |
|---|---|---|---|
| Primary (screens, grit, DAF/clarifier) | TSS, oil and grease, settleable solids | 50–70% TSS; 60–90% FOG | TSS 100–250 mg/L; oil <30 mg/L |
| Secondary (A/O, SBR, MBR) | BOD, COD, ammonia, nitrate | 85–95% BOD; 60–80% COD; >90% NH₃-N (nitrified) | BOD <20–30 mg/L; NH₃-N <1 mg/L on MBR |
| Tertiary (UF/RO, carbon, AOP, disinfection) | Residual solids, refractory COD, pathogens, trace metals | Polishing to <5 mg/L TSS; 4-log virus inactivation on UV | Reuse-grade or consent-compliant |

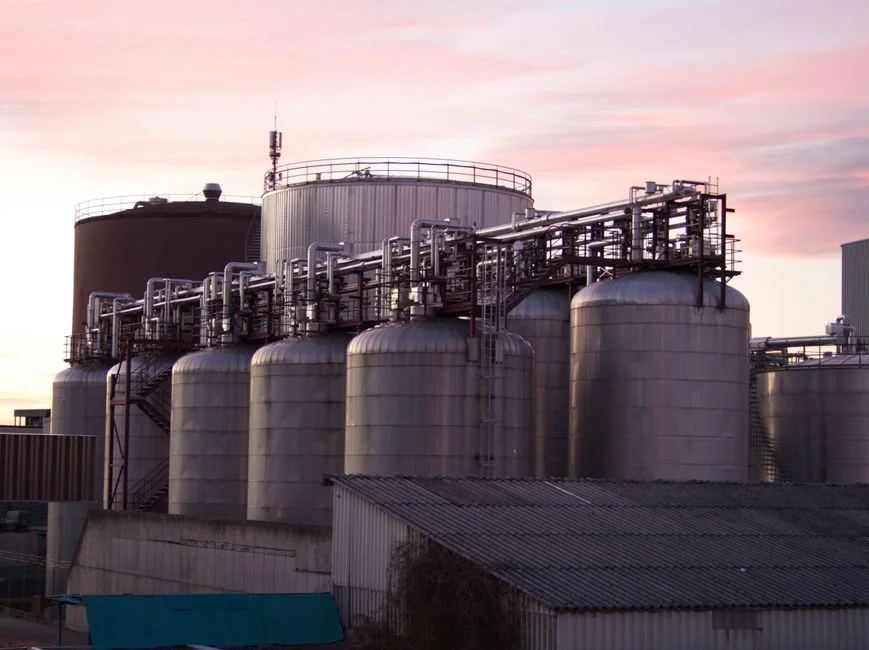

Matching the Process to the Pollutant
The fastest way to scope a plant is to map the pollutant in the influent to the unit operation that actually removes it. The bands below are what engineers will see in vendor quotes; the equipment references are the HydropureWater units most commonly paired with each duty.
- Suspended solids, turbidity, oil and grease: DAF or lamella clarifier as primary, with multi-media filtration for polishing. A single DAF pass removes 60–80% of TSS from influents up to 3,000 mg/L, handled in the JY integrated purifier. For oilfield and refinery flows the same DAF stage typically drives FOG below 10 mg/L before biological treatment.
- Dissolved organics (BOD/COD): biological treatment. A/O contact oxidation in a packaged plant such as the WSZ packaged A/O plant covers 1–80 m³/h; an integrated MBR system is selected when reuse or a tight effluent consent drives the choice, with PVDF membranes at 0.1 µm holding TSS to <1 mg/L in the membrane tank.
- Ammonia, nitrate, phosphate: biological nitrification/denitrification with sludge recycling, or chemical precipitation in a high-efficiency sedimentation tank that achieves up to 30% chemical savings versus a conventional lamella. Tertiary polishing for phosphate below 0.5 mg/L typically needs coagulation plus sand filtration.
- Heavy metals, refractory organics, pharmaceuticals: chemical precipitation, ion exchange, advanced oxidation. The Chemosphere 2020 biochar + sulfate-radical work is the leading academic reference for trace organic removal in pharmaceutical effluent, and is now feeding into pilot-scale AOP design for 2026.
- Pathogens: disinfection via UV sterilisation (effective against chlorine-resistant Cryptosporidium and Giardia, no DBPs) or chlorine dioxide where a residual is required for the sewer consent.
| Pollutant | Influent range (mg/L) | Recommended unit operation | Expected effluent (mg/L) |
|---|---|---|---|
| TSS | 200–3,000 | DAF / lamella clarifier + multi-media filter | <10–30 |
| BOD₅ | 150–1,500 | A/O contact oxidation or MBR | <20 |
| COD | 300–3,000 | A/O, SBR or MBR (+ AOP for refractory) | <100 (consent-dependent) |
| Ammonia-N | 20–200 | Nitrification in MBR or SBR | <1–5 |
| Total phosphorus | 3–30 | Biological P removal + chemical precipitation | <0.5–1 |
| Heavy metals (Cu, Ni, Zn, Cr) | 1–50 | Chemical precipitation + sand filter / ion exchange | <0.1–1 |
| Fats, oils, grease | 50–2,000 | DAF with coagulant | <10 |
How to Choose Between Three Common Technology Trains
Most industrial bids are won by one of three packaged trains. Pick the simplest configuration that meets the discharge consent; only add membranes or advanced oxidation when the consent or the site forces it.
- Train A — DAF + A/O packaged plant: lowest CAPEX for flows of 1–80 m³/h. Suited to hotels, residential complexes, food-and-beverage and light-manufacturing sites with stable influent. Maps to the WSZ packaged A/O plant combined with a DAF system.
- Train B — DAF + MBR: chosen when footprint is limited, discharge consent is tight (e.g. <10 mg/L BOD, <10 mg/L TSS), or water reuse is required. The integrated MBR system cuts footprint by roughly 60% versus a conventional activated-sludge plant of the same flow and covers 10–2,000 m³/day, producing reuse-quality permeate at the membrane outlet. For reuse polishing to <0.5 µS/cm conductivity, downstream RO is specified using the RO system design parameters reference, with NF upstream covered in the nanofiltration design guide.
- Train C — Physical-chemical only (DAF + chemical dosing + filtration): applied to high-strength industrial streams where biological treatment is inhibited — heavy-metal finishing, oilfield produced water, textile dye baths, landfill leachate. Pair the DAF with an automatic chemical dosing skid and a plate and frame filter press for sludge.
Decision rule: size the train to the EPA categorical standard (e.g. 40 CFR 433 for metal finishing) or the EU BAT-AEL under Industrial Emissions Directive 2010/75/EU. Add MBR only when reuse or footprint forces it. Add advanced oxidation only when trace organics or pharmaceutical residues fail the tertiary polish — for which the US mining pretreatment limits piece is a working example of consent-driven technology choice.
| Train | Indicative flow range | Footprint (relative) | Operator skill | Best fit | 2026 indicative CAPEX direction |
|---|---|---|---|---|---|
| A — DAF + A/O | 1–80 m³/h | 1.0× | Basic (DO, MLSS, sludge wasting) | Hotel, residential, light F&B | Lowest (USD) |
| B — DAF + MBR | 10–2,000 m³/day | ~0.4× (60% reduction) | Intermediate (membrane CIP, aeration) | Tight consent, reuse, brownfield | Mid–high (USD–USD USD) |
| C — Phys-chem only | 5–500 m³/h | 0.6–0.8× | Intermediate (chemical handling) | Metal finishing, oilfield, textile | Mid (USD USD) + chemical OPEX |
2026 Regulatory Drivers That Shape Equipment Choice
Equipment choice is downstream of the consent. In the US, EPA Effluent Guidelines (40 CFR, category-specific — 40 CFR 433 for metal finishing, 40 CFR 437 for mining) set categorical numerical limits and trigger the Best Available Technology (BAT) economically achievable; the EPA definition of hazardous waste under RCRA controls the sludge side from generation through disposal. The 2026 frame adds tighter PFAS monitoring in the consent review for several categories, which is pushing more sites toward carbon adsorption or RO polishing on the MBR permeate.
In the EU, Industrial Emissions Directive 2010/75/EU drives the BAT-AEL ranges that an IED Annex I installation must meet; Urban Waste Water Directive 91/271/EEC governs municipal and equivalent discharges; for drinking-water reuse, Drinking Water Directive 98/83/EC applies at the point of use. UK and other regimes follow analogous byelaws — the Trade Waste Bylaw 2016 in Wellington is one published example — and the same logic applies: read the local discharge consent before sizing the train. The same regulations also drive which disinfection option is acceptable (UV vs ClO₂ vs ozone for hospital and municipal reuse) and which sludge line is permitted (plate press vs decanter centrifuge, with the decanter centrifuge working principle reference covering the centrifuge side). For hospital and medical effluent, specific pathogen controls apply, covered in the medical wastewater treatment unit specification.
Frequently Asked Questions
What is waste treatment in an industrial plant?
Waste treatment in an industrial plant is the engineered sequence of physical, chemical and biological processes that remove suspended solids, organics, oils, nutrients and heavy metals from liquid effluent before discharge, reuse or off-site disposal. A 2026 train typically combines headworks screening, DAF or primary clarification, biological treatment (A/O, SBR or MBR with 0.1 µm PVDF membranes), and tertiary disinfection.
Which process removes which pollutant?
Suspended solids and oil are removed by DAF or lamella clarification (60–80% TSS in a single pass); BOD and COD are removed by biological treatment (A/O or MBR at 85–95% BOD); ammonia by nitrification in the biological stage; heavy metals by chemical precipitation; pathogens by UV or chlorine dioxide disinfection. The full pollutant-to-process map is given in the comparison table above.
How much does an industrial waste treatment plant cost in 2026?
Packaged A/O plants for 1–80 m³/h are the lowest CAPEX option; DAF + MBR trains for 10–2,000 m³/day sit in the mid-to-high CAPEX range but cut footprint by roughly 60% versus conventional activated sludge; physical-chemical-only trains for high-strength industrial effluent add chemical OPEX but avoid the biological-control overhead. A site-specific quotation requires influent characterisation and the local discharge consent.
What 2026 regulations apply to industrial wastewater discharge?
US sites fall under the EPA Effluent Guidelines (e.g. 40 CFR 433 metal finishing, 40 CFR 437 mining) and RCRA for the sludge side. EU installations fall under Industrial Emissions Directive 2010/75/EU (BAT-AEL), with Urban Waste Water Directive 91/271/EEC covering equivalent discharges and Drinking Water Directive 98/83/EC setting reuse standards at the point of use. Local discharge consents always override generic ranges.
