Why a Packaged MBR STP Fits a Dakar Hotel Project
Municipal sewerage is unavailable across most of the Cap-Vert peninsula — Almadies, Ngor, Ouakam, and the Saly Petite Côte corridor all rely on on-site treatment, so a packaged sewage treatment plant is the default for any new hotel. Senegal's discharge standard NS 05-061 sets a BOD limit of 40 mg/L and a TSS limit of 50 mg/L, and the Direction de l'Environnement et des Établissements Classés (DEEC) actively pushes tourism operators toward reuse for irrigation and toilet flushing wherever the receiving environment is sensitive. A submerged packaged MBR wastewater treatment system hits both targets in a single skid: an 800 KLD UF-MBR at the Trident Nariman Point, Mumbai recorded 98.13% TSS, 96.34% BOD, 88.63% COD, 77.38% TN and 84.80% TP removal, with complete elimination of total and fecal coliforms (source: ScienceDirect, 2025). MBR biomass runs at 6,000–12,000 mg/L versus 2,000–4,000 mg/L for conventional activated sludge (source: Sigmadaf product literature, 2026), which shrinks tankage by roughly 60% compared to a CAS plant of equal capacity — often the deciding factor on a tight back-of-house plot in Almadies.
Step 1 — Build the Hotel Wastewater Profile
Defensible sizing starts with a per-occupant loading, not a vendor's catalog curve. Use 200 L/person-day for guest domestic flow, add 50–100 L/person-day for kitchen prep, and 30–60 L/person-day for laundry; combine them into a daily mass load of roughly 60 g BOD, 120 g COD, and 25 g TSS per occupied room before any reuse credit. For a 120-room hotel at 80% occupancy that yields about 87 kg BOD/day and a 50–55 m³/day average flow. Apply a peak factor of 2.5–3.0× to capture the breakfast-and-check-out surge plus a concentrated laundry batch — that lifts the instantaneous design flow into the 130–170 m³/day band and drives the equalization tank size. Hotel wastewater carries specific stressors you must budget for: kitchen FOG that must be held below 50 mg/L upstream of the membranes, lint and microfibres from on-site laundry, and elevated mixed-liquor temperatures of 28–32°C that accelerate biological kinetics but cut membrane flux by 10–20% versus the 20°C rating (HydropureWater field data, 2026). In coastal Dakar, groundwater TDS at 500–2,000 mg/L — and higher where partial seawater intrusion is present — forces an extra check on any downstream RO polishing loop for laundry reuse.
| Parameter | Domestic | Kitchen | Laundry | Combined / room |
|---|---|---|---|---|
| Flow (L/person-day) | 200 | 50–100 | 30–60 | 280–360 |
| BOD load (g/person-day) | 40–50 | 15–25 | 5–10 | 60–85 |
| COD load (g/person-day) | 80–100 | 30–50 | 10–20 | 120–170 |
| TSS load (g/person-day) | 20–25 | 5–10 | 5–10 | 30–45 |
| Peak factor applied | 2.5–3.0× | 2.0–2.5× | 1.5–2.0× | 2.5–3.0× overall |
Step 2 — Set the Effluent Targets: Discharge, Reuse, or Both
NS 05-061 sets the floor: BOD ≤40 mg/L, COD ≤120 mg/L, TSS ≤50 mg/L, with TN and TP tightened where the receiving body is a sensitive coastal lagoon or a potable-water abstraction zone. Reuse targets sit above that floor — toilet flushing wants BOD ≤10 mg/L and zero fecal coliforms, landscape irrigation must respect sodium and salinity limits (typically SAR <9 and TDS <2,000 mg/L for salt-tolerant turf), and laundry reuse wants low hardness, no color, and no surfactants carryover. The Trident UF-MBR hit non-detect for both total and fecal coliforms on the membrane stage, which makes the reuse case straightforward without heavy downstream polishing (source: ScienceDirect, 2025). For most Dakar hotels, the right envelope is MBR effluent to a covered reuse tank, then a polishing step only if chlorine residual or UV dose is needed for toilet flush or landscape spray — a packaged UV sterilizer for reuse polishing sized at 40 mJ/cm² is the usual choice where chlorination is rejected to protect the hotel's cooling towers and irrigation lines.
| Use | BOD (mg/L) | TSS (mg/L) | Fecal coliform (CFU/100 mL) | Disinfection |
|---|---|---|---|---|
| NS 05-061 discharge (coastal) | ≤40 | ≤50 | — | Per site |
| Toilet flushing reuse | ≤10 | ≤10 | 0 | UV 40 mJ/cm² |
| Landscape irrigation | ≤20 | ≤30 | ≤200 | UV or ClO₂ |
| Laundry reuse (with RO) | ≤5 | ≤5 | 0 | UV + RO |
Step 3 — Choose the Process: Packaged MBR vs. SBR vs. MBBR
Three packaged options compete for a 50–200 m³/day Dakar hotel. Submerged MBR pairs an anoxic/aerobic basin with 0.1–0.4 µm PVDF or CPVC membranes, runs MLSS at 6,000–12,000 mg/L, and delivers reuse-ready effluent with complete coliform kill (source: Sigmadaf product literature, 2026; Trident case study, 2025). SBR is a true batch reactor — fill, react, settle, decant in timed cycles — with a smaller footprint than CAS but no physical barrier against suspended solids, so reuse usually needs a separate sand or disc filter downstream. MBBR with cloth or suspended carriers runs at 3,000–5,000 mg/L biomass, tolerates load swings, and is the lowest-maintenance option, but effluent typically lands at BOD 20–30 mg/L and TSS 20–40 mg/L, which is borderline for unrestricted reuse. For a hotel targeting irrigation or toilet flush, or where the back-of-house plot is tight, MBR is the defensible pick despite the membrane service overhead; for a remote resort with no reuse target and a non-resident operator, MBBR is often the lower-risk call. A packaged MBR wastewater treatment system in a buried or semi-buried configuration can be screened behind a landscape berm, which matters in dense Almadies plots.
| Criterion | Submerged MBR | SBR | MBBR (+ cloth filter) |
|---|---|---|---|
| Footprint for 100 m³/day | ~25–35 m² | ~50–70 m² | ~40–55 m² |
| MLSS (mg/L) | 6,000–12,000 | 2,000–4,000 | 3,000–5,000 |
| Typical BOD effluent (mg/L) | <5 | 10–20 | 15–30 |
| Fecal coliform removal | Complete (UF barrier) | 90–99% | 90–99% |
| Reuse-ready (toilet/irrigation) | Yes, direct | Needs polishing | Needs polishing |
| Operator skill required | Moderate (membrane care) | Moderate (cycle tuning) | Low |
| Indicative CAPEX (USD, 100 m³/day) | 120,000–180,000 | 90,000–130,000 | 80,000–120,000 |
| Indicative OPEX (USD/m³) | 0.35–0.55 | 0.25–0.40 | 0.20–0.35 |

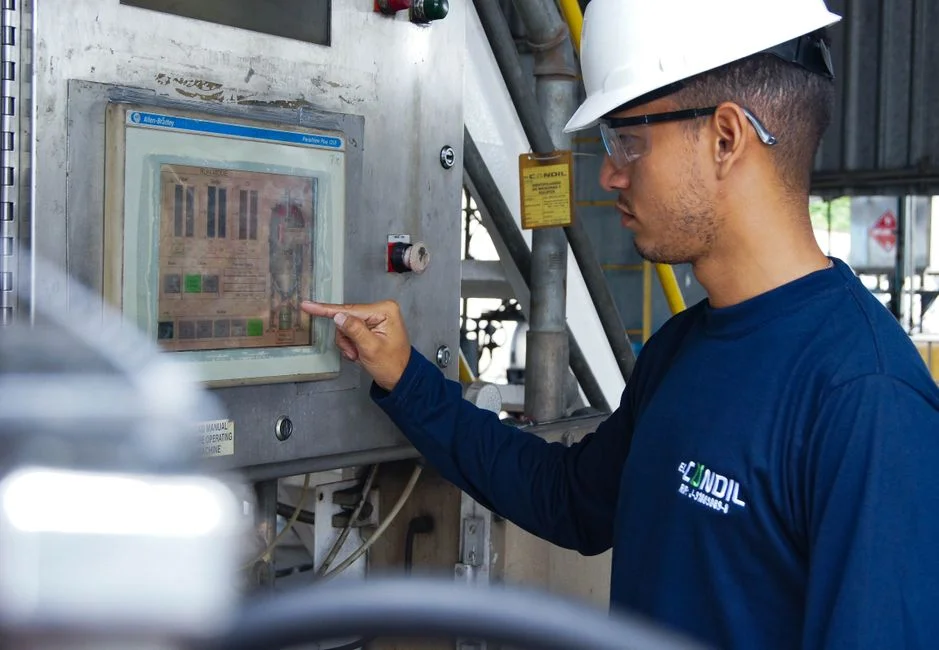

Step 4 — Specify the Packaged MBR Configuration
Lock the spec to a containerized, skid-mounted, factory-pre-tested unit with submerged flat-sheet or hollow-fibre membranes in the 0.1–0.2 µm pore range; the PVDF flat-sheet MBR membrane module family gives the best foulant release and field-cleanable surface for tropical mixed liquor. The pretreatment train is non-negotiable: a rotary bar screen for STP headworks at 3 mm aperture, a grit chamber, an equalization tank sized for the 2.5–3.0× peak, and a DAF unit for FOG and suspended solids removal that holds inlet FOG below 50 mg/L — FOG and hair are the two contaminants that damage flat-sheet membranes irreversibly if they pass the headworks (source: Sigmadaf product literature, 2026). For DEEC sites that impose a TN limit, require an anoxic zone ahead of the aeration tank with mixed-liquor recirculation at 2–3× influent flow; a pre-anoxic volume of about 20% of the aeration volume typically drives TN below 15 mg/L at hotel loadings. Close the spec with automatic backwash, in-situ chemical cleaning (500–1,000 mg/L NaOCl + 1–2% citric acid cycle), PLC control with remote telemetry, and a membrane-aeration blower sized for a 5:1 air-to-permeate ratio — non-resident operators in Dakar cannot babysit membranes.
| Sub-system | Specification | Design value |
|---|---|---|
| Bar screen aperture | Rotary, auto-cleans | 3 mm |
| Equalization HRT | Buffer the 2.5–3.0× peak | 6–8 h at average flow |
| DAF inlet FOG limit | Protect membranes | <50 mg/L downstream |
| Membrane pore size | PVDF or CPVC flat-sheet | 0.1–0.2 µm |
| Membrane flux (cleaning set-point) | Net permeate | 20–25 L/m²·h at 28–32°C |
| MLSS target | High-rate biological | 8,000–10,000 mg/L |
| Anoxic volume (if TN-limited) | Pre-anoxic for denitrification | ~20% of aeration volume |
| Membrane aeration ratio | Air scour | 5:1 vs. permeate flow |
| Cleaning chemicals | In-situ recovery | NaOCl 500–1,000 mg/L + citric acid 1–2% |
Step 5 — Budget, O&M and Vendor Selection
For a 50–200 m³/day packaged MBR delivered, installed, and commissioned in Dakar, plan on USD 120,000–180,000 of CAPEX per 100 m³/day of capacity in 2026, with the membrane area, containerization, UV polishing skid, and PLC telemetry as the main cost drivers; sea-freight plus Senegalese import duties (typically 20–25% on equipment) add a further 15–20% over FOB price. OPEX runs USD 0.35–0.55 per m³ treated — membrane aeration is the single largest power consumer at roughly 0.6–0.9 kWh/m³, with chemical cleaning, sludge hauling, and operator hours making up the balance. Membrane replacement cycles are 5–8 years if CIP and backwash protocols are respected (HydropureWater field data, 2026); a recurring-maintenance service contract is the most reliable way to keep a hotel plant running when the operator is non-technical, mirroring the modular STP service model now common in South Asia (source: industry coverage, 2025-11). Screen vendors on six points: a documented tropical-climate hotel reference, a service partner physically present in Senegal or Côte d'Ivoire, a minimum 5-year membrane warranty, ISO 9001 or CE certification on the skid, demonstrated spare-parts stock in West Africa, and a structured operator-training program at handover. For sludge handling on a tight plot, a small plate-frame filter press reduces waste volume by 75–80% versus a drying bed, which is often the difference between weekly and monthly sludge haul-offs.
| Vendor scorecard item | Pass criterion | Weight |
|---|---|---|
| Hotel reference (tropical climate) | ≥1 operating ≥2 years in W. Africa or similar climate | High |
| Local service partner | Engineer resident in Senegal or Côte d'Ivoire | High |
| Membrane warranty | ≥5 years pro-rata on flat-sheet modules | High |
| Certifications | ISO 9001 + CE on skid | Medium |
| Spare-parts stock | Regional depot with membranes, pumps, diffusers | High |
| Operator training | Structured 2–3 day program + commissioning report | Medium |
Frequently Asked Questions
What size packaged MBR do I need for a 120-room Dakar hotel?
At 80% occupancy, 200 L/person-day domestic plus kitchen and laundry loadings land at roughly 50–55 m³/day average; apply a 2.5–3.0× peak factor and size the unit to 130–170 m³/day with an equalization tank of 6–8 hours at average flow (HydropureWater field data, 2026).
Can an MBR meet Senegalese NS 05-061 and hotel reuse targets at the same time?
Yes. The Trident Nariman Point 800 KLD UF-MBR delivered 96.34% BOD removal and complete fecal coliform kill, giving an effluent comfortably below NS 05-061 limits and directly reusable for toilet flushing with a UV polishing step (source: ScienceDirect, 2025).
How much does a packaged MBR STP cost for a sub-200 m³/day hotel in Senegal?
Plan on USD 120,000–180,000 per 100 m³/day of CAPEX in 2026 and USD 0.35–0.55 per m³ of OPEX, with membrane area, UV polishing, automation, and sea-freight plus import duties (20–25%) as the main cost drivers; a recurring service contract is the most reliable way to control OPEX in a non-industrial hotel setting (HydropureWater field data, 2026).
Do I need a DAF upstream of the MBR for a hotel kitchen?
Yes. Fats, oils, and hair damage flat-sheet MBR membranes irreversibly; a DAF or a properly sized grease trap must hold inlet FOG below 50 mg/L before the bioreactor to keep the membrane flux in the 20–25 L/m²·h range (source: Sigmadaf product literature, 2026).
