Why Winfield Mining Plants Are Re-asking the DAF-vs-Clarifier Question in 2026
For Winfield-area mining and metals plants in 2026, the DAF-vs-clarifier question is being forced by three converging pressures that no longer leave room for legacy gravity tanks. First, 40 CFR 437 (Ore Mining and Dressing) sets daily-maximum and monthly-average effluent limits for total suspended solids, total recoverable lead, zinc, copper, and iron, plus a pH band of 6.0–9.0 for any discharge to waters of the United States (per 40 CFR 437.30–437.32). Second, many in-service clarifiers at Winfield-area mines date to the 1970s, and ESG-driven closed-loop water-reuse targets have pushed clarifier replacement from a maintenance line item to a board-level capital decision. Third, the local stream profile is dense metal-hydroxide floc — Fe(OH)₃, Mn(OH)₂, Al(OH)₃, silica fines, and magnetite — punctuated by intermittent tramp oil from maintenance shops, which is the opposite of the FOG-heavy food-processing stream most DAF articles assume. Winfield's continental climate adds a fourth pressure: winter operation is a sizing constraint, not an afterthought, because micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026). The result is that the 2026 answer is rarely DAF or clarifier alone — it is DAF as primary to strip FOG, emulsified cutting oil, and colloidal fines, followed by a lamella clarifier as polish to hit the 40 CFR 437 envelope. Conventional gravity clarifiers lose on footprint (5–8 m²/m³/h vs DAF at 0.2–0.4) and are rarely the 2026 answer. The same logic is documented in the Hamilton mining/metals 2026 buyer's guide and the Caddo Gap mining/metals 2026 guide, which frame the decision as a sequence, not a binary.
How a DAF System and a Clarifier Actually Work on Mining Streams
A dissolved air flotation (DAF) system floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel. When the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm bubbles (per S1, S5). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. Removal performance for DAF in this service class is >90% for TSS, FOG, COD, and BOD (per S5), and the unit also captures particulate metals and colloidal silica when upstream chemistry is right (per S4). Coagulants typically include polyaluminum chloride (PAC), ferric chloride, or alum, paired with an anionic polymer flocculant at 1–5 mg/L — without that conditioning, micro-bubbles pass right past colloidal fines and DAF underperforms (per S1, S4). The ZSQ series DAF system covers 4–300 m³/h in 13 standard models, which keeps custom-engineering markup out of mid-band flows.
A lamella clarifier (also called an inclined-plate settler or high-rate sedimentation tank) stacks inclined plates inside a compact tank. The plates multiply effective settling area, so surface loading climbs to 20–40 m/h and footprint drops by roughly an order of magnitude versus a conventional clarifier at the same flow. Many lamella designs include a sludge-recirculation loop that re-injects settled sludge to contact fresh influent, cutting coagulant consumption by up to 30% (Zhongsheng P10). A representative high-efficiency lamella clarifier plate pack delivers the 20–40 m/h band that makes the lamella column competitive in the first place.
A conventional gravity clarifier is a large rectangular or circular tank operating at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h. Civil cost, vault heating, and scraper-driven bottom sludge make it a poor match for a 2026 Winfield capex line, and it is not the unit the rest of this article compares against.
Three Rules That Decide DAF vs Lamella vs Conventional Clarifier
Three portable rules let a plant engineer walk up to any bench sheet and land on the right technology in under a minute. Rule 1 — floc density. Chemically conditioned floc with specific gravity >1.05 settles readily and favors a clarifier; the same floc, once polymer-conditioned, also binds tightly to 30–50 µm micro-bubbles, so either works when chemistry is right (per S2, S4). For dense Fe(OH)₃ or Al(OH)₃ floc, design a lamella at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. Rule 2 — FOG and oil. Free oil and grease do not settle in a clarifier's residence time — they exit in the overflow — so any FOG load has to be handled upstream or in a polish step. A maintenance shop that discharges 50–200 mg/L emulsified cutting oil will bypass a clarifier and trip the NPDES outfall; that stream belongs on a DAF primary. Rule 3 — cold weather. Micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C, so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent for any plant that runs through a Winfield winter (Zhongsheng field data, 2026). The lamella loses in cold weather for a different reason: an unheated sludge hopper freezes, and a 600 m² vault is harder to insulate than a 30 m² DAF skid. Polymer conditioning is non-negotiable for DAF, and an automatic chemical dosing skid is the cheapest way to hold PAC or ferric chloride plus 1–5 mg/L anionic flocculant inside the design window when influent drifts.
Side-by-Side Comparison: DAF, Lamella and Conventional Clarifier for Mining Streams
This is the single page to hand to a non-technical decision-maker. The table reorganizes dense metal-hydroxide stream parameters — not food-processing FOG defaults — into the rows procurement actually asks about. The head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer.
| Parameter | DAF | Lamella Clarifier | Conventional Gravity Clarifier |
|---|---|---|---|
| TSS removal (dense Fe(OH)₃ / Al(OH)₃ floc) | 90–95% | 90–95% | 80–90% |
| CAPEX multiplier (lamella = 1.0x, equal flow) | 1.5–2.5x | 1.0x | 0.7–0.9x before civil/building |
| Footprint (m² per m³/h) | 0.2–0.4 | 0.3–0.6 | 5–8 |
| Energy use | 8–15 kWh/m³ (compressor + recycle) + chemistry | Scraper drive ~0.1–0.3 kWh/m³ + chemistry | Scraper drive similar to lamella + large vault |
| Cold-weather performance (<10°C) | Moderate (slower bubble nucleation; size 10–15% margin) | Low (freezing risk in unheated sludge hopper) | Low (same freeze risk; larger vault) |
| Float / underflow dryness | 4–8% DS (easier dewatering) | 2–5% DS | 2–4% DS |
| Best-fit stream | FOG, emulsified oil, colloidal fines, light floc | Dense settleable hydroxide floc, high flow, no oil | Legacy installations, very large settling basins |
For the downstream solids side of the line, a plate-and-frame filter press handles either float profile; DAF float at 4–8% DS dewaters to a drier cake than lamella underflow at 2–5% DS, which is a real OPEX line when haul-off or landfill costs are tallied.

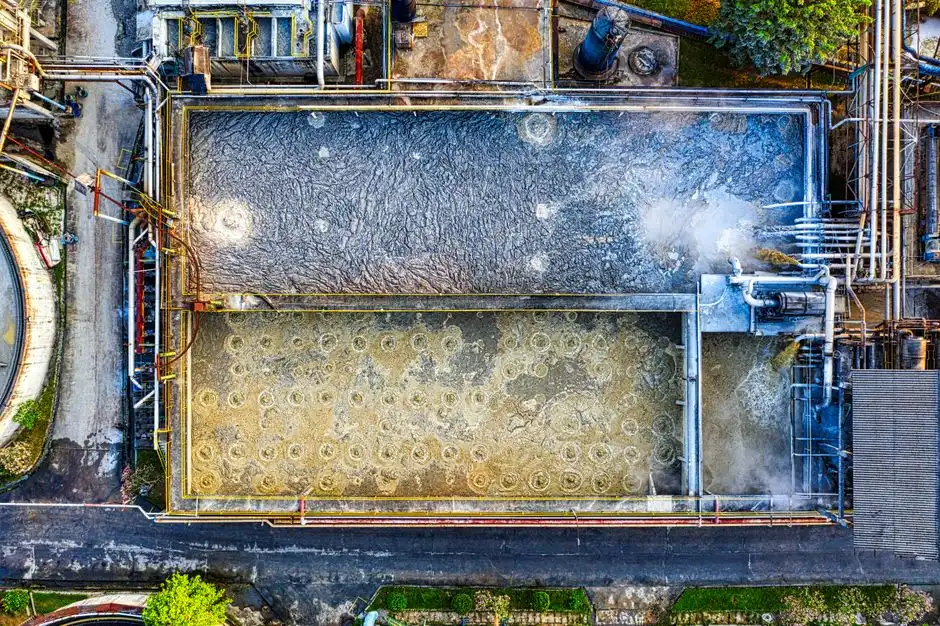

Three Winfield Scenarios That Map to the Right Technology
Scenario 1 — Iron / taconite concentrator, 250 m³/h, no oil. The stream carries 1,500–3,000 mg/L TSS as Fe(OH)₃ floc plus magnetite fines, with no tramp oil. The flow and density favor a high-rate lamella primary at 30 m/h surface loading, requiring roughly 8–9 m² of plate area. A DAF polish is justified only if a maintenance shop or truck wash starts contributing FOG intermittently. Expected 40 CFR 437 effluent: TSS <30 mg/L achievable with lamella alone; metals controlled at the upstream precipitation step (per 40 CFR 437 daily-maximum limits for Pb, Zn, Cu, Fe). A representative ZSQ series DAF system at 250 m³/h is well within the standard model range, so DAF-only remains an option if ESG water-reuse targets push toward tighter polishing.
Scenario 2 — Mixed-metals refinery with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF is non-negotiable as primary — a clarifier would discharge the emulsified oil straight to the NPDES outfall and trip the 40 CFR 437 envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard ZSQ DAF model with no custom-engineering cost.
Scenario 3 — Cold-weather, low-flow (<20 m³/h) copper-mine dewatering. A 15 m³/h sump discharge that runs intermittently through winter. A compact DAF skid starts and stops in minutes and handles the variable influent; a lamella in an unheated vault risks freezing in the sludge hopper and is harder to insulate. DAF's higher unit CAPEX pays back in operational uptime. Size the recycle pump and saturation vessel with the 10–15% cold-weather margin and insulate or heat-trace the saturation line. The economic framing is similar to the Hamilton mining/metals 2026 buyer's guide for warm-climate sites, with a sizing delta layered on top.
The 2026 CAPEX and OPEX Band Procurement Will Ask About
The headline ratio for 2026: DAF CAPEX runs 1.5–2.5x a comparable lamella at equal flow (Zhongsheng field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added, because a lamella at 0.3–0.6 m² per m³/h is far cheaper to house than a conventional gravity clarifier at 5–8 m² per m³/h, and a DAF at 0.2–0.4 m² per m³/h is smaller still. For a 100 m³/h stream, that is the difference between roughly 30 m² of DAF footprint and 600 m² of conventional clarifier footprint. The DAF CAPEX premium therefore looks largest in cold, space-rich sites and smallest in dense industrial corridors where every square meter of building is expensive.
| Cost line | DAF | Lamella Clarifier | Conventional Clarifier |
|---|---|---|---|
| Equipment CAPEX (equal flow, multiplier) | 1.5–2.5x | 1.0x | 0.7–0.9x |
| Energy | 8–15 kWh/m³ (compressor + recycle) | Scraper drive ~0.1–0.3 kWh/m³ | Scraper drive similar |
| Coagulant demand | Baseline | Up to 30% less (sludge recycle) | Baseline |
| Float / underflow dryness | 4–8% DS — easier dewatering | 2–5% DS | 2–4% DS |
| Civil / building cost | Low (small footprint) | Low–moderate | High (excavation, large vault) |
OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle (Zhongsheng P10), but DAF produces a thicker float (4–8% DS) that dewaters more easily in a downstream filter press. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost, not a contingency. Two pieces of kit make the 2026 cost band defensible in front of procurement: an automatic chemical dosing skid to hold the dose tight against variable influent so neither system drifts out of its design window, and a downstream plate-and-frame filter press sized to either the DAF float or the lamella underflow. For broader sludge-handling strategy across the 2026 cycle, the 2026 engineering note on reducing chemical sludge production pairs directly with this cost band.
Decision Framework: Pick the 2026 Stack in 60 Seconds
Four questions, one defensible answer.
- Q1: Is the stream FOG-free and dominated by dense hydroxide floc? → Lamella primary, optional DAF polish.
- Q2: Is there any intermittent oil (cutting emulsions, truck wash, maintenance shop)? → DAF primary.
- Q3: Is winter operation at <10°C and flow <20 m³/h? → DAF skid, sized with 10–15% cold-weather margin.
- Q4: Do you need margin against 40 CFR 437 daily-maximum metals? → Add a high-efficiency lamella clarifier polish regardless of primary.
Rule of thumb: pair a packaged ZSQ series DAF system (4–300 m³/h, 13 standard models) with a lamella clarifier for the 2026 envelope. The same logic is documented in the Hamilton mining/metals 2026 buyer's guide and the Caddo Gap mining/metals 2026 guide for adjacent basins.
Frequently Asked Questions
Does 40 CFR 437 require a DAF or a clarifier specifically?
No. Neither technology is explicitly required by 40 CFR 437. The rule sets daily-maximum and monthly-average limits for TSS, total recoverable lead, zinc, copper, and iron, plus pH 6.0–9.0 (per 40 CFR 437.30–437.32). A well-sized DAF or lamella, paired with chemical precipitation, can meet those limits; many US plants run DAF primary plus lamella polish for margin against daily-maximum excursions.
What surface loading should I use to size a lamella on a mining stream?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area; for fine silica or low-density floc, drop to 10–15 m/h. The published 20–40 m/h range (Zhongsheng P10) is for clean, well-conditioned hydroxide floc only, and pushing past 30 m/h on real mining streams risks colloidal-fines breakthrough.
Can a DAF run through a Winfield winter?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (Zhongsheng field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter.
Can a lamella clarifier work alone on a taconite or iron-ore stream?
Yes — many taconite concentrators run lamella-only as primary clarification on FOG-free streams, hitting 40 CFR 437 TSS <30 mg/L with metals controlled at the upstream precipitation step. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture.
How much smaller is a DAF than a conventional clarifier?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional gravity clarifier at 5–8 m² per m³/h, and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² and 600 m² of clarifier footprint (Zhongsheng field data, 2026) — a number that closes the DAF CAPEX premium once civil and building costs are tallied.
