Nanofiltration System Process Flow Diagram: 2026 Engineering Guide

What a Nanofiltration System Process Flow Diagram Actually Shows

A nanofiltration (NF) system process flow diagram maps an industrial water stream through a sequenced train — equalization, multimedia and cartridge filtration, antiscalant dosing, a high-pressure pump, crossflow NF membrane vessels, and a permeate/concentrate split — producing a low-hardness permeate and a concentrated brine. NF membranes have 1–10 nm effective pores and operate below 30,000 mg/L feed TDS, rejecting multivalent ions (Ca²⁺, Mg²⁺) while passing monovalent salts (per the WaterTAP 0D nanofiltration model reference, watertap.readthedocs.io, 2026).

What makes the NF PFD distinct from a UF or RO diagram is the way three simultaneous mass-transport modes show up on the stream table: convective transport through physical 1–10 nm pores, diffusive transport driven by concentration gradients, and electromigration driven by the membrane's surface charge. That third mode is what lets NF reject divalent hardness ions at transmembrane pressures of 0.3–1.0 MPa, far below the 1.0–3.0 MPa RO envelope, while still demanding tighter pretreatment than a UF skid (per the Kedem-Katchalsky model formulation documented in WaterTAP 0.9.0, 2026). In practical terms, an NF PFD looks like an RO PFD with a smaller high-pressure pump, larger concentrate recycle line, and a less aggressive CIP chemistry envelope.

The operational envelope to annotate on the drawing: feed TDS below 30,000 mg/L, transmembrane pressure 0.3–1.0 MPa, system recovery 70–85%, and crossflow velocity 0.1–0.3 m/s. Those four numbers should appear on every NF block of every PFD you issue for purchase.

Block 1: Feed Equalization and pH/Temperature Conditioning

Equalization belongs on the PFD because raw industrial feeds swing — flow by ±30% over a shift, temperature by 5–10 °C, pH by 1–2 units. An equalization basin sized for 4–8 hours of residence dampens those swings to roughly ±10% of nominal, drops settleable grit, and gives the downstream dosing pumps a stable signal to track. Skipping this block is the single most common reason NF high-pressure pumps trip on low suction pressure during the first month of operation.

pH conditioning is part of the equalization block on the PFD because most polyamide thin-film composite NF elements are rated for continuous operation at pH 2–11 and cleaning at pH 1–12 (vendor tolerance bands; e.g., FilmTec NF270 published datasheet, 2025). Anything outside that envelope hydrolyzes the polyamide layer and permanently increases salt passage. Mark a pH probe (QE-101) on the outlet, with a closed-loop trim signal back to the acid dosing pump.

Temperature matters because flux is proportional to 1/viscosity. Feed at 25–35 °C is the design window; below 15 °C the viscosity correction in the WaterTAP model will reduce expected flux by 25–35% relative to the 25 °C reference, and above 40 °C you begin to compress the pH tolerance window. Annotate a temperature transmitter (TE-101) and a heat exchanger if the source feed runs hot — for example, a textile dye-bath reuse stream at 50–60 °C.

Block 2: Multimedia Filtration and Cartridge Pre-Filtration

SDI₁₅ at the NF membrane inlet must be below 5; that is the standard NF design basis inherited from RO pretreatment practice and is the single number that determines whether your project runs at nameplate flux or at chronic-fouling penalty. The way to hit SDI₁₅ < 5 on the PFD is a multimedia filter followed by a 5 µm absolute cartridge — never either one alone.

The multimedia filter (anthracite over sand over garnet) is sized for 10–20 m/h superficial velocity and targets an outlet turbidity under 1 NTU. For a 50 m³/h textile reuse train that translates to a 1.4–2.8 m diameter vessel, with backwash initiated on differential pressure reaching 0.07–0.1 MPa across the bed. On the PFD, show a backwash line returning to equalization, plus PT and PDI instruments on the inlet and outlet. A correctly sized multimedia filter for NF feed is the cheapest insurance on the train — it protects every membrane element downstream.

The cartridge filter downstream of the MMF is rated 5 µm absolute for standard NF protection, occasionally 1 µm for high-fouling feeds such as pharmaceutical API mother-liquor or metal-finishing rinsewater. Show the housing with element count (e.g., 20 × 30-inch cartridges for 50 m³/h at <15 m³/h per 10-inch element), a PDI switch set to alarm at 0.07 MPa and trip at 0.12 MPa, and a pressure-relief valve on the outlet. Inline instruments on the combined pretreatment block: PT (pressure), PDI (differential pressure), FT (flow), and QT (TDS/conductivity) — those four tags appear on every industrial NF pretreatment PFD.

Block 3: Chemical Dosing Skid — Antiscalant, Acid, and Reducer

The dosing skid is a mandatory block on an industrial NF PFD, not an optional accessory. Three chemicals are injected ahead of the high-pressure pump: antiscalant, acid, and (if the feed carries oxidant) sodium bisulfite. Skipping any of the three is the difference between a 24-month membrane life and a 6-month replacement cycle.

Antiscalant at 2–5 mg/L is injected at the pump suction to suppress calcium carbonate, calcium sulfate, silica, and barium sulfate scaling on the concentrate side of the membrane. The dose is set by the saturation index of the worst-acting salt in the concentrate stream at recovery — most antiscalant vendors publish software (e.g., GenGard, Genesys) for this calculation. On the PFD, the dosing point is the feed pump suction header, with a stroke-length dosing pump and a pulse-dampener.

Acid (HCl preferred over H₂SO₄ for calcium-rich feeds because sulfuric acid adds sulfate scaling potential) trims feed pH into the 6.5–7.5 operating window that keeps the Langelier Saturation Index negative on the concentrate side. Below pH 6 you waste acid; above pH 8 you invite carbonate scale. Show a pH probe in the dosing line with a closed-loop trim back to the acid pump. For polyamide NF protection against free chlorine, sodium bisulfite (SBS) is dosed to maintain a reducing residual — ORP probe downstream, setpoint roughly +200 to +300 mV, never above +350 mV, which is the commonly cited upper bound for continuous polyamide exposure. An antiscalant and pH dosing skid integrates all three pumps on a single frame with a calibration column and spill containment bunded to 110% of the largest drum.

Block 4: High-Pressure Feed Pump and Energy Recovery

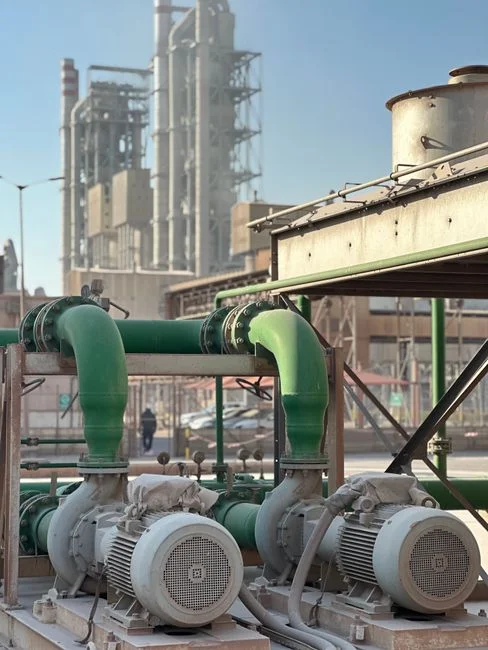

The pump block on the PFD is where the NF diagram diverges most from a UF diagram. NF runs at 0.5–1.5 MPa for low-pressure NF (loose NF, water softening) and up to 3.0 MPa for tight NF applications, so a multistage centrifugal pump is the workhorse for the 0.5–1.5 MPa envelope. Positive-displacement pumps (typically triplex plunger) cover the higher-pressure niche when feed TDS pushes the osmotic pressure up.

Show the pump with a VFD on the suction or discharge side for recovery-ratio adjustment, plus the standard protection devices: low-pressure switch on suction (cuts the pump if the cartridge filter fouls and the upstream pressure drops), high-pressure relief valve on discharge (set at 110% of design DP), and a basket strainer on the suction line. Those three devices belong on every NF PFD; missing any one of them converts a clean shutdown into a membrane-element replacement event.

Energy recovery matters when system throughput exceeds roughly 100 m³/h. A PX pressure-exchanger or a turbine-type ERI device on the concentrate line can recover 30–60% of the pump shaft power — that is a 2–4 year payback on the device at industrial electricity tariffs. On the PFD, the energy-recovery device is drawn as a coaxial block on the concentrate return line, with a speed-increasing gearbox back to the pump shaft (turbo) or a direct hydraulic loop (PX).

Block 5: NF Membrane Array — Vessels, Stages, and Recirculation

The NF array is the heart of the PFD. The vessel is a standard 8-inch (200 mm) FRP pressure vessel rated 300–600 psi (2.0–4.0 MPa), end-port for low-pressure NF and side-port for higher-pressure designs, each loaded with multiple 8-inch spiral-wound elements (typical element length 40 inches / 1.0 m). Show the array as a 2:1, 3:1, or 4:2 staged layout — the ratio sets system recovery at a fixed concentrate flow.

The concentrate recycle loop is the second distinguishing feature of an NF PFD after the dosing skid. A throttle valve on the concentrate discharge line, plus a recycle line returning concentrate to the pump suction, lets the operator hold crossflow velocity at 0.1–0.3 m/s through the lead-stage elements. Typical recycle ratio is 30–50% of concentrate flow — too little and the lead elements foul from low shear; too much and the pump runs at unnecessarily high discharge pressure. Mark the recycle line with a flow controller (FCV) and a conductivity probe to monitor concentration polarization.

Three labeled streams leave the array: S-06 NF feed (from the dosing/pump block), S-07 permeate (to polishing or direct reuse), and S-08 concentrate (split between the recycle line and S-09 brine discharge). The WaterTAP model port structure (per watertap.readthedocs.io, 2026) maps directly to those stream IDs: feed inlet, permeate outlet, and brine/retentate outlet, with the four model parameters — water permeability A, salt permeability B, reflection coefficient sigma, and pressure drop deltaP — as the block-level inputs the modeler fills in.

Block 6: Permeate Polishing, Brine Discharge, and CIP Skid

Permeate handling is the first of two off-ramps from the NF array. For direct reuse (e.g., textile dyeing rinsewater going back to a wash step), the permeate stream may go straight to buffer storage with a conductivity trip setpoint to dump off-spec water back to equalization. For higher-purity reuse — boiler feed, pharmaceutical process water, or a final demineralization polish — the permeate goes to an RO polishing train downstream of NF, or to an ion-exchange unit for residual hardness and silica removal. The decision logic is simple: if reuse spec is below 50 µS/cm, you need RO downstream; if it is below 5 µS/cm, you need RO plus mixed-bed IX.

Concentrate handling drives OPEX more than any other block on the PFD. Three disposal routes are common: to an evaporation pond (low CAPEX, high land area), to a brine concentrator or mechanical vapor recompression (MVR) unit (high CAPEX, minimal liquid discharge), or to the headworks of a wastewater treatment plant (requires permit-compatible chemistry). The volume you must dispose of is the feed flow times (1 minus recovery) — at 70% recovery that is 30% of feed as concentrate; at 85% it is 15%. Every percentage point of recovery saved on concentrate is roughly 1% saved on disposal OPEX, which is why the concentrate recycle loop is not an optional accessory.

The CIP skid is the last block on the PFD. It includes a CIP tank (typically 1.5× the volume of one pressure vessel), a CIP pump rated at 0.2–0.3 MPa, an electric heater to 35 °C, and a return line to the NF array. Standard NF CIP chemistry is a two-step cycle: alkaline surfactant (pH 11–12, 35 °C, 60 min) followed by acid (citric or HCl, pH 2–3, 30 min), with a neutral-pH rinse between and after. On the PFD, mark conductivity, flow totalizer, and pH instruments on the concentrate and CIP return lines — those are your permit-compliance sampling points and your CIP endpoint triggers.

Master Process Flow Diagram with Block-by-Block Parameters

The consolidated PFD has eight blocks running left to right: equalization → multimedia filter → cartridge filter → chemical dosing → high-pressure pump → NF membrane array (with concentrate recycle) → permeate polish / concentrate discharge → CIP skid. Stream IDs run S-01 through S-09: S-01 raw feed, S-02 equalized, S-03 multimedia-filtered, S-04 cartridge-filtered and dosed, S-05 high-pressure pump discharge, S-06 NF feed, S-07 permeate, S-08 concentrate, S-09 CIP return. Hand this stream list to your drafter and you have a consistent tag scheme across the whole train.

For the NF block specifically, the four WaterTAP model parameters (A, B, sigma, deltaP) go in the equipment datasheet, not on the PFD line, but the PFD is what tells the modeler which stream IDs to attach them to.

How NF Fits Between UF, RO, and MBR on an Industrial PFD

NF almost never sits alone on a plant PFD. The three membrane neighbors a process engineer most often pairs it with are UF upstream, RO downstream, and MBR upstream for wastewater reuse. Each pairing has a specific reason on the diagram.

UF upstream of NF removes colloids, bacteria, and partial organics, letting the NF run at higher sustained flux with longer CIP intervals. RO downstream of NF lets NF do the hardness and organics reduction, protecting the RO from scaling and organic fouling — a common two-pass reuse train in textile and metal finishing. MBR upstream of NF, with the MBR upstream of NF for wastewater reuse, takes secondary effluent (sub-1 µm filtered) and feeds it directly to NF, cutting the chemical pretreatment load dramatically because BOD and TSS are already low.

Three Engineering Pitfalls That Show Up in Bad NF PFDs

First pitfall: no concentrate recycle. A PFD that runs the concentrate once-through to disposal will operate below 50% recovery even if the elements are sized for 80%, because the crossflow velocity will collapse in the tail elements. The result is an oversized brine disposal stream and pump energy wasted on water that should be cycling back to the array.

Second pitfall: cartridge filter rated too coarse. A 10 µm nominal cartridge (which most engineers default to because it is on the shelf) lets fines through that foul NF elements in weeks instead of months. The fix is 5 µm absolute as the baseline, dropping to 1 µm absolute for high-fouling feeds like pharmaceutical or metal-finishing streams. The cost difference between a 5 µm and a 10 µm cartridge is trivial; the membrane replacement cost difference is not.

Third pitfall: missing CIP return line. If the PFD does not show a return from the NF array back to the CIP skid, the operator has to dismantle piping to clean. Cleaning gets skipped, flux drops permanently, and the membranes come out six months early. Every NF PFD should have a dedicated CIP return line with a three-way valve at the array outlet.

Before issuing the PFD for purchase, run it past a reviewer specifically looking for these three items. A 30-minute review at this stage saves a six-figure OPEX surprise during commissioning.

Frequently Asked Questions

What is a nanofiltration system process flow diagram?

A nanofiltration system process flow diagram is an engineering drawing that maps an industrial water stream through a sequenced train — equalization, multimedia and cartridge filtration, antiscalant and acid dosing, a high-pressure pump, crossflow NF membrane vessels in a staged array with concentrate recycle, and a permeate/concentrate split — to produce a low-hardness permeate and a concentrated brine (per the WaterTAP 0D model reference, 2026).

How many blocks should an industrial NF PFD contain?

A defensible industrial NF PFD contains eight blocks: feed equalization, multimedia filtration, cartridge filtration, chemical dosing, high-pressure pump, NF membrane array with concentrate recycle, permeate polishing or concentrate discharge, and a CIP skid. Anything shorter is missing either pretreatment protection, the recycle loop, or the cleaning circuit.

What recovery rate should I annotate on the NF PFD?

Annotate 70–85% system recovery for an industrial NF train operating below 30,000 mg/L feed TDS. The exact number is set by the concentrate recycle ratio and the saturation index of the worst-acting scale-forming salt (CaCO₃, CaSO₄, SiO₂, or BaSO₄) at the array outlet.

How do I decide between NF and RO on the PFD?

Use NF when the goal is hardness and multivalent-ion reduction at 0.3–1.0 MPa transmembrane pressure and the permeate spec allows partial monovalent salt passage. Use RO when the goal is full desalination to below 50 µS/cm, which requires 1.0–3.0 MPa transmembrane pressure. NF and RO are commonly stacked, with NF upstream of RO for hardness removal and RO downstream for final polishing.

What is the standard way to handle NF concentrate?

NF concentrate is disposed of via one of three routes: an evaporation pond, a brine concentrator or mechanical vapor recompression (MVR) unit, or the headworks of a wastewater treatment plant with permit-compatible chemistry. The concentrate stream at 70–85% recovery is 15–30% of feed flow, and its disposal OPEX typically dictates whether a higher-pressure RO upstream is more economical than a larger NF array.
