What an MVR Evaporator Is and Why Design Parameters Matter
A mechanical vapor recompression (MVR) evaporator is a forced-circulation flash evaporator that operates as an open heat pump: secondary vapor boiled off the process liquor is compressed to raise its saturation temperature, then condensed on the opposite side of the same heat exchanger to reboil the liquor. Because the latent heat is recycled internally, an MVR replaces the fresh boiler steam a multi-effect evaporator would consume, and the only external energy input is the compressor's shaft work. In ENCON's reference architecture (S2) and YASA's EVADEST line (S4), this cycle delivers a specific energy demand of 6–48 kWh per ton of water evaporated and an operating cost as low as $0.01–$0.02 per gallon of distillate.
Before a procurement review board signs off on a purchase order, six parameters have to be locked down: evaporation capacity (gph or m³/h), saturation temperature lift (8–18 °C across the compressor), boiling point elevation of the feed (2–10 °C at 20–35% TDS), the overall heat transfer coefficient of the circulation loop (1,500–3,500 W/m²·K), specific energy demand (6–48 kWh/ton), and compressor ΔP (15–70 kPa). The article that follows is built around those six numbers and validates them against the Gotsu Mill 2019 installation (S1), where a pulp mill achieved 111% of baseline pulp production and a 13% energy reduction versus a multi-effect baseline by choosing the right parameter envelope rather than buying more hardware.
Core MVR Evaporator Design Parameters at a Glance
The table below is the spec sheet a process engineer should hand to a vendor before requesting a quote. Ranges reflect 2026 packaged-unit offerings and custom-engineered systems, anchored to ENCON's 500–1,350 gph packaged split (S2) and YASA's published performance band (S4).
| Parameter | Typical Range (2026) | Design Driver | Notes |
|---|---|---|---|
| Evaporation capacity (packaged) | 500–1,350 gph (~1.9–5.1 m³/h) | Feed flow and target concentration factor | Custom builds extend above 1,350 gph (ENCON S2) |
| Saturation temperature lift (ΔT across compressor) | 8–18 °C | Available ΔT for HX heat transfer after BPE | Drives compressor ΔP directly |
| Boiling point elevation (BPE) | 2–10 °C at 20–35% TDS | Feed salt/organic loading | Subtracts from usable ΔT |
| Overall heat transfer coefficient (U) | 1,500–3,500 W/m²·K (forced circulation) | HX type, velocity, scaling tendency | Plate-and-frame at the high end; shell-and-tube lower |
| Specific energy demand | 6–48 kWh/ton water evaporated | Lift, ΔP, compressor efficiency | YASA S4 quotes the full band |
| Compressor ΔP | 15–70 kPa | Required ΔT and vapor density | Rotary-lobe at low end; centrifugal at high end |
| Distillate TDS | <10 mg/L | Vapor–liquid separation efficiency | YASA S4 |
| Volume reduction | Up to 95% | Concentration factor achievable in single stage | ENCON S2 |
| Feed TDS class: <5% | Plate HX, rotary-lobe blower | Low scaling, low ΔP | Compact skid |
| Feed TDS class: 5–15% | Plate or falling-film HX, rotary-lobe or small centrifugal | Moderate BPE (2–5 °C) | Standard packaged range |
| Feed TDS class: 15–30% | Shell-and-tube or plate HX, centrifugal compressor | BPE 5–8 °C, higher ΔP | Forced circulation mandatory |
| Feed TDS class: >30% | Shell-and-tube HX, centrifugal, often multi-stage | BPE >8 °C, viscosity-bound | Approaching saturation; pilot testing required |

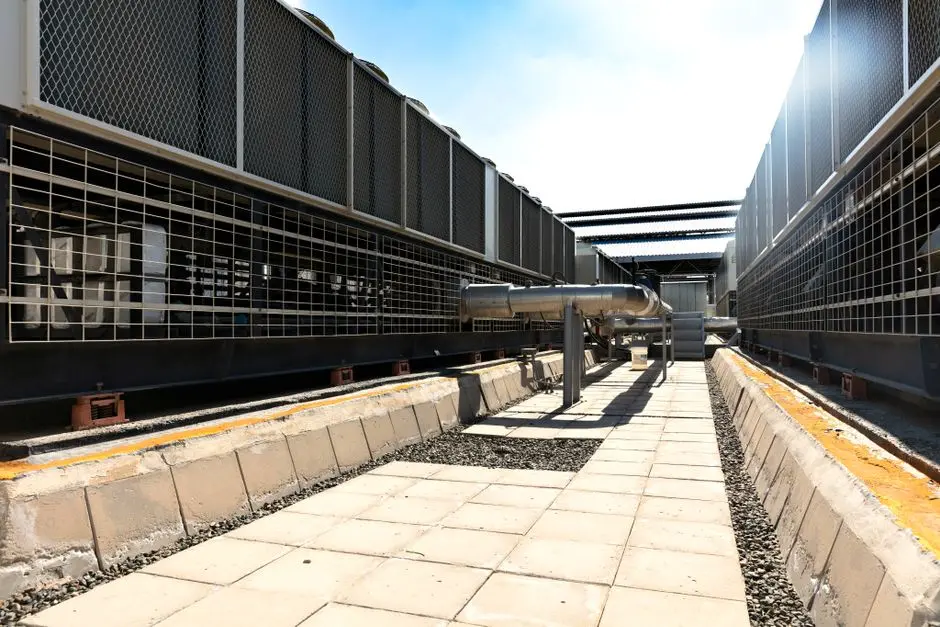

Vapor Compression and Thermodynamic Parameters
The Rankine-style heat pump that defines MVR is why the technology can outperform multi-effect evaporation by an order of magnitude on steam demand. In a typical forced-circulation unit, liquor flashes at roughly 100 °C and atmospheric pressure; the vapor leaving the separator is compressed to lift its saturation temperature by 8–18 °C, and the compressed vapor is then condensed inside the main heat exchanger to reboil the circulating stream (ENCON S2; YASA S4). No fresh boiler steam is required once the loop is at steady state.
Boiling point elevation (BPE) is the gap between the solution boiling point and the pure-water boiling point at the same pressure, and it subtracts directly from the ΔT available for heat transfer. For most industrial brines at 20–35% TDS, BPE runs 2–10 °C; a 25% sodium sulfate mother liquor sits near 5 °C, while a 35% black liquor can hit 8 °C. If the design ΔT is 12 °C and the BPE is 6 °C, the effective log-mean ΔT driving force across the heat exchanger collapses to roughly 6 °C, and the HX area has to grow accordingly.
Compressor work falls out of the isentropic relation. A 10 °C saturation lift at atmospheric pressure requires only 15–25 kPa of ΔP and roughly 6–15 kWh/ton of vapor — two orders of magnitude below the 600+ kWh/ton needed to generate fresh steam from liquid water at the same conditions. This is the thermodynamic reason YASA quotes 6–48 kWh/ton (S4) and the reason the Gotsu Mill 2019 installation (S1) was able to cut energy cost by 13% against a multi-effect baseline: the parameter choices (ΔT ~10–15 °C, BPE 5–8 °C for SP black liquor) were thermodynamically favorable before any hardware was selected.
Heat Exchanger and Loop Hydraulics
The heat exchanger and the circulation loop around it are the parts of an MVR that fail first when parameters are mis-specified. ENCON's design rule is that the loop pressure at the heat-exchanger outlet must be held above the saturation pressure of the liquor at that point, so that no boiling occurs inside the HX tubes or plates (S2). Boiling in the HX is the dominant fouling mechanism, because vapor blanketing the wall suppresses the local heat transfer coefficient and nucleates scale on the hot surface. Suppressing it is the whole point of forced circulation.
Loop velocity is the second parameter that quietly decides uptime. The working window is 1.5–3.0 m/s: high enough to keep CaSO₄, silica, and organic particulates in suspension, low enough to stay below erosive wear on tube bends and plate inlets. ENCON describes its circulation as "high rate" (S2) without quoting a number; in field practice, 2.0–2.5 m/s is the typical design point for moderate-TDS feeds. The HX choice flows from this: plate-and-frame units deliver the higher U-value (often 2,500–3,500 W/m²·K) and a compact skid, but tolerate scaling poorly and are usually specified for clean-to-moderate feeds. Shell-and-tube exchangers carry a larger footprint and a lower U-value (~1,500–2,200 W/m²·K) but resist fouling and survive CIP cycles on aggressive streams, which is why they dominate above 15% TDS (ENCON S2).
Downstream of the HX, an orifice plate creates the controlled pressure drop that initiates flash boiling in the separator. This element is rarely listed in vendor quotes but is the difference between a stable liquor level and a surging compressor. For feeds above ~200 mg/L TSS, multi-media pre-filtration for MVR feed streams upstream of the loop is the standard guard.

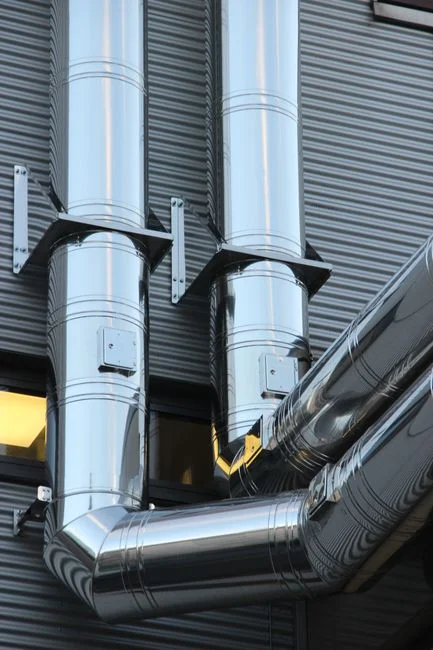

Compressor Sizing and Selection
Compressor selection is the single parameter that maps cleanly onto feed flow rate, and ENCON's published split (S2) is the simplest decision rule in the spec: rotary-lobe (roots) blowers for smaller units, centrifugal compressors for larger flows and higher ΔP. The table below formalizes the trade-off.
| Compressor Type | Flow Range (packaged) | ΔP Range | Strengths | Limits |
|---|---|---|---|---|
| Rotary-lobe / roots blower | Up to ~1,000 gph | 15–30 kPa | High isentropic efficiency at low ΔP; simple controls; lower CAPEX | Limited wet-vapor tolerance; rotor fouling on particulate-laden streams |
| Centrifugal (single- or multi-stage) | Above ~1,000 gph | 30–70 kPa | Scales to large flows; tolerates wet vapor and higher particulate; surge map controllable | Narrower operating window; needs anti-surge control |
Materials of construction matter as soon as the feed carries chlorides or other halides. ENCON specifies high-alloy rotary-lobe rotors and duplex stainless steel centrifugal housings for corrosive service (S2). Compressor suction is the most fouled section in field experience — the Gotsu Mill case (S1) specifically calls out compressor vibration traced back to fouling on the rotor — so specifying wash-in-place access on the suction scroll is a parameter worth writing into the purchase order, not a vague request for "ease of maintenance."
Feed Pre-Treatment, Materials, and Automation
Pre-treatment is where most MVR projects succeed or fail before the compressor is even energized. Feeds with TSS above ~200 mg/L need primary clarification followed by multi-media pre-filtration for MVR feed streams; pH adjustment and antiscalant dosing are typically handled by a PLC-controlled pH and antiscalant dosing skid upstream of the MVR, with injection points sized for the loop's residence time. Hardness, silica, and iron all need target envelopes specified before the pilot test, because once scale forms on the HX surface, recovery is a CIP event, not an operating condition.
Instrumentation and control should be specified by brand and standard, not by function. ENCON's reference build uses Rosemount transmitters, Allen-Bradley PLCs, and ASME Section VIII pressure vessels with rupture disks (S2) — a benchmark worth matching rather than treating as optional. The CIP cycle itself is a parameter set: 60–80 °C cleaning solution, 1–2 h contact time, weekly frequency on scaling feeds, with ENCON's automated CIP (S2) as the reference. Manual CIP at the same parameters will work; automated CIP will run on schedule when the plant is short-staffed, which is when scaling feeds always seem to foul.
Non-condensable gas venting is the silent parameter in nearly every MVR specification. Air and CO₂ entering the loop accumulate in the condenser, blanket the tubes, and force the compressor to chase a higher ΔP — the field symptom is surge. A continuous vent on the separator vapor space, sized at roughly 1–3% of the vapor mass flow, is standard practice and should be on the P&ID before the compressor is selected. For polishing of the recovered distillate before it returns to a reuse loop, RO polishing of MVR distillate is a common downstream step.

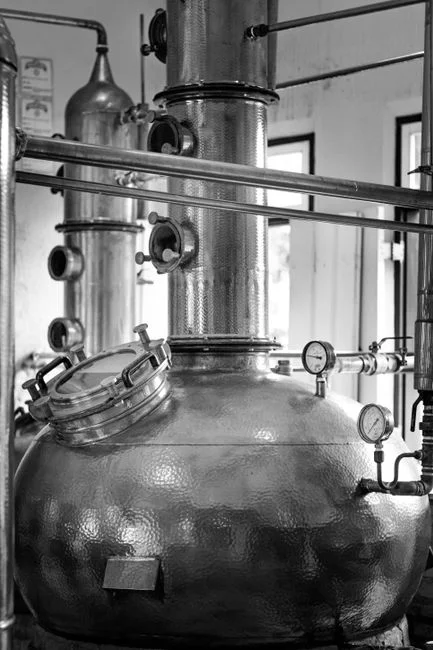

Sizing Example and Field Validation
Worked example: 10 m³/h of ammonium-sulfate mother liquor at 25% TDS, concentrated to 55% TDS in a single stage. Mass balance gives 5.5 m³/h of water to be evaporated, which at 12 °C ΔT and a BPE of 5 °C leaves 7 °C of effective log-mean ΔT across a plate-and-frame HX. Assuming U = 2,800 W/m²·K and a latent heat near 2,260 kJ/kg, the required HX area lands at roughly 85 m². Specific energy at this lift and ΔP is in the 12–15 kWh/ton band, so compressor power comes out near 110 kW. The numbers sit comfortably inside the parameter matrix in Section 2.
Validation against the Gotsu Mill 2019 installation (S1): SP black liquor at 25–30% TDS, BPE 5–8 °C, ΔT 10–15 °C across the compressor, centrifugal blower. The same parameter envelope delivered 111% of baseline pulp production and 13% energy reduction against a multi-effect reference. The two scale-control incidents reported in the paper — heater fouling by scale and compressor vibration — were both parameter failures (under-sized circulation, insufficient suction filtration), not vendor defects, and were resolved by stronger vapor-drain cleaning cycles and open cleaning of the compressor.
| Metric | Multi-Effect Baseline (theoretical) | MVR with Parameters Above |
|---|---|---|
| External steam demand | ~0.25–0.35 ton steam/ton water | ~0 (compressor shaft work only) |
| Specific energy | Thermal: 600+ kWh/ton equivalent | 12–15 kWh/ton electrical |
| Footprint (5 m³/h evaporative duty) | Multi-effect stack: 4–6 effects, tall | Single skid, low profile |
| OPEX driver | Steam cost × consumption | Electricity cost × kWh/ton |
| Field result (Gotsu, 2019) | Baseline | 13% energy reduction; 111% throughput |
Frequently Asked Questions
What are the most important MVR evaporator design parameters?
Six parameters drive every MVR specification: evaporation capacity (gph or m³/h), saturation temperature lift across the compressor (8–18 °C), boiling point elevation of the feed (2–10 °C at 20–35% TDS), the overall heat transfer coefficient of the forced-circulation loop (1,500–3,500 W/m²·K), specific energy demand (6–48 kWh/ton), and compressor ΔP (15–70 kPa). Feed pre-treatment targets — TSS, hardness, pH — should be specified at the same level of detail, because they set the cleaning interval and the U-value the unit will actually deliver in the field.
How much electricity does an MVR evaporator use?
Specific power consumption for packaged MVR units sits in the 6–48 kWh per ton of water evaporated range (YASA S4), with most process-scale installations landing between 10 and 20 kWh/ton at a 10–15 °C lift. ENCON translates this into an OPEX band of $0.01–$0.02 per gallon of distillate (S2), which is the number a procurement review board will want to see.
What TDS can an MVR handle?
Single-stage MVR units routinely concentrate feeds to 60–70% TDS and produce a distillate below 10 mg/L TDS (YASA S4). Multi-stage and MVR-plus-crystallizer configurations push past the saturation limit of the dissolved salt and produce a solid product, which is the configuration that turns MVR into a ZLD enabler with up to 95% volume reduction (ENCON S2).
When should an MVR not be selected?
An MVR is the wrong choice when the feed scaling tendency is so extreme that CIP cycles would dominate uptime, when the plant has essentially free low-pressure steam (a multi-effect will beat it on operating cost), or when the required capacity is below roughly 1 ton/h — below that band, capital cost per ton of water evaporated climbs and the economics stop working. A pilot boil-down test on the actual waste stream is the standard way to confirm the go/no-go before committing to a packaged skid.
Is MVR a zero-liquid-discharge (ZLD) technology?
MVR is a ZLD enabler rather than a complete ZLD system on its own. A single-stage unit can cut waste volume by up to 95% and return distillate below 10 mg/L TDS to the process (ENCON S2; YASA S4), but the remaining 5% of concentrated liquor typically still needs a downstream crystallizer, dryer, or a hybrid train — see a typical high-strength organic wastewater treatment train design or an electroplating wastewater ZLD process design — to reach a true zero-liquid discharge. For dye-bath and textile applications, the MVR is usually paired with RO and a finishing evaporator; a representative textile dye-bath concentration and recycling train shows the hybrid layout.
