What IFAS Actually Is and Why Engineers Specify It
IFAS (Integrated Fixed-Film Activated Sludge) is a hybrid wastewater process that suspends plastic biofilm media inside a conventional activated-sludge aeration tank, allowing the system to maintain higher mixed-liquor suspended solids (typically 4,000–8,000 mg/L) and a longer effective SRT than CAS alone. IFAS advantages include a 30–50% footprint reduction versus CAS at the same load, retrofittability into existing tanks, and simultaneous nitrification-denitrification capacity; the primary disadvantages are media fouling risk, higher aeration energy per kg BOD, and complex screen management at the solids separation stage.
The free-floating media — typically high-density polyethylene cylinders or sponges with a specific surface area in the 500–1,500 m²/m³ range — sits in the aeration zone while mixed liquor flows around it. Biofilm grows on the media to perform the bulk of the slow-growing nitrifier work, while the suspended-growth fraction handles carbonaceous BOD removal. There are two dominant retention strategies in 2026 commercial deployments: in-tank perforated-plate or cylindrical sieves (e.g., Bio-Active, Lynde, and equivalent configurations) that hold media inside a defined reactor zone, and external retention screens (Ringlace-style rope media) that allow mixed liquor to circulate through a packed external column. The choice drives both the hydraulic profile and the screen maintenance burden.
IFAS is specified when an existing CAS plant hits a nitrification capacity wall due to rising influent NH3-N, tighter discharge limits, or higher-strength catchment loads where building new tanks is not feasible. The process has been deployed at full scale for advanced wastewater treatment since the early 2000s, with academic literature confirming stable operation across municipal and industrial effluents. Relative to a moving bed biofilm reactor (MBBR), IFAS retains the sludge recycle and boosts MLSS, while MBBR runs with no sludge return and a purely attached-growth biomass. Relative to an MBR membrane bioreactor system, IFAS still relies on a secondary clarifier for solids separation. For a deeper comparison of biofilm oxygen-transfer mechanisms, the MABR counter-diffusion biofilm principle article lays out an adjacent technology on the same continuum.
The Real Advantages of IFAS Wastewater Treatment
IFAS allows a plant to run a higher effective biomass inventory than CAS without pushing clarifier solids loading past its limit, because the bulk of the slow-growing nitrifiers live on the media rather than in the mixed liquor. Combined MLSS reaches 4,000–8,000 mg/L, but the suspended-growth fraction can be held closer to 2,500–3,500 mg/L, with the remainder of the inventory attached to media. This decoupling is the core operating benefit, resulting in three concrete downstream outcomes.
First, footprint. Because the biofilm handles most of the nitrification load on a smaller volumetric basis, an IFAS basin delivers the same NH3-N removal in 50–70% of the volume a CAS basin would require. Second, retrofit compatibility. Existing aeration tanks, blowers, and secondary clarifiers can typically be reused, requiring only a screen retrofit, media fill at 20–40% volumetric capacity, and PLC adjustments rather than new civil works. Third, hydraulic and organic shock resilience. Biofilm nitrifiers are shielded from washout because they are physically retained, so NH3-N effluent remains stable under the diurnal load swings typical of combined sewer catchments, where peak-to-average ratios of 2:1 to 3:1 are common per EPA design guidance.
Process flexibility allows operators to stage media to favor carbon removal in the first cell, nitrification in the second, and simultaneous nitrification-denitrification in a low-DO third cell, effectively turning one tank into a multi-zone process. IFAS also coexists with biological phosphorus removal when anaerobic/anoxic cells are placed upstream of the IFAS zone. The trade-off is energy: aeration kWh per kg BOD removed runs 15–25% higher than CAS because coarse-bubble diffusers must scour the media to keep it in suspension (the SBR aeration energy optimization guide covers the same blower-cost dynamic in different reactor geometries).
The Honest Disadvantages and Failure Modes of IFAS
IFAS presents specific operational challenges, primarily media fouling, screen carryover, and cold-weather nitrification collapse, which must be addressed during feasibility planning.

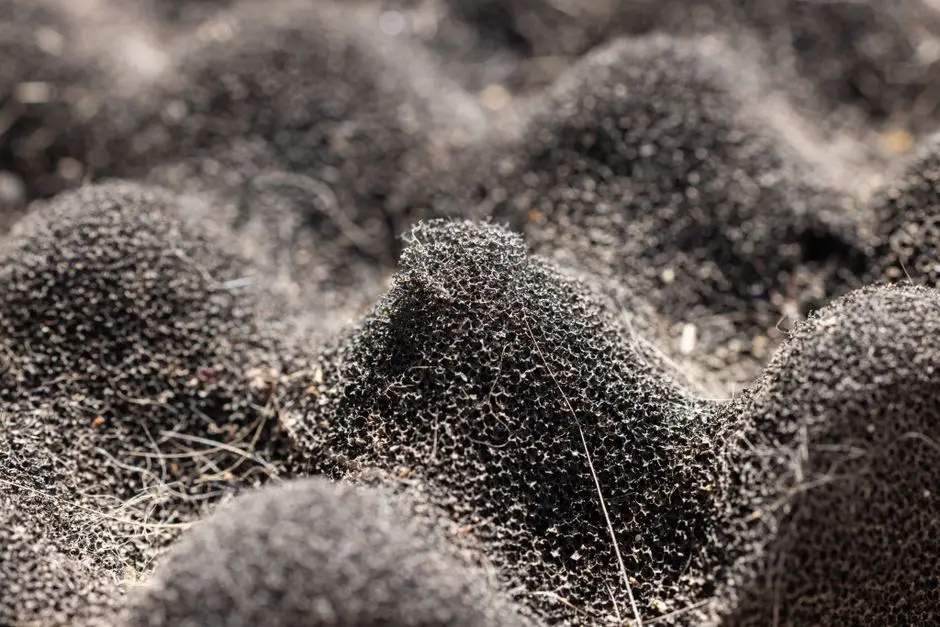

Media fouling. Biofilm overgrowth and inorganic scaling (calcium carbonate, calcium phosphate, or struvite in high-hardness wastewaters) clog the retention screens and the media interstitial space. Head loss rises and mixing degrades, forcing operators into intermittent backwash cycles or media withdrawal and cleaning. Higher specific aeration demand. Coarse-bubble aeration must scour the media to keep it suspended, and the biofilm consumes additional oxygen at depth, causing blower kWh per kg BOD removed to run 15–25% above CAS. Screen carryover and downstream clarifier stress. Media fragments and sloughed biofilm passing through damaged screens increase solids loading on the secondary clarifier, risking TSS excursions of 10–30 mg/L above design. Routine screen inspection is mandatory.
Cold weather impacts performance, as biofilm nitrification rates roughly halve below 10 °C, requiring designers in northern climates to oversize media surface area by 20–40%. IFAS requires higher process control discipline than CAS, including DO setpoints of 1.5–2.5 mg/L in the nitrification zone, weekly media inventory checks, and screen differential pressure monitoring. Plastic media has a 10–20 year service life, but screen losses and fouling-driven removals mean a media replacement line item—typically 2–5% of volume per year—should be included in the 10-year OPEX forecast. The downstream sludge dewatering cost also rises because IFAS produces more waste-activated sludge per kg BOD than CAS alone.
IFAS vs CAS, MBBR, and MBR: Process Parameter Comparison
The following table outlines typical operating ranges for municipal-strength wastewater at 15–25 °C; specific design values must be confirmed against influent characterization.
| Parameter | CAS | MBBR | IFAS | MBR |
|---|---|---|---|---|
| Typical MLSS (mg/L) | 2,000–4,000 | 200–600 (suspended) | 4,000–8,000 combined | 8,000–12,000 |
| Effective SRT (days) | 5–15 | N/A (attached) | 15–30 (with biofilm) | 20–40 |
| Effluent NH3-N (mg/L) | 1–5 | 1–3 | 0.5–2 | <1 |
| Effluent TSS (mg/L) | 10–30 | 10–30 | 10–30 | <1 (per Zhongsheng MBR product data) |
| Footprint multiplier vs CAS | 1.0× | 0.6–0.8× | 0.5–0.7× | 0.3–0.4× (60% smaller than CAS) |
| Aeration kWh/kg BOD removed | 0.6–0.9 | 0.7–1.0 | 0.8–1.1 | 0.9–1.3 |
| Retrofit complexity | Baseline | Moderate (screens, media) | Moderate–High (screens, media, PLC) | High (membranes, building, replacement budget) |
IFAS and MBBR share biofilm mechanisms but diverge on the suspended-growth fraction. IFAS retains it, which raises secondary clarifier loading and enables simultaneous nitrification-denitrification but also exposes the plant to clarifier failure modes that MBBR avoids. MBBR has no sludge return, simplifying operation and decoupling biomass from clarifier hydraulics, but limits denitrification unless the reactor is staged with an external anoxic zone. MBR bypasses the clarifier entirely to deliver reuse-grade water with the smallest footprint, at the cost of membrane replacement and higher aeration energy.
When IFAS Is the Right Choice: A Decision Framework
This matrix provides a selection rule based on binding plant constraints.
| Your situation | Best fit | Why |
|---|---|---|
| Existing CAS tank hydraulically adequate, nitrification capacity short, no civil expansion possible, NH3-N target <5 mg/L | IFAS | Retrofits into existing basin, decouples SRT from clarifier, 30–50% footprint credit |
| High-strength industrial influent with rapid temperature swings, high hardness or P | Avoid IFAS — consider MBBR or activated sludge with chemical P | Media fouling risk dominates; MBBR has easier media exchange |
| Effluent reuse target, <10 mg/L TSS required, footprint is binding constraint | MBR | Membrane separation delivers reuse water and 60% smaller footprint per Zhongsheng MBR product data |
| Greenfield build, low operator headcount, no biological P removal needed | MBBR | No sludge return, simpler control, robust to load swings |
| Small community, package plant, limited civil works budget | Packaged IFAS or integrated underground sewage treatment | Factory-built, skid-mounted, low site footprint |
IFAS is a retrofit optimization, not a replacement for membrane separation when water reuse is the primary goal.
CAPEX and OPEX Drivers for IFAS in 2026
Exact dollar figures vary by region and influent, but the primary cost drivers remain consistent. CAPEX is dominated by media volume (typically 20–40% volumetric fill), retention screens, blower upgrades to meet higher standard oxygen transfer requirements, and PLC instrumentation for monitoring. Civil work is usually the smallest line item in a retrofit.
OPEX is dominated by aeration energy, which typically accounts for 50–60% of total electrical costs, as addressed in the SBR aeration energy optimization guide. Screen maintenance labor, periodic media replacement (budget 2–5% of media volume per year), and downstream sludge handling complete the OPEX stack. For a structured budgeting walkthrough, the wastewater treatment maintenance cost planning guide provides a framework; for an adjacent technology, the granular activated sludge engineering guide offers a comparison on biomass settleability.
Frequently Asked Questions
Is IFAS better than MBBR?
Not categorically. IFAS retains a suspended-growth fraction alongside the biofilm, raising effective MLSS to 4,000–8,000 mg/L and enabling simultaneous nitrification-denitrification in one basin, but it also increases clarifier loading and operator complexity. MBBR has no sludge return, simpler control, and a smaller footprint per kg NH3-N removed, but cannot denitrify inside the same reactor without an external anoxic zone.
What are the disadvantages of IFAS?
The three failure modes are media fouling (biofilm overgrowth and inorganic scaling clogging retention screens), higher aeration energy per kg BOD removed (15–25% above CAS), and screen carryover that stresses the secondary clarifier. Cold-weather nitrification collapse below 10 °C is an additional risk in northern climates.
Can IFAS be retrofitted into an existing activated sludge tank?
Yes. The retrofit typically adds retention screens, fills 20–40% of the aeration volume with media, and upgrades blower capacity to handle the higher oxygen transfer demand. Civil work is often limited to screen support structures and media access hatches.
What is the typical effluent quality from IFAS?
BOD under 10 mg/L, NH3-N in the 0.5–3 mg/L range under warm-weather operation, and TSS of 10–30 mg/L
